Details

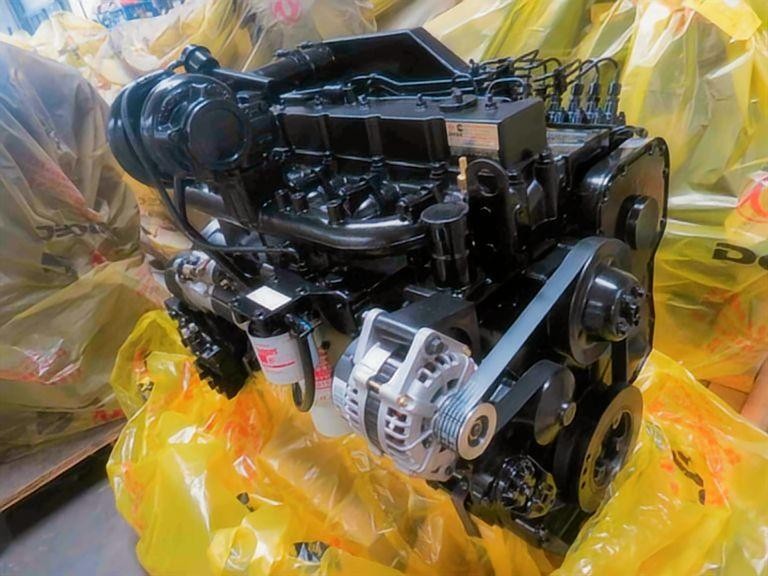

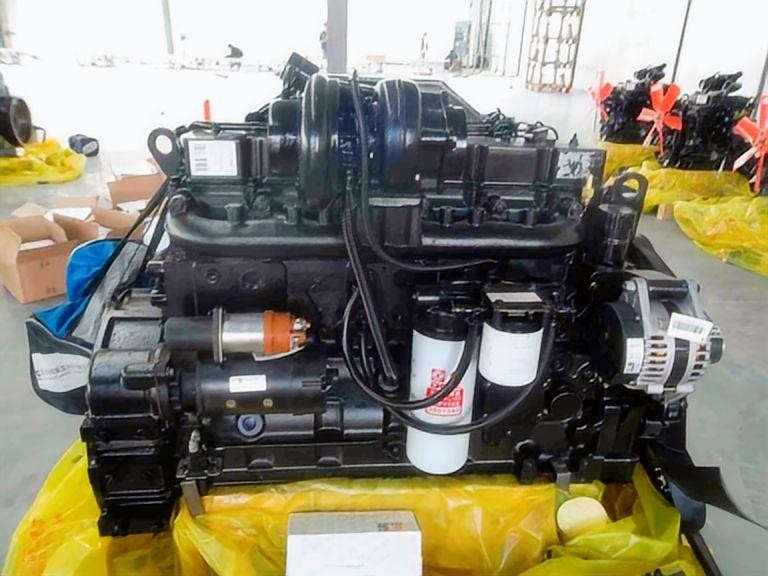

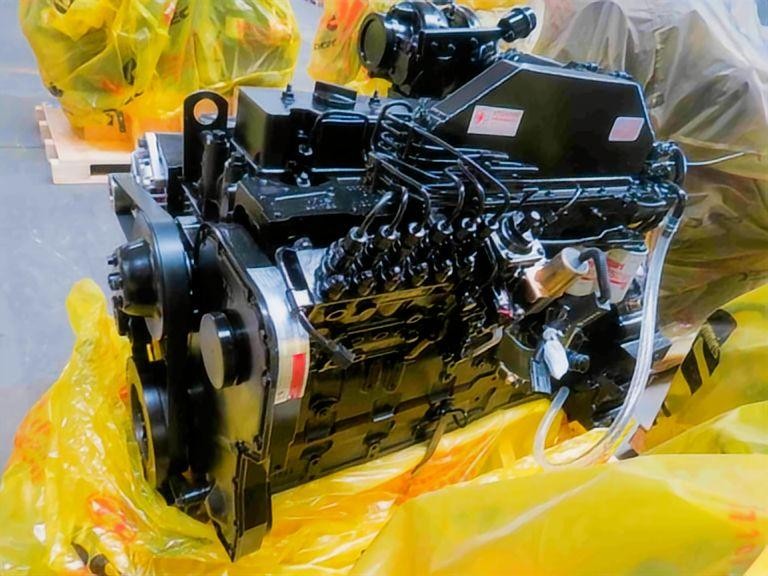

Genuine DCEC Cummins 6CTA8.3-C215 Mechanical Diesel Engine Assembly
Procuring a replacement engine for heavy equipment requires absolute technical certainty. The genuine DCEC Cummins 6CTA8.3-C215 construction engine is an inline 6-cylinder industrial diesel engine engineered to deliver steady torque under punishing structural loads. As a dedicated commercial engine supplier, HekoPower provides complete, factory-fresh engine assemblies configured to minimize machine downtime and match your precise original equipment manufacturer (OEM) interface.
Tech Specs of Cummins 6CTA8.3-C215
General Engine Data
Engine Model: Cummins 6CTA8.3-C215
Type: 6 Cylinders in Line
Displacement: 8.3 L
Bore * Stroke: 114 * 135
Overall Dimension: 1560mm*900mm*1400mm
Net Weight (with flywheel & alternator): 637 Kg
Key Performance Data
Rated Power: 160 kW/215HP
Rated Speed: 2200 rpm
Max Torque/Speed: 908 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 228 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro I
Aspiration: Turbocharged-Intercooled
Fuel System: Wuxi Weifu P7100 Pump/ RSV Govenor
Compression Ratio: 18:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.8 L
Fuel Delivery via the Weifu P7100 Pump
The fuel system uses a heavy-duty inline injection setup. The Weifu P7100 pump Cummins 6CTA8.3-C215 configuration provides precise mechanical fuel pressurization without requiring complex electronic control units (ECUs). This mechanical injection design makes the engine highly tolerant to varying fuel qualities found in remote mining or construction environments. The absolute lack of fragile sensors means your equipment remains operational even in extreme heat, high humidity, or wet conditions where electrical wires commonly fail.
Technical Comparisons: 6CTA8.3-C215 vs. Electronic Alternatives
Navigating emission tiers and electronic upgrades can complicate procurement decisions. A clear comparison reveals why this mechanical configuration remains the global standard for remote operations.
Mechanical Simplicity vs. Electronic Vulnerability
Modern Tier 3 and Tier 4 common-rail electronic engines offer low emissions but bring immense field vulnerabilities. They rely on delicate wiring harnesses, exhaust after-treatment sensors, and digital fuel mapping. If a single sensor fails on a remote job site, the whole machine triggers an emergency shutdown or enters a "limp mode," halting production completely. The Cummins 6CTA8.3-C215 mechanical diesel engine operates purely on fuel pressure and mechanical governors. If it has clean fuel and air, it will run. This makes it an incredibly reliable alternative for operators who cannot afford specialized diagnostic software or premium fuel grades.
Structural Comparison Within the Cummins C Series
The Cummins C series industrial diesel power solution is uniquely positioned between the smaller 6BT 5.9L and the larger M11 blocks. While a 5.9L engine might be pushed to its absolute thermal limit to hit 200 horsepower, the 8.3L displacement of the 6CTA8.3 handles 215 horsepower with immense structural headroom. This larger displacement means lower internal thermal stresses, cooler exhaust gas temperatures, and a much longer structural lifespan under continuous full-load operating conditions.
Real Equipment Application Scenarios
The versatility of the Dongfeng Cummins 8.3L inline 6 diesel engine makes it a common drop-in choice for global equipment manufacturers. Matching your specific application determines the external configuration we build for you.
Excavator Power Packs & Hydraulic Integration
When ordering a Cummins 6CTA8.3-C215 for excavator power pack replacements, the engine must interface perfectly with complex hydraulic pump drives. The flat torque delivery profile provides steady hydraulic pressure, preventing sudden cycle-time slowdowns during deep trench digging or heavy rock lifting. We ensure the rear flywheel housing matches standard SAE specifications to allow seamless mating with your existing main hydraulic pump array.
Wheel Loaders and Rigid Infrastructure Equipment
For heavy wheeled earthmovers, the Cummins 215HP diesel engine for wheel loader operations delivers the aggressive low-end torque required to push buckets into compacted aggregate piles. The mechanical governor reacts instantly to sudden changes in rolling resistance, distributing smooth power directly to the torque converter transmission without excessive fuel wastage.
Heavy Industrial Machinery Deployments
Beyond earthmoving, this robust 8.3L block is widely deployed across specialized construction environments:
- 6CTA8.3-C215 engine for road roller operations: Provides the low-vibration, consistent RPM needed to maintain uniform compaction density over long stretches of asphalt.
- Cummins engine for drilling machine projects: Supplies high continuous torque to rotating drill strings through dense rock strata without overheating.
- Cummins 8.3L engine for concrete pump trucks: Delivers reliable, steady strokes to hydraulic pistons moving heavy fluid concrete vertically or over long horizontal runs.
- Industrial Cummins engine for hydraulic power pack setups: Operates as a standalone auxiliary power source for large marine winches, dredging tools, and pile hammers.
- Cummins 6CTA8.3-C215 engine for mining equipment: Powers specialized underground utility vehicles and surface haulers running inside high-dust, low-ventilation environments.
Maintenance, Troubleshooting, and Replacement Blueprint
Extending your engine's service life relies on disciplined field maintenance and a clear understanding of component wear intervals.
Managing the Cummins C8.3 Overhaul Interval
The typical Cummins heavy duty diesel engine lifespan stretches well past 15,000 to 20,000 operating hours before requiring a major out-of-frame overhaul. To hit these targets, you must strictly stick to a 250-hour oil and filter change schedule. Because this engine relies on a mechanical fuel injection pump, changing fuel filters and water separators early prevents fine abrasive particles from prematurely wearing down internal fuel plungers.
Common Field Troubleshooting Procedures
If you encounter a loss of power or excessive exhaust smoke, the mechanical design simplifies diagnosis. Black smoke generally signals a restriction in the air intake or a small leak in the turbocharger intercooler piping, throwing off the air-to-fuel ratio. White smoke during a cold start is normal, but if it persists, it indicates low cylinder compression or fuel timing that has drifted away from factory specifications. Our technical engineering support team can guide your mechanics through checking fuel pump timing without requiring digital diagnostic computers.
Ordering a Complete Engine Pack Configuration
When buying a Cummins 6CTA8.3-C215 replacement engine assembly, choosing the right configuration prevents installation delays. At HekoPower, we do not just sell standard bare engine blocks. We supply a complete 6CTA8.3-C215 diesel engine with radiator and air filter setup, fully test-run on our factory dynamometer before shipping. This complete unit arrives with a pre-mounted cooling package, fan belt safety guards, an alternator, and a starter motor. This setup cuts your workshop drop-in time down from several days to just a few hours.
Cummins C8.3-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6CTA8.3-C145, 6CTA8.3-C175, 6CTA8.3-C180, 6CTA8.3-C195, 6CTA8.3-C205, 6CTA8.3-C215, 6CTA8.3-C230, 6CTA8.3-C240, 6CTA8.3-C260, 6CTAA8.3-C215, 6CTAA8.3-C260.
Commercial Procurement & Global Support FAQ
What are the current DCEC 6CTA8.3-C215 engine price terms and global lead times?
Pricing varies based on your specific accessory requirements, such as flywheel configurations, electrical system voltages (12V vs 24V), and radiator sizing. As a high-volume wholesale DCEC Cummins industrial engine distributor, HekoPower maintains a ready stock of core blocks. Standard configurations ship within 7 to 10 business days from our warehouse. Custom industrial configurations take 15 to 20 days. Contact our commercial desk for a formal, itemized FOB or CIF quotation.
Is this engine an original production assembly or a rebuilt unit?
Every single unit shipped by HekoPower is a brand new, genuine Dongfeng Cummins engine assembly built directly by the joint-venture factory (DCEC). We do not deal in remanufactured blocks, generic copies, or grey-market component mockups. Every engine comes marked with a traceable factory data plate and an official serial number that can be validated globally.
Is this engine suitable for high-temperature environments?
Yes. The turbocharged intercooled design helps maintain stable operating performance in demanding construction environments.
How does HekoPower handle long-term spare parts support for international fleets?
Our service does not end at the shipping dock. We provide full Cummins industrial engine spare parts support, stocking complete overhaul gasket kits, pistons, liners, Weifu fuel pumps, injectors, and turbochargers. If a component wears out years down the line, we can cross-reference your original engine serial number to ship exact-match replacement parts, eliminating guesswork and regional compatibility issues.
