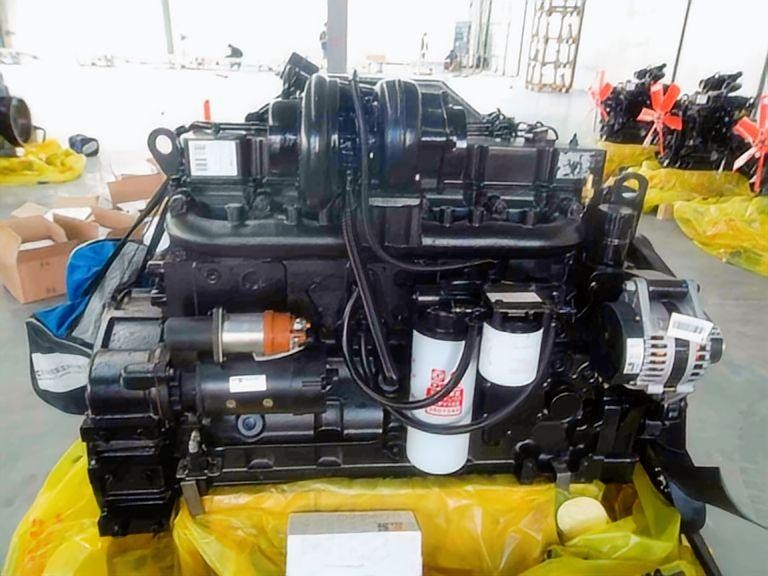

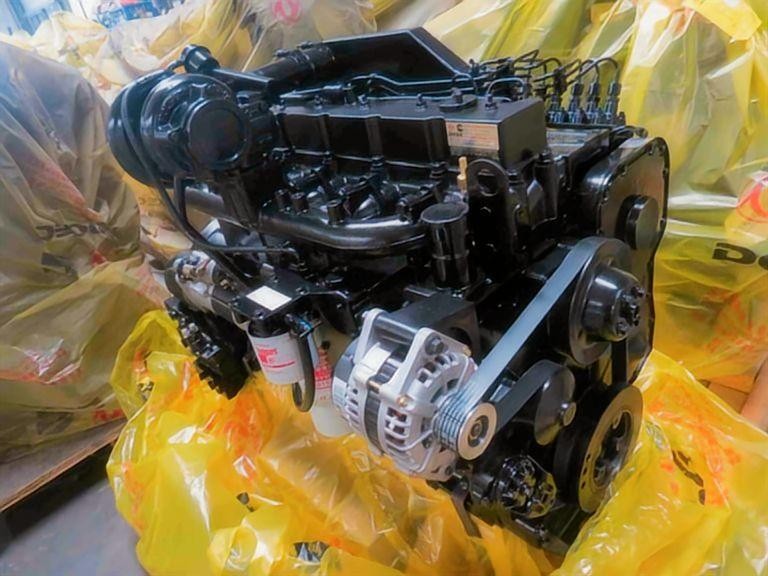

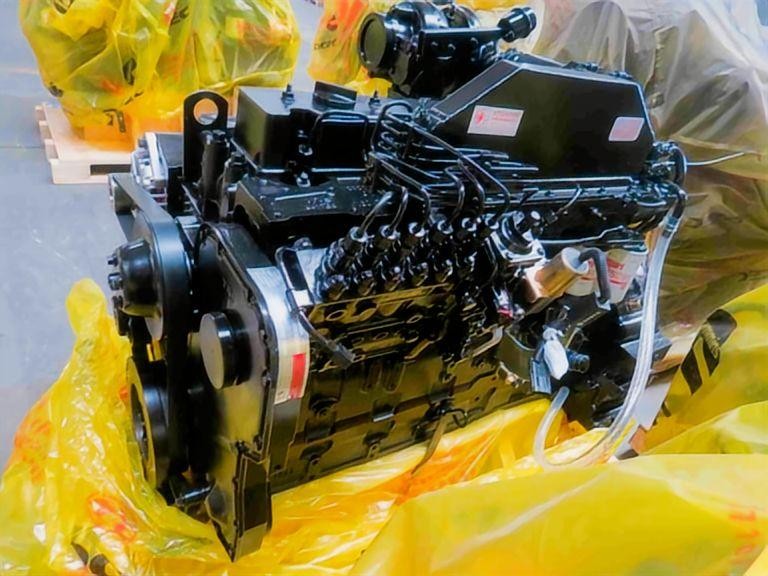

Hekopower Genuine Cummins 6CTA8.3-C260 Assembly: Complete Heavy Equipment Engine Replacement
Buying a complete DCEC Cummins 6CTA8.3-C260 engine assembly directly impacts your machine’s uptime and long-term operating costs. As an established industrial engine exporter, HekoPower supplies the original Genuine Dongfeng Cummins C260 engine built for demanding continuous duty environments.
This Cummins 8.3L mechanical industrial engine delivers a reliable 194kW (260HP) at 2200 RPM. This makes it a preferred choice for heavy machinery operators looking for a durable Cummins industrial repower engine 260HP setup that completely avoids complex electronics.
Tech Specs of Cummins 6CTA8.3-C260
General Engine Data
Engine Model: Cummins 6CTA8.3-C260
Type: 6 Cylinders in Line
Displacement: 8.3 L
Bore * Stroke: 114 * 135
Overall Dimension: 1560mm*900mm*1400mm
Net Weight (with flywheel & alternator): 637 Kg
Key Performance Data
Rated Power: 194 kW/260HP
Rated Speed: 2460 rpm
Max Torque/Speed: 782 N.m @ 2200 rpm
Fuel Consumption @ Rated Power: 231 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro I
Aspiration: Turbocharged-Intercooled
Fuel System: Wuxi Weifu PW2000 Pump/ RSV Govenor
Compression Ratio: 18:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.8 L
Core Engineering Specifications & System Configuration
Understanding the precise internal configuration of the Cummins C series 194kW diesel engine is essential to ensure a flawless installation. The 6CTA8.3-C260 model relies on a proven mechanical architecture designed to withstand highly volatile field conditions without dropping performance.
Critical Cummins 6CTA8.3-C260 CPL Configuration Matching
Before completing a purchase, you must verify the Control Parts List (CPL) number. The CPL determines the internal hardware configuration, including the piston crown shape, turbocharger orientation, and flywheel housing sizes. Providing your existing engine plate's CPL to HekoPower ensures the new 260HP Cummins C8.3 construction engine directly aligns with your equipment’s original hydraulic input shafts, engine mounts, and exhaust plumbing.
Weifu PW2000 Fuel System and RSV Governor Mechanical Calibration
The heart of this Cummins 6CTA8.3-C260 mechanical fuel pump engine is its inline high-pressure fuel system. Equipped with a Cummins 6CTA8.3-C260 PW2000 fuel system, it injects fuel with precise mechanical timing.
The integrated Cummins engine with RSV governor manages engine speed under variable mechanical loads. This system prevents engine stalling when high-capacity hydraulic pumps engage, providing reliable throttle response without requiring electronic sensors or an ECU.
Technical Comparison: 6CTA8.3-C260 vs. Electronic Common-Rail Alternatives
When evaluating a Cummins 6CTA8.3-C260 power unit, project managers often debate choosing older mechanical platforms over newer electronic common-rail engines (such as the QSB6.7 or QSL9). The mechanical 8.3L platform holds definitive advantages in rugged international environments.
Fuel Quality Tolerance and Field Reliability
Modern electronic engines demand ultra-low sulfur diesel and highly specialized filtration to protect sensitive common-rail injectors from failing. In contrast, the Cummins 8.3L mechanical industrial engine tolerates varying fuel qualities. Its heavy-duty fuel elements resist wear caused by sulfur variations or minor moisture contamination, which are common in remote mining and construction operations.
Electrical System Simplicity and Field Maintenance
Electronic engine diagnostics require specific proprietary software, laptop interfaces, and complex wiring harnesses prone to cracking under high vibrations. The 6CTA8.3-C260 simplifies troubleshooting. Because the 6CTA8.3-C260 mechanical governor adjustment and specs rely on standard mechanical linkages, a field mechanic can adjust low and high idle speeds using common hand tools. This minimizes down-time in remote areas.
Real Application Scenarios: Where the C260 Excels
This 194kW power platform serves as the standard prime mover across a wide range of industrial, municipal, and resource extraction machinery lines.
Heavy Excavation and Crane Retrofits
The high torque backup makes the Cummins 6CTA8.3-C260 for excavator repowering highly effective. It easily maintains constant power for the Cummins C8.3 industrial engine for hydraulic equipment, handling the sudden pressure spikes common during deep digging cycles. It is widely used as a direct replacement package in:
- Cummins engine for crawler crane hydraulic drive assemblies.
- Cummins engine for piling machine high-vibration applications.
- Tracked earthmovers needing a high-torque Cummins 6CTA8.3-C260 heavy equipment engine.
Infrastructure and Foundation Machinery
Infrastructure projects require reliable, continuous power outputs under steady thermal conditions. The Cummins construction engine with water-air intercooler maintains stable intake air temperatures, ensuring efficient performance in:
- High-pressure Cummins engine for concrete pump trucks.
- Continuous-vibration Cummins engine for road roller equipment.
- High-load Cummins diesel engine for stone crusher plants.
High-Hour Resource Extraction and Pumping Operations
For stationary applications, this engine easily transitions into a standalone Cummins 6CTA8.3-C260 Complete Power Unit. These packages provide continuous performance for:
- Remote Cummins engine for drilling rig systems.
- Continuous-duty Cummins engine for oilfield equipment operations.
- High-volume Dongfeng Cummins 6CTA8.3-C260 power pack for water pumps and agricultural drainage networks.
Engine Replacement, Retrofitting, and Maintenance Guides
Replacing an aged or damaged industrial engine involves managing physical alignment and cooling capacities to avoid premature field failures.
Cummins 6CTA8.3-C260 Engine Swap for Excavators & Loaders
When planning a Cummins 6CTA8.3-C260 engine swap for excavators or performing a DCEC 6CTA8.3-C260 specification for construction machinery loaders swap, always check the flywheel and housing configurations. Ensure your existing hydraulic pump drive coupling matches the SAE flywheel sizing on the replacement assembly.
If you are executing a 6CTA8.3-C260 engine replacement for old VIN verification, record the serial numbers from your original engine block. This helps HekoPower duplicate the exact oil pan configuration and dipstick placement for your machinery's frame clearances.
Thermal Management and Radiator Matching Requirements
The 194kW output relies on efficient heat rejection. Meeting Cummins 6CTA8.3-C260 radiator matching requirements is critical to avoid thermal cracking in the cylinder head. The cooling system must handle the heat from both the engine block and the jacket-water intercooler. Ensure your radiator core can manage a minimum cooling airflow that matches the engine's full-load thermal output under high ambient operating temperatures.
Commercial Procurement and Global Logistics Information
As an experienced Cummins industrial engine exporter, HekoPower keeps your procurement process efficient, safe, and transparent.
Cummins 6CTA8.3-C260 Price and Wholesale Lead Time
We maintain direct sourcing channels to give you competitive Cummins C260 engine wholesale pricing. Our typical delivery timeline for a standard configuration New original DCEC Cummins engine ranges from 7 to 15 business days. This timeframe covers final quality inspections, factory dyno testing, and application-specific component adjustments before shipment.
Export Ocean Freight Packing Dimensions for 6CTA8.3-C260
To simplify international transport and help you calculate accurate landing costs, we follow strict export shipping standards. The standard Export ocean freight packing dimensions for 6CTA8.3-C260 (627kg) require a heavy-duty, fumigated wooden crate measuring approximately 1600 x 1100 x 1450mm. This secure packaging protects the mechanical fuel system, turbocharger assemblies, and external linkages from damage during ocean shipping.
Cummins C8.3-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6CTA8.3-C145, 6CTA8.3-C175, 6CTA8.3-C180, 6CTA8.3-C195, 6CTA8.3-C205, 6CTA8.3-C215, 6CTA8.3-C230, 6CTA8.3-C240, 6CTA8.3-C260, 6CTAA8.3-C215, 6CTAA8.3-C260.
Frequently Asked Questions
Where can I buy a complete new Cummins 6CTA8.3-C260 in China with a valid warranty?
You can source fully verified assemblies directly from HekoPower, a reliable Cummins engine assembly manufacturer China exporter. Every unit is a Genuine DCEC 6CTA8.3-C260 engine with Weifu PW2000 pump warranty coverage, protecting your investment against material or factory manufacturing defects.
What is the exact fuel consumption rate for this engine model?
The Cummins 6CTA8.3-C260 fuel consumption g/kW.h at rated speed typically runs around $215\text{ g/kW.h}$ at the rated 194kW output. Actual fuel consumption varies depending on how well the mechanical governor is adjusted, fuel quality, and the continuous operating load applied by the hydraulic pumps.
Does the engine include a detailed layout drawing for structural integration?
Yes. Every factory order includes a detailed Turbocharged water-air intercooled 260HP Cummins engine diagram and blueprint. This document details the exact dimensions for the mounting feet, crankshaft centerline height, and auxiliary PTO drive locations, making local engineering retrofits fast and straightforward.
