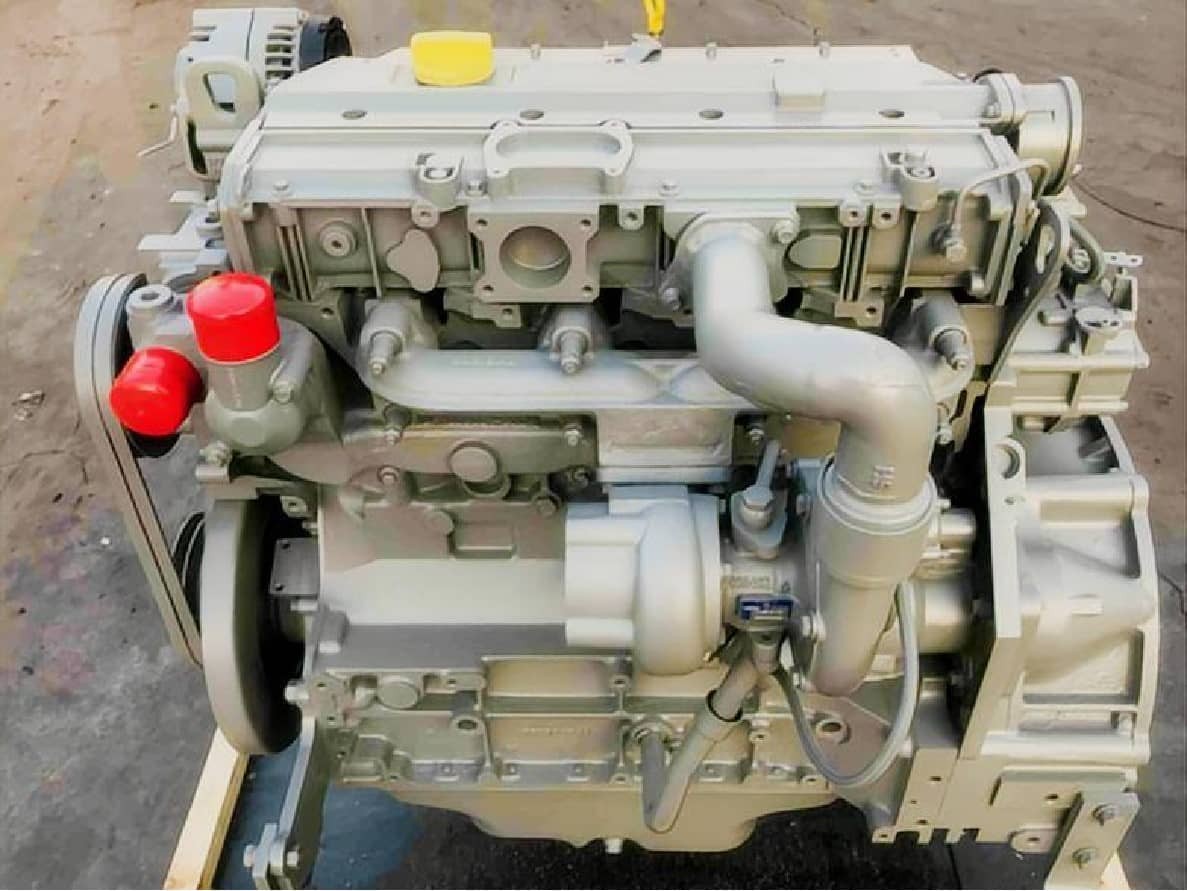

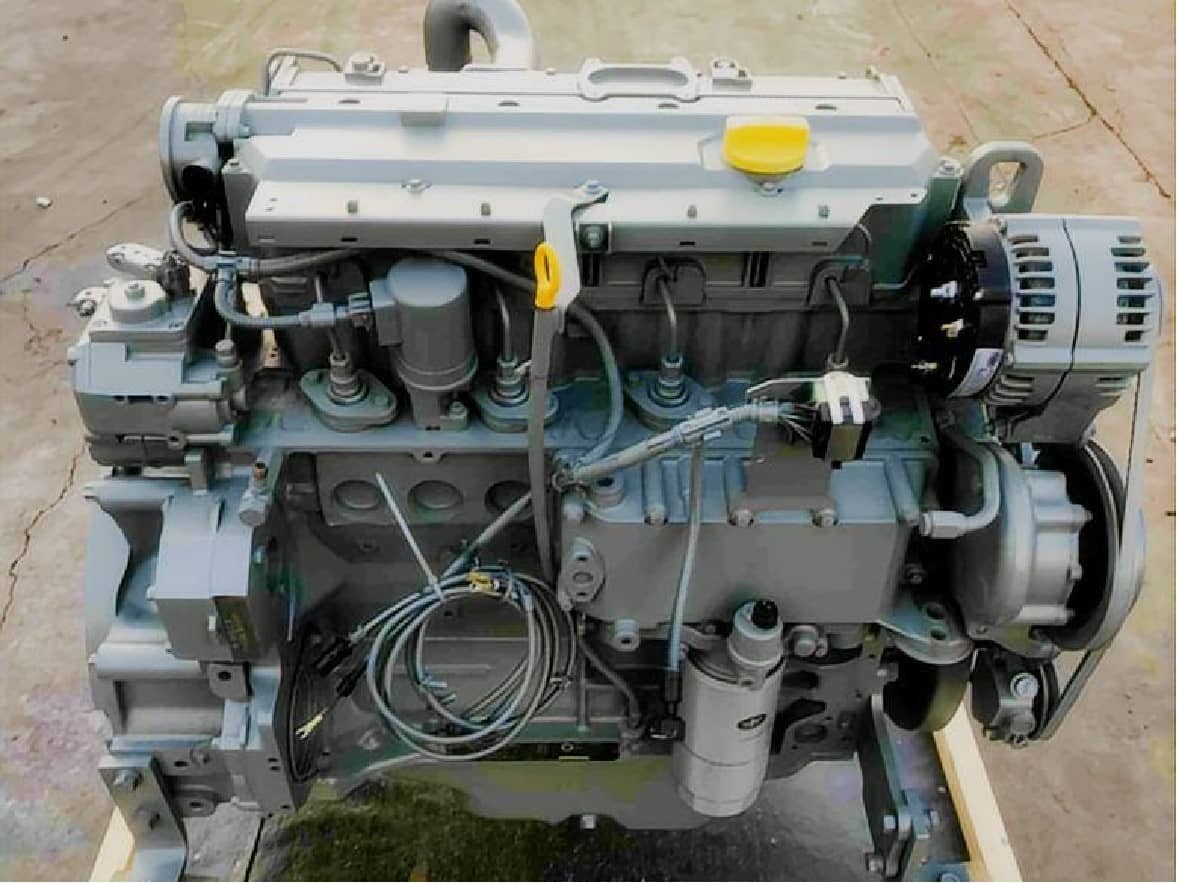

Genuine Deutz BF4M1013FC Engine Assembly (129kW) for Industrial and G-Drive Applications
The Deutz BF4M1013FC stands as a highly dependable powerhouse in the industrial sector. As a premium BF4M1013FC engine supplier, HekoPower maintains ready-to-ship, complete engine assembly units directly from our factory floor. This 129 kW Deutz diesel engine is uniquely engineered to deliver sustained high-torque performance under punishing operational environments. Whether you operate a manufacturing facility, a remote mining site, or a critical infrastructure grid, this machine offers an optimized balance of low operational costs and exceptional power density.
Tech Specs of BF4M1013FC 129kW Engine
General Engine Data
Engine Model: Deutz BF4M1013FC
Type: 4 Cylinders, in Line
Displacement: 4.76 L
Bore * Stroke: 108 * 130
Overall Dimension: 1598mm*875mm*1248mm
Net Weight: 560 Kg
Key Performance Data
Rated Power: 129 kW
Max. Torque/Speed: 821 N.m @ 1500 rpm
Rated Speed: 1500 rpm
Specific Fuel Consumption: 215 g/kW.h
Net Frequency: 50Hz
Noise db(A): ≤ 98
More Technical Data
Certification: Tier II
Aspiration: Turbocharged & Intercooling
Fuel System: Mechanical Unit Pump in Line
Cooling Method: Water Cooled
Electrical System (Starter Motor/Alternator): Electronic Starting (24V)
Compression Ratio: 18:1
Technical Architecture of the BF4M1013FC 129kW Engine
Mechanical Unit Pump Engine Reliability
Unlike overly complex common-rail systems that struggle with varied fuel qualities, the BF4M1013FC mechanical unit pump engine uses individual internal injection pumps for each cylinder. This specialized design ensures that even in remote mining or construction sectors where fuel purity fluctuates, the injection system remains resilient.
The mechanical governor setup simplifies roadside diagnostics and lowers overall maintenance costs. It isolates fuel delivery problems to individual cylinders, preventing catastrophic, site-wide equipment downtime.
Turbocharged and Intercooled Cooling Dynamics
This BF4M1013FC water cooled engine features an integrated, high-efficiency BF4M1013FC intercooler diesel engine block. By cooling the intake air after it passes through the turbocharger, the internal air density maximizes combustion efficiency.
The multi-channel water jacket wraps completely around the cylinders, maintaining balanced thermal zones. This eliminates the localized hot spots common in lesser-grade aftermarket engines.
Technical Comparisons: BF4M1013FC vs. Competitor Alternatives
Displacement and Power Density Metrics
When evaluating a 129 kW turbocharged intercooled diesel engine replacement, buyers frequently compare the 4.76-liter Deutz displacement against larger 5.9-liter competitor blocks. The BF4M1013FC 129kW engine achieves its rated output using fewer cylinders and a more compact footprint. This gives design engineers greater flexibility when retrofitting older machinery. It delivers an identical power profile while saving critical chassis space and reducing total unladen vehicle weight.
BF4M1013FC Fuel Consumption and Torque Advantages
Reviewing a verified Deutz BF4M1013FC 129 kW fuel consumption chart reveals a highly efficient operating curve, hovering near 208 g/kWh at peak economy. Looking closely at the BF4M1013FC 2300 RPM torque specifications, the engine yields its maximum torque early in the RPM range. This flat torque curve ensures rapid transient response times, allowing the engine to adapt immediately to sudden mechanical loads without bogging down.
Real-World Application Scenarios for the Deutz 129kW Industrial Engine
Heavy-Duty BF4M1013FC Generator Engine Deployment
The BF4M1013FC generator engine is a staple configuration for prime and backup electricity infrastructure worldwide.
- Standby Generator Engine Use: Deployed across high-stakes BF4M1013FC diesel engine for hospital generators and data center architectures. The unit rapidly ramps up to sync with the grid during unexpected utility failures.
- Telecom and Remote Infrastructure: Trusted as a rugged BF4M1013FC diesel engine for telecom generators in off-grid environments. It provides stable continuous power for cell towers across multi-week cycles.
- Grid Integration: Ideally matched as a reliable BF4M1013FC engine for 130kVA generator set installations running at either 1500rpm or 1800rpm configurations.
Industrial, Mining, and Fluid Pumping Power
Beyond power generation, this model serves as a core BF4M1013FC industrial power engine across harsh extraction zones.
- Mining Applications: Operating as a BF4M1013FC diesel engine for mining power, it drives underground ventilation fans and hydraulic rock breakers where dusty, high-vibration conditions destroy standard engines.
- Agricultural Pumping: Utilized as an aftermarket Deutz BF4M1013FC pump drive engine to power expansive agricultural irrigation networks and regional flood control stations.
- Industrial Fleets: Acts as a direct BF4M1013FC industrial diesel engine option for heavy construction machinery, material handlers, and harbor crane assemblies.
Maintenance Guide and Component Replacement Tips
Routine BF4M1013FC Service Interval Protocols
Adhering to a strict BF4M1013FC maintenance guide preserves the structural lifespan of your equipment. Lubricating oil and fuel filters require replacement every 250 to 500 operating hours, depending on dust exposure levels. Valve clearances must be checked and adjusted every 1,000 hours to protect the valvetrain from premature fatigue.
Always sample engine oil during drains to catch trace metal deposits early, as this indicates internal bearing wear before a critical breakdown occurs.
Sourcing a Comprehensive BF4M1013FC Overhaul Kit
When an engine reaches the end of its normal operational lifecycle, sourcing an all-inclusive BF4M1013FC overhaul kit from an established BF4M1013FC spare parts supplier is essential. A full rebuild requires matching cylinder liners, pistons, rings, and main bearings to exact factory tolerances.
Replacing the underlying seals and gaskets simultaneously prevents post-rebuild fluid leaks, keeping the engine running safely for another full lifecycle.
Critical Component Lifespans: Injectors, Turbos, and Pumps
Certain high-wear components require planned intervention to maintain performance.
- BF4M1013FC Injector Replacement: Leaking or carbon-fouled injectors cause unburnt fuel emissions and cylinder washing. Plan an inspection or replacement every 3,000 operating hours.
- BF4M1013FC Turbocharger Replacement: Inspect the compressor wheels for axial play. Worn bearings reduce boost pressures, skewing your fuel-to-air ratios and raising exhaust temperatures.
- BF4M1013FC Water Pump Replacement: Inspect the weep hole for coolant crusting. Replacing the water pump proactively protects the engine block from catastrophic overheating events.
HekoPower Logistics, Sourcing, and Supply Benefits
Global BF4M1013FC Exporter China Advantage
As an established BF4M1013FC exporter China specialist, HekoPower manages the entire end-to-end global supply chain. We oversee rigid export compliance, customs documentation, and secure maritime freight packaging. Whether you need a single original Dalian Deutz BF4M1013FC engine or a bulk container shipment of industrial power units, our logistics network guarantees safe delivery directly to your port or commercial facility.
Wholesale Procurement and Flexible OEM Solutions
HekoPower operates as an integrated BF4M1013FC engine wholesale supplier and trusted BF4M1013FC OEM supplier. We provide customized flywheel housings, specific cooling radiator mountings, and specialized control panels tailored to your machine design. Contact our sales team directly to receive a comprehensive BF4M1013FC quotation with clear volume discounts, lead times, and competitive BF4M1013FC factory price options.
Deutz BFM1013-Generator Engine Series, original products from Dalian Deutz Engine Plant. This series mainly includes Deutz BF4M1013EC, Deutz BF4M1013FC, Deutz BF6M1013EC, Deutz BF6M1013FC, Deutz BF6M1013FC-G3. In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions Regarding the Deutz BF4M1013FC
What are the official Deutz BF4M1013FC dimensions and dry weight?
The engine features a highly compact profile, measuring roughly 1010mm in length, 680mm in width, and 910mm in height. Its dry weight sits at approximately 450kg, though this varies slightly depending on whether you install a heavy G-drive radiator or alternative structural flywheel housings.
How do I verify a genuine Deutz BF4M1013FC engine from an imitation?
A genuine Deutz BF4M1013FC engine features a laser-etched metal data plate affixed directly to the crankcase block. This plate lists the unique engine serial number, factory code, and rated power profile. HekoPower delivers every engine with official factory clearance certification, ensuring you receive an original Deutz BF4M1013FC assembly every time.
Do you keep the BF4M1013FC in stock for urgent industrial replacements?
Yes, we maintain a rolling inventory of the BF4M1013FC in stock to minimize emergency downtime for our global industrial partners. Once payment terms are settled, our warehouse team begins prepping, testing, and securing your engine assembly for immediate dispatch.
Can this engine be configured as a Deutz BF4M1013FC 1500rpm engine?
Yes. While the engine peaks at 2300 RPM for industrial pump applications, it is commonly configured as a Deutz BF4M1013FC 1500rpm engine for 50Hz electrical generator applications, as well as an 1800rpm variant for 60Hz power grids.
