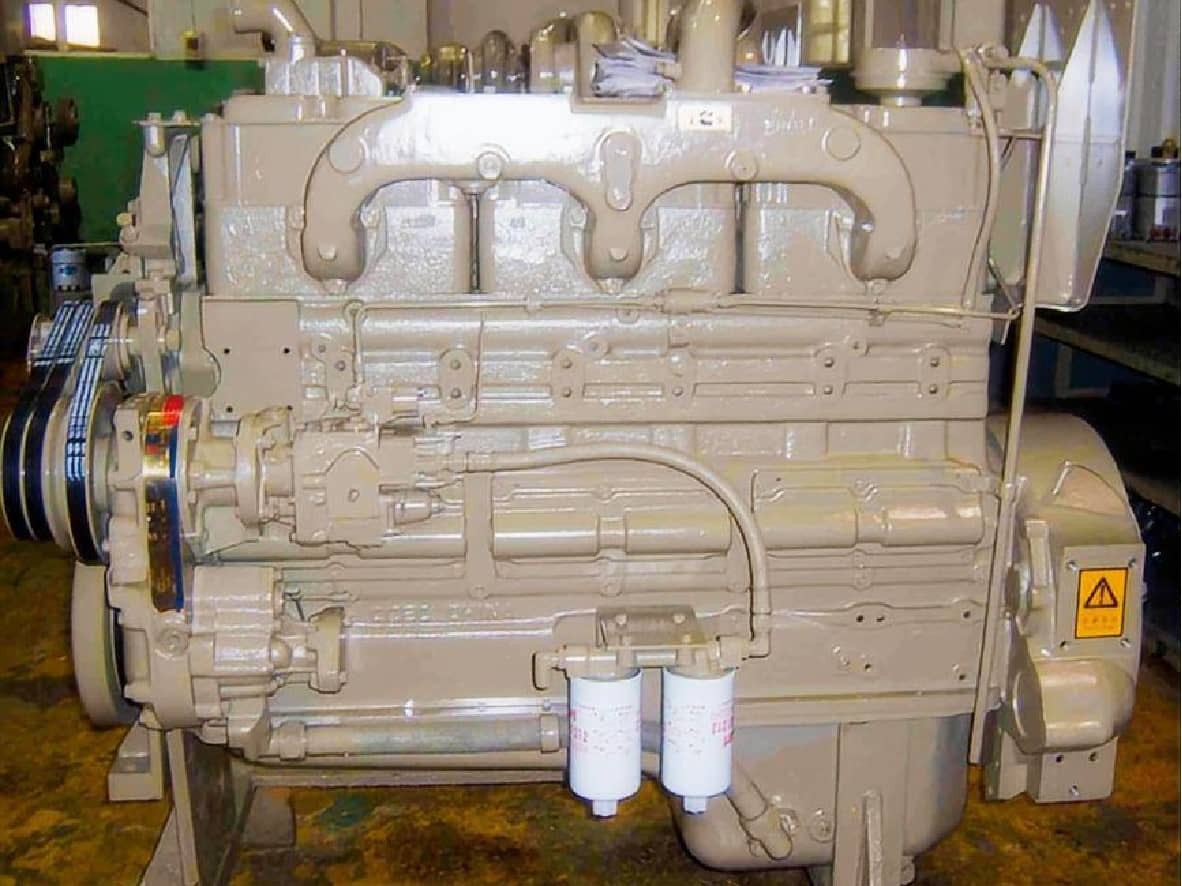

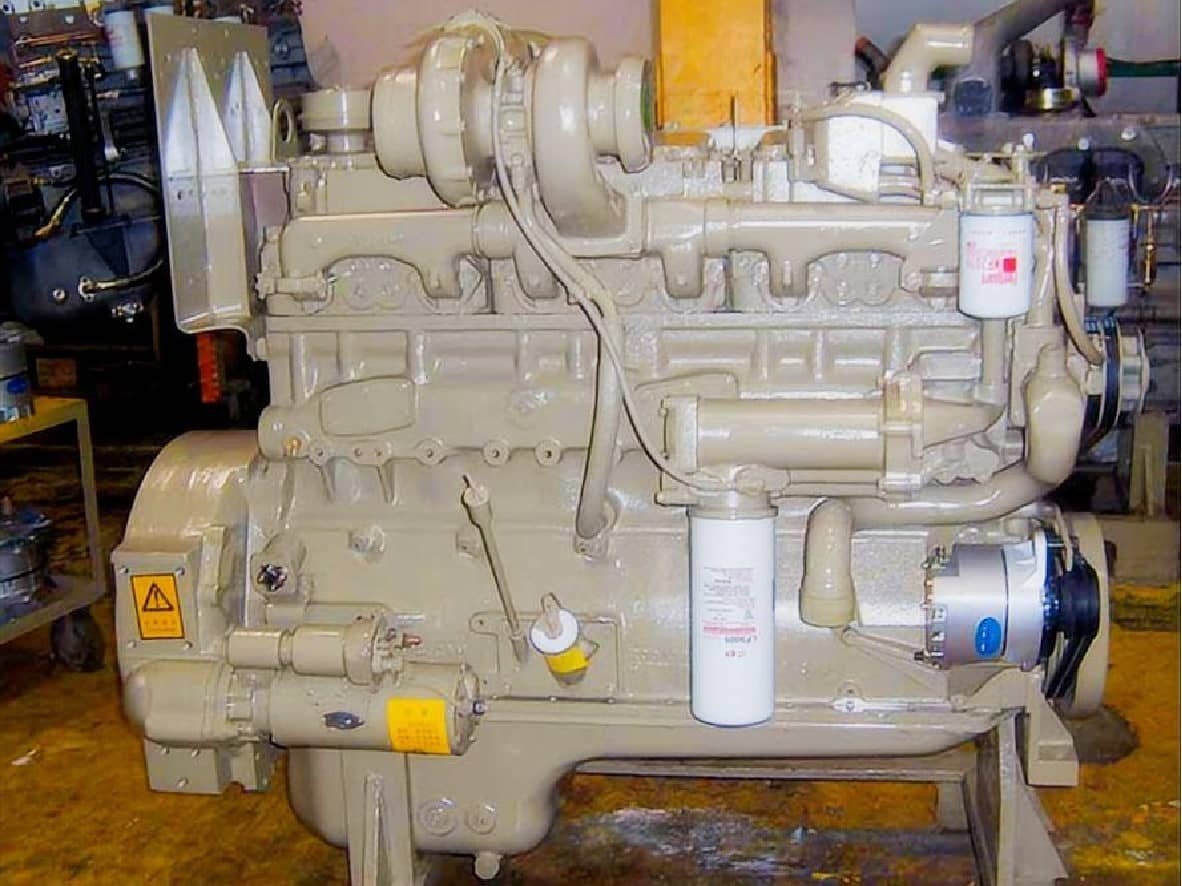

Cummins NTA855-G1 Diesel Engine for Industrial Power Generation
The Cummins NTA855-G1 is one of the most widely used generator drive engines in the global power generation industry. Designed around Cummins' proven 14-litre N855 platform, this six-cylinder turbocharged and aftercooled diesel engine delivers dependable performance for both standby and prime power applications.
As a genuine CCEC Cummins NTA855-G1 supplier, HekoPower provides complete engine assemblies for generator manufacturers, EPC contractors, rental power companies and industrial end users. The NTA855-G1 remains popular because it combines mechanical simplicity with excellent durability, making it suitable for locations where long operating hours and easy field maintenance are critical requirements.
Tech Specs of Cummins NTA855-G1
General Engine Data
Engine Model: Cummins NTA855-G1
Type: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 14 L
Bore * Stroke: 140 * 152
Net Weight: 1410 Kg
Overall Dimension: 1980mm*900mm*1600mm
Key Performance Data
Rated Power/Standby Output(1500 RPM): 240 kW/322HP, 225 kW/302HP
Rated Power/Standby Output(1800 RPM): 287 kW/386HP, 317 kW/425HP
Rated Speed: 1500/1800 rpm
Low Idle Speed: 575-650 rpm
Fuel Consumption @ 1500 rpm: 59-65 L/Kw.h
Fuel Consumption @ 1800 rpm: 73-81 L/Kw.h
More Technical Data
Fuel System: Cummins PT Pump, Direct Injection
Aspiration: Turbocharged & Aftercooled
Electrical System (Starter Motor/Alternator): 24V/900A
Governor Type: Mechanical Control
Compression Ratio: 14.5:1
Lowest Starting Temp (Without auxiliary system): -12℃
Coolant Volume (Engine Only): 20.8 L
Cooling Method: Water Cooled
Technical Comparisons: NTA855-G1 vs. Similar Models
Fleet managers frequently ask us to clarify the overlapping specifications within the 14L NTA855 generator drive series. The core block remains identical across these models. However, careful tuning of the turbocharger, intercooler capacity, and fuel delivery dictates the final electrical yield.
NTA855-G1 vs. NTA855-G1A and G1B
Starting with the NTA855-G1, operators receive a baseline 240kW prime output at 1500 RPM. This is the standard, highly economical choice for 300 kVA generator sets. It strikes a balance between initial acquisition cost and heavy-duty reliability.
The NTA855-G1A represents an incremental step up. By adjusting the fuel mapping and intake parameters, the G1A achieves 264kW of prime power at 1500 RPM. This minor bump is often necessary when a facility's base electrical load expands just beyond the G1's comfortable continuous rating, but jumping to a massive 19L block is unjustifiable.
Further up the scale is the NTA855-G1B. This variant is aggressively tuned to produce 284kW at 1500 RPM. The G1B bridges the gap between mid-tier and high-tier output within the same 14L physical footprint.
NTA855-G1 vs. NTA855-G2
The NTA855-G2 is engineered for significantly higher output, matching the G1B's 284kW prime power at 50Hz, but pushing up to 313kW at 60Hz. The choice between a G1 and a G2 usually comes down to standby requirements. If your facility requires over 400 horsepower for emergency standby, the G2 is the mandatory baseline. However, if your electrical load maxes out around 322HP, the NTA855-G1 remains the most fuel-efficient and economical procurement option from HekoPower.
1500 RPM vs. 1800 RPM Performance Deltas
Fuel consumption scales linearly with load and RPM. At a 1500 RPM continuous prime load, operators can expect a fuel consumption rate around 60.9 kg/h, which is roughly 73.4 liters per hour. Pushing the engine to 1800 RPM for 60Hz power inherently increases the friction and airflow demands. This pushes fuel consumption closer to 80 liters per hour at full load.
Fuel System Mechanics and PT Pump Calibration
The legendary Cummins PT fuel system is central to the NTA855-G1's performance. PT stands for Pressure-Time. Unlike modern high-pressure common rail setups, the PT system uses a low-pressure gear pump to supply fuel to the injectors. The camshaft directly actuates the injectors to generate the high pressure needed for fuel atomization.
Calibration is entirely mechanical. The governor regulates the pressure, while the camshaft controls the time the injector remains open. This mechanical simplicity makes the NTA855-G1 highly resistant to poor-quality diesel. It thrives in remote areas where electronic sensors might fail. Proper calibration of the PT fuel pump is crucial prior to installation. Over-fueling will not increase electrical output; it will only create excessive black smoke and elevate exhaust gas temperatures above the safe 460 degrees Celsius threshold.
Prime Power vs. Standby Power in Real Applications
The 240kW prime power rating makes the NTA855-G1 incredibly versatile. For continuous applications, this engine shines in remote mining camps, agricultural irrigation sites, and offshore marine platforms. Operating far from utility grids, these sites rely on the engine to run uninterrupted. The mechanical governor and lack of complex emission computers mean onsite mechanics can troubleshoot issues with basic hand tools.
313kVA Standby Operations
We frequently supply this engine assembly for 313kVA standby applications in healthcare facilities and data storage centers. In these scenarios, the engine sits dormant for weeks. However, it must spool to 1500 RPM and accept a full electrical load within ten seconds of a grid failure. The 24V electric start motor and robust block heater ensure rapid cranking. It is vital to note that standby power is a temporary overload rating. Operating continuously at the standby rating will cause rapid thermal degradation to the engine block.
Maintenance Directives and Drop-in Replacement Tips
Replacing an exhausted generator engine requires careful planning. The NTA855-G1 is a direct drop-in replacement for the legacy naturally aspirated NT855-G series. However, upgrading from an NT to an NTA requires verifying the alternator coupling and base frame clearances, as the turbocharger and aftercooler plumbing add slight bulk to the engine's profile.
CPL 3523 and Legacy Compatibility
A critical configuration identifier is CPL 3523 (Control Parts List). When ordering a replacement from HekoPower, matching the CPL ensures the new engine has the correct fuel pump calibration, injector sizing, and turbocharger mapping. If you install an engine with a mismatched CPL, it may struggle to synchronize with existing generator controllers or fail to meet local emission output requirements.
Mitigating Cavitation and Wet Stacking
Routine maintenance on the NTA855-G1 is rigid. Valve lash adjustments and injector plunger synchronization must occur every 1,500 hours. Because the camshaft drives the injectors, improper clearance leads to catastrophic misfires. Furthermore, operators must strictly monitor coolant chemistry. The wet liners in the 14L block are susceptible to cavitation erosion if the coolant lacks proper nitrite additives. We strongly advise replacing the spin-on water filter at every oil change interval.
A widespread misconception in the generator market involves wet stacking. Many facility managers run their NTA855-G1 generator under zero load for weekly testing. Diesel engines require high cylinder temperatures to seat the piston rings. Running this 14L engine unloaded causes unburned fuel to glaze the cylinder walls and leak out of the exhaust manifold. Always load the generator to at least thirty percent of its rated capacity during routine testing.
Cummins NTA855 Engine Family Integration
The NTA855-G1 serves as the structural foundation for one of the most reliable power generation lineups in the heavy-duty sector. Its balanced output and mechanical resilience make it a preferred choice for builders worldwide. As you explore the broader 14-liter catalog, you will find variants tuned for progressively higher demands, ensuring a precise match for any specific kW requirement. HekoPower provides comprehensive access to this entire tier of performance.
Cummins N855-G Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes NT855-G, NT855-GA, NT855-G1, NT855-G1A, NT855-G1B, NTA855-G2, NTA855-G2A, NTA855-G3, NTA855-G4, NTA855-G7, NTA855-G7A.
Genuine Cummins NTA855-G1 FAQ
What is the standard lead time for an NTA855-G1 engine assembly?
HekoPower typically maintains a 15 to 30-day lead time for standard CCEC generator drive engines. Custom governor calibrations or specialized 24V starting configurations may require additional processing time before export.
Does the engine come with the radiator and alternator?
We supply the engine as a complete power unit, strictly configured fan-to-flywheel. It includes the PT fuel pump, turbocharger, and exhaust manifold. The alternator, base frame, and remote cooling radiators are procured separately by the generator set packager.
Can this engine be converted from 50Hz to 60Hz in the field?
Yes, the mechanical governor can be recalibrated in the field to increase the governed speed from 1500 RPM to 1800 RPM. However, the generator control module and the physical alternator must also be compatible with the frequency shift.
Can this engine run on biodiesel blends?
Yes. The mechanical PT fuel pump safely tolerates standard B5 biodiesel blends. Higher concentrations require specialized fuel water separators and more frequent fuel filter replacement intervals to prevent fuel system gumming.
Why shouldn't I increase the engine RPM to get more power on a 50Hz grid?
Increasing the engine RPM mechanically will not automatically give you a higher kW rating for a 50Hz alternator. The alternator dictates the required engine speed. If you over-speed a 4-pole alternator to 1800 RPM, it outputs 60Hz power, which will severely damage 50Hz electrical equipment downstream.
