Details

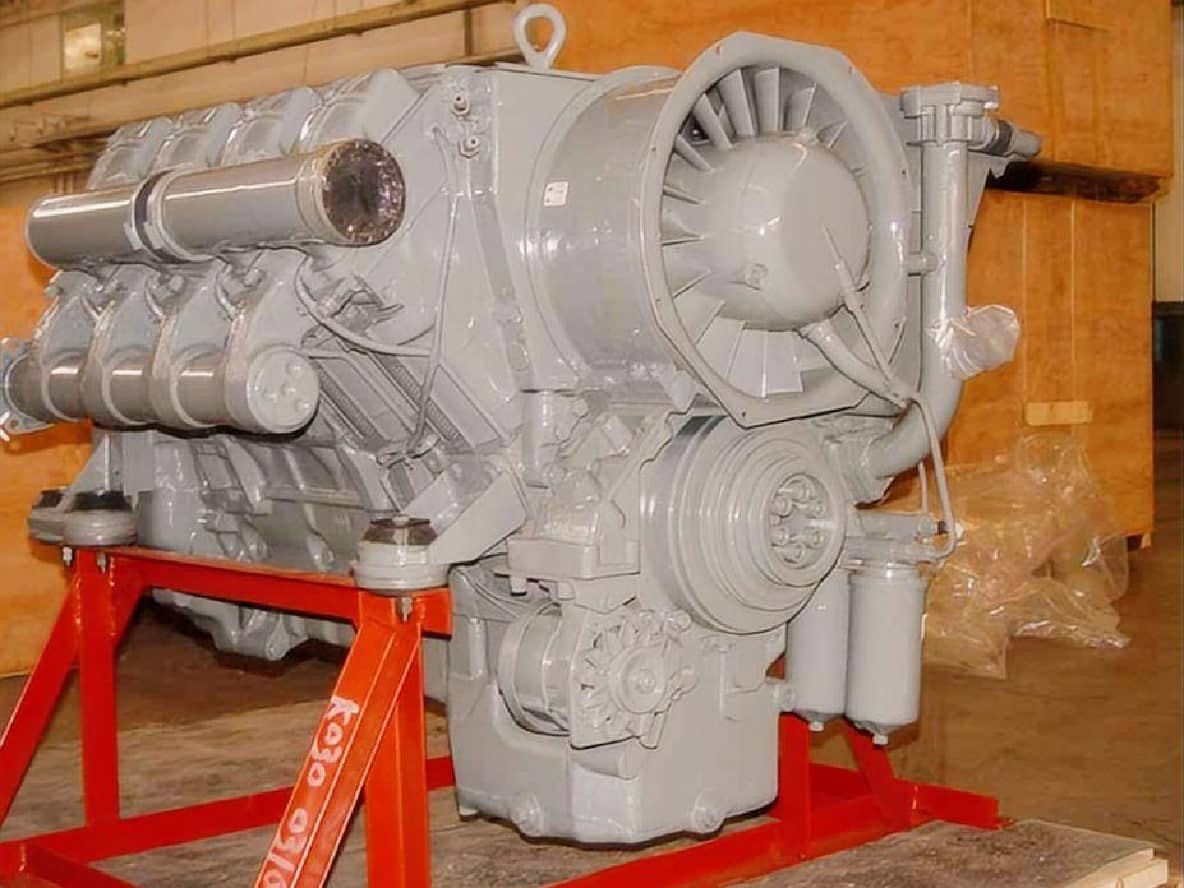

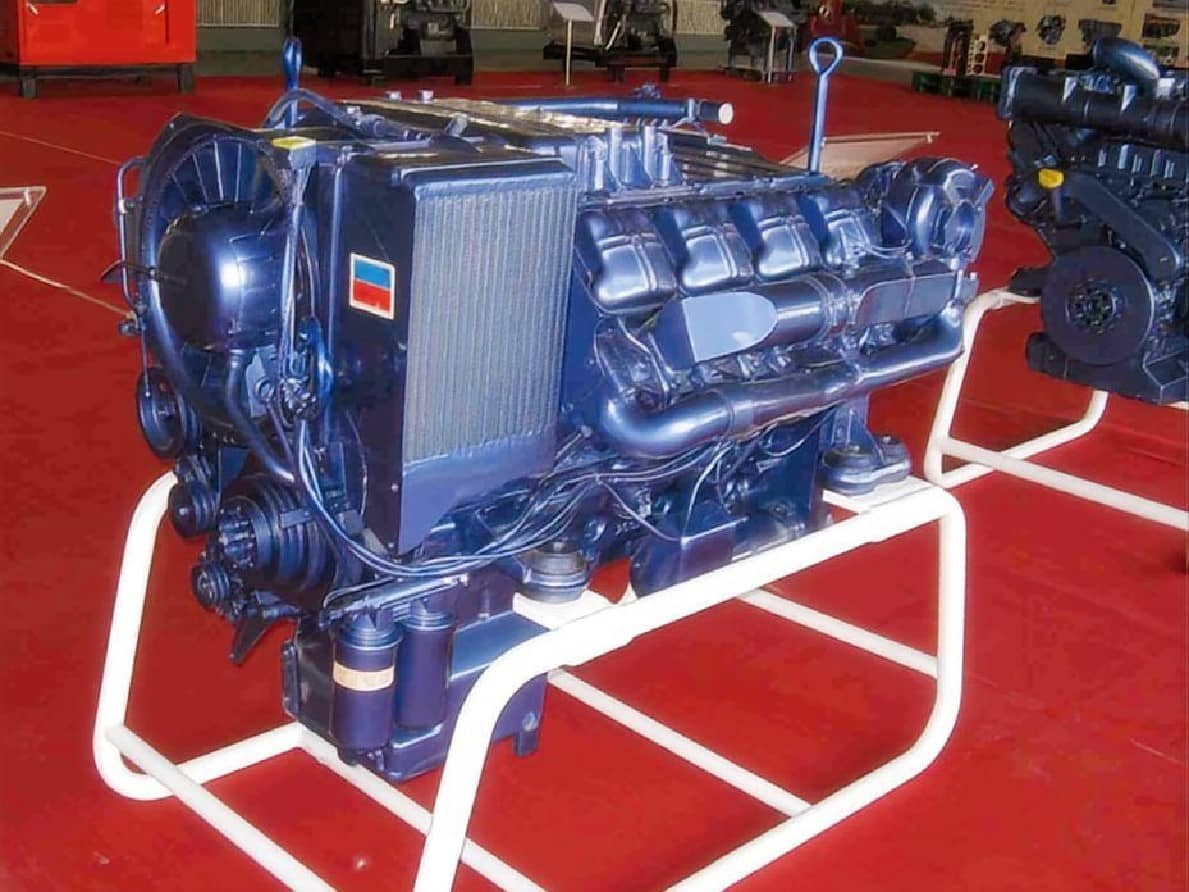

Genuine Deutz BF10L513 Generator Engine for Industrial Power Generation
The Deutz BF10L513 Generator Engine is a highly specialized, 10-cylinder V-type diesel engine built for rugged, continuous power generation applications. As an established China Deutz generator engine supplier, HekoPower provides this genuine engine assembly as a complete power unit, optimized specifically to drive 150kW to 160kW prime generator sets.
Unlike standard water-cooled machinery, the BF10L513 air-cooled generator engine thrives in extreme environments where radiator maintenance is impossible, making it the premier choice for mission-critical industrial installations.
Tech Specs of Deutz BF10L513 Generator Engine
General Engine Data
Engine Model: Deutz BF10L513
Type: 10 Cylinders, V Type
Displacement: 19.953 L
Bore * Stroke: 125 * 130
Net Weight: 1140 Kg
Overall Dimension: 1427mm*1138mm*1067mm
Key Performance Data
Rated Power: 172 KW
Rated Speed: 1500 rpm
Low Idle Speed: 550-650 rpm
Fuel Consumption @ Rated Power: 212 g/kW.h
More Technical Data
Aspiration: Turbocharged
Fuel System: EUP
Compression Ratio: 18:1
Cooling Method: Air Cooled
Electrical System (Starter Motor/Alternator): Electronic Starting (24V)
Lubricant Capacity: 34 L
Technical Performance and Design Innovations
The V10 Air-Cooled Framework
The mechanical architecture of the Deutz 1500 RPM V10 diesel engine gives it a distinct advantage over inline or smaller V8 engines. The 90-degree V-angle layout delivers excellent rotational balancing, minimizing the physical vibrations passed along to the generator alternator.
Because it operates as an air-cooled generator diesel engine, it removes the entire liquid cooling system footprint. This design completely eliminates risks associated with water pump failures, cavitation, radiator leaks, or coolant freezing in sub-zero environments.
Power Calibration at Synchronous Speed
When deployed as a generator drive diesel engine, the unit is hard-coded for constant speed performance. At a synchronous speed of 1500 RPM for 50Hz applications, the engine achieves its rated output of 172 kW. This precise calibration satisfies the strict steady-state governing requirements of modern alternators, maintaining a steady electrical frequency even during sudden block load changes.
BF10L513 Fuel Consumption Metrics
Fuel efficiency directly determines operational profitability in commercial power generation. The integrated Electronic Unit Pump (EUP) fuel system optimizes fuel injection pressure across varying load cycles.
- At 1500 RPM Synchronous Speed: The engine hits its thermal efficiency sweet spot.
- 75% Load Curve: Ideal for continuous prime power operations, lowering overall operating costs.
- 100% Load Curve: Maintained efficiently by the high-pressure injection system, keeping exhaust emissions clear.
Comparative Engineering Analysis
BF10L513 vs BF8L513 Generator Engine
Choosing between the 8-cylinder and 10-cylinder models comes down to your standby power rating limits and physical space limitations. The BF8L513 is more compact, but it lacks the torque reserves needed for sudden motor-starting loads. Upgrading to the BF10L513 gives you an extra two cylinders of displacement, which provides a safer cushion against voltage drops during heavy electrical loads.
BF10L513 vs BF12L513 Generator Engine
While the V12 BF12L513 offers higher absolute horsepower, it brings a much larger engine weight and footprint. For facility managers designing a 150kW to 160kW prime generator room, the BF10L513 serves as the ideal middle ground. It delivers the structural durability of a heavy-duty V-engine without requiring the expanded structural layout or high acquisition cost of a V12 power pack.
Air-Cooled vs Water-Cooled Generator Engine
Standard water-cooled generator engines require continuous coolant monitoring, anti-corrosion additives, and belt-driven water pumps. The BF10L513 air-cooled generator engine advantages center on pure mechanical simplicity. With no water jackets to rust or crack, the thermal recovery time is instant, ensuring the engine reaches safe operating temperatures within seconds of an emergency start.
Real-World Deployment Scenarios
Critical Remote Infrastructure Support
The unique design of the Huachai Deutz BF10L513 genset drive makes it well-suited for isolated industries. In remote mining generator sets and rugged construction site power supply layouts, access to clean cooling water is rare. The direct-cooling fan system uses ambient air to regulate block temperatures, ensuring steady power delivery despite heavy airborne dust and grit.
Standby and Emergency Power
When used as a backup power generation system, reliability during a cold start is paramount. The BF10L513 engine for data center generator sets and hospital backup generators offers rapid load acceptance. The lack of a coolant circuit means the engine block handles thermal expansion smoothly, reducing the risk of piston scuffing during sudden emergency power step-ups.
Commercial Telecommunications Networks
For continuous power stations and telecom backup power systems located in high-altitude or arid mountain regions, maintenance access is limited. The engine's high power-to-weight ratio allows for easy transport up steep access roads, while its mechanical durability ensures it runs reliably between extended service intervals.
Maintenance Protocols and Overhaul Strategies
Preventive Maintenance Schedule
To keep your industrial generator engine running long-term, you must stick to a disciplined service routine. Clean the integrated cooling fins every 250 operating hours to prevent dust buildup from insulating the cylinder walls. Lubrication quality is critical since the engine oil handles a portion of the internal cooling load; always use heavy-duty diesel engine oil rated for high-temperature stability.
Component Replacement Guidelines
Using high-quality replacement parts is essential to prevent costly unexpected downtime. When performing a standard fuel system refresh, verify that the replacement components match the OEM Deutz generator engine specifications. Pay close attention to air filter replacement schedules in dusty environments, as restricted airflow can cause high exhaust temperatures and premature turbocharger wear.
Complete Lifecycle Overhauls
When the engine reaches its maximum service life, HekoPower provides complete wholesale Deutz BF10L513 generator engine overhaul kits. These kits include precise-tolerance cylinder liners, specialized piston rings, and complete gasket sets. Replacing the fuel injectors and inspecting the turbocharger during an overhaul restores original factory compression, bringing your generator back to its peak efficiency rating.
Deutz FL413-Generator Engine Series, original products from Huachai Deutz Engine Plant. This series mainly includes Deutz F8L413F, Deutz F10L413F, Deutz F12L413F, Deutz BF6L513, Deutz BF8L513, Deutz BF8L513C, Deutz BF10L513, Deutz BF12L513, Deutz BF12L513C, Deutz BF12L513CP, Deutz F8L413F (60HZ), Deutz F8L513 (60HZ), Deutz F12L413F (60HZ).
Frequently Asked Questions
What is the exact output capacity of the Deutz BF10L513 engine for diesel generator sets?
The engine produces a mechanical rated output of 172 kW at 1500 RPM. When paired with a high-efficiency alternator, this power unit is the best replacement for driving prime generator packages rated between 150kW and 160kW electrical output.
How does the air-cooling system handle high ambient room temperatures?
The BF10L513 features a high-capacity, belt-driven cooling fan that moves air directly over deep-finned cylinder barrels and heads. Unlike liquid-cooled systems that risk boiling over, this system operates reliably in ambient air temperatures reaching up to 50 degrees Celsius.
What are the standard shipping dimensions and weight for an engine assembly?
The physical footprint of the BF10L513 is optimized to fit standard generator container enclosures. For exact shipping configurations, export dimensions, and total dry weight metrics for your specific skid assembly, please contact the HekoPower sales team directly.
Can this engine use standard commercial diesel fuel?
Yes, the mechanical injection pump is highly fuel-tolerant and runs efficiently on standard international grades of commercial diesel. For optimal cold-weather starting, ensure your fuel winterization grade matches local ambient temperatures.
How can I verify I am buying a genuine engine assembly?
HekoPower is a trusted factory-direct supplier. Every genuine Huachai Deutz BF10L513 generator engine we ship features verifiable factory serial plates, stamped component markings, and official quality documentation.
