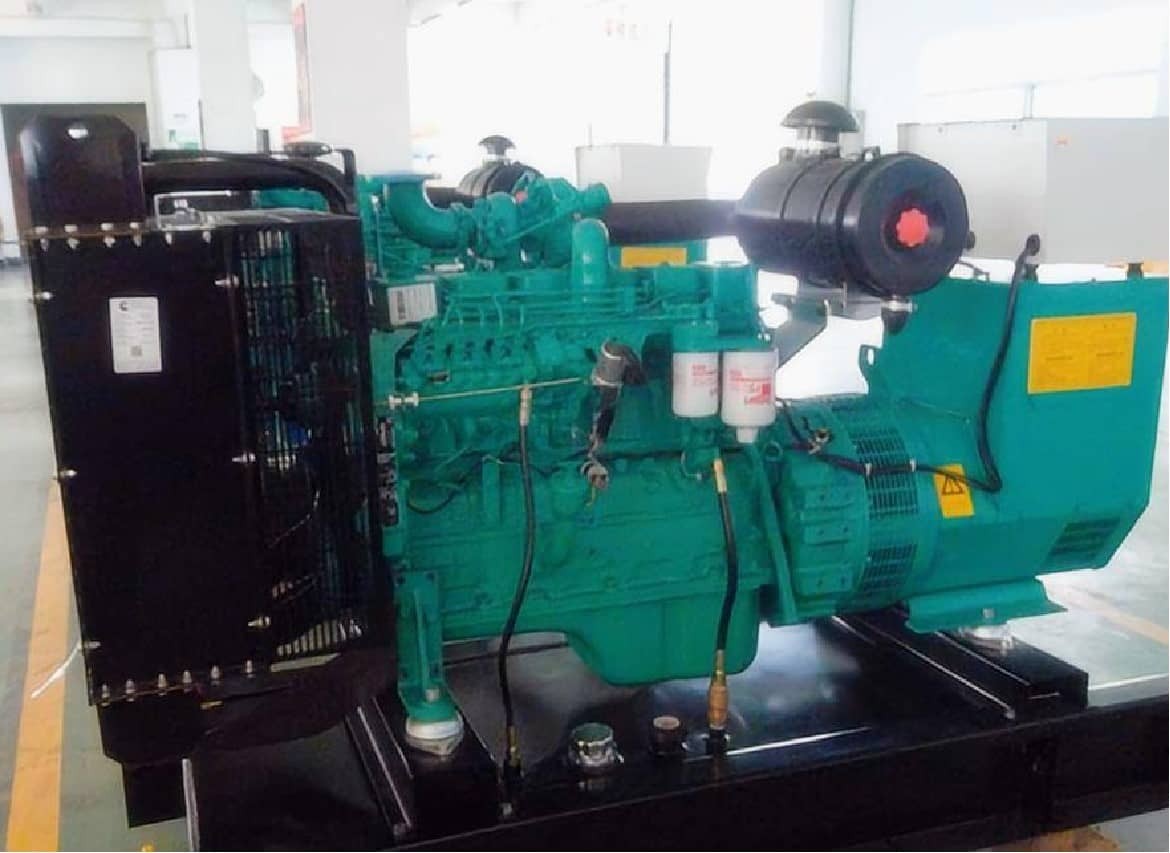

Genuine DCEC Cummins 6BT5.9-G2 G-Drive Engine
The DCEC Cummins 6BT5.9-G2 is a cornerstone of reliable off-grid and backup power. Built on the legendary 5.9-liter, 6-cylinder block, this specific G-Drive motor delivers a prime power output of 86kW and a standby power of 92kW at a steady 1500RPM. At HekoPower, we supply this exact engine to generator assemblers and maintenance teams worldwide, ensuring you get the original Dongfeng Cummins durability required for demanding 50Hz applications.
Finding the right configuration for your specific power needs is crucial. The B5.9-G series covers several power nodes to match different alternator capacities and site requirements. Understanding how this specific model fits into the broader Cummins family helps guarantee you are ordering the correct assembly.
Cummins B5.9-G Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6BT5.9-G1-86kw, 6BT5.9-G2-86kw, 6BTA5.9-G2-106kw, 6BTAA5.9-G2-120kw, 6BTAA5.9-G12-140kw.In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Tech Specs of Cummins 6BT5.9-G2 G-Drive Engine
General Engine Data
Engine Model: Cummins 6BT5.9-G2-86kw
Type: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Net Weight: 411 Kg
Overall Dimension: 1110mm*750mm*988mm
Key Performance Data
Rated Power/Standby Power(1500 rpm): 86 kW/115 HP, 92 kW/123 HP
Rated Power/Standby Power(1800 rpm): 100 kW/133 HP, 110 kW/147 HP
Rated Speed: 1500/1800 rpm
Low Idle Speed: 950-1050 rpm
Fuel Consumption @ Running: ≤ 244 g/kW.hr
More Technical Data
Aspiration: Turbocharged
Fuel System: Weifu/BYC A Pump/GAC Governor
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.9 L
Governor Type: Mechanical, Regulation ≤5%
Real-World Application Scenarios
A heavy-duty industrial engine is only as good as its performance in the field. The 6BT5.9-G2 diesel engine is specifically engineered for stationary generator sets. You will rarely find this exact configuration in a vehicle, as its governor and fuel pump are calibrated to hold a constant 1500RPM under varying electrical loads.
This 86kW engine is the industry standard for driving 80kW (100kVA) alternators. In prime power scenarios, it thrives on construction sites powering cranes, welding equipment, and site lighting. The engine handles step loads remarkably well thanks to the mechanical inline fuel pump, which responds instantly to sudden power demands without relying on complex electronics.
In standby power applications, commercial facilities rely on the 92kW standby rating. Data centers, hospitals, and agricultural facilities utilize this exact 5.9L Cummins generator engine as their fail-safe. Because it lacks a complex common-rail injection system, it is highly resilient to poor fuel quality often found in remote locations or long-term storage tanks.
Technical Comparisons: Understanding the 5.9L Configurations
Navigating the various models within the Cummins B5.9-G series can be confusing. Many buyers make the mistake of ordering a replacement engine based solely on displacement. HekoPower highly recommends reviewing the exact suffix codes before finalizing your wholesale order.
6BT5.9-G1 vs 6BT5.9-G2
The difference between the G1 and G2 variants primarily comes down to factory calibration and power output. Both share the exact same 5.9-liter block, crankshaft, and cylinder head. However, the 6BT5.9-G1 is typically calibrated for a lower power node, often used for smaller 60kW to 70kW generator sets.
The 6BT5.9-G2 features an optimized fuel delivery rate and turbocharger match to achieve the 86kW prime and 92kW standby ratings. If you are replacing a G1 with a G2, you must ensure your existing alternator can handle the increased mechanical input, and your cooling radiator has the capacity to reject the slightly higher thermal output.
6BT5.9-G2 vs 6BTA5.9-G2 and 6BTAA5.9-G2
The letters following the "B" dictate the engine's aspiration and cooling methods. The 6BT5.9-G2 is turbocharged (T). It forces compressed air into the cylinders, vastly improving efficiency over naturally aspirated engines.
When you move up to the 6BTA5.9-G2, the "A" stands for aftercooled. Specifically, it uses a jacket water aftercooler. This cools the compressed intake air using the engine’s own coolant. It allows for denser air and more fuel, pushing the power output higher without changing the engine footprint.
The 6BTAA5.9-G2 introduces an Air-to-Air (AA) aftercooler, often called a charge air cooler. This requires piping the intake air to a heat exchanger mounted in front of the radiator. While the BTAA models achieve the highest power in the 5.9L class, they require much more installation space. For buyers wanting simplicity, the standard 6BT5.9-G2 remains the favorite because you avoid the extra plumbing, making maintenance and installation far less complicated.
Maintenance and Replacement Tips
Downtime is expensive. As a trusted Cummins 6BT5.9-G2 supplier, HekoPower sees firsthand where operators succeed and where they fail regarding engine longevity.
Best Practices for Extending Engine Life
Fuel consumption on the 6BT5.9-G2 is highly efficient for its class, but achieving those factory numbers requires strict maintenance. The mechanical fuel system relies heavily on clean diesel. Water in the fuel will quickly score the injector nozzles and the injection pump plungers. Always install a primary fuel-water separator and drain it weekly.
Valve lash adjustments are another critical, often overlooked maintenance item. On this 6-cylinder engine, valve clearances should be checked and adjusted every 1,000 operating hours. Failing to do so can lead to burnt exhaust valves or reduced compression, which manifests as hard starting and increased smoke. Keep a close eye on the cooling system as well. The water pump and thermostat are robust, but they require proper coolant mixtures to prevent cavitation on the cylinder liners.
Generator Motor Replacement Guide
When executing a 6BT5.9-G2 engine replacement for a generator, preparation saves days of labor. First, verify the flywheel compatibility. Most 86kW Cummins generator drive engines utilize an SAE 3 flywheel housing and a matching flywheel for the alternator coupling. Check your existing alternator flex plates before discarding the old engine.
Pay close attention to engine dimensions and weight. The bare engine weighs approximately 411 kg (906 lbs). Ensure your lifting equipment is rated accordingly. When ordering a complete engine assembly from HekoPower, you must specify whether you need a 12V or 24V electrical system for the starter motor and charging alternator, as different generator control panels require different voltages. Transferring old sensors from a failed engine to a new one is not recommended; always install new oil pressure and temperature senders to ensure your generator controller receives accurate data.
Common Misconceptions About the 5.9L Generator Engine
A prevalent misconception in the generator industry involves matching engine power to alternator power. Buyers frequently search for an "86kW generator" and assume they need an engine rated exactly at 86kW.
In reality, mechanical power converts to electrical power with inherent efficiency losses. The alternator itself generates heat, and the engine must also drive a cooling fan. The Cummins 6BT5.9-G2 produces 86kW of mechanical prime power at the flywheel. Once connected to an alternator and factoring in efficiency losses, this creates an 80kW (100kVA) electrical generator set. Never match an 86kW engine to an 86kW electrical load requirement, as the engine will constantly run in an overload condition, drastically reducing its lifespan.
Another misconception is that all 5.9L engines are identical. An automotive 5.9L Cummins from a pickup truck cannot simply be dropped into a generator frame. The injection pump on the G-Drive engine features a constant-speed governor designed strictly for 1500RPM or 1800RPM, whereas an automotive pump is variable-speed.
Cummins B5.9-G Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6BT5.9-G1-86kw, 6BT5.9-G2-86kw, 6BTA5.9-G2-106kw, 6BTAA5.9-G2-120kw, 6BTAA5.9-G12-140kw.In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions (FAQs)
What is the average 6BT5.9-G2 fuel consumption?
Fuel consumption heavily depends on the load applied. At a 100% prime load (86kW), the engine typically consumes around 22 liters per hour. At a 50% load, consumption drops to approximately 11.5 liters per hour. Running the engine consistently below 30% load is not recommended, as it can lead to wet stacking and unburned fuel entering the exhaust system.
How do I ensure I am buying a genuine DCEC Cummins 6BT5.9-G2 wholesale?
Counterfeit and heavily rebuilt engines flood the secondary market. Always work with a verified engine exporter like HekoPower. A genuine Dongfeng Cummins engine will have a distinct factory data plate riveted to the timing gear housing, matching serial numbers that can be verified in the Cummins global database, and specific casting marks on the block and cylinder head.
What is the difference between prime and standby power for this model?
Prime power (86kW) means the engine can run continuously for an unlimited number of hours per year under varying load conditions, with a 10% overload capability available for 1 hour every 12 hours. Standby power (92kW) is strictly for emergency backup during utility outages. Standby ratings do not permit any overload, and the engine should not operate at this output for more than 200 hours per year.
Are the dimensions and weight identical across all 6BT engines?
The core block dimensions remain the same, but the overall dimensions change based on the installed accessories. The standard 6BT5.9-G2 measures roughly 1026mm in length, 699mm in width, and 912mm in height. Exhaust manifolds, different radiator configurations, and heavy-duty air cleaners will alter the final footprint of the complete engine assembly.
