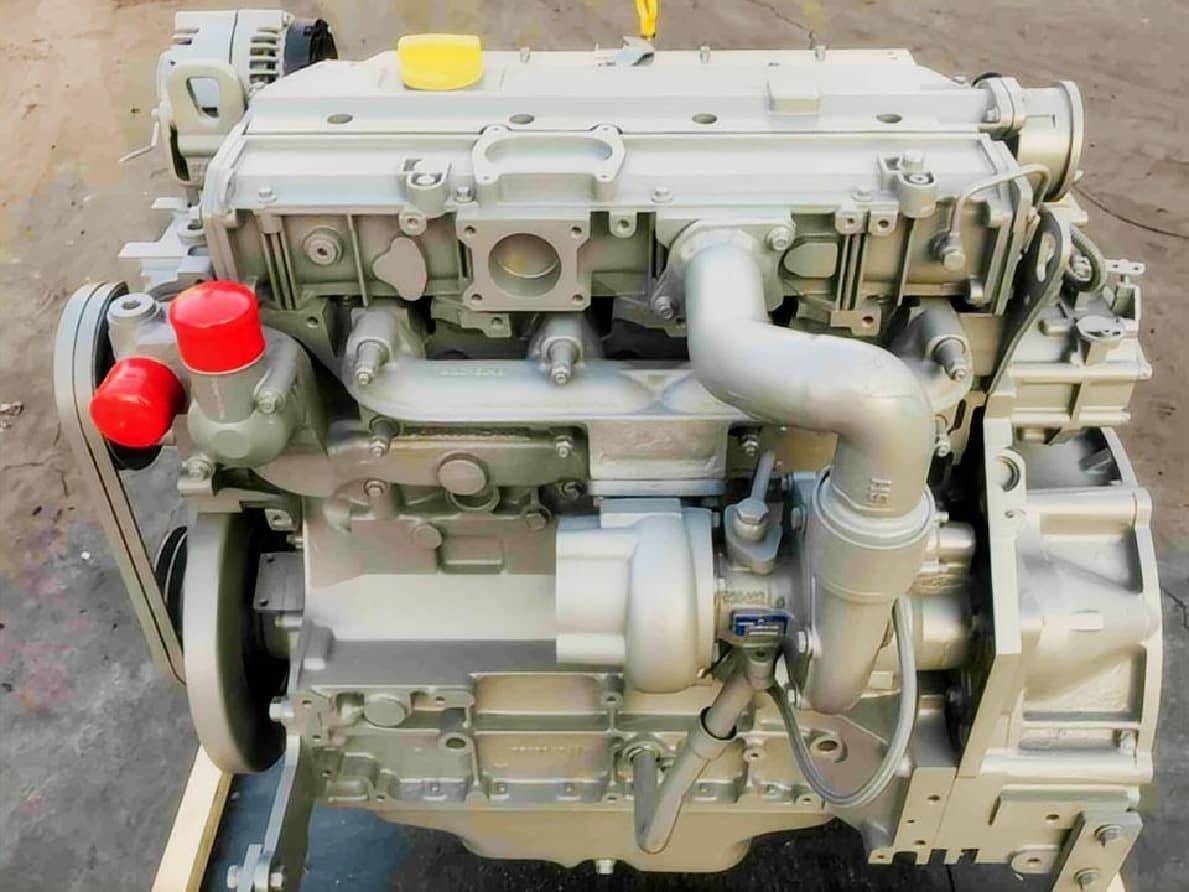

Genuine Deutz BF4M1013EC Generator Engine for OEM & Replacement
Finding a reliable heavy-duty power source for industrial generators is a balance between long-term durability and fuel efficiency. The Deutz BF4M1013EC is a highly efficient, water-cooled, 4-cylinder G-drive engine engineered specifically for diesel generator sets. Whether you are assembling a new generator unit or seeking a drop-in replacement engine to restore your equipment, this mid-range power pack delivers stable performance under variable loads.
As an established global supplier, HekoPower offers genuine, factory-fresh Deutz BF4M1013EC engines. We source our engines directly from certified production lines, including premium manufacturing joint ventures like Dalian Deutz. This ensures you receive authentic build quality, complete with official warranties and technical support, at highly competitive wholesale prices.
Tech Specs of Deutz BF4M1013EC Generator Engine
General Engine Data
Engine Model: Deutz BF4M1013EC
Type: 4 Cylinders, in Line
Displacement: 4.76 L
Bore * Stroke: 108 * 130
Overall Dimension: 1598mm*875mm*1248mm
Net Weight: 560 Kg
Key Performance Data
Rated Power: 102 kW
Max. Torque/Speed: 650 N.m @ 1500 rpm
Rated Speed: 1500 rpm
Specific Fuel Consumption: 215 g/kW.h
Net Frequency: 50Hz
Noise db(A): ≤ 98
More Technical Data
Certification: Tier II
Aspiration: Turbocharged & Intercooling
Fuel System: Mechanical Unit Pump in Line
Cooling Method: Water Cooled
Electrical System (Starter Motor/Alternator): Electronic Starting (24V)
Compression Ratio: 18:1
Power Output Profiles
Depending on your regional electrical grid demands and target generator setups, the BF4M1013EC is available in two main G-Drive speed configurations:
- 1500 RPM Setup: Delivers a prime power rating of 97 kW, making it the industry-standard choice for driving reliable 100 kVA generator sets operating at 50 Hz.
- 1800 RPM Setup: Delivers up to 105 kW of standby power, engineered to drive 60 Hz generator configurations common in North American and select industrial markets.
Fuel System Integration
Unlike newer common-rail models that require complex electronic programming, this model uses a highly reliable mechanical unit pump system. This mechanical setup makes the engine exceptionally resilient against lower-quality or fluctuating fuel grades. This resilience is a major advantage when operating in remote locations where fuel quality is inconsistent.
Real-World Applications and Industrial Scenarios
Industrial operations cannot afford unexpected grid failures or power drops. The BF4M1013EC diesel engine is a versatile prime mover that excels across several demanding operational environments.
Hospital Standby Power
Hospitals require backup systems that start instantly and accept 100% block loads without voltage sags. The BF4M1013EC standby generator engine features rapid cold-start capabilities, ensuring life-saving medical equipment remains powered during municipal grid dropouts.
Telecom Stations and Remote Infrastructure
For remote telecommunication towers, efficiency and maintenance intervals are critical. Operating as a 4-cylinder Deutz generator engine, it offers excellent fuel economy. This allows off-grid telecom stations to run for extended periods between refueling site visits.
Commercial Factories and Data Centers
Modern manufacturing plants and data centers rely on clean, continuous power to protect sensitive equipment and maintain production lines. Using the BF4M1013EC as a dedicated prime power or emergency backup engine prevents expensive factory downtime and database corruption.
Engineering Comparisons: Making the Right Fleet Decision
Making an informed procurement decision requires comparing the BF4M1013EC against similar models in the market.
Deutz BF4M1013EC vs. Deutz BF4M1013FC
While both belong to the same BFM1013 family, they have minor structural differences that impact power output:
- Cooling Systems: The "EC" variant uses air-to-air intercooling, which is highly efficient for standard generator environments. The "FC" variant features an optimized cooling structure designed for slightly higher kW outputs.
- Fuel Calibration: The FC model is tuned for higher peak loads, but the EC model offers a more stable, cost-effective fuel consumption sheet for steady 100 kVA loads.
Deutz BF4M1013EC vs. Cummins 4BTA Series
The Cummins 4BTA is another popular 4-cylinder generator engine, but they differ in design and power output:
- Displacement and Power: The Deutz BF4M1013EC features a larger displacement (4.76L vs. Cummins' 3.9L), allowing the Deutz engine to deliver its 102kW power rating with less internal strain.
- Fuel Injection System: The Deutz mechanical unit pump system offers finer fuel atomization compared to traditional rotary pumps, yielding lower exhaust emissions and better fuel efficiency.
Maintenance, Troubleshooting, and Replacement Tips
Regular maintenance is key to maximizing the lifespan of your Deutz engine. Below is a practical guide for service teams and fleet managers.
Managing the Mechanical Unit Pump
The mechanical unit pumps are the heart of the fuel system. To avoid premature wear, change your fuel filters every 250 operating hours. If you experience rough idling or sudden power drops, inspect the fuel delivery lines for air pockets or fuel contamination.
Turbocharger Inspection and Care
The turbocharger relies heavily on clean engine oil for cooling and lubrication. Always let the engine idle for three to five minutes before shutting it down after running at full load. This prevents oil from carbonizing inside the turbocharger bearings, avoiding costly replacements.
Finding a Reliable Replacement Engine
If you are replacing an older, worn-out engine, the BF4M1013EC offers simple, drop-in compatibility for older BFM1013 layouts. When ordering, provide HekoPower with your existing engine's serial number. This helps us match your exact mounting brackets, flywheel connections, and radiator positions for a smooth installation.
Deutz BFM1013-Generator Engine Series, original products from Dalian Deutz Engine Plant. This series mainly includes Deutz BF4M1013EC, Deutz BF4M1013FC, Deutz BF6M1013EC, Deutz BF6M1013FC, Deutz BF6M1013FC-G3. In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions
What is the exact fuel consumption rate of the BF4M1013EC?
At 1500 RPM under a typical 100% prime load, the engine consumes roughly 210 g/kWh of diesel. This highly competitive rate helps keep long-term operating costs low.
Can the BF4M1013EC run continuously as a prime power source?
Yes. The engine is fully rated for both continuous prime power and standby emergency applications. For prime power operations, follow the scheduled oil and filter changes every 250 to 500 running hours.
Does HekoPower supply genuine spare parts for this engine?
Yes, we supply complete engine assemblies as well as original replacement parts. This includes turbochargers, mechanical unit pumps, overhaul gasket kits, and water pumps to keep your equipment running smoothly.
How does HekoPower pack and ship these engines?
We ship all engines in heavy-duty, export-grade wooden cases to prevent damage during transit. Every engine undergoes a comprehensive factory test run before packaging to guarantee it is ready to run upon arrival.
