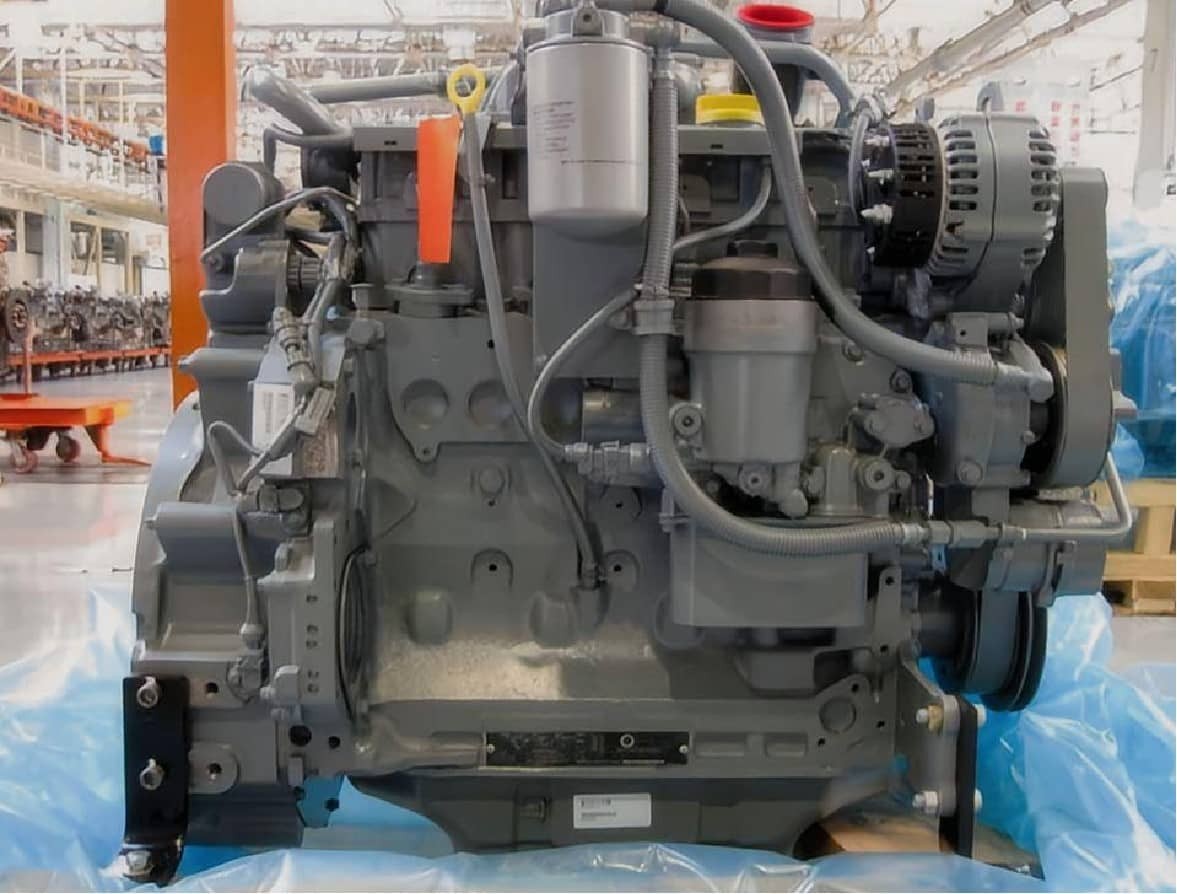

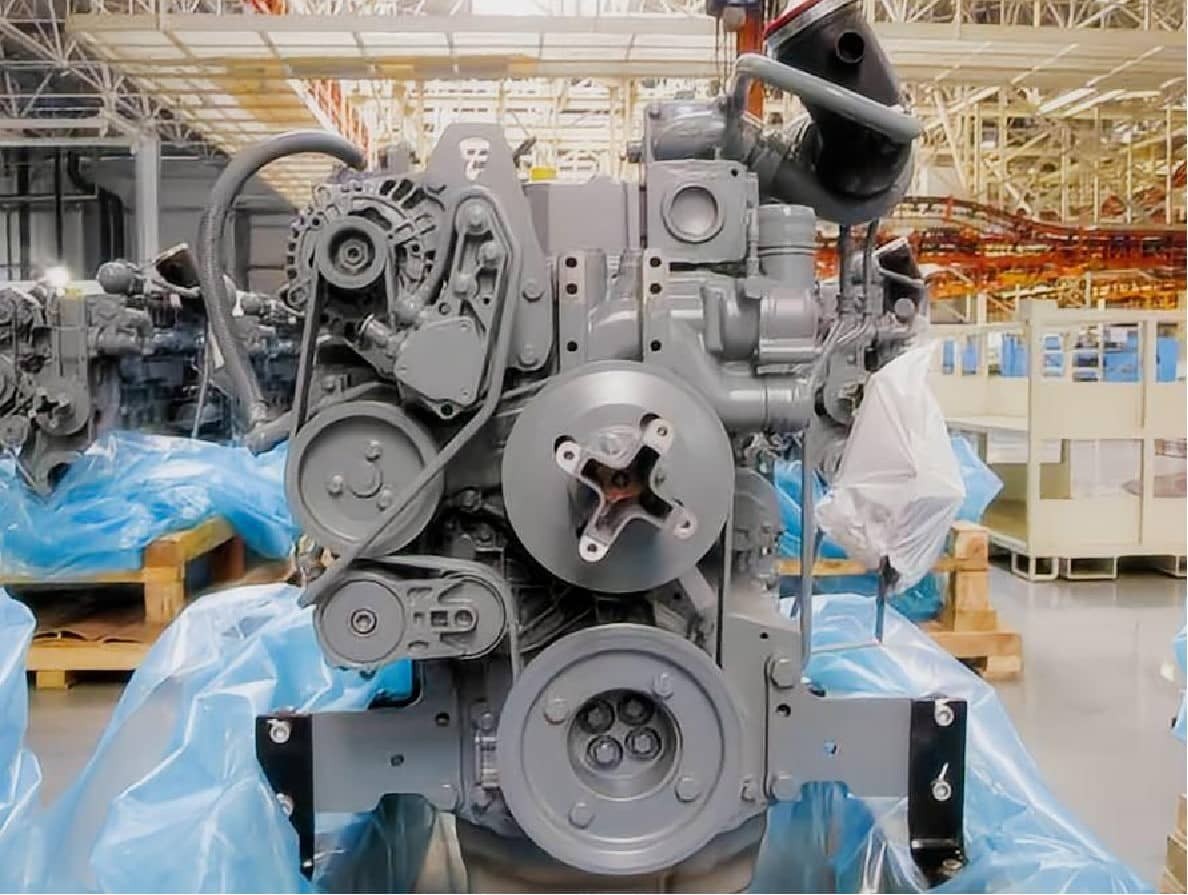

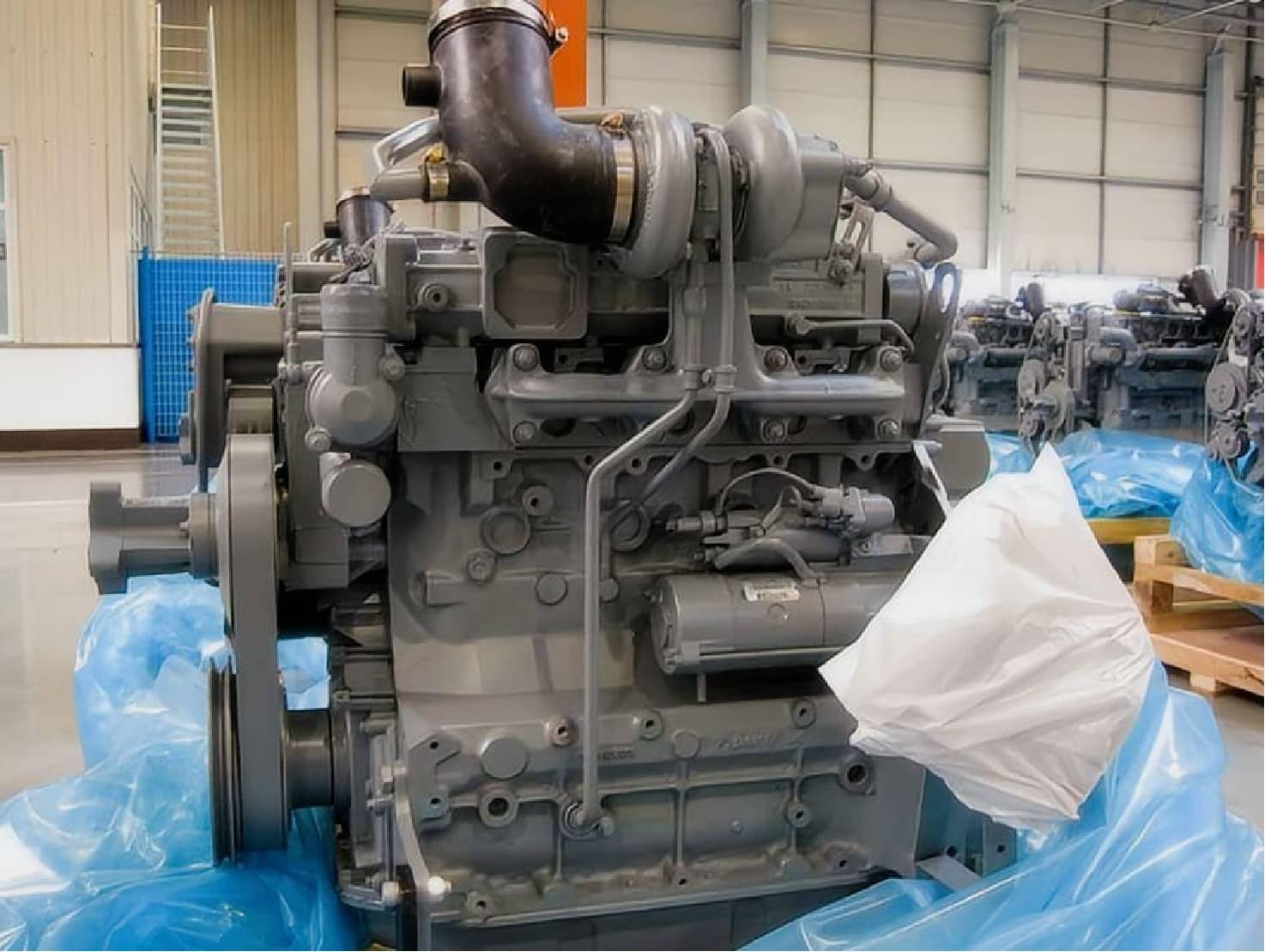

Deutz BF4M2012-14E4 Vehicle Diesel Engine Assembly
The Deutz BF4M2012-14E4 is a 4.04-liter, 4-cylinder in-line turbocharged diesel engine engineered specifically for commercial road vehicles. Rated at 103 kW (140 HP) at 2,500 rpm, this water-cooled engine features an advanced Electronic Unit Pump (EUP) fuel injection system paired with Selective Catalytic Reduction (SCR) to meet strict Euro IV emission standards.
As a direct exporter and engine supplier, HekoPower provides complete Dalian Deutz (DDE) BF4M2012-14E4 engine assemblies for truck manufacturers, fleet repower operations, and commercial repair workshops worldwide.
Tech Specs of Deutz BF4M2012-14E4
General Engine Data
Engine Model: Deutz BF4M2012-14E4
Type: 4 Cylinders, in Line
Displacement: 4.04 L
Bore * Stroke: 101 * 126
Overall Dimension: 799mm*601mm*832mm
Net Weight (with flywheel & alternator): 391 Kg
Key Performance Data
Rated Power: 103 kW/140 HP
Max. Torque/Speed: 530 N.m @ 1500 rpm
Rated Speed: 2500 rpm
Idle Speed: 650-750 rpm
Fuel Consumption @ rated Power: 240.95 g/kw.h
Max. Continuous Running Altitude: 2000 m
Min. Fuel Consumption @ Full-load: 192 g/Kw.h
More Technical Data
Certification: Euro IV
Aspiration: Turbocharged & Aftercooled
Fuel System: Electronic Unit Pump, SCR
Cooling Method: Water Cooled
Starting System: Electronic Starting (12V/24V)
Compression Ratio: 18.4:1
Engine Cooling Fluid Volume: 9 L
Engine Overview & Real Commercial Vehicle Applications
The 103 kW power curve of the BF4M2012-14E4 makes it a popular engine choice for light-to-medium commercial vehicles operating under demanding urban and intercity duty cycles.
Medium-Duty Trucks and Delivery Fleets
This 4.04L motor delivers up to 530 Nm of peak torque at low engine speeds. It provides quick acceleration and strong hill-climbing performance for 6-meter to 8-meter cargo trucks, box vans, and refrigerated delivery vehicles.
City Buses and Passenger Coaches
With its compact physical footprint and low noise output, the BF4M2012-14E4 is widely installed in 7-meter to 9-meter city transit buses, airport shuttles, and passenger coaches that require compact rear-engine or mid-engine layouts.
Special Purpose Commercial Chassis
The high power density of this engine makes it suitable for municipal utility vehicles, sanitation trucks, street sweepers, and tow trucks that run auxiliary PTO hydraulics alongside normal road transport.
Model Comparisons: Selecting the Right BFM2012 Variant
Selecting the correct engine variant within the Dalian Deutz BFM2012 lineup is critical for matching gearbox ratios and vehicle weight capacities.
BF4M2012-14E4 vs BF4M2012-12E4
The BF4M2012-12E4 produces a lower output of 90 kW (122 HP). Upgrading to the 103 kW BF4M2012-14E4 provides an additional 13 kW of headroom without increasing engine bay dimensions. This extra torque reduces gear shifting frequency on hilly transport routes, improving overall fuel efficiency under heavy payloads.
BF4M2012-14E4 vs BF4M2012-16E4
While the BF4M2012-16E4 pushes output to 121 kW (160 HP), it subjects internal components to higher thermal stress. The 103 kW 14E4 variant operates at lower peak cylinder pressures, making it the preferred choice for fleet operators prioritizing maximum engine engine life and reduced maintenance overhead over sheer horsepower.
Euro III (BF4M2012-14E3) vs Euro IV (BF4M2012-14E4)
The Euro III 14E3 version relies on mechanical or early-generation fuel controls without exhaust aftertreatment. The Euro IV 14E4 version integrates full electronic unit pump control and SCR exhaust dosing. Swapping a Euro III motor for a Euro IV 14E4 requires installing the matching engine ECU harness and urea dosing tank modules.
Truck Engine Replacement and Maintenance Guidelines
Executing an engine swap or maintaining an existing BF4M2012-14E4 assembly requires attention to specific fuel and electrical requirements.
Swapping a Vehicle Engine Assembly
Flywheel and Housing Alignment: Verify whether your vehicle transmission uses an SAE 2 or SAE 3 flywheel housing interface. HekoPower supplies customizable flywheel housing configurations to match manual and automatic truck gearboxes.
ECU Harness Connections: Do not splice the main EUP fuel control harness. Always connect the engine control module to a stabilized 24V power supply to prevent voltage drops that cause ECU communication faults.
Fuel Line Priming: Before the first start after an engine swap, bleed the low-pressure fuel circuit completely. Dry-cranking the Electronic Unit Pumps can cause scoring on internal plunger surfaces.
Preventive Maintenance Rules
Fuel Filtration: Use genuine fuel filters rated for 3-micron filtration. Water contamination quickly damages EUP high-pressure nozzles.
AdBlue / DEF Quality: Always use certified Euro IV AdBlue (DEF) solution. Impure urea causes crystallization inside the SCR injector and de-rates engine power output.
Coolant Maintenance: Use low-silicate organic acid technology (OAT) coolant to protect the wet cylinder liners against cavitation erosion.
Common Misconceptions About the BF4M2012-14E4
Misconception 1: "A 4-cylinder 4.04L engine cannot handle 10-ton gross vehicle weight."
Fact: Thanks to turbocharging, intercooling, and 530 Nm of low-end torque, the 4.04L BF4M2012-14E4 easily replaces older, heavier 6-cylinder naturally aspirated engines while cutting vehicle deadweight by over 100 kg.
Misconception 2: "You can bypass the SCR system without affecting engine performance."
Fact: The engine ECU monitors exhaust backpressure and NOx levels continuously. Disconnecting the SCR urea dosing system triggers automatic engine torque de-rating, reducing power output by up to 40%.
Misconception 3: "All Dalian Deutz 2012 series engines use interchangeable injectors."
Fact: Euro IV Electronic Unit Pumps operate at higher injection pressures than Euro III variants. Installing Euro III injectors into a 14E4 engine causes poor atomization, excessive black smoke, and high fuel consumption.
Complete Dalian Deutz Vehicle Engine Series
Choosing the right power output prevents drivetrain overload and unnecessary fuel burn. HekoPower supplies the complete range of factory-new Dalian Deutz commercial vehicle engines to suit every truck and bus platform.
Deutz BFM2012-Vehicle Diesel Engine Series, original products from Dalian Deutz Engine Plant. This series mainly includes Deutz BF4M2012-13E3, Deutz BF4M2012-14E3, Deutz BF4M2012-16E3, Deutz BF4M2012-14E4, Deutz BF4M2012-16E4, Deutz BF6M2012-18E3, Deutz BF6M2012-22E3, Deutz BF6M2012-22E3U, Deutz BF6M2012-16E4, Deutz BF6M2012-18E4, Deutz BF6M2012-20E4, Deutz BF6M2012-22E4.
Frequently Asked Questions (FAQ)
Can I replace a broken Deutz BF4M2012-14E3 engine with the Euro IV BF4M2012-14E4?
Yes, physically the engine block mounts and flywheel housing are identical. However, you must install the Euro IV engine wiring harness, ECU, and SCR exhaust aftertreatment components to enable full engine power.
What is included in a complete engine assembly from HekoPower?
Our complete BF4M2012-14E4 engine assembly includes the engine block, cylinder head, turbocharger, starter motor, alternator, Electronic Unit Pumps, fuel injectors, flywheel, and full factory engine testing certificate.
What is the lead time and packaging for export orders?
Engine assemblies are tested on dynamic dynamometers, treated with anti-rust oil, sealed in moisture-proof plastic wrapping, and secured inside export-grade wooden crates. Standard delivery time is 7 to 15 business days.
