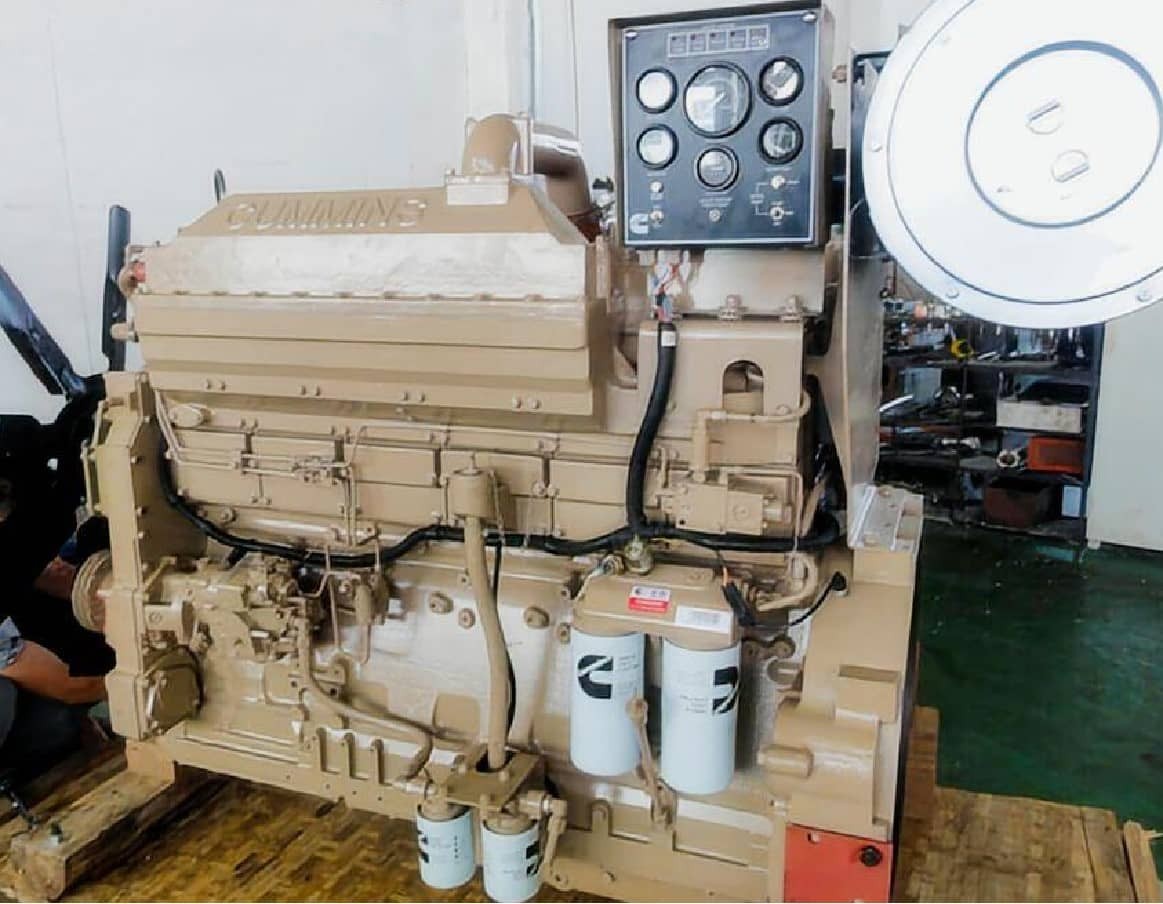

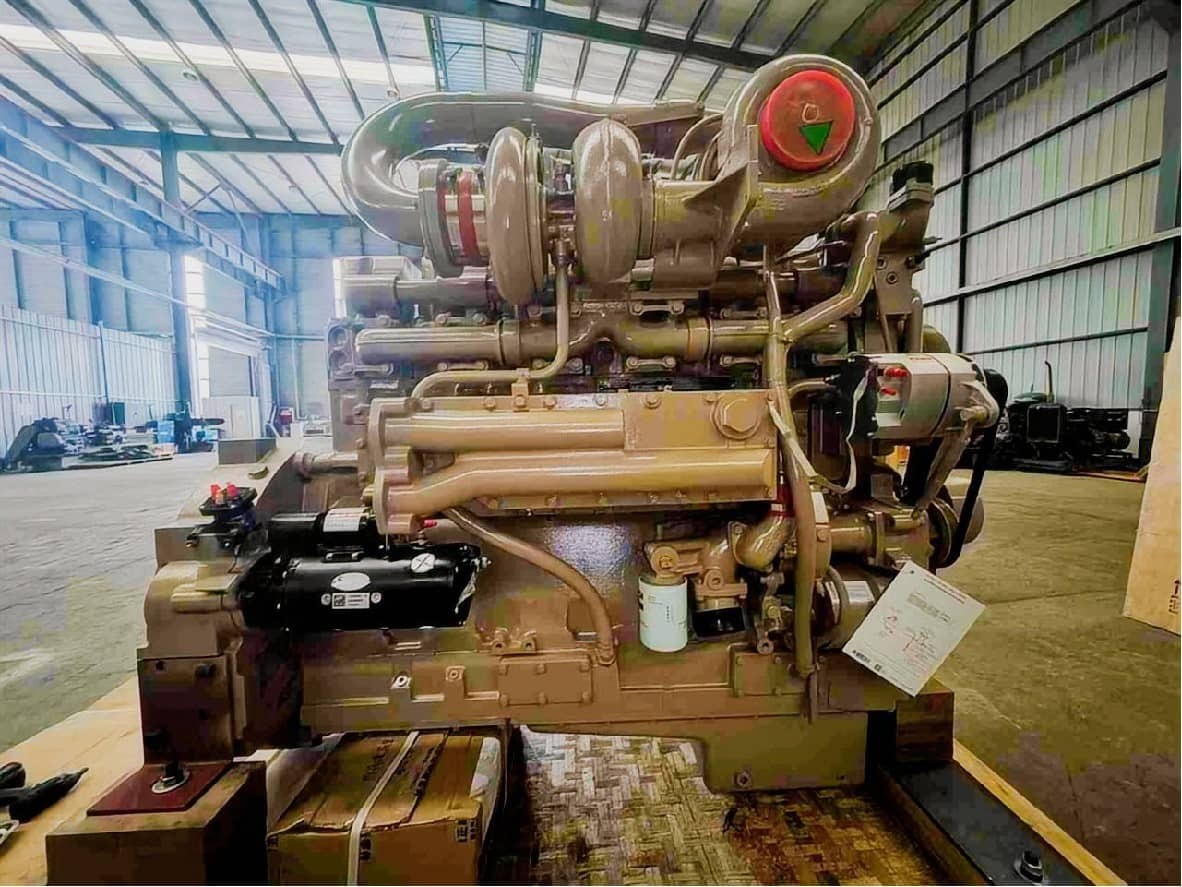

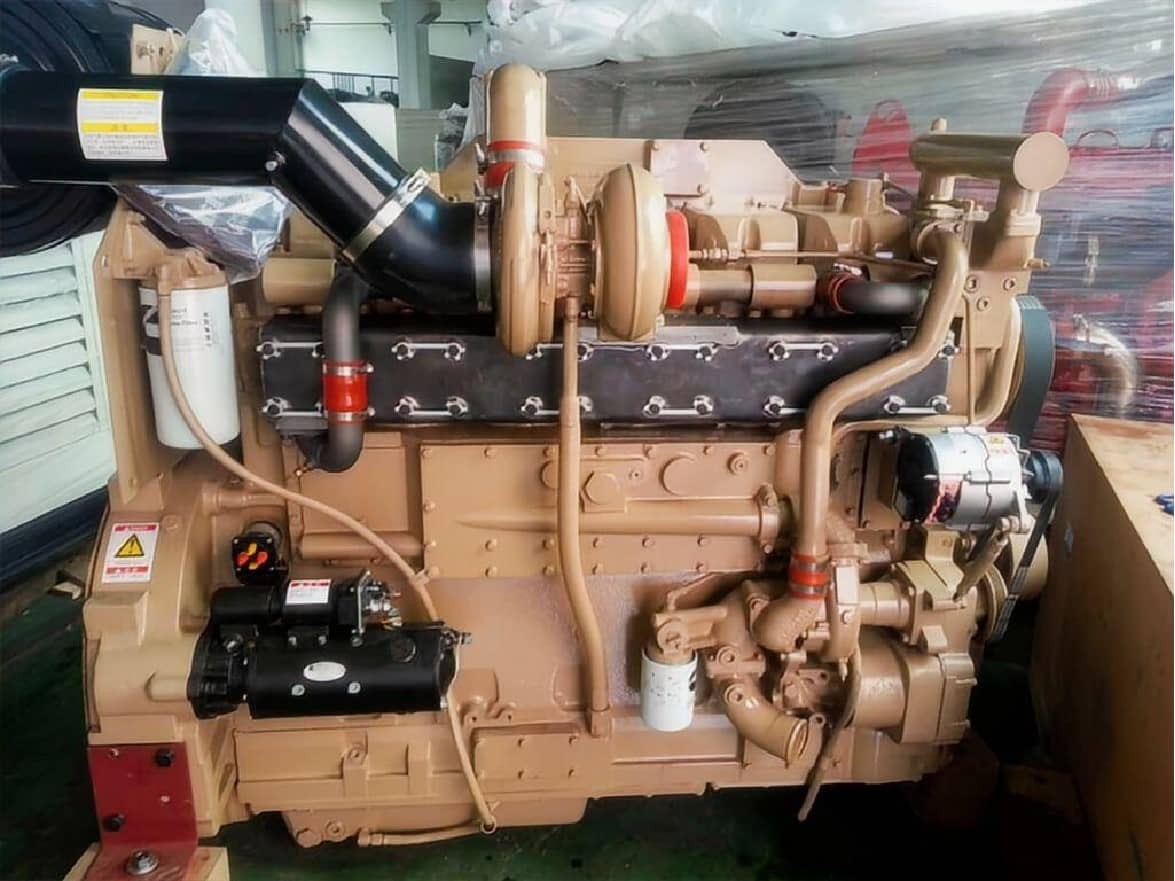

Genuine Cummins KTA19-P450 Pump Drive Engine
The Cummins KTA19-P450 is a dedicated industrial pump drive engine engineered for environments where mechanical reliability is the ultimate priority. Manufactured by the Chongqing Cummins Engine Company (CCEC), this 18.9L, inline 6-cylinder diesel engine delivers a rated output of 336 kW (450 HP) at a steady 2100 RPM. As your trusted engine supplier, HekoPower provides this heavy-duty power unit specifically configured for demanding fluid transfer and high-pressure hydraulic applications.
When moving thousands of gallons of water, dense slurry, or industrial chemicals per minute, the power unit must resist stalling under sudden load changes. The KTA19-P450 excels here, producing a massive peak torque of 1907 Nm at just 1350 RPM. This substantial low-end grunt allows large centrifugal pumps to overcome sudden head pressure spikes without bogging down. HekoPower supplies the complete, original CCEC KTA19-P450 assembly, ready for seamless integration into your stationary skids or mobile pump trailers.
Tech Specs of KTA19-P450
General Engine Data
Engine Model: Cummins KTA19-P450
Type: 6 Cylinders in Line
Displacement: 19 L
Bore * Stroke: 159 * 159
Overall Dimension: 2150mm*966mm*1704mm
Net Weight (with flywheel & alternator): 1699 Kg
Key Performance Data
Rated Power: 336 kW/450HP
Rated Speed: 2100 rpm
Max Torque/Speed: 1907 N.m @ 1300 rpm
Fuel Consumption @ Rated Power: 210g/Kw.h
Max. Continuous Running Altitude: 2000 m
Max. No-Load Governed Speed: 2450 rpm
Continuous Output/Rated Speed: 272 kW/365HP @2100 rpm
More Technical Data
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection PT Pump
Compression Ratio: 15.5:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 30 L
Real-World Application Scenarios
The operational demands of a continuous-duty pump engine are vastly different from those of a commercial vehicle. The KTA19-P450 is strictly designed to thrive in high-load, steady-state environments.
Agricultural Irrigation Systems
Large-scale agricultural operations rely on center-pivot and flood irrigation systems that run non-stop for weeks at a time. The KTA19-P450 stationary pump engine is the ideal backbone for these networks. Its mechanical governor ensures a locked RPM, providing a highly consistent water flow rate even if the underground water table fluctuates. The integrated water-air intercooler handles the severe ambient temperatures found in open farmlands, preventing engine thermal degradation during the peak heat of summer.
Mining and Dewatering Operations
Open-pit mines constantly battle groundwater ingress. Dewatering pumps require power units that can survive abrasive grit, extreme dust, and continuous mechanical stress. The 450HP Cummins diesel pump engine is a staple in these harsh environments. Because it utilizes a purely mechanical fuel system, it avoids the catastrophic electronic sensor failures that frequently shut down modern, computer-controlled engines in heavily contaminated mining pits.
Oilfield Mud Pumps
In the oil and gas sector, reliability directly dictates profitability. The KTA19-P450 power unit for pump applications is frequently deployed to drive mud pumps on drilling rigs. The density of drilling mud changes constantly, causing violent, sudden loads on the engine. The robust forged steel crankshaft and massive 159 x 159 mm bore and stroke absorb these mechanical shocks with ease, keeping the drill bit lubricated and operational.
Industrial and Emergency Fire Pumps
Safety suppression systems require absolute certainty. The KTA19-P450 engine for fire pump applications guarantees immediate start-up and rapid acceleration to its rated 2100 RPM. When a sudden pressure drop is detected in an industrial fire main, this engine reacts instantly, driving high-capacity water pumps to suppress the hazard. Its heavy-duty cast-iron block ensures it will not fracture under the sudden thermal shock of an emergency cold start.
Technical Comparisons: How the P450 Stands Out
Understanding the engineering nuances between Cummins engine designations is critical for successful procurement. Buyers often confuse the KTA19-P450 with its siblings, leading to costly specification errors.
KTA19-P450 vs KTA19-C450
While both engines share the same 18.9L displacement and 450HP rating, their operational profiles are entirely distinct. The "C" in C450 stands for Construction. Construction engines are calibrated for highly variable speeds—throttling up and down constantly in excavators or wheel loaders. The KTA19-P450 pump engine, however, is calibrated exclusively for steady-state operation. Its governor and fuel pump map are tuned to lock into a specific RPM and hold it indefinitely against a constant hydraulic load. Using a C450 on a stationary water pump will result in erratic fuel consumption and highly unstable water pressure.
KTA19-P450 vs KTA19-P500
The choice between the 450HP and 500HP pump variants comes down to your continuous duty requirements and fuel efficiency goals. The KTA19-P500 offers a higher top-end output, but the KTA19-P450 fuel consumption at rated power is significantly more economical for mid-range tasks. If your specific pump curve only requires 300 to 350 continuous horsepower, oversizing to the P500 will result in "wet stacking"—a harmful buildup of unburned fuel in the exhaust manifold due to underloading. The P450 provides a perfect balance for mid-capacity industrial pumps, ensuring the engine runs hot enough to burn clean while conserving diesel fuel.
Mechanical vs Electronic Control (QSK19)
Compared to newer electronic engines like the QSK19, the KTA19-P450 remains the undisputed choice for remote, off-grid operations. It lacks a complex Electronic Control Module (ECM). If an issue arises at a remote pump station in a developing region, a trained mechanic can diagnose and repair the mechanical fuel system using standard hand tools. There is no need for specialized diagnostic laptops or proprietary software, drastically reducing expensive field downtime.
Common Misconceptions About the 19L Pump Series
Misconception: Higher RPM always equals higher water volume.
Many operators mistakenly believe that pushing the engine past its rated 2100 RPM will yield better pump performance. In reality, the KTA19-P450 reaches its maximum volumetric efficiency and peak torque much lower in the rev range. Over-revving the engine drastically degrades the fuel consumption rate and performance curve, while also causing severe cavitation in the attached water pump, which ultimately destroys the pump impeller.
Misconception: All 19L diesel engines follow the same maintenance schedule.
Because the KTA19-P450 operates under continuous, steady-state loads, its lubricating oil shears differently than a vehicle engine. Operators often try to stretch oil change intervals based on mileage-equivalent hours. Industrial pump engines require strict adherence to hour-meter-based maintenance, specifically focusing on oil viscosity breakdown caused by sustained high operating temperatures.
Maintenance and Replacement Tips
Maximizing the lifespan of your Cummins KTA19-P450 requires proactive, scheduled maintenance. HekoPower strongly recommends the following servicing protocols to protect your investment.
Fuel System Calibration
The heart of this diesel engine is the PT-STC (Pressure Time - Step Timing Control) fuel system. The STC valve dynamically adjusts fuel injection timing based on engine load—advancing timing during startup to reduce white smoke, and retarding it under heavy load to control cylinder pressures. You must have the PT pump and injectors mechanically calibrated every 2,500 hours. A poorly calibrated pump will lead to cylinder wash-down or excessive exhaust smoke. Always source genuine CCEC KTA19-P450 replacement parts from HekoPower to maintain exact factory injection timing.
Cooling System Integrity
The KTA19-P450 utilizes a high-efficiency water-air intercooler to reduce intake manifold temperatures, increasing air density for better combustion. In stationary pump applications, ambient airflow is minimal. It is crucial to inspect the radiator core and intercooler fins for debris weekly, especially in dusty agricultural environments. Scale buildup inside the water jacket will insulate the cylinders, leading to rapid overheating. Always use a high-quality supplemental coolant additive (SCA) to prevent cavitation and liner pitting.
Air Filtration Management
This heavy-duty engine consumes massive volumes of air. The 159 x 159 mm bore and stroke require entirely unrestricted airflow to achieve the 450HP target. Replace the primary and secondary air filter elements strictly based on restriction gauge readings, not a random calendar schedule. A restricted air filter forces the turbocharger to overwork, dangerously increasing exhaust gas temperatures and destroying the turbo bearings.
KTA19 Series Overview
Selecting the right power unit requires looking at the broader scope of available equipment. While the 450HP model is exceptional for mid-range hydraulic demands, your specific project footprint might require different power bands or application configurations. HekoPower offers a complete portfolio of these heavy-duty engines to match any industrial requirement, ensuring you never have to compromise on performance or reliability.
Cummins k19-C Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KTA19-C450, KTA19-C525, KTA19-C600, KTAA19-C700, KTTA19-C700, KTA19-P450, KTA19-P500, KTA19-P600, KTA19-P680, KTA19-P700, KTA19-P750.
Frequently Asked Questions (FAQs)
What is the difference between continuous power and rated power on the KTA19-P450?
The rated power of this engine is 336 kW (450 HP) at 2100 RPM, which is the maximum safe output for intermittent, short durations. For 24/7 non-stop pumping operations, you must rely on the continuous power rating. The KTA19-P450 continuous power is rated at 272 kW (365 HP) at 2100 RPM. Properly sizing your water pump to the continuous rating ensures decades of engine longevity.
What are the KTA19-P450 engine dimensions and dry weight?
The bare engine weighs approximately 1633 kg (3600 lbs) dry. Its physical dimensions are roughly 2142 mm in length, 1067 mm in width, and 1733 mm in height. These structural dimensions are critical when engineering custom pump skids or enclosed, sound-attenuated power units.
Does HekoPower supply original CCEC KTA19-P450 engine parts?
Yes. HekoPower is a comprehensive, factory-direct supplier of both complete engine assemblies and genuine spare parts. Whether you require a full engine overhaul kit, a replacement PT fuel pump, or a new factory turbocharger, we guarantee exact compatibility and global shipping.
