M11-C315
Original Cummins, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Cummins, a global power solutions leader, comprises five business segments – Components, Engine, Distribution, Power Systems and Accelera by Cummins – supported by Cummins global manufacturing and extensive service and support network, skilled workforce and vast technological expertise. In 1981, Chongqing Engine Plant started to license-produce Cummins engines, and in 1995, it jointly established a Chinese joint venture engine factory with Cummins.

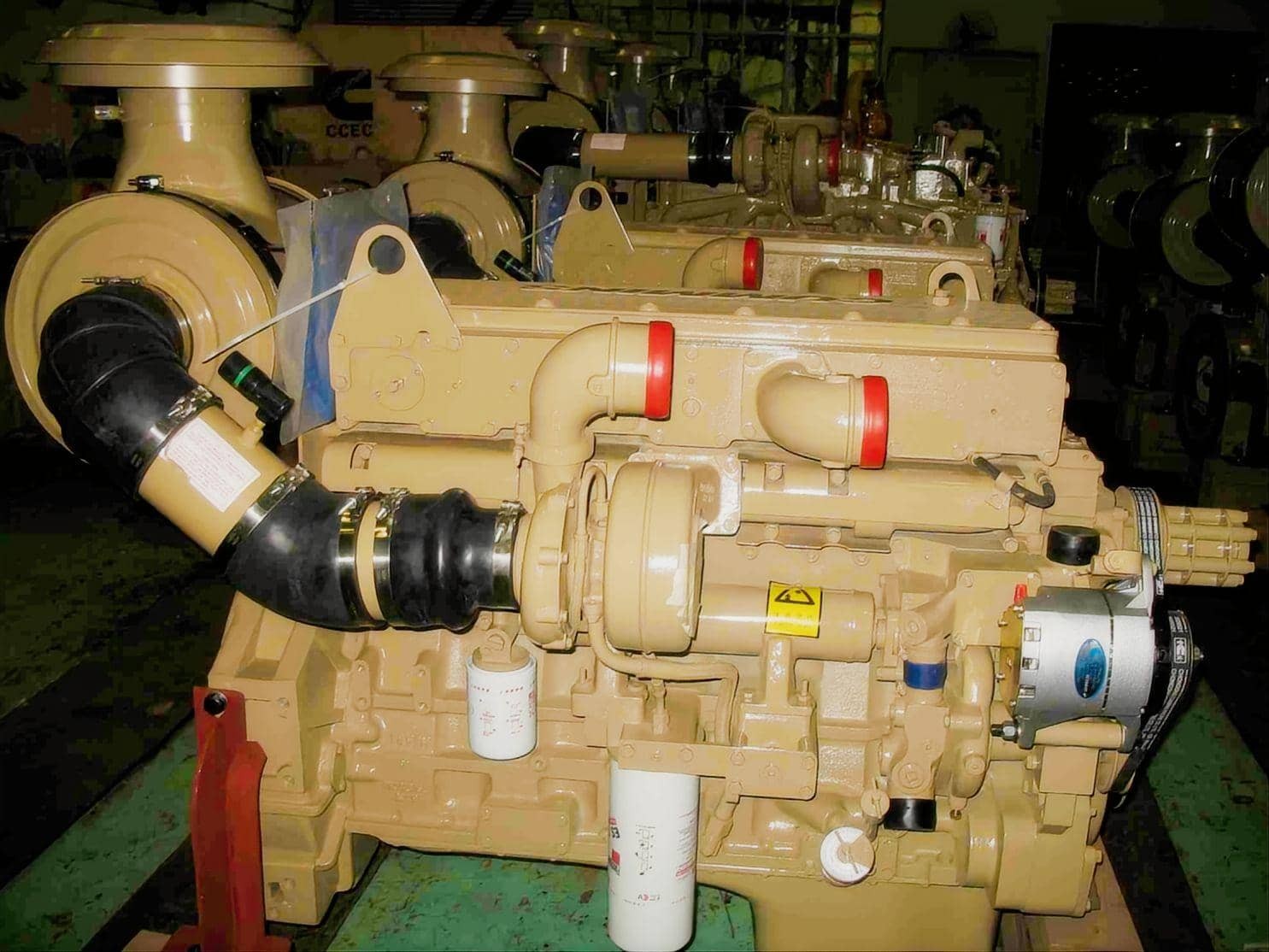

The Cummins M11-C315 is a 10.8-litre, 6-cylinder in-line turbocharged diesel engine, delivering 315 HP (232 kW) at 1,800 RPM and a maximum torque of 1,437 Nm at 1,300 RPM. This product is widely used in construction, agriculture, mining and other sectors. It powers equipment such as Dongfeng trucks, excavators and cranes. The engine's fuel consumption is 64.4 L/hr at rated power. Its idle speed is between 675 and 750 RPM, and it is suitable for use at altitudes of up to 3,048 metres. The engine features a compression ratio of 16.1:1, a direct injection fuel system, and is water-cooled with a cooling fluid volume of 12.9 L.
Specs - Technical standard
General Engine Data
Engine Model: Cummins M11-C315
Type: 6 Cylinders in Line
Displacement: 10.8 L
Bore * Stroke: 125 * 147
Overall Dimension: 1450mm*950mm*1010mm
Net Weight (with flywheel & alternator): 980 Kg
Key Performance Date
Rated Power: 232 kW/315HP
Rated Speed: 1800 rpm
Max Torque/Speed: 1437 N.m @ 1300 rpm
Max. No-Load Speed: 2450 rpm
Fuel Consumption @ Rated Power: 64.4 L/hr
Idle Speed: 675-750 rpm
Max. Continuous Running Altitude: 3048 m
More Technical Data
Certification: Tier 1
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection PT Pump, STC
Compression Ratio: 16.1:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 12.9 L
Cummins M11-C Series
Cummins M11-C Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes M11-C225, M11-C245, M11-C250, M11-C265, M11-C270, M11-C275, M11-C280, M11-C290, M11-C300, M11-C310, M11-C315, M11-C320, M11-C330, M11-C335, M11-C350.
