Details
HC12V898/15D
Original Deutz licence plant, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Deutz, With 160 years of heritage, is one of the world’s leading manufacturers of innovative drive systems. Hebei Huabei Diesel Engine Company("Huachai"), Huachai Deutz Engine Plant is Deutz License Plant in China, which has successively introduced the technology of Deutz AG since 1979, including the B/FL413/513, BFM1015, TCD2015, TCD12.0/16.0, HC4132, HC6132 series.

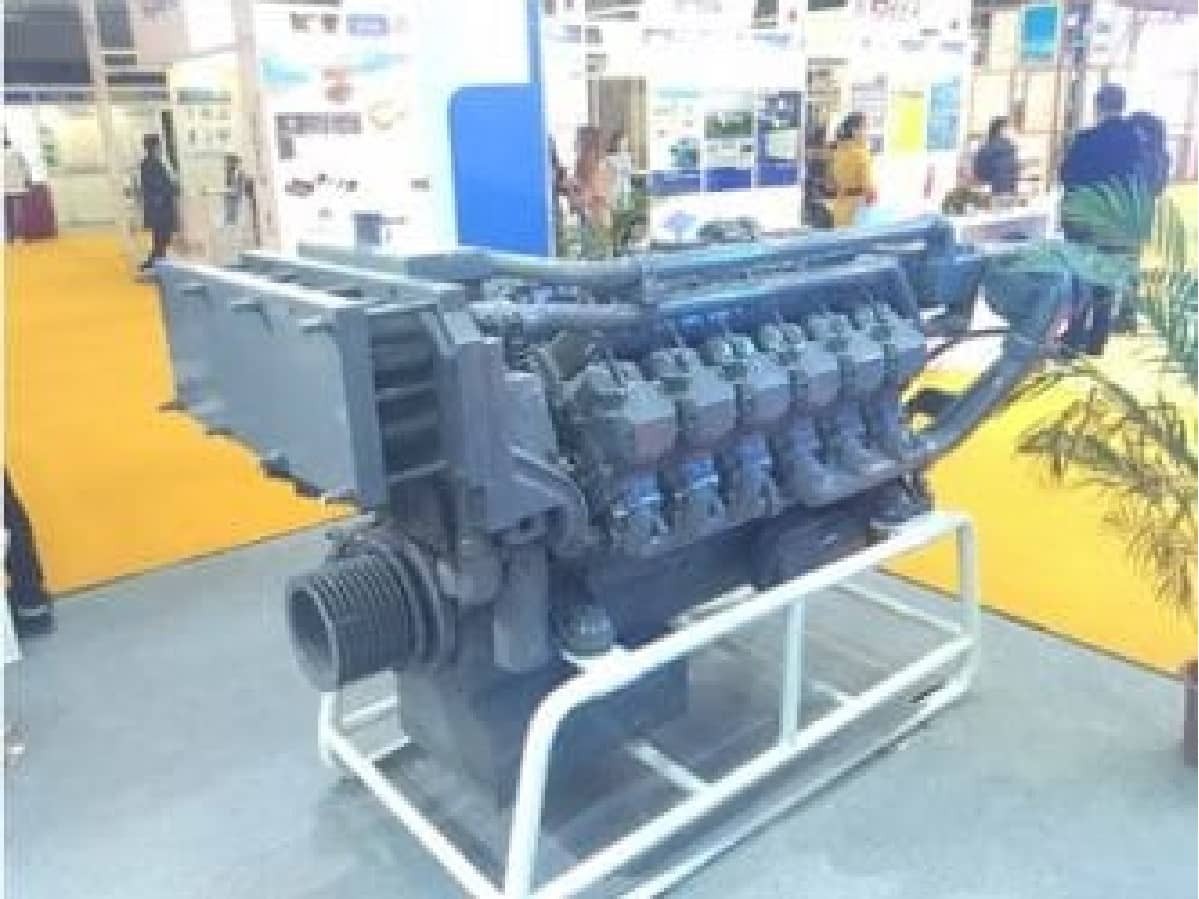

The Deutz HC12V898/15D is a 12-cylinder, V-type, 4-stroke marine engine with a displacement of 23.812L, commonly used in a variety of vessels, including boats, fishing boats, yachts, tug boats, cargo ships and passenger ships. The engine has a rated power of 660 kW (898 HP) at 1500 rpm, with a low idle speed of 550 rpm and fuel consumption of ≥ 195 g/kW.h. It features a turbocharged and intercooled aspiration system, an EUP fuel system, and a compression ratio of 16.5:1. The engine is electrically started (28.5V/55A) and equipped with a heat exchanger and water-air intercooler for effective cooling. The engine's lubricant capacity is approximately 70L, and it operates using a continuous running type. Its net weight is 2000 kg, with an overall dimension of 1763mm x 920mm x 1174mm. In addition, it is certified by ZY/CCS/IMO.
Technical Specifications
General Engine Data
Engine Model: Deutz HC12V898/15D
Type: 12 Cylinders, V type, 4 stroke
Displacement: 23.812 L
Bore * Stroke: 132 * 145
Net Weight (with flywheel and alternator): 2000 Kg
Overall Dimension: 1763mm*920mm*1174mm
Key Performance Date
Rated Power: 660 kW/898 HP
Rated Speed: 1500 rpm
Low Idle Speed: 550 rpm
Fuel Consumption (Running Speed): ≥ 195 g/kW.h
More Technical Data
Certification: ZY/CCS/IMO Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: EUP
Compression Ratio: 16.5:1
Starting Method: Electrical Start (28.5V/55A)
Cooling Method: Heatexchanger and Water-air Intercooler
Governor Type: Electronic/Mechanical
Lubricant Capacity: Around 70 L
Flywheel Size/ Housing: 14", SAE1
Running Type: Continuous
Deutz HC12V/D-Marine Auxiliary Series
Deutz HC12V/D-Marine Auxiliary Series, Marine Auxiliary Diesel Engines for commercial and recreational applications, original products from Huachai Deutz Engine Plant. This series mainly includes HC12V748/15D, HC12V823/15D, HC12V898/15D, HC12V748/18D, HC12V823/18D, HC12V898/18D, HC12V979/18D.
