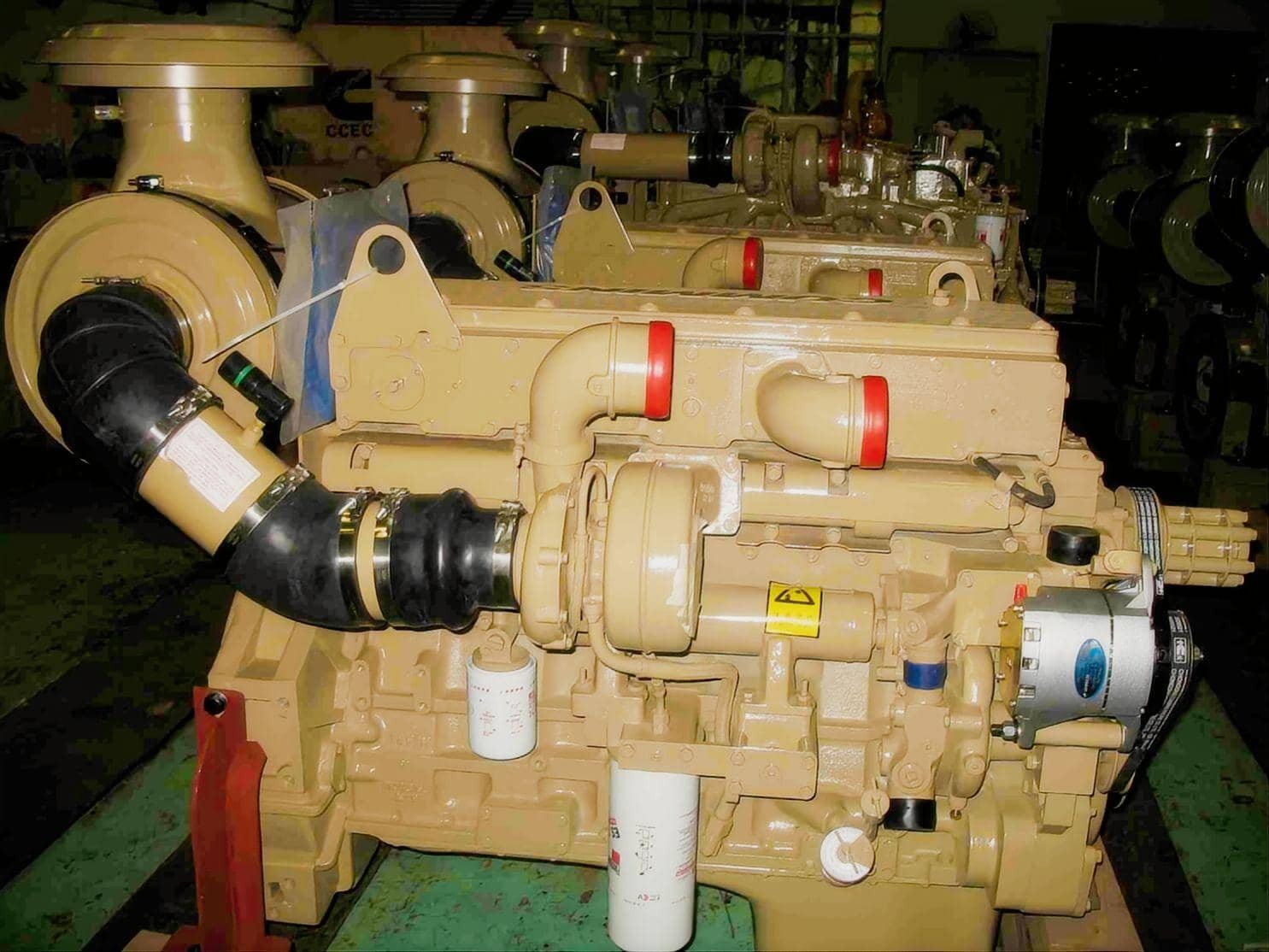

Cummins M11-C225 Construction Machinery Engine Assembly
The Cummins M11-C225 engine represents the pinnacle of mechanical diesel engineering for the heavy construction sector. Manufactured by Chongqing Cummins Engine Co., Ltd. (CCEC), this 11L Cummins M11 engine is specifically calibrated to withstand the brutal duty cycles of earthmoving and material handling equipment. Delivering a sustained 168kW (225HP) at 2100 RPM, the CCEC M11-C225 diesel engine provides unmatched lugging power for high-load operations. As a dedicated engine supplier, HekoPower provides the complete genuine CCEC M11-C225 engine assembly, ensuring equipment operators and fleet managers can restore their machinery to factory-level reliability with minimal downtime.
Tech Specs of Cummins M11-C225
General Engine Data
Engine Model: Cummins M11-C225
Type: 6 Cylinders in Line
Displacement: 10.8 L
Bore * Stroke: 125 * 147
Overall Dimension: 1450mm*950mm*1010mm
Net Weight (with flywheel & alternator): 980 Kg
Key Performance Data
Rated Power: 168 kW/225HP
Rated Speed: 2100 rpm
Max Torque/Speed: 1030 N.m @ 1300 rpm
Fuel Consumption @ Rated Power: 64.4 L/hr
Idle Speed: 675-750 rpm
Max. Continuous Running Altitude: 3048 m
More Technical Data
Certification: Tier 1
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection PT Pump, STC
Compression Ratio: 16.1:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.5 L
Overcoming Common Industry Misconceptions
Several misconceptions surround the specification and operation of the M11-C225 engine, often leading to improper maintenance or incorrect purchasing decisions.
The most common misunderstanding involves the engine's true displacement. The industry universally refers to this platform as the 11L Cummins M11 engine. However, the exact swept volume calculated from the 125x147mm bore and stroke across six cylinders is strictly 10.8 liters. Buyers searching for a Cummins M11-C225 10.8L diesel engine are looking at the exact same block and assembly as those searching for the 11L variant.
Another prevalent myth is that mechanical PT engines suffer from inherently poor fuel economy compared to electronic units. This is entirely false when the engine is matched correctly to its application. Because the PT pump generates immense injection pressures mechanically, fuel atomization inside the turbocharged air-water intercooled cylinder is highly efficient. The Cummins M11-C225 64.4 L/hr fuel consumption rate at peak load is highly competitive, ensuring extended operational hours on a single tank of fuel.
Operators also frequently misdiagnose STC valve behavior. Because the Step Timing Control shifts mechanically based on engine oil pressure, a drop in oil pressure due to a clogged filter or worn pump can cause the timing to remain in the advanced position during heavy load. Mechanics often incorrectly blame the injectors or the PT pump for the resulting engine knock, when the root cause is simply a base engine oil pressure issue preventing the STC from retarding the timing.
Real Application Scenarios in Heavy Duty Construction
The 225HP 2100RPM Cummins construction engine is not a generic power plant; it is specifically governed for the hydraulic demands of construction machinery.
In earthmoving, the Cummins M11-C225 engine for excavator applications is considered a premium upgrade. When operating a 30-ton class excavator, the hydraulic system demands massive, instantaneous torque to curl a fully loaded bucket out of dense clay. The M11-C225 excavator replacement engine excels here because its mechanical governor reacts instantly to load droop, preventing hydraulic stall. HekoPower frequently ships this engine to repower aging excavators where original engines have suffered catastrophic block failure.
Material handling presents another ideal use case. The Cummins M11-C225 engine for wheel loader operations—typically in the 5-ton to 7-ton loader class—provides the necessary low-end grunt for aggressively pushing into gravel stockpiles. Wheel loaders require rapid acceleration and deceleration cycles. The robust reciprocating mass of the M11-C225 wheel loader engine absorbs these torsional shocks flawlessly.
Beyond earthmoving, this versatile power pack serves as an exceptionally reliable M11-C225 crane engine for crawler cranes, as well as a prime mover for heavy drilling rigs, road rollers, and high-capacity concrete pumps. In every scenario, the lack of complex electronics means that a sudden torrential downpour or severe dust storm on a remote job site will not cause an unexpected ECM failure.
Maintenance, Tuning, and Engine Repower Guidelines
Maintaining the M11-C225 PT-STC engine requires specific mechanical aptitude, particularly concerning the fuel delivery system. The Cummins M11-C225 PT fuel system operates on a low-pressure supply to the injectors, with the high injection pressure generated by the camshaft pushing down on the injector plunger. Therefore, strict adherence to the overhead adjustment schedule is critical. Regularly setting the valve clearance and injector plunger lash ensures proper fueling rates and prevents catastrophic plunger tip failure.
When addressing M11-C225 PT pump troubleshooting, technicians should always verify fuel inlet restriction and fuel return line pressure before making internal pump adjustments. A restricted fuel filter will starve the PT pump of cooling and lubricating fuel, leading to accelerated gear pump wear. HekoPower always advises replacing the Fleetguard fuel filters at the exact specified intervals to protect the Cummins M11-C225 injector and PT pump assemblies.
For major overhauls, opting for a Cummins M11-C225 complete engine replacement is often more cost-effective than an in-frame rebuild, especially if the original block has suffered thermal distortion. As a premier Cummins M11-C225 engine supplier and exporter, HekoPower provides the complete engine assembly factory-tested and ready for immediate drop-in. When executing an M11-C225 engine repower, ensure that the existing flywheel housing, engine mounts, and cooling system radiator capacity match the new engine's specifications to prevent overheating in enclosed engine canopies.
HekoPower Cummins M11 Engine Series Integration
As a comprehensive global engine supplier, HekoPower understands that fleet managers operate diverse ranges of equipment requiring different power nodes. While the 168kW engine is perfect for mid-sized machinery, heavier equipment demands higher horsepower calibrations built on the exact same reliable 10.8L block. Our heavy-duty construction engine portfolio covers a wide power band to suit various equipment tonnages perfectly.
Cummins M11-C Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes M11-C225, M11-C245, M11-C250, M11-C265, M11-C270, M11-C275, M11-C280, M11-C290, M11-C300, M11-C310, M11-C315, M11-C320, M11-C330, M11-C335, M11-C350.
Frequently Asked Questions (FAQs)
What is the standard Cummins M11-C225 engine lead time?
As a dedicated M11-C225 engine assembly supplier, HekoPower typically maintains a highly efficient supply chain. The standard lead time for a complete, factory-fresh CCEC M11-C225 complete engine assembly is around 15 business days prior to export shipping.
Can the M11-C225 replace an electronic QSM11 engine?
Yes, but an M11-C225 replacement engine assembly utilizing mechanical PT injection will require a comprehensive repower strategy. Because it lacks an ECM, you will need to bypass the original electronic throttle controls and install mechanical linkages. HekoPower engineers can assist in evaluating the feasibility of this mechanical conversion for your specific machinery.
How do I request a Cummins M11-C225 engine quotation?
You can contact the HekoPower sales engineering team directly via our website. To ensure the fastest and most accurate Cummins M11-C225 engine price, please provide your machinery type, current engine serial number, and destination port. We specialize in M11-C225 diesel engine wholesale and direct-to-site export logistics.
What maintenance is required for the STC valve?
The Cummins M11-C225 STC system is highly durable but requires clean engine oil to function correctly. The most critical maintenance step is strictly adhering to oil and oil filter change intervals. Contaminated oil can cause the STC control valve spool to stick, which will negatively impact engine timing, idle quality, and starting performance.
