Details

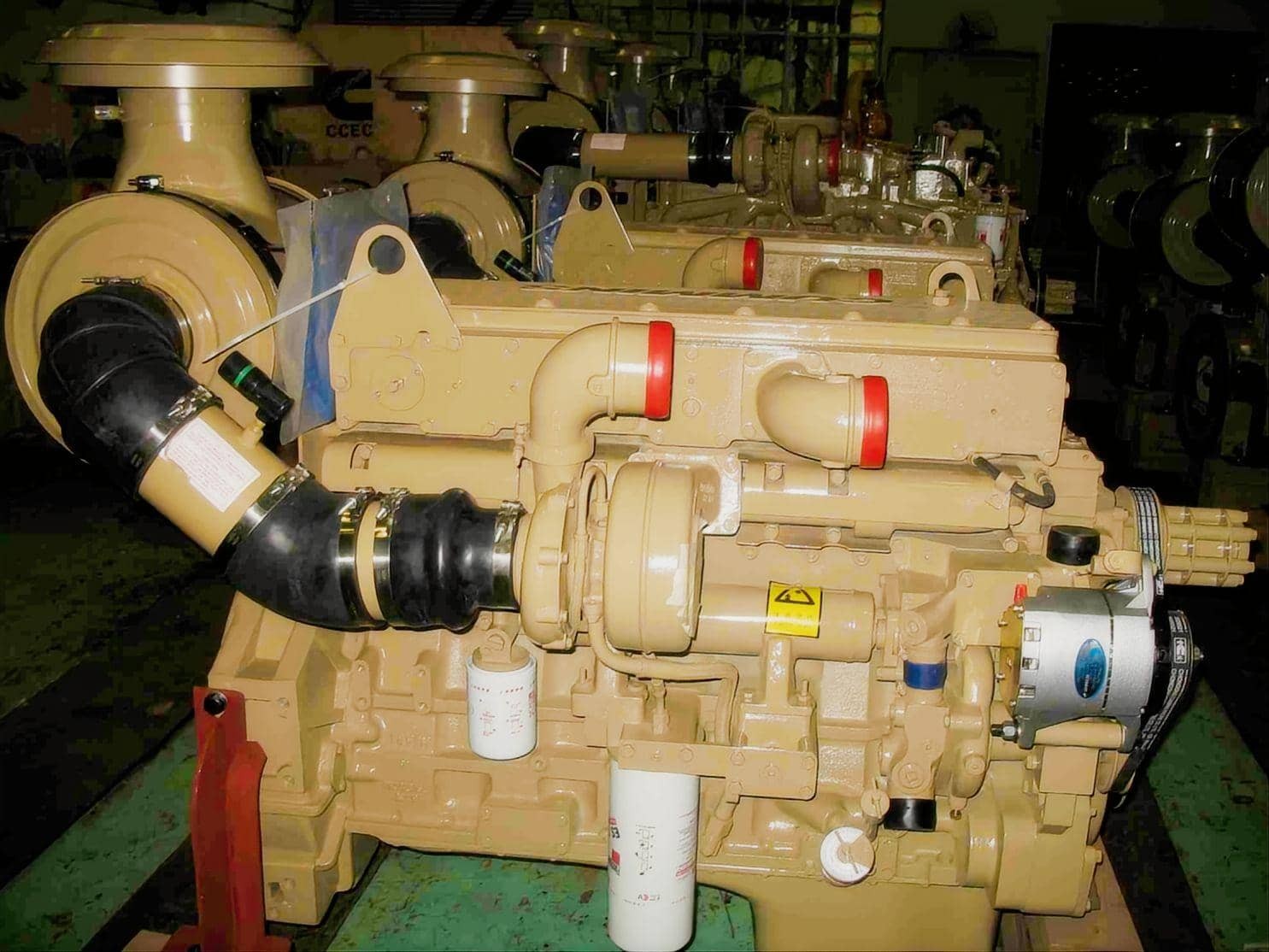

Genuine Cummins M11-C310 Construction Diesel Engine Assembly
The Cummins M11-C310 is a purpose-built mechanical diesel engine engineered specifically for heavy-duty industrial applications. Manufactured by CCEC, this 10.8L, 6-cylinder powerplant produces a consistent 228kW (310HP) at 2100 RPM. Procurement managers and maintenance teams rely on the M11-C310 engine assembly to power critical infrastructure equipment because of its straightforward mechanical design and high tolerance for harsh operating conditions.
Finding a reliable Cummins M11 construction engine replacement parts supplier is critical for fleet longevity. HekoPower provides both the complete M11-C310 replacement engine and genuine OEM components to keep your downtime to an absolute minimum.
Tech Specs of Cummins M11-C310
General Engine Data
Engine Model: Cummins M11-C310
Type: 6 Cylinders in Line
Displacement: 10.8 L
Bore * Stroke: 125 * 147
Overall Dimension: 1450mm*950mm*1010mm
Net Weight (with flywheel & alternator): 980 Kg
Key Performance Data
Rated Power: 228 kW/310HP
Rated Speed: 2100 rpm
Max Torque/Speed: 1424 N.m @ 1300 rpm
Max. No-Load Speed: 2450 rpm
Fuel Consumption @ Rated Power: 64.4 L/hr
Idle Speed: 675-750 rpm
Max. Continuous Running Altitude: 3048 m
More Technical Data
Certification: Tier 1
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection PT Pump, STC
Compression Ratio: 16.1:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 12.9 L
Real Application Scenarios for the M11-C310 Power Unit
You will rarely find the M11-C310 operating in light-duty environments. This specific 310HP Cummins construction engine is designed to handle severe hydraulic loads and constant vibration.
A primary application for the Cummins M11-C310 is within 150-ton crawler cranes. When a crane operator is managing a heavy lift, the engine must deliver immediate power without hesitation. The M11-C310 achieves this through its massive 125x147 bore stroke configuration, which allows the engine to produce its peak torque of 1424 N.m at a low 1300 RPM. This low-end torque curve prevents the engine from stalling when sudden hydraulic demands are placed on the crane's winch or boom systems.
Beyond lifting equipment, the M11-C310 mechanical engine for heavy construction machinery is a standard fixture in large-scale mining operations. Excavators, wheel loaders, and earth-moving equipment operating in open-pit mines require engines that can run continuously in high-dust environments. Because the M11 Tier 1 emission construction engine relies on mechanical fuel delivery rather than highly sensitive electronic sensors, it is the preferred choice for remote mining sites where advanced computer diagnostic tools are unavailable.
The Mechanics Behind the 10.8L Diesel Engine
The defining feature of the CCEC M11-C310 engine is its fuel delivery architecture. Unlike modern engines that rely on high-pressure common rail (HPCR) systems, the M11-C310 utilizes the proven Cummins PT direct injection fuel pump paired with the STC (Step Timing Control) fuel system.
The PT fuel pump is entirely mechanical. It operates on a simple principle where the fuel pressure and the time the injector is open determine the amount of fuel delivered to the cylinder. When paired with the M11-C310 turbocharged intercooled engine block, this system provides highly predictable fuel consumption, rated at approximately 64.4 L/hr under standard heavy load. The STC system actively manages injection timing based on the engine speed and load. During low engine speeds, the STC advances the timing to improve cold starting and reduce white smoke. As the engine reaches its 2100 RPM operating speed, the timing retards slightly to lower cylinder pressures and extend the life of the internal components.
Technical Comparisons: M11-C310 vs. Alternative Powerplants
Equipment owners often need to decide whether to stick with a mechanical engine or upgrade to a modern electronic platform. Comparing the Cummins M11-C310 to its electronic counterpart, the QSM11, highlights the unique value of the mechanical M-Series.
The QSM11 offers advanced electronic control modules (ECM) that optimize emissions and slightly improve fuel economy. However, the M11-C310 industrial diesel engine remains superior for raw durability in hostile environments. Electronic engines suffer from sensor failures when exposed to extreme moisture, vibration, or poor fuel quality. The mechanical M11-C310 ignores these issues. It will happily run on lower-grade diesel found in remote developing regions without throwing error codes or forcing the machine into "limp mode." For earth-moving equipment engine replacement, the mechanical simplicity of the M11 ensures that site mechanics can troubleshoot and repair the block using standard hand tools.
When comparing the 10.8L M11-C310 to smaller displacement engines tuned to reach 310HP, displacement wins. An 8.9L engine must run at significantly higher RPMs and internal pressures to generate 228kW. The larger CCEC M11-C310 engine dimensions and dry weight represent a heavier, thicker cast-iron block. This added mass absorbs heat and vibration better, meaning the engine experiences far less thermal stress during a continuous 12-hour mining shift.
Overcoming Common Misconceptions
A frequent misconception in the heavy equipment industry is that Tier 1 mechanical engines are obsolete and parts are impossible to find. This is entirely inaccurate for the M-Series. The M11-C310 remains in active production by CCEC specifically because global demand for reliable, non-electronic power units remains high. Genuine CCEC M11-C310 engine assemblies are readily available for wholesale and export.
Another misconception relates to engine swaps. Buyers sometimes assume they can drop an M11-C310 into a machine originally fitted with a different engine brand without modification. While an M11-C310 engine swap is common, the M11-C310 power pack requires specific attention to the bell housing alignment, engine mounts, and the cooling system capacity. The M11 generates significant heat under its 1424 Nm torque load, meaning the existing radiator must be rated for a 10.8L turbocharged intercooled setup.
Engine Overhaul, Maintenance, and Replacement Tips
Maintaining the M11-C310 heavy-duty industrial engine is straightforward if routine schedules are respected. Contaminated fuel is the only major threat to the PT fuel pump system. Replacing fuel filters at exact OEM intervals is non-negotiable to protect the M11-C310 PT injector tips from scoring.
During an M11-C310 engine overhaul, replacing individual components is often less cost-effective than utilizing a complete M11-C310 rebuild kit. When pulling the engine apart at the 10,000 to 12,000-hour mark, mechanics should carefully inspect the M11-C310 cylinder liner for cavitation—a common issue in wet-liner engines if the coolant additive levels have been neglected.
HekoPower is a direct M11-C310 engine supplier and provides comprehensive M11-C310 overhaul parts. Whether you require a single M11-C310 cylinder head, a replacement turbocharger, a standard gasket set, or a fresh piston kit and main bearing assembly, using genuine parts guarantees the engine returns to its factory 228kW baseline. If the block itself is cracked or severely damaged, ordering a complete M11-C310 replacement engine assembly is the fastest way to get your crane or excavator back on the job site.
Exploring the Complete Cummins M-Series Lineup
While the M11-C310 is highly specialized for 310HP heavy machinery applications, fleet managers often operate a diverse range of equipment that requires different power bands. Because different machines require varying torque curves and horsepower ratings, CCEC manufactures multiple configurations within the same architectural 10.8L block to meet specific industrial needs.
Cummins M11-C Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes M11-C225, M11-C245, M11-C250, M11-C265, M11-C270, M11-C275, M11-C280, M11-C290, M11-C300, M11-C310, M11-C315, M11-C320, M11-C330, M11-C335, M11-C350.
Frequently Asked Questions (FAQ)
What is the standard M11-C310 engine lead time for international orders?
As a dedicated Cummins M11-C310 wholesale supplier, HekoPower maintains streamlined supply chains. Standard lead times for a complete genuine CCEC M11-C310 engine assembly are typically around 15 business days, pending current stock levels and global shipping logistics.
Is the M11-C310 suitable as a marine or generator engine?
This specific page details the C-specification (Construction) engine. While the M11 block is used in marine and generator applications, the M11-C310 is governed and tuned specifically as an industrial power pack for excavators, loaders, and cranes. Marine and generator variants require different governing systems and cooling architectures.
What is included in a complete M11-C310 engine assembly replacement?
A complete assembly generally includes the engine block, cylinder head, PT fuel pump, STC system, injectors, turbocharger, and internal components (pistons, crankshaft, camshaft). It usually excludes the starter motor, alternator, and external radiators, which are often transferred from the old engine or purchased separately as M11-C310 maintenance parts.
