Details

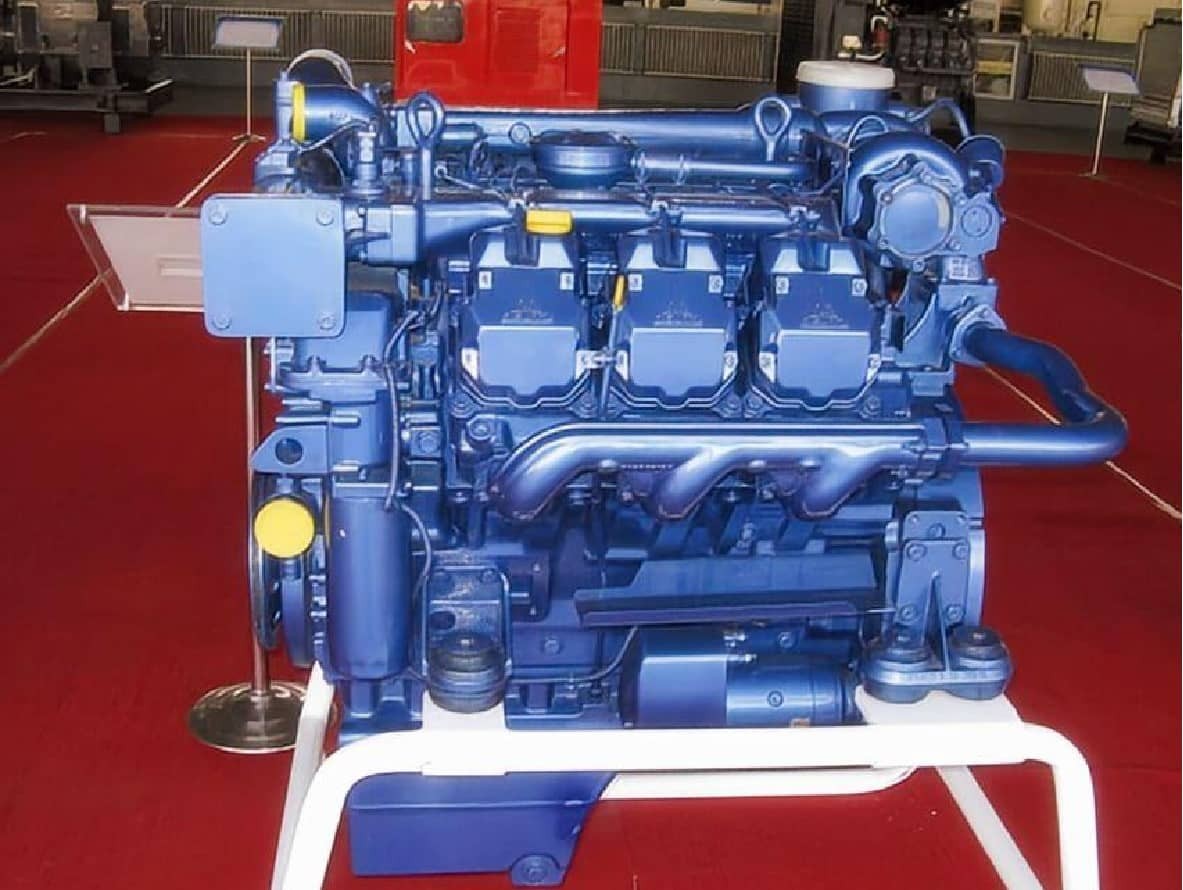

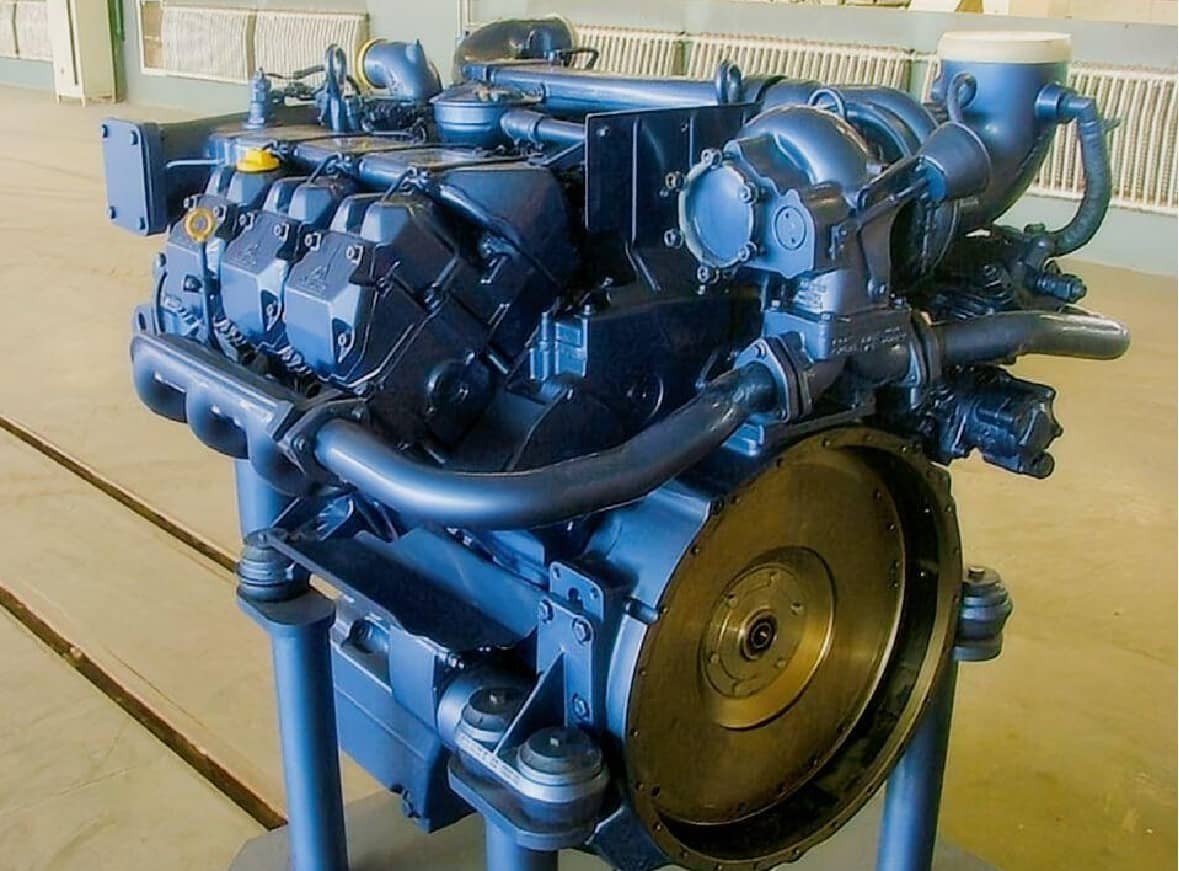

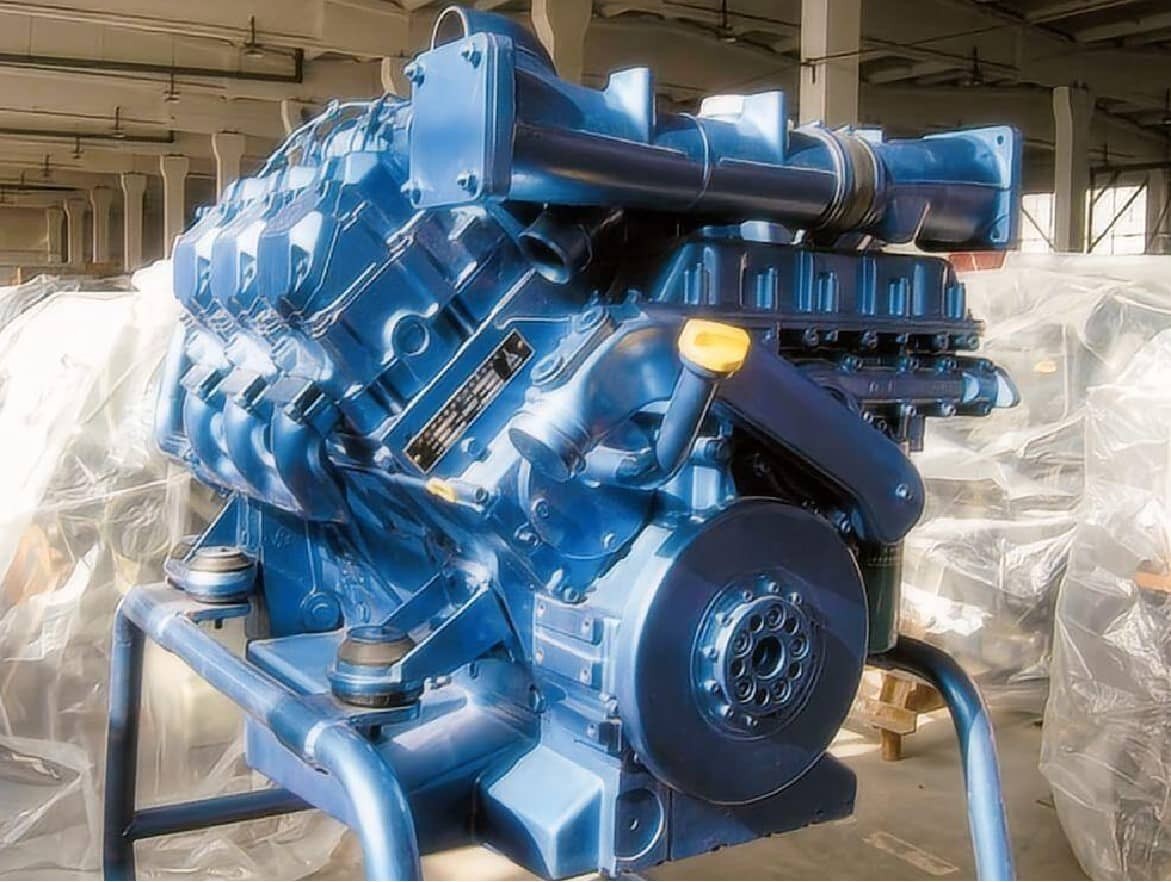

Genuine Deutz BF6M1015CP Complete Engine Assembly for Heavy Machinery
When heavy construction machinery demands relentless low-end torque and high thermal endurance, the Huachai Deutz BF6M1015CP remains an industry-standard 11.9-liter power unit. Engineered as a 90° V6 turbocharged and charge-air intercooled diesel engine, this 330 kW powerhouse is built specifically for severe-duty applications—including 40+ ton excavators, rotary drilling rigs, heavy-duty concrete pump trucks, and mining haulers.
As an authorized export partner and specialized engine supplier, HekoPower provides brand-new, factory-tested complete BF6M1015CP engine assemblies. Whether you are replacing a worn power unit in the field or upgrading an OEM fleet, we deliver complete turnkey engines equipped with fuel injection systems, starter motors, alternators, and cooling connections ready for dropped-in installation.
Tech Specs of Deutz BF6M1015CP
General Engine Data
Engine Model: Deutz BF6M1015CP-Construction Diesel Engine
Type: 6 Cylinders in Line
Displacement: 11.906 L
Bore * Stroke: 132 * 145
Net Weight (with flywheel and alternator): 850 Kg
Overall Dimension: 1043mm*932mm*1174mm
Key Performance Data
Rated Power/Standby Power: 300-330 kW
Rated Speed: 1900/2100 rpm
Max Torque/Speed: 1876 N.m @ 1300 rpm
Min Fuel Consumption @ Full Load: 202 g/Kw.h
Idle Speed: 600 rpm
Continue Power as Per ISO3046/1(IFCN): 261-287 kw @ 2100 rpm
More Technical Data
Certification: Euro II
Aspiration: Turbocharged
Fuel System: Electronic Unit Pump, Direct Injection
Cooling Method: Water Cooled
Electrical System (Starter Motor/Alternator): Mechanical/Electronic Start (24V/6.6kw)
Engine Alternator: 3-phase alternator, 28V/55A
Compression Radio: 17:1
Technical Comparisons: BF6M1015CP vs. Alternative Construction Diesels
Selecting the right engine for heavy machinery comes down to torque reserve, thermal management under load, and maintenance costs over time. Here is how the Deutz BF6M1015CP compares against similar power classes commonly found in construction fleets:
BF6M1015CP vs. In-Line 6 Alternatives (e.g., Cummins QSL9 / DCEC ISL)
While 9-liter in-line engines are common in medium-duty equipment, the 11.9-liter displacement of the BF6M1015CP provides significantly higher rotational inertia and a 2,647 Nm torque ceiling. In-line engines often operate closer to their thermal limits under continuous maximum load, whereas the large-bore (132 mm) V6 design distributes thermal stress across two distinct cylinder banks, giving it longer seal life in high-ambient environments like open-pit mines or desert construction sites.
BF6M1015CP vs. BF8M1015C (V8 Variant)
The 8-cylinder BF8M1015C offers higher top-end horsepower, but the 6-cylinder BF6M1015CP is engineered specifically for applications where fuel efficiency, weight distribution, and width restrictions matter. The V6 platform burns up to 8% less fuel per operating hour during variable-load work cycles, making it a more economical choice for equipment like mobile cranes, 30-ton wheel loaders, and concrete pumps.
Real Application Scenarios & Equipment Repowering
Hydraulic Excavators & Material Handlers (35–50 Ton Class)
Heavy digging creates sudden, steep hydraulic loads. The high torque reserve at 1,400 RPM allows the hydraulic pumps to maintain maximum flow without pulling down engine speed during deep trenching or hard-rock breakout.
Rotary Drilling Rigs & Foundation Equipment
Foundation drilling requires steady output for hours at a time. The gear-driven auxiliary systems on the BF6M1015CP eliminate belt slip under heavy alternator and hydraulic pump loads, maintaining steady oil pressure even when operating at steep working angles.
Concrete Pump Trucks & Mobile Cranes
Long-reach concrete pumps rely on sustained power to push dense concrete up high-rise structures. The high-capacity water-cooling jackets prevent overheating during extended stationary idling and high-pressure pumping cycles.
Installation, Maintenance & Replacement Guidelines
When replacing an aged engine or repowering existing equipment with a brand-new Deutz BF6M1015CP, field engineers should follow these critical installation and service steps:
Engine Mounting & Alignment Tips
- Flywheel & SAE Housing Matching: Verify whether your hydraulic pump drive or transmission requires an SAE 1 or SAE 2 flywheel housing. HekoPower offers customized flywheel adapters upon request.
- Cooling System Sizing: The BF6M1015CP generates high heat under sustained 330kW output. Ensure the radiator package maintains a minimum air-to-boil (ATB) rating of 50°C, and use direct air-to-air charge air cooling for the turbocharger circuit.
- Exhaust & Turbocharger Clearances: Maintain at least 50 mm of clearance around the turbocharger exhaust pipe to prevent heat damage to electrical wiring harnesses.
Scheduled Maintenance Protocols
- Engine Oil & Filter Changes: Change engine oil and both spin-on oil filters every 250 to 500 operating hours (depending on fuel sulfur levels). Use high-quality CH-4 or CI-4 grade 15W-40 oil.
- Fuel System Care: Inspect the primary fuel pre-filter with water separator daily. Drain collected water to prevent corrosion of the high-pressure unit pumps.
- Coolant Cavitation Protection: Use fully formulated ethylene glycol coolant with Supplemental Coolant Additives (SCA) to prevent cylinder liner cavitation erosion.
Why Source Your BF6M1015CP from HekoPower?
As a dedicated supplier of heavy-duty industrial diesel engines, HekoPower bridges the gap between factory production and global operators.
- Direct OEM Sourcing: Genuine units straight from licensed production lines.
- Thorough Quality Testing: Every complete engine assembly undergoes dyno testing prior to export packaging.
- Complete Spare Parts Support: Full access to maintenance kits, gaskets, injectors, pistons, and turbochargers for long-term fleet support.
- Global Logistics: Fast, secure sea and air freight packaging to minimize machinery downtime.
Deutz BFM1015-Construction Diesel Engine Series, original products from Huachai Deutz Engine Plant. This series mainly includes BF6M1015, BF6M1015C, BF6M1015CP, BF8M1015C, BF8M1015CP.
Frequently Asked Questions (FAQ)
What is the difference between a Huachai Deutz BF6M1015CP and a standard German Deutz BF6M1015?
Huachai Deutz engines are manufactured in China under official license from Deutz AG. They share the same structural blueprints, casting specifications, and critical engine component dimensions. Huachai Deutz complete assemblies deliver equivalent performance and durability at a lower capital cost, with widely available replacement parts across global markets.
Does the BF6M1015CP complete engine assembly come ready to run?
Yes. Complete assemblies supplied by HekoPower include the engine block, cylinder heads, turbocharger, intercooler connections, individual fuel pumps, injectors, starter motor, 24V alternator, oil filter assembly, and flywheel. Optional accessories like air cleaners, radiators, and control panels can be pre-configured upon request.
Can the BF6M1015CP replace older Euro I or Tier 1 engines in imported machinery?
In most cases, yes. The mechanical footprint and SAE flywheel mounting points remain consistent across generation series. However, because the CP variant utilizes charge air cooling and an optimized fuel delivery system, our engineers will confirm cooling package clearances and throttle linkage compatibility before shipment.
How does HekoPower handle international shipping and engine testing?
Every engine undergoes a 100% factory dyno test before packaging. We log baseline oil pressure, coolant temperature, and fuel consumption across low-idle, rated-power, and peak-torque speeds. The complete engine is drained of liquids, treated with anti-corrosion spray, and packed inside an export-grade, IPPC-certified wooden crate.
