Details

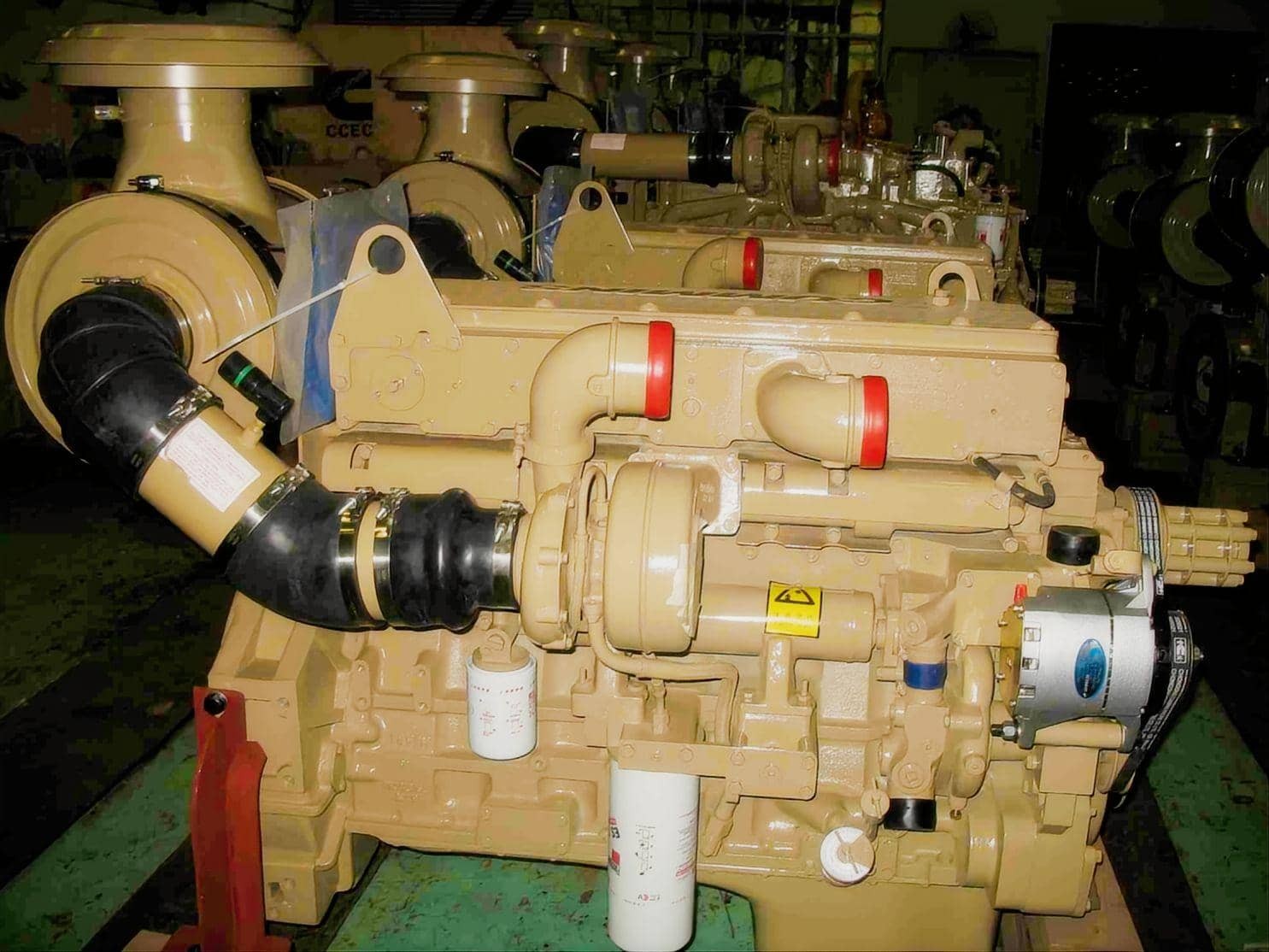

CCEC Cummins M11-C265 Engine Assembly
Securing the right powerplant for heavy machinery requires more than just matching a brand name. As a dedicated engine supplier, HekoPower provides the original CCEC Cummins M11-C265 engine assembly to keep your critical infrastructure moving. Designed specifically for rugged industrial applications, this 10.8L Cummins M11-C265 construction motor delivers a highly stable 265HP at low RPMs.
Equipment operators rely on this specific Cummins M11-C265 194kW engine because it balances raw torque with mechanical reliability. Unlike modern, overly complex engines, this M11-C265 Tier 1 construction engine thrives in harsh, dusty, and high-load environments. Whether you are managing a fleet of earthmovers or overseeing an independent mining operation, sourcing a genuine Cummins M11-C265 long block supplier in China ensures you receive components built to exact factory tolerances.
Tech Specs of Cummins M11-C265
General Engine Data
Engine Model: Cummins M11-C265
Type: 6 Cylinders in Line
Displacement: 10.8 L
Bore * Stroke: 125 * 147
Overall Dimension: 1450mm*950mm*1010mm
Net Weight (with flywheel & alternator): 980 Kg
Key Performance Data
Rated Power: 194 kW/265HP
Rated Speed: 1700 rpm
Max Torque/Speed: 1220 N.m @ 1300 rpm
Max. No-Load Speed: 2450 rpm
Fuel Consumption @ Rated Power: 64.4 L/hr
Idle Speed: 675-750 rpm
Max. Continuous Running Altitude: 3048 m
More Technical Data
Certification: Tier 1
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection PT Pump, STC
Compression Ratio: 16.1:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.5 L
Real Application Scenarios for the M11-C265
The true value of the M11-C265 industrial diesel engine lies in its specific equipment pairings. We frequently supply this Cummins M11-C265 replacement engine to maintenance managers trying to revive aging but structurally sound heavy equipment.
A prime example is the 30-ton excavator class. The Cummins M11-C265 engine for the Case 9050B is one of our most common fulfillment requests. When the original motor in a Case 9050B suffers catastrophic failure after thousands of hours in a quarry, swapping in a completely different engine series requires massive fabrication. Utilizing a direct Case 9050B M11-C265 replacement engine means the motor mounts, bell housing, and hydraulic pump splines align perfectly.
Similarly, mechanics rely heavily on this platform as the standard Cummins M11-C265 engine for the Link-Belt 4300. The hydraulic demands of the Link-Belt 4300 Quantum Cummins M11 engine setup require a motor that will not bog down under sudden hydraulic load spikes. Because the M11-C265 construction equipment engine produces its peak torque early in the rev range, it prevents the excavator’s hydraulic pumps from stalling when digging through compacted clay or rock.
Beyond excavators, we supply the Cummins M11-C265 power unit for various custom mining applications. As a standalone Cummins M11-C265 engine power pack, it drives stationary water pumps, rock crushers, and specialized forestry equipment where operators demand a purely mechanical, easily serviceable power source.
Technical Differences: Cummins M11-C265 vs M11-C270
A frequent discussion we have with purchasing managers revolves around the Cummins M11-C265 vs M11-C270 technical differences. On paper, a five-horsepower difference seems negligible, leading some buyers to assume the engines are entirely interchangeable. However, from an engineering perspective, the nuances matter greatly.
The Cummins M11-C265 265HP industrial diesel engine is typically governed precisely at 1700 RPM for specific industrial tasks. This M11-C265 1700 RPM diesel engine configuration is mapped to produce its 1220 Nm torque exactly where specific older hydraulic pumps need it most. While you will sometimes see 1288 Nm torque Cummins M11 industrial engine specs listed in broader M11 brochures, the C265 variant is tuned specifically for sustained, lugging power rather than peak, short-burst torque.
Another major technical distinction lies in the fuel delivery mechanism. This M11-C265 PT-STC diesel engine utilizes the Step Timing Control (STC) system. The CCEC M11-C265 mechanical PT fuel system parts are favored in remote locations because they do not rely on fragile electronic control modules. If the engine experiences bad fuel or extreme temperatures, the mechanical PT fuel pump engine design allows a skilled mechanic to diagnose and adjust the timing manually. The C270 and higher-horsepower variants sometimes utilize different turbocharger geometries or injection timing curves that might run too hot if improperly dropped into a machine designed specifically for the C265's cooling capacity.
Navigating Maintenance and Replacement Tips
When your machinery goes down, deciding between an M11-C265 engine rebuild and purchasing a CCEC M11-C265 complete engine is your first major hurdle.
If your engine block has thrown a rod or suffered severe structural cracking, an in-frame rebuild is impossible. In these scenarios, purchasing a Cummins M11-C265 complete engine assembly is the fastest way to get the machine back to work. As an experienced Cummins M11-C265 engine supplier, we provide fully dressed engines that include the turbocharged intercooled engine components, air compressor, and fuel system already installed and calibrated.
For fleets with in-house engine builders and a salvageable block, ordering an M11-C265 genuine replacement engine long block or a comprehensive M11-C265 overhaul kit is a highly cost-effective strategy. HekoPower supplies the required M11-C265 engine and parts to ensure your rebuild maintains factory compression ratios.
To ensure you order the correct replacement components, you must verify the Control Parts List number. Many clients ask us how to find the CPL number for the Cummins M11-C265 block. You should first look for the metallic engine data plate riveted to the rocker lever cover. If that plate is missing or illegible due to years of grease and wear, look closely at the engine block itself. The engine serial number and CPL are often stamped directly into the cast iron on the exhaust side of the engine block, just above the oil cooler housing. Providing this CPL to our team guarantees exact part fitment.
Overcoming Common Misconceptions
A major misconception regarding the M11-C265 replacement engine for heavy equipment is that mechanical fuel injection is outdated. In reality, for Tier 1 construction environments, mechanical injection is a massive operational advantage. Modern common-rail engines require ultra-low sulfur diesel and complex diagnostic software. The M11-C265 10.8L 6 cylinder diesel engine can handle lower-quality fuel found in remote mining camps without throwing sensor codes and shutting the machine down.
Another frequent misunderstanding involves physical fitment. Some buyers assume that any Cummins M11-C265 excavator replacement engine will fit any brand of 30-ton excavator. While the core block is the same, the flywheel housing, oil pan configuration (front sump versus rear sump), and exhaust routing vary drastically depending on the CPL. This is why discussing your specific machine model with us prior to purchase is critical.
Expanding Your Engine Options
While the M11-C265 is a highly specialized and heavily requested unit for 30-ton equipment, the broader Cummins M11 architecture was adapted for a massive variety of global applications. Depending on your specific machinery's weight class, hydraulic setup, and emission requirements, you may need a different power tier or configuration from this engine family.
Cummins M11-C Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes M11-C225, M11-C245, M11-C250, M11-C265, M11-C270, M11-C275, M11-C280, M11-C290, M11-C300, M11-C310, M11-C315, M11-C320, M11-C330, M11-C335, M11-C350.
Frequently Asked Questions About the M11-C265
Is the Cummins M11-C265 engine for sale immediately available for export?
Yes, as a specialized supplier, HekoPower manages a steady inventory of original CCEC engines. We coordinate international logistics for both complete engine assemblies and heavy equipment replacement engine long blocks to minimize your equipment downtime.
How do I determine the Cummins M11-C265 engine price?
Pricing depends entirely on the scope of supply you require. A bare long block will have a significantly different price point than a fully dressed Cummins M11-C265 power unit that includes the starter, alternator, turbocharger, and PT fuel pump. Contact our sales team with your CPL number and destination for an exact, tailored quote.
What kind of M11-C265 engine maintenance is required for the PT-STC system?
The most critical maintenance step for this mechanical system is strict adherence to overhead valve and injector adjustments. The STC valve and injector pushrods require precise lash settings every 1,500 to 2,000 operating hours. Keeping clean fuel filters and performing these regular mechanical adjustments ensures the M11-C265 retains its 1220 Nm torque output without burning excess fuel or causing premature camshaft wear.
