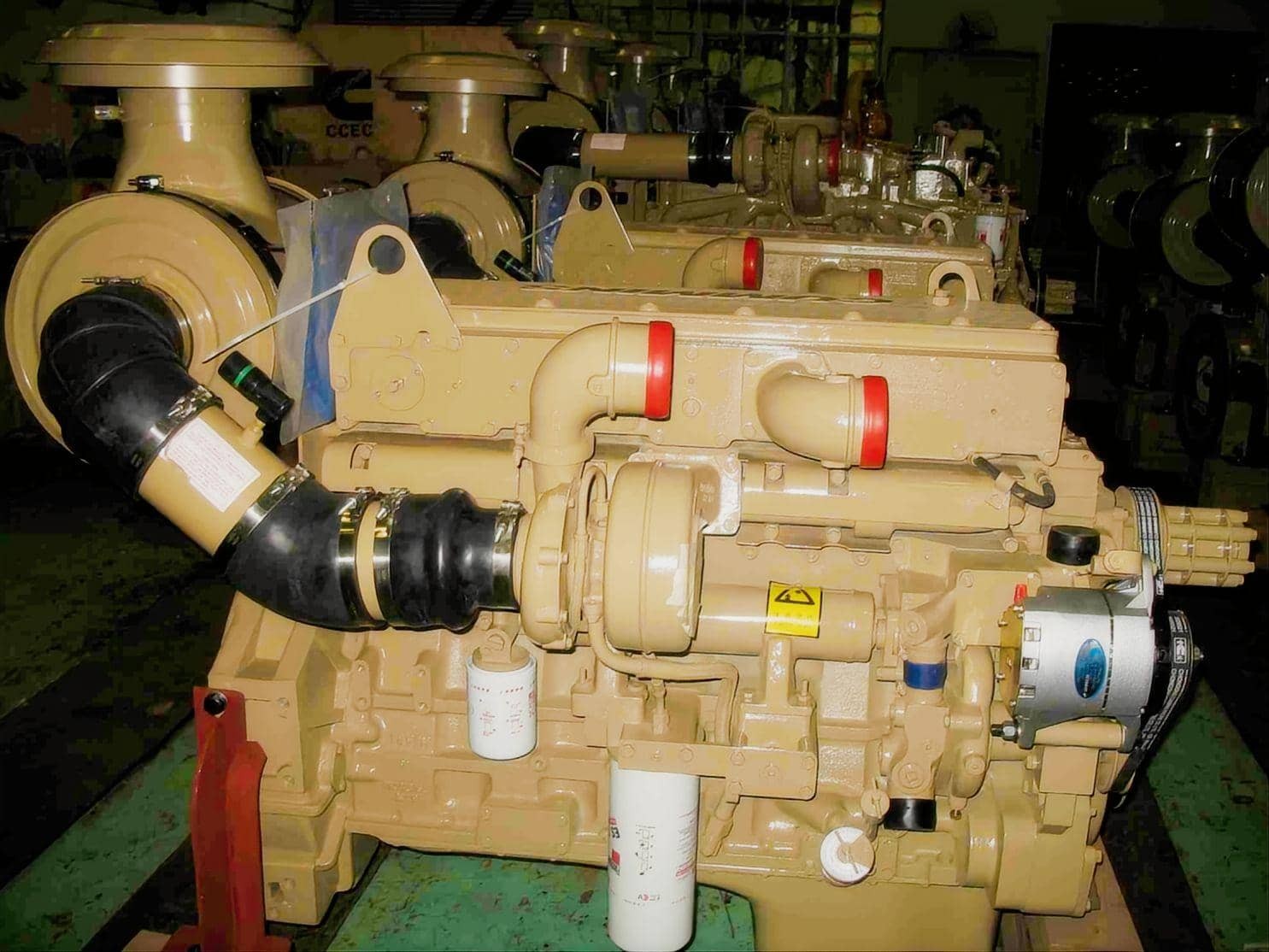

CCEC Cummins M11-C270 Construction Engine: Technical Analysis & Sourcing Guide
Operating heavy construction machinery requires an engine that balances mechanical simplicity with sustained torque output. The CCEC Cummins M11-C270 is a 10.8-liter, inline 6-cylinder diesel engine engineered specifically for demanding industrial applications. Delivering 270 HP (201 kW) at 2,100 RPM and producing 1,248 Nm of peak torque, this power plant remains a primary choice for heavy machinery operating in tough working environments worldwide.
At HekoPower, we specialize in supplying genuine CCEC Cummins engines, replacement assemblies, and technical repowering solutions. Whether you are conducting a scheduled fleet overhaul or replacing a failed unit in an excavator or crane, understanding the specific engineering features of the M11-C270 ensures minimal equipment downtime and correct component matching.
Tech Specs of Cummins M11-C270
General Engine Data
Engine Model: Cummins M11-C270
Type: 6 Cylinders in Line
Displacement: 10.8 L
Bore * Stroke: 125 * 147
Overall Dimension: 1450mm*950mm*1010mm
Net Weight (with flywheel & alternator): 980 Kg
Key Performance Data
Rated Power: 201 kW/270HP
Rated Speed: 2100 rpm
Max Torque/Speed: 1288 N.m @ 1300 rpm
Max. No-Load Speed: 2450 rpm
Fuel Consumption @ Rated Power: 64.4 L/hr
Idle Speed: 675-750 rpm
Max. Continuous Running Altitude: 3048 m
More Technical Data
Certification: Tier 1
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection PT Pump, STC
Compression Ratio: 16.1:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.5 L
Technical Comparisons
M11-C270 vs. Alternate M11 Rating Variants (M11-C250, M11-C290, M11-C300)
The Cummins M11 platform spans several power outputs, primarily ranging from 250 HP to 300 HP. While all these variants share the same core 10.8-liter cylinder block, crankcase, and 125 x 147 mm dimensions, they are not identical.
The M11-C250 offers lower stress on internal components, making it suitable for lighter industrial duty, but it lacks the torque reserve needed for heavy digging. Conversely, the M11-C290 and M11-C300 deliver higher horsepower by using different injector nozzle orifices, altered turbocharger turbine housing sizes, and aggressive fuel pump calibration.
The M11-C270 hits the engineering sweet spot for mid-to-heavy machinery. It provides 1,248 Nm of torque without subjecting the cylinder head and cooling system to the higher thermal pressures found in 300 HP configurations. Swapping an M11-C270 with a 300 HP version without upgrading your equipment's radiator capacity can lead to engine overheating during continuous heavy lifts.
M11-C270 Mechanical PT-STC vs. QSM11-C & ISM11 Electronic Engines
Equipment owners frequently ask whether they should replace a mechanical M11-C270 with an electronic QSM11-C or ISM11 engine. The fundamental difference lies in fuel injection management and electronic integration requirements.
The M11-C270 relies strictly on the Cummins PT (Pressure-Time) fuel system augmented by Step Timing Control (STC). It operates without an electronic control unit (ECU), wiring harnesses, or complex external sensors.
In contrast, the QSM11-C and ISM11 engines use electronic unit injectors (EUI) and complex ECMs to meet Tier 2 and Tier 3 emission standards. While electronic engines offer slightly improved throttle response and lower emissions, installing a QSM11 into an older machine originally designed for an M11-C270 requires retrofitting the wiring harness, installing an electronic foot pedal, adding sensor arrays, and reconfiguring the instrument panel. For remote job sites and harsh construction environments, the pure mechanical simplicity of the M11-C270 eliminates electronic diagnostic troubleshooting and simplifies on-site repair.
Understanding the PT-STC Fuel System
The Pressure-Time (PT) fuel system is a proprietary Cummins innovation that regulates fuel flow using hydraulic pressure generated by the main fuel pump. The Step Timing Control (STC) mechanism adds dynamic mechanical timing adjustments.
During engine startup and light-load operation, the STC system advances injection timing using engine oil pressure acting on hydraulic tappets. This advanced timing eliminates cold-start white smoke and improves idling stability. Under heavy engine load, the system automatically shifts to normal timing, reducing peak cylinder pressures and protecting the crankshaft and connecting rods from excessive mechanical stress.
Real Application Scenarios
Heavy Excavators and Wheel Loaders
In 30-ton to 40-ton crawler excavators and heavy wheel loaders, engine loads fluctuate rapidly from low idle to full hydraulic stall. The M11-C270 delivers its peak torque of 1,248 Nm at an engine speed tailored to hydraulic pump curves. When the bucket bites into hard rock or dense clay, the engine resists lugging, maintaining hydraulic pressure without dropping engine speed.
Mobile Cranes and Concrete Pumps
Mobile cranes and truck-mounted concrete pumps demand sustained power for long periods. Concrete pumping involves high-pressure hydraulic cycles that generate significant heat. The heavy-duty cast-iron cylinder block and gear-driven water pump of the M11-C270 maintain stable operating temperatures during extended pumping operations. Its 201 kW output provides sufficient reserve power to push high-viscosity concrete mixtures up vertical boom structures without stalling.
Mining Equipment and Off-Highway Loaders
Underground mining loaders and surface hauling units operate in dust-heavy environments with steep inclines. The M11-C270 features a robust gear-train timing drive that resists environmental contamination far better than belt-driven engines. Its mechanical fuel system continues operating reliably even when fuel supply quality is less than optimal.
Common Misconceptions
Misconception 1: Low engine power always indicates worn pistons or worn fuel injectors.
In M11-C270 engines, power loss is frequently caused by a misadjusted STC control valve or a restricted fuel return line. Before pulling injectors or planning an overhaul, test the PT pump rail pressure and inspect the STC oil control valve.
Misconception 2: Any 11-liter Cummins engine will drop directly into an M11-C270 application.
Flywheel housing sizes (SAE #1 vs. SAE #2), oil pan sump locations (front sump vs. rear sump), and starter motor mounting angles vary significantly across M11 configurations. Always verify your existing flywheel housing and sump configuration before ordering a replacement engine assembly.
Misconception 3: The M11-C270 is completely obsolete and unavailable.
While off-highway emission regulations have evolved in Western markets, genuine CCEC M11-C270 engines and complete long-block assemblies remain in full production for industrial, repower, and global replacement markets.
Maintenance Recommendations
Maintain correct engine oil viscosity. Because the STC system operates using hydraulic pressure from the lubricating oil circuit, degraded or incorrect-viscosity oil directly degrades fuel injection timing accuracy.
Replace fuel filters at strict service intervals to prevent micro-abrasives from damaging the close-tolerance plungers in the PT injectors.
Inspect valve lash and injector overhead adjustments at recommended operating hour intervals to maintain optimal combustion efficiency.
Sourcing & Repower Protocols with HekoPower
When replacing a worn or damaged M11-C270 engine, selecting the correct supplier eliminates installation delays. HekoPower provides complete engine assemblies, complete long blocks, and short blocks built directly to CCEC factory standards.
Every M11-C270 supplied by HekoPower undergoes rigorous testing to verify rated horsepower (201 kW @ 2,100 RPM), PT pump fuel delivery pressure, and oil pressure parameters prior to dispatch. We support global logistics, offering FOB and CIF shipping options with heavy-duty export wood packaging to protect your investment during transport.
CCEC M11 Series Engine Range
The M11-C270 is part of a broader family of 10.8-liter industrial engines designed to meet varied power requirements across heavy equipment manufacturing and field replacement sectors.
Cummins M11-C Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes M11-C225, M11-C245, M11-C250, M11-C265, M11-C270, M11-C275, M11-C280, M11-C290, M11-C300, M11-C310, M11-C315, M11-C320, M11-C330, M11-C335, M11-C350.
Frequently Asked Questions (FAQ)
Is the CCEC Cummins M11-C270 engine still available for purchase?
Yes. Genuine CCEC M11-C270 complete engine assemblies and replacement long blocks are available through HekoPower for repower, replacement, and export markets.
Can I replace my M11-C270 with a higher power model like the M11-C300?
In many cases, yes, but you must verify that your machine's cooling package (radiator and charge-air cooler) and hydraulic pump torque limits can handle the additional heat and load of a 300 HP engine.
What details are required to get an exact replacement quote for an M11-C270?
To guarantee an exact drop-in match, provide the Engine Serial Number (ESN) from the engine dataplate, along with the CPL number (such as CPL 2119). This ensures matching flywheel housing dimensions, oil pan arrangement, and electrical system voltage (12V vs. 24V).
Does the engine come with a warranty?
Yes, original engines are supplied with warranty coverage and technical support.
What is the lead time and shipping method for an M11-C270 engine assembly?
Standard factory lead times typically range from 10 to 20 days depending on stock status and specific customization requirements. Engines are securely packed in export-grade wooden cases and shipped via ocean freight or air freight depending on your project timeline.
