Details

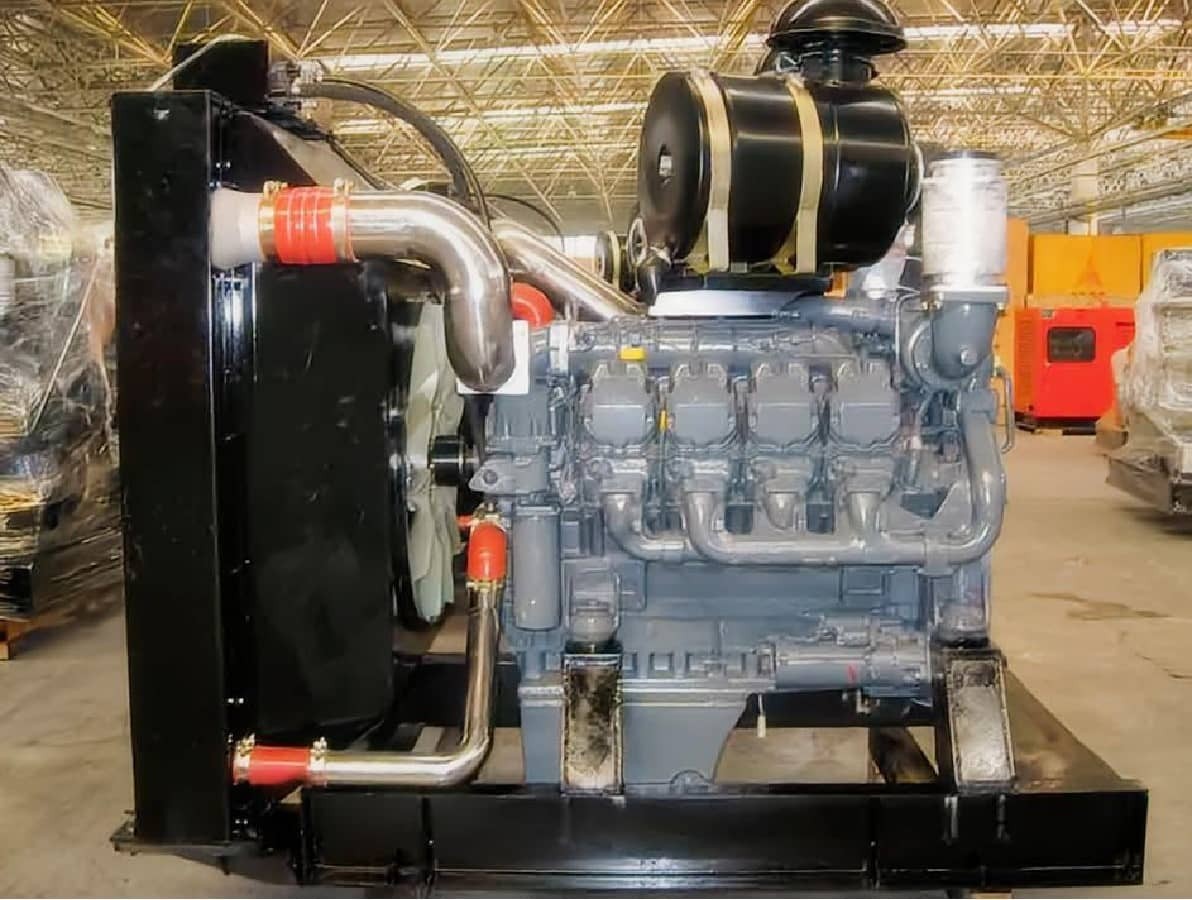

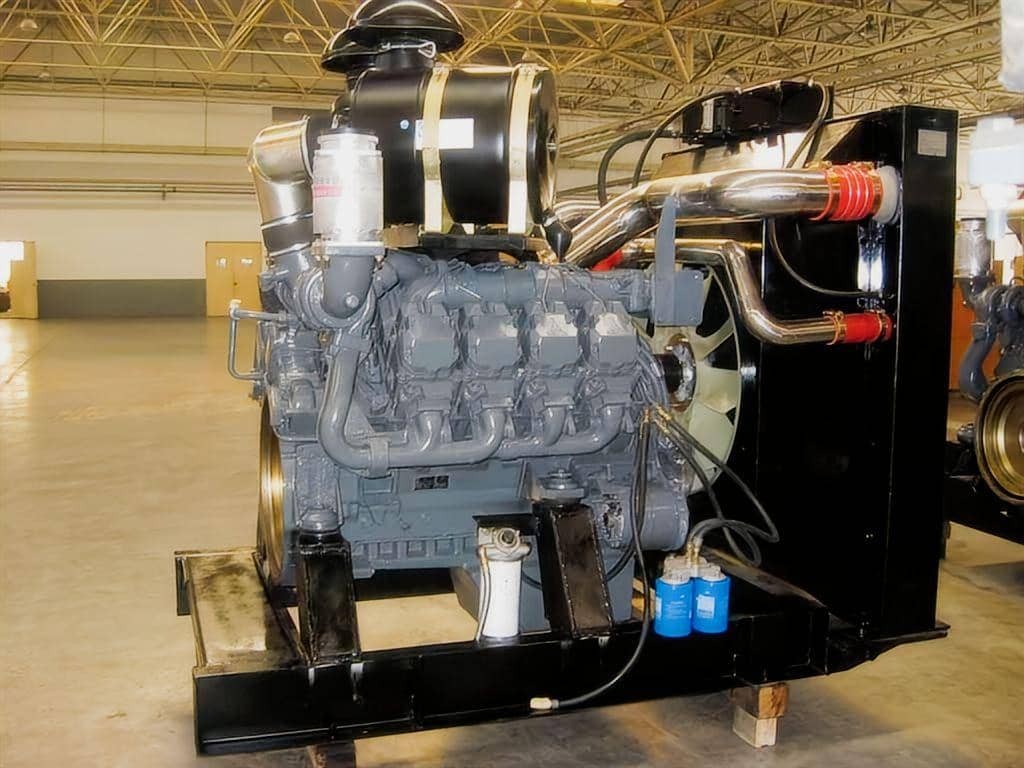

Deutz BF8M1015CP-G3 Generator Engine Assembly (458kW / 1500 RPM)
The Deutz BF8M1015CP-G3 is a liquid-cooled, 90-degree V8 diesel engine engineered for 50Hz industrial power generation. Produced under official Deutz AG technology authorization by Huachai Deutz, this 15.87-liter displacement engine delivers a prime rating of 458kW (572 kVA) at 1500 RPM.
For generator original equipment manufacturers (OEMs) and facility managers, the BF8M1015CP-G3 offers a compact footprint with high power density. Its turbocharger and charge-air cooling setup provide fast transient load acceptance. This makes it a preferred choice for critical backup power installations where fast step-load response is mandatory.
At HekoPower, we supply complete, factory-tested Deutz BF8M1015CP-G3 engine assemblies. Each unit ships ready for mounting onto skid frames and coupling with major alternator brands, including Stamford, Leroy Somer, and Marathon.
Tech Specs of Deutz BF8M1015CP-G3
General Engine Data
Engine Model: Deutz BF8M1015CP-G3
Type: 8 Cylinders in Line
Displacement: 15.874 L
Bore * Stroke: 132 * 145
Net Weight (with flywheel and alternator): 1060 Kg
Overall Dimension: 1151mm*955mm*1174mm
Key Performance Data
Rated Power/Standby Power: 458 kW, 509 kW
Rated Speed: 1500 rpm
Low Idle Speed: 550-650 rpm
Specific Fuel Consumption: 208 g/Kw.h
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Intercooled
Fuel System: EUP
Cooling Method: Water Cooled
Lubricant Capacity: 50 L
Electrical System (Starter Motor/Alternator): Electronic Starting (24V)
Engineering Comparison: Deutz BF8M1015CP-G3 vs. Industry Alternatives
Choosing the right power unit requires comparing structural design, physical layout, and operational efficiency against competing 450kW-500kW diesel engines.
V8 Layout vs. In-Line 6 Alternatives
Many 450kW generator sets use large in-line 6-cylinder engines like the Cummins KTA19-G4 or Deutz BF6M1015 series. The V8 design of the BF8M1015CP-G3 delivers key physical advantages:
- Shorter Overall Length: The V8 block reduces the total length of the generator skid frame by roughly 25-30 cm compared to an inline-6 of similar output. This allows smaller canopy dimensions and lower containerized shipping costs.
- Reduced Crankshaft Torsional Vibration: The 90-degree V8 configuration distributes combustion stress evenly. This smooths out vibration and extends rubber engine mount lifespan.
Fuel Injection: Unit Pump System (UPS) vs. Common Rail
High-pressure common rail (HPCR) engines offer quiet operation, but they demand pristine diesel fuel quality. The BF8M1015CP-G3 uses an electronically controlled Unit Pump System (UPS) with individual injection pumps per cylinder.
This design is far more tolerant of variable fuel quality found in remote mining, construction, or regional import sites. If one injector fails, individual pump replacement is simpler and cheaper than servicing a pressurized high-pressure rail system.
Real Application Scenarios & Duty Cycles
Continuous & Prime Power for Remote Sites
In off-grid mining camps, stone quarries, and remote infrastructure projects, utility grids are unavailable. The BF8M1015CP-G3 handles variable prime loads over extended running periods. Its heavy-duty cast-iron block withstands continuous thermal cycles without cylinder liner warping.
Emergency Standby Power for Critical Infrastructure
Data centers, municipal water pumping stations, and regional hospitals require instant power restoration during grid failures.
When matched with a fast-acting electronic governor, the BF8M1015CP-G3 accepts a 100% single-step load impulse within frequency recovery limits mandated by ISO 8528-5 G3 standards.
Modular Containerized Generator Sets
Due to its compact width-to-length ratio, packagers frequently select this engine for 500kVA soundproof silent canopy builds and 20-foot ISO generator containers.
Replacement, Retrofitting & Installation Tips
If you are replacing a worn-out unit or retrofitting an older generator set, observe these field assembly rules to ensure reliable long-term service.
Coupling & Alignment Safeguards
- Flywheel Compatibility: The BF8M1015CP-G3 typically uses an SAE 1 flywheel connection with an SAE 14 flywheel housing. Verify your alternator drive disk matches these dimensions prior to installation.
- Torsional Alignment: Always check radial alignment tolerances between the engine flywheel and alternator rotor shaft. Misalignment causes premature rear main oil seal leaks and bearing failures.
Cooling System & Airflow Requirements
- Ensure the radiator pusher fan has adequate clearance inside the soundproof enclosure.
- Avoid restrictive exhaust ducting. Excessive exhaust backpressure (exceeding 5-7 kPa) raises cylinder temperatures, reduces turbocharger boost pressure, and lowers power output.
Wiring & Electronic Governor Hookup
Inspect all harness connections between the speed controller unit, magnetic pickup sensor, and digital control panels (such as Deep Sea or ComAp). Ensure proper grounding to prevent voltage spikes from corrupting the speed governor signal.
Preventative Maintenance & Overhaul Guidelines
Strict adherence to maintenance intervals prevents unscheduled downtime and doubles major overhaul intervals.
Routine Service Schedule
- Every 250 Hours or 6 Months: Change engine lube oil and replace spin-on oil filters. Inspect air filter restriction indicators.
- Every 500 Hours or 12 Months: Replace primary and secondary fuel filters, drain water separators, and check drive belt tension.
- Every 1,000 Hours: Inspect turbocharger compressor blades for axial play. Check valve clearances (Intake: 0.30 mm, Exhaust: 0.50 mm cold).
- Every 2,000 Hours / 2 Years: Flush cooling system, replace coolant mixture, and test electronic safety shutdown sensors.
Overhaul & Rebuild Considerations
The BFM1015 series features wet cylinder liners. During major overhauls (typically after 12,000–15,000 operating hours), technicians can replace individual liner kits, pistons, and ring sets without discarding the main engine block.
Always use genuine replacement gaskets, main bearings, and injectors during overhauls to preserve factory clearance tolerances.
Deutz BFM1015-Generator Engine Series, original products from Huachai Deutz Engine Plant. This series mainly includes BF6M1015-GA, BF6M1015C-G1A, BF6M1015C-G2A, BF6M1015C-G3A, BF6M1015C-G4A, BF6M1015-GB, BF6M1015C-G1B, BF6M1015C-G2B, BF6M1015C-G3B, BF6M1015CP-G, BF8M1015C-G1A, BF8M1015C-G1B, BF8M1015C-G2, BF8M1015CP-G1A, BF8M1015CP-G1B, BF8M1015CP-G2, BF8M1015CP-G3, BF8M1015CP-G4, BF8M1015CP-G5, BF8M1015CP-G2B, BF8M1015CP-G3B.
Frequently Asked Questions (FAQ)
Q1: Is the Huachai Deutz BF8M1015CP-G3 an authentic Deutz engine?
Yes. Huachai Deutz is an authorized manufacturer operating under official Deutz AG technical licenses and quality control standards. They produce engines identical in fit, form, and internal metallurgy to German-built counterparts, making parts 100% interchangeable.
Q2: Can I use this engine for 60Hz 1800 RPM power generation?
While the BF8M1015CP-G3 is optimized for 50Hz (1500 RPM) operation, adjusted governor settings and fuel injection timing allow for 60Hz usage. Contact HekoPower engineers to confirm specific power ratings for 1800 RPM applications.
Q3: What is included in a complete engine assembly from HekoPower?
Our standard complete export assembly includes the base engine block, turbochargers, intercooler piping, fuel injection pumps, starter motor, charging alternator, flywheel housing, water pump, filter sets, and electronic governor controller.
Q4: What is the lead time for export orders?
Standard delivery lead time is 15-20 business days. Every engine undergoes a full dynamometer load test before seaworthy wooden crate packaging.
