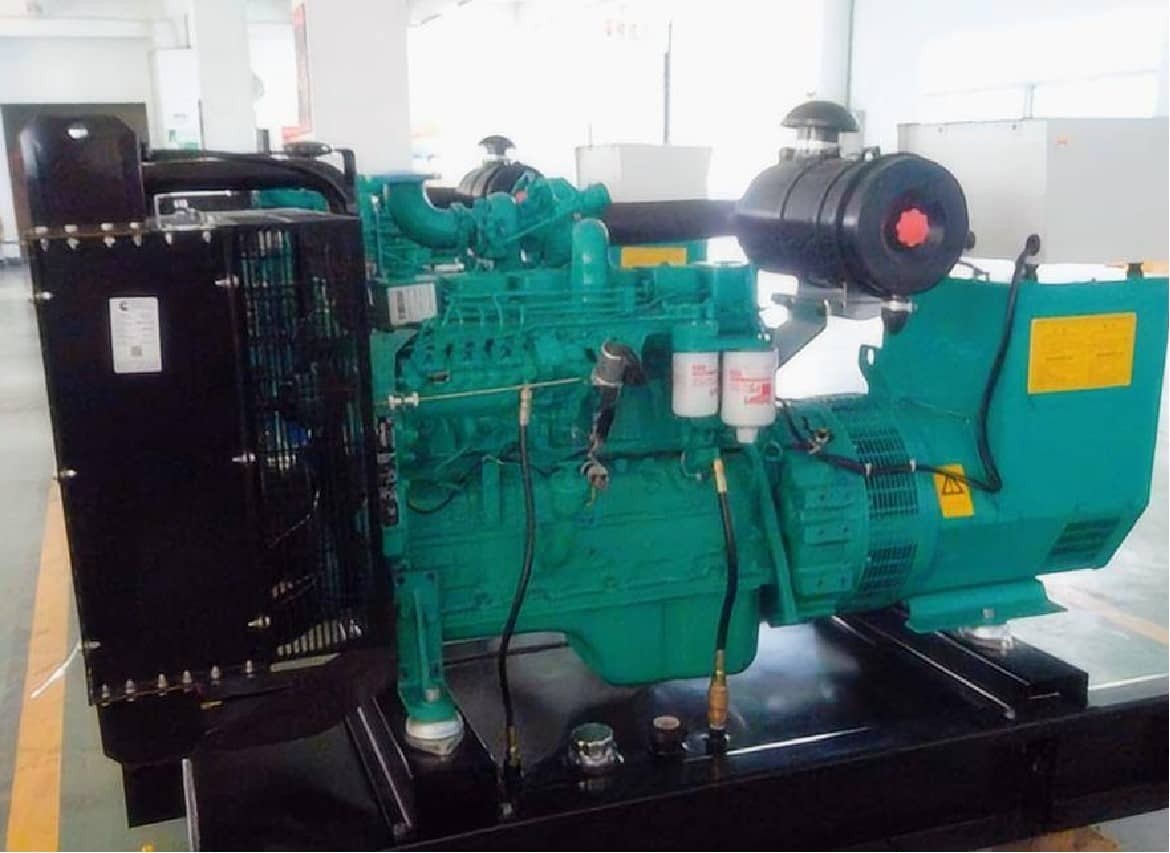

DCEC Cummins 6BT5.9-G1 Generator Drive Engine
The Cummins 6BT5.9-G1 represents one of the most mechanically robust 5.9L diesel engines available in the industrial power generation sector. Manufactured by Dongfeng Cummins Engine Co., Ltd. (DCEC), this 6-cylinder, inline power unit is specifically configured as a G-Drive (generator drive) engine. Delivering an 86kW prime output at a fixed 1500 RPM, it is engineered to serve as the mechanical foundation for 80kW / 100kVA generator sets operating on a 50Hz grid.
At HekoPower, we supply this complete engine assembly to generator manufacturers, heavy industry contractors, and fleet maintenance managers. Because it relies on entirely mechanical fuel delivery and governing systems, the 6BT5.9-G1 is the preferred engine for harsh operating environments where digital engine control modules (ECMs) are prone to failure.
Tech Specs of Cummins 6BT5.9-G1
General Engine Data
Engine Model: Cummins 6BT5.9-G1-86kw
Type: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Net Weight: 411 Kg
Overall Dimension: 1110mm*750mm*988mm
Key Performance Data
Rated Power/Standby Power(1500 rpm): 86 kW/115 HP, 92 kW/123 HP
Rated Power/Standby Power(1800 rpm): 100 kW/133 HP, 110 kW/147 HP
Rated Speed: 1500/1800 rpm
Low Idle Speed: 950-1050 rpm
Fuel Consumption @ Running: ≤ 248 g/kW.hr
Torque @ Rated/Standby Power: 548/586 N.m @ 1500 rpm
More Technical Data
Aspiration: Turbocharged
Fuel System: Weifu A Pump/RSV Governor
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.9 L
Governor Type: Mechanical, Regulation ≤5%
Resolving Misconceptions: Prime vs. Standby Power Sizing
The most frequent misconception we encounter when clients buy the Cummins 6BT5.9-G1 engine involves miscalculating the difference between its rated prime power and standby power capabilities. The engine is officially rated for 86kW (115HP) of continuous prime power and 92kW of standby power.
When you are pairing this engine with an alternator to build a 100kVA generator, the 86kW prime mechanical rating is the critical figure. A 100kVA generator produces 80kW of electrical power (assuming a standard 0.8 power factor). Because standard industrial alternators operate at approximately 90 percent efficiency, the engine must produce roughly 86kW to 88kW of raw mechanical shaft power to generate that 80kW of electricity, while also driving parasitic loads like the cooling fan and water pump.
Relying on the 92kW standby power rating for continuous operation is a critical error. Standby power is strictly a reserve capacity designed for emergency utility outages, limited to roughly 200 hours of operation per year. Pushing the engine to 92kW constantly will exceed the thermal limits of the exhaust valves and turbocharger, drastically shortening the lifespan of the equipment.
Technical Engine Comparison: 6BT5.9-G1 vs. 6BT5.9-G2 and 6BTA Series
Homogenization often occurs when buyers assume all 5.9-liter Cummins engines are identical. As an engine factory supplier, HekoPower strongly advises clients to understand the structural differences between the 6BT5.9-G1, the G2, and the 6BTA families before attempting an engine replacement for a generator.
The core difference between the 6BT5.9-G1 and the 6BT5.9-G2 lies in fuel calibration and peak torque output. While both share the same 102mm bore and 120mm stroke, the G2 is calibrated to deliver a higher baseline power output, frequently utilized in slightly larger generator configurations. Upgrading from a G1 to a G2 without upgrading the corresponding alternator will result in an imbalanced system where the engine outpaces the electrical end.
When comparing the 6BT5.9-G1 to the 6BTA5.9-G2 or 6BTAA5.9-G2, the distinction revolves around air density and cooling. The 6BT5.9-G1 is strictly a turbocharged engine. Air flows directly from the turbo compressor into the intake manifold. Conversely, the "A" in 6BTA indicates aftercooling via jacket water, and the "AA" indicates air-to-air charge cooling. Because the 6BT5.9-G1 lacks an intercooler, its installation footprint is remarkably simple. You do not need to factor in the complicated piping or front-mounted intercooler space required by the 6BTAA series. This makes the G1 variant the ultimate drop-in replacement engine for older, compact generator canopies.
Real Application Scenarios for the 86kW Generator Engine
The purely mechanical nature of the 6BT5.9-G1 dictates its ideal use cases. We routinely supply this diesel engine for genset applications in remote agricultural irrigation, mining camps, and offshore marine auxiliary setups.
In these environments, dusty conditions and poor fuel quality are constant threats. Because this engine does not use high-pressure common rail (HPCR) technology or sensitive electronic sensors, it can tolerate slightly higher sulfur content in diesel fuel. If a fault occurs on a remote mining site, a standard diesel mechanic can diagnose and repair the mechanical fuel pump with basic hand tools, avoiding the costly downtime associated with waiting for specialized computer diagnostic technicians.
Maintenance Best Practices and Fuel Consumption Profiling
Achieving the maximum operational lifespan from the DCEC 6BT5.9-G1 requires strict adherence to fluid maintenance and governor tuning. The engine utilizes a Weifu A-type inline mechanical fuel pump governed by an RSV mechanical governor. This fuel system dictates your baseline operating costs.
Understanding your Cummins 6BT5.9-G1 fuel consumption at 1500 RPM allows for accurate operational budgeting. When running at a full 100 percent prime load, the engine will consume approximately 22 liters of diesel per hour. Dropping the load to an optimal 75 percent reduces fuel consumption significantly, bringing it down to roughly 17 liters per hour. Running the engine continuously at loads below 30 percent should be avoided, as low cylinder pressures lead to incomplete combustion, causing unburned fuel to wash lubricating oil off the cylinder walls—a phenomenon known as wet stacking.
Maintaining the Weifu mechanical fuel pump is your primary defense against premature failure. The pump relies entirely on the lubricity of the diesel fuel passing through it. Therefore, maintaining the primary fuel-water separator is non-negotiable. Even minor water emulsification in the diesel supply can score the fuel plungers, resulting in severe power loss and hard starting conditions. Additionally, if your generator experiences frequency fluctuations or "hunting" under a steady load, do not immediately replace the fuel pump. In our experience, this is usually caused by wear in the RSV governor spring linkage or a misadjusted low-idle stop screw, which can be remedied quickly in the field.
Engine Replacement Supplier Guidelines
When you decide to buy a Cummins 6BT5.9-G1 engine to replace a failed unit, verifying physical dimensions and flywheel housing specifications is vital. The engine has a dry weight of approximately 432 kilograms. Before confirming your order with HekoPower, ensure your current generator skid utilizes an SAE 3 flywheel housing. Supplying us with the original engine serial number allows our technical team to verify the exact flywheel tooth count, ensuring your starter motor and alternator coupling mate perfectly with the new engine assembly upon arrival.
Evaluating the precise power demands of your facility is the first step in successful power generation. While the 86kW model is ideal for 100kVA applications, scaling your power infrastructure may require different displacements and block designs.
Cummins B5.9-G Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6BT5.9-G1-86kw, 6BT5.9-G2-86kw, 6BTA5.9-G2-106kw, 6BTAA5.9-G2-120kw, 6BTAA5.9-G12-140kw.In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions
Is the Cummins 6BT5.9-G1 86kW prime or standby?
The engine is officially rated for 86kW of prime continuous power at 1500 RPM. It carries a separate standby power rating of 92kW, which should strictly be reserved for emergency electrical outages and not utilized for base-load power generation.
Can this 1500 RPM generator engine be modified for 60Hz output?
Yes. While the factory standard sets the governor to maintain 1500 RPM for 50Hz electrical grids, the mechanical RSV governor can be adjusted by qualified technicians to run at 1800 RPM. This allows the engine to drive a 60Hz alternator, though the rated power output curves and fuel consumption metrics will shift accordingly.
Why choose a mechanical governor engine over an electronic one?
For an 80kW / 100kVA Cummins generator operating in developing regions, construction sites, or marine environments, mechanical governor engines offer unmatched reliability. They are immune to electrical grid surges, do not require laptop-based software for troubleshooting, and are significantly cheaper to maintain over a 10-year lifecycle compared to electronically controlled engines.
What is the exact standby kilowatt rating for the Cummins 6BT5.9-G1?
The engine produces a maximum standby output of 86 kW (115 horsepower) at its rated speed of 1500RPM. For continuous prime power applications, the engine is rated at 78 kW (105 horsepower) to ensure safe thermal margins during long-term operations.
Can this engine run a 100kVA generator set?
Yes. The 5.9L 86kW Cummins diesel engine for 100kva genset applications provides the exact mechanical output needed to drive a standard 100 kVA alternator, factoring in typical 80% generator efficiency losses.
How does the Weifu A pump compare to electronic common rail systems?
The Weifu A mechanical inline fuel pump uses internal mechanical timing rather than electronic solenoids and sensors. This makes it highly durable, easier to maintain in remote areas, and resistant to poor fuel quality that would clog sensitive common rail injectors.
What standard cooling components ship with the G-drive assembly?
Our standard Cummins 6BT5.9-G1 G-drive assembly ships complete with a mounted cooling radiator, pusher fan, safety belt guards, and integrated coolant thermostat housings, making it ready to mount directly onto a generator skid.
Does HekoPower supply genuine DCEC 6BT5.9-G1 engine spare parts?
Absolutely. Because the 5.9L B-series block is a globally recognized platform, we supply complete replacement engine assemblies as well as genuine factory replacement parts. From complete cylinder heads and Holset turbochargers to simple overhaul gasket kits and water pumps, maintaining your engine with authentic DCEC components ensures the original factory performance specifications are met.
