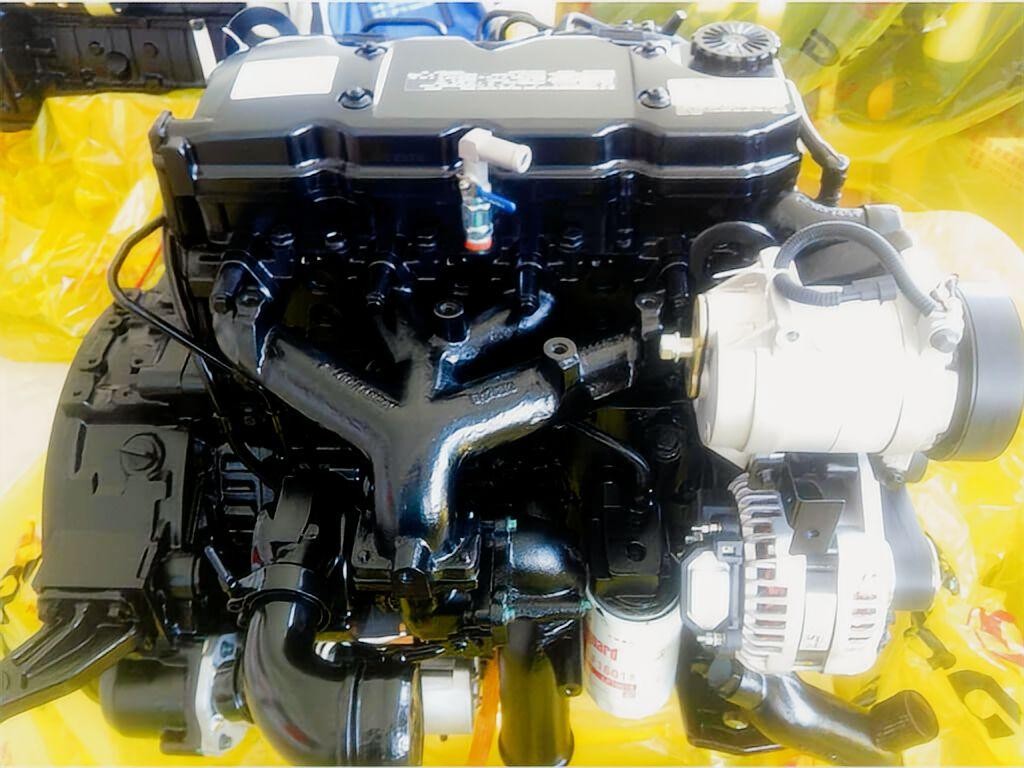

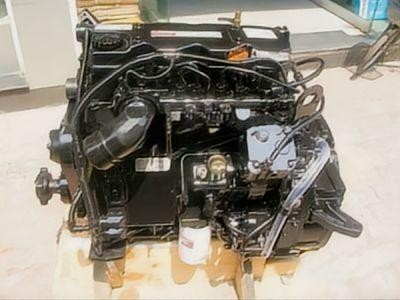

Cummins ISDe230-30 Engine for Sale – 230HP High-Torque DCEC Diesel Engine
The Cummins ISDe230-30 engine is a high-performance diesel power unit designed for heavy-duty commercial vehicle applications. Delivering up to 230 horsepower and strong torque output, this engine is widely used in logistics transport, construction vehicles, and long-haul freight operations.
As a professional supplier, HekoPower provides genuine ISDe230-30 engine assemblies with strict quality control and export-ready packaging. Our engines are suitable for global markets and offer reliable performance under demanding operating conditions.
Tech Specs of Cummins ISDe230-30
General Engine Data
Engine Model: Cummins ISDe230-30
Type: 4 Cylinders in Line
Displacement: 4.5 L
Bore * Stroke: 107 * 124
Net Weight (with flywheel & alternator): 509 Kg
Overall Dimension: 901mm*723mm*815mm
Key Performance Data
Rated Power: 155 kW/210 HP
Rated Speed: 2500 rpm
Idle Speed: 600-800 rpm
Fuel Consumption @ Rated Power: 195 g/Kw.h
Max Continuous Running Altitude: 3000 m
Max. Torque/Speed: 900 N.m @ 1200-1700 rpm
Torque/Rated Speed: 646 N.m @ 2500 rpm
Max. No-load Governed Speed: 2850 rpm
More Technical Data
Certification: Euro III/IV
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Bosch Direct Injection (HPCR)
Compression Radio: 17.3:1
Starting System: Electrical Starting Motor 24V(750A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.4 L
Key Features of the DCEC ISDe230 Diesel Engine
Choosing the right engine involves more than just looking at horsepower. The DCEC ISDe230-30 diesel engine incorporates several advanced engineering features that set it apart from older mechanical engines.
Bosch High-Pressure Common Rail System
The ISDe230-30 Bosch HPCR fuel system is the heart of the engine’s performance. Unlike traditional injection pumps, the common rail system maintains high pressure regardless of engine speed. This results in smoother idling, reduced noise levels, and immediate throttle response. At HekoPower, we emphasize Bosch HPCR system maintenance as part of our client support, ensuring your engine retains its factory performance for years.
Turbocharged and Charge Air Cooled (TCAC)
To achieve its 230HP rating, this turbocharged charge air cooled Cummins engine uses an advanced wastegate turbocharger. By cooling the intake air before it enters the combustion chamber, the engine increases air density, allowing for a more powerful combustion stroke without increasing the engine's physical footprint.
Cold Resistance and Electrical Systems
Designed for global export, the ISDe230-30 low-temp cold-resistance engine features a 24V electric start diesel engine configuration. This ensures reliable ignition in sub-zero temperatures, making it a favorite for logistics fleets in Northern Europe, Russia, and Central Asia.
Comparing the ISDe230-30 to Other Cummins Models
Prospective buyers often ask about the difference between Cummins ISDe230-30 and ISB6.7. While both share the 6.7L platform, the ISDe series is specifically manufactured by the DCEC joint venture in China, optimized for regional emission standards and specific truck chassis like Dongfeng.
ISDe230-30 vs. ISDe210 Comparison
When looking at the ISDe230-30 vs ISDe210-40 performance comparison, the 230-30 offers a significant torque advantage (900 N·m vs 800 N·m). This extra 100 N·m is crucial for climbing steep grades or hauling maximum payloads in heavy-duty trucks.
ISDe230 vs. ISDe270 Engine Specs
For users requiring even more power, the ISDe270 is available. However, the ISDe230 remains the "sweet spot" for many fleet managers due to its lower initial purchase price and lower ISDe230-30 engine wholesale price when compared to the higher-rated 270HP variant.
Application and Compatibility
The ISDe230-30 engine for Dongfeng truck models is the most common application. However, its versatility allows it to be used in:
- Heavy-duty commercial trucks (8-15 ton capacity).
- City transit buses and long-distance coaches.
- Specialized construction equipment and industrial power units.
HekoPower provides the full ISDe230-30 engine assembly, including the wiring diagram and ECM pinout data necessary for seamless integration into your existing vehicle chassis.
Maintenance, Reliability, and Longevity
The ISDe230 engine reliability and lifespan are legendary in the industry, often exceeding 500,000 km before requiring major overhauls, provided that the Cummins ISDe230 maintenance guide is followed strictly.
Essential Maintenance Tips
- Fuel Filtration: Always use genuine filters to protect the Bosch HPCR system from contaminants.
- Cooling System: Monitor the charge air cooler for leaks to maintain the 17.3:1 compression efficiency.
- Lubrication: Use high-quality oils specified for Euro III engines to protect the turbocharger bearings.
We provide a comprehensive ISDe230 spare parts list with every purchase, ensuring you have access to genuine DCEC gaskets, injectors, and sensors for routine servicing.
Why Choose HekoPower as Your ISDe230-30 Supplier?
As a dedicated ISDe230-30 engine wholesale partner, HekoPower understands that downtime costs money. We have streamlined our supply chain to provide:
- 10-Day Delivery: We offer an ISDe230-30 engine 10-day lead time from China for most standard configurations.
- 12-Month Warranty: Every ISDe230-30 diesel engine with 12-month warranty coverage ensures peace of mind.
- Genuine Quality: We only supply the DCEC ISDe230-30 original engine, never refurbished or "white label" copies.
Shipping and Logistics
We provide detailed Cummins ISDe230-30 shipping weight and crate dimensions to our international buyers to help calculate landed costs. Our engines are packed in seaworthy, reinforced wooden crates to prevent damage during transit.
DCEC ISDe Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes ISDe140-30, ISDe140-40, ISDe160-30, ISDe160-40, ISDe180-30, ISDe180-40, ISDe185-30, ISDe185-40, ISDe200-30, ISDe210-30, ISDe210-40, ISDe230-30, ISDe245-30, ISDe270-30, ISDe285-30, ISDe300-40.
