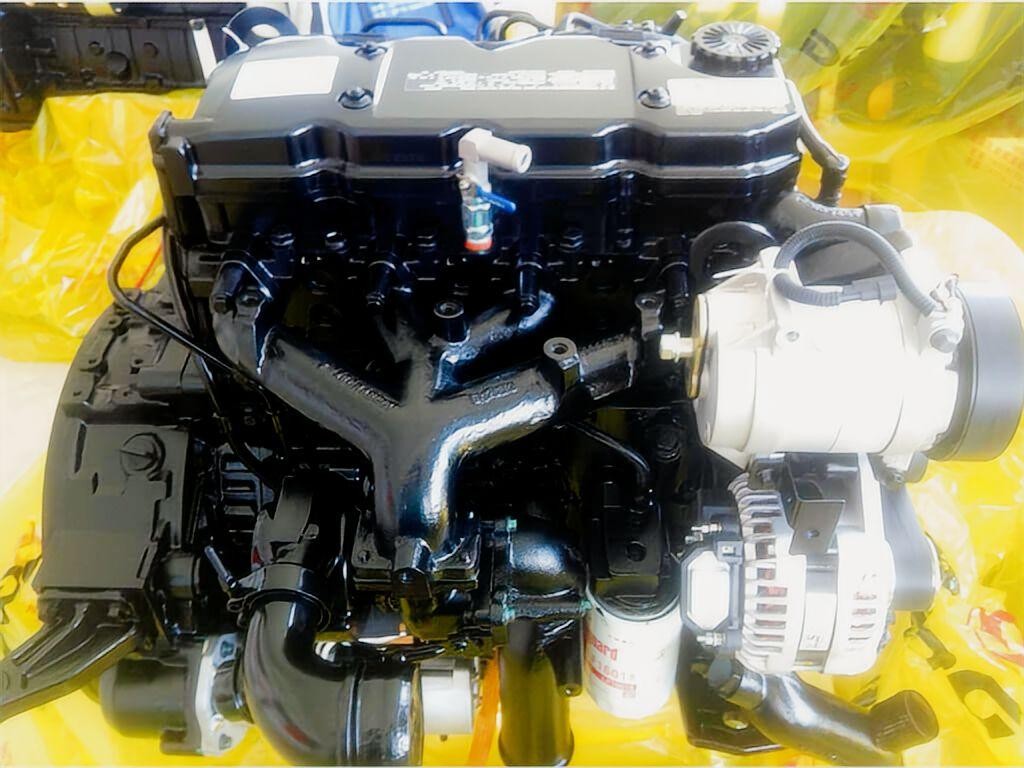

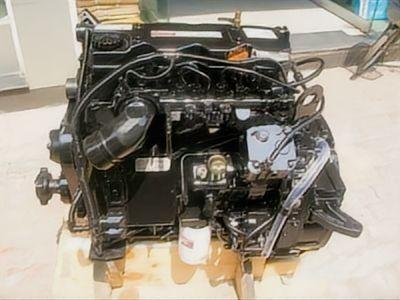

Genuine Dongfeng Cummins DCEC ISDe180-30 Engine Assembly
Finding a reliable Cummins ISDe180-30 engine replacement for a commercial vehicle requires more than just glancing at a spec sheet. Fleet managers and repair facilities need an engine that balances payload capacity with strict fuel economy.
The Dongfeng Cummins DCEC ISDe180 30 engine assembly delivers exactly that. It is a highly optimized 4.5L Euro III 180HP truck engine designed for medium-duty transport. HekoPower operates as a direct Cummins ISDe180-30 engine supplier and exporter, providing complete, genuine replacements to minimize your fleet downtime.
To fully understand where this specific 4 cylinder motor fits into your operation, it is helpful to look at the broader engine family context. This series mainly includes ISDe140-30, ISDe140-40, ISDe160-30, ISDe160-40, ISDe180-30, ISDe180-40, ISDe185-30, ISDe185-40, ISDe200-30, ISDe210-30, ISDe210-40, ISDe230-30, ISDe245-30, ISDe270-30, ISDe285-30, ISDe300-40.
Tech Specs of Cummins ISDe180-30
General Engine Data
Engine Model: Cummins ISDe180-30
Type: 4 Cylinders in Line
Displacement: 4.5 L
Bore * Stroke: 107 * 124
Net Weight (with flywheel & alternator): 377 Kg
Overall Dimension: 901mm*723mm*815mm
Key Performance Data
Rated Power: 132 kW/180 HP
Rated Speed: 2500 rpm
Idle Speed: 600-800 rpm
Fuel Consumption @ Rated Power: 195 g/Kw.h
Max Continuous Running Altitude: 3000 m
Max. Torque/Speed: 650 N.m @ 1200-1700 rpm
Torque/Rated Speed: 520 N.m @ 2500 rpm
Max. No-load Governed Speed: 2850 rpm
More Technical Data
Certification: Euro III
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Bosch Direct Injection (HPCR)
Compression Radio: 17.3:1
Starting System: Electrical Starting Motor 24V(750A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 7.0 L
Real Application Scenarios for the ISDe180-30
Unlike larger heavy-duty blocks, the Cummins ISDe180-30 4.5L engine occupies a specific sweet spot in commercial logistics. It is primarily utilized as a commercial vehicle engine for medium-duty cargo delivery and urban passenger transport.
When used as a Cummins ISDe180-30 cargo truck engine, the motor shines in regional distribution. The engine produces a peak torque of 650 Nm at relatively low RPMs. This low-end grunt is essential for drivers hauling dense freight through stop-and-go city traffic, reducing the need for constant gear shifting.
In the passenger transport sector, this model is highly sought after as a Cummins ISDe180-30 bus engine. Medium-sized coaches and 10-19 passenger buses benefit greatly from its compact dimensions. The Cummins ISDe180-30 engine weight is kept relatively low compared to 6-cylinder alternatives, which removes unnecessary load from the front axle. This improves steering response and passenger comfort while maintaining the 132kW output required for highway cruising.
Technical Comparisons: Navigating the ISDe Family
Buyers often struggle to choose between very similar models within the DCEC lineup. Understanding the distinct differences between these Cummins engines will help you order the correct complete replacement engine.
Cummins ISDe180-30 vs ISDe160 Performance Differences
While both share the same 4.5L footprint, the jump from 160HP to 180HP drastically changes vehicle capability. The ISDe160 is strictly for lighter urban delivery vans. The Cummins ISDe180-30 provides the extra top-end horsepower needed for highway merging and maintaining speed on inclines with a full payload. If your route involves hilly terrain, the 180HP variant prevents the engine from lugging, which ultimately improves the long-term fuel consumption curve.
ISDe180-30 and ISDe180-40 Difference
A common question we receive is the difference between the ISDe180-30 and the ISDe180-40. The primary distinction is the emissions standard. The "-30" designates a Euro III engine, while the "-40" designates Euro IV. Because of the stricter emissions, the ISDe180-40 specifications include different exhaust treatment hardware. Additionally, the Euro IV model sees a slight torque bump, pitting the ISDe180-30 650 Nm vs the ISDe180-40 700 Nm. If your local regulations permit Euro III, the ISDe180-30 is generally preferred for its simpler maintenance and lower upfront engine price.
Cummins ISDe180-30 vs ISDe185-30
These two engines are virtually identical in physical dimensions and bore and stroke. The ISDe180-30 and ISDe185-30 difference usually comes down to specific chassis homologation requirements set by truck manufacturers. The 5-horsepower difference is largely the result of subtle ECU calibration changes. As a replacement engine, always match the exact model to ensure your transmission and electronic control modules communicate correctly.
4.5L vs 6.7L: Cummins ISDe180-30 vs ISDe210
When fleet managers want to upgrade, they often compare the 4.5L vs 6.7L Cummins truck engine platforms. The ISDe210 utilizes the larger 6.7L inline-6 block. While the 6.7L produces significantly more torque for heavy towing, it consumes much more fuel and takes up considerably more engine bay space. You cannot easily swap a 4.5L ISDe180-30 for a 6.7L ISDe210 without major chassis and cooling system modifications.
Maintenance and Engine Replacement Tips
When the time comes for a Cummins ISDe180-30 engine replacement for a truck, preparation is key. Ordering the correct repower engine requires specific identification.
Never guess your engine model based solely on horsepower. You must locate the ISDe180-30 engine data plate. This metal tag, usually riveted to the side of the engine block or rocker cover, contains the critical Cummins ISDe180-30 ESN (Engine Serial Number) and the CPL number (Control Parts List). Providing your engine supplier with this ESN guarantees that the replacement engine assembly or maintenance parts will perfectly match your vehicle's wiring harness and flywheel housing.
Routine maintenance on this Euro III Cummins truck engine centers largely around the fuel and cooling systems. The Cummins ISDe180-30 cooling system must be flushed according to factory intervals to prevent cylinder liner pitting. Furthermore, because this engine uses a high-pressure setup, only genuine DCEC ISDe180-30 engine overhaul parts and filters should be used to protect the sensitive internal components.
Troubleshooting Cummins ISDe180-30 Common Rail Faults
The Cummins ISDe180-30 Bosch HPCR (High-Pressure Common Rail) fuel system is incredibly efficient, but it is highly intolerant of contaminated diesel.
Most rough idling or sudden loss of power issues trace back to the fuel system. If the engine experiences a hard start condition, the first step is to check the fuel water separator. Water in the fuel will rapidly destroy an ISDe180-30 injector.
If fuel consumption suddenly spikes, mechanics should inspect the HPCR system for pressure leaks before assuming internal engine failure. A failing pressure relief valve on the common rail can cause the engine computer to dump excess fuel, ruining your fuel consumption curve and washing oil off the cylinder walls.
Common Misconceptions About the ISDe180-30
A persistent misconception is that a complete engine assembly replacement is always more expensive than an overhaul. In reality, when an original Dongfeng Cummins ISDe180-30 engine suffers catastrophic failure, buying a brand-new complete assembly from a wholesale exporter like HekoPower often saves money. The labor hours required to machine and rebuild a severely damaged block easily exceed the price of a drop-in replacement.
Another misconception involves the Cummins ISDe180-30 parts catalog. Many mechanics assume parts from older mechanical 4BT engines will fit this modern block. They will not. The ISDe series utilizes entirely different bore and stroke geometries, compression ratios, and electronic sensors. Always request a specific DCEC ISDe180-30 parts catalog PDF download from your supplier to verify part numbers.
Frequently Asked Questions (FAQs)
Is the Cummins ISDe180-30 a genuine DCEC engine?
Yes, every unit supplied by HekoPower is a genuine product manufactured by the Dongfeng Cummins Engine Company (DCEC) joint venture facility in Xiangyang, China. These engines carry official factory serialization tags verifiable across global service networks.
Does the replacement engine assembly come with the ECU?
When purchasing a complete Cummins ISDe180-30 repower engine, it typically includes the core block, cylinder head, fuel system, and turbocharger. Because ECUs are often programmed to specific truck chassis and transmission combinations, we advise transferring your existing ECU or specifying your exact vehicle requirements during the inquiry process.
How do I optimize the Cummins ISDe180-30 fuel consumption?
Maximum fuel efficiency is achieved by keeping the engine RPMs within the peak torque band (usually around 1200 to 1600 RPM) during cruising. Ensure your Bosch HPCR parts are serviced regularly, and never bypass the factory-recommended air and fuel filtration systems.
