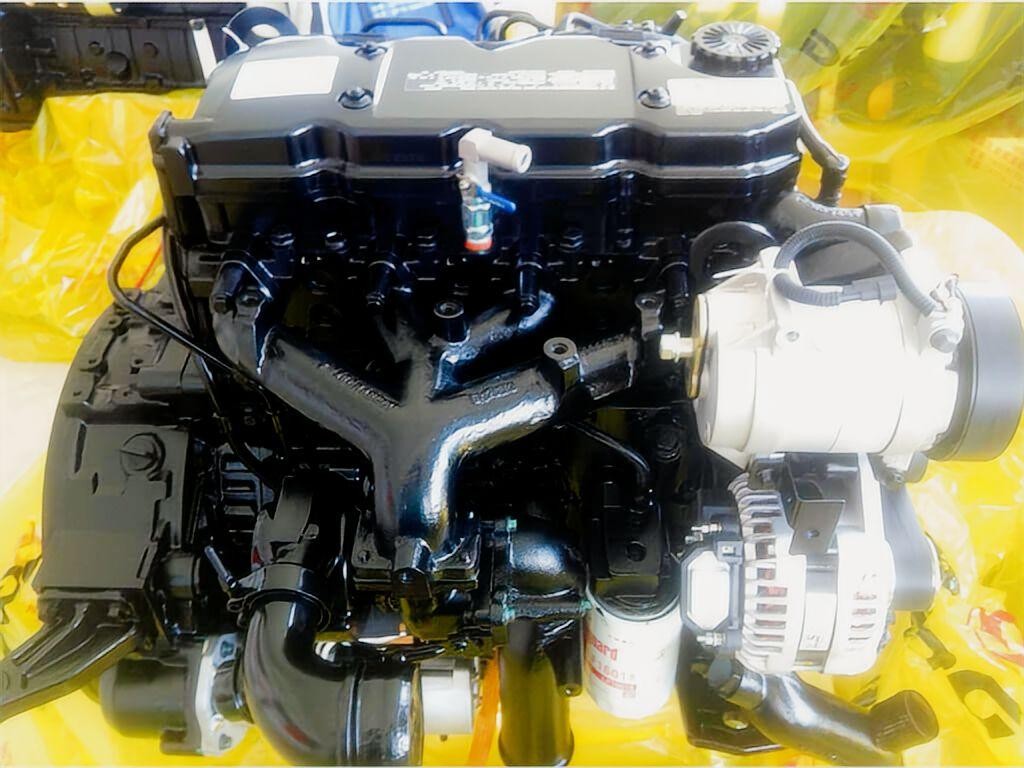

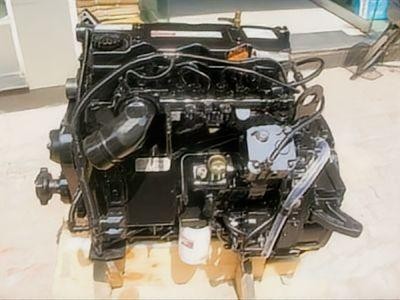

Cummins ISDe140-40 Engine Assembly: 4.5L 140HP DCEC Euro IV Power
HekoPower supplies factory-tested, genuine Dongfeng Cummins (DCEC) ISDe140-40 complete engine assemblies directly to commercial fleet operators, chassis builders, and vehicle refurbishers worldwide. The Cummins ISDe140-40 is a four-cylinder inline, 4.5-liter turbocharged diesel engine specifically engineered for medium-duty commercial transport. Delivering a rated power output of 103kW (140HP) at 2500 RPM, this powertrain balances low-end pulling capability with strict Euro IV emission compliance.
As a specialized global engine supplier, we ensure every engine assembly is fully equipped with the fuel system, turbocharger, oil pump, and electronic control module (ECM). Each unit undergoes rigorous dynamometer testing prior to dispatch to verify thermal performance, oil pressure, and fuel calibration. This ensures your replacement engine arrives ready for immediate installation.
Tech Specs of Cummins ISDe140-40 Engine
General Engine Data
Engine Model: Cummins ISDe140-40
Type: 4 Cylinders in Line
Displacement: 4.5 L
Bore * Stroke: 107 * 124
Net Weight (with flywheel & alternator): 377 Kg
Overall Dimension: 901mm*723mm*815mm
Key Performance Data
Rated Power: 103 kW/140 HP
Rated Speed: 2500 rpm
Idle Speed: 600-800 rpm
Fuel Consumption @ Rated Power: 195 g/Kw.h
Max Continuous Running Altitude: 3000 m
Max. Torque/Speed: 550 N.m @ 800-1700 rpm
Torque/Rated Speed: 395 N.m @ 2500 rpm
Max. No-load Governed Speed: 2850 rpm
More Technical Data
Certification: Euro IV
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Bosch Direct Injection (HPCR)
Compression Radio: 17.3:1
Starting System: Electrical Starting Motor 24V(750A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 11.1 L
Engineering Architecture and Bosch HPCR Fuel Delivery
The DCEC ISDe140-40 relies on a high-strength cast iron cylinder block paired with a four-valve cylinder head design. This structural geometry optimizes intake air volume and exhaust gas scavenging. The engine utilizes a 107mm by 124mm bore and stroke configuration to generate strong cylinder pressure at lower rotational speeds. This specific mechanical setup produces 550Nm of peak torque starting at just 1200 RPM. Heavy commercial trucks can therefore pull away smoothly under full payload conditions without excessive clutch wear.
Fuel metering is managed by a state-of-the-art Bosch High Pressure Common Rail (HPCR) fuel injection system. Operating at elevated rail pressures, the Bosch HPCR system facilitates multiple injection events per single combustion stroke. This precise electronic timing control significantly reduces operational combustion noise and lowers thermal stress on the piston crowns. It also guarantees high fuel efficiency across both dense urban transit routes and sustained highway driving profiles.
Thermal management is handled by an integrated air-to-air charge air cooler paired with a precision wastegate turbocharger. The wastegate regulates boost pressure across the entire RPM spectrum. This prevents mechanical over-boost at high engine speeds while maintaining rapid throttle response at low RPMs.
Technical Comparisons for Fleet Selection
Selecting the correct engine model requires evaluating emission hardware requirements, transmission gear ratio matching, and daily operational duty cycles. Understanding the mechanical distinctions between engine variants prevents costly specification errors during procurement.
ISDe140-40 vs. ISDe140-30 (Euro IV vs. Euro III)
Upgrading from an older ISDe140-30 to the Euro IV ISDe140-40 introduces critical electronic and exhaust post-treatment upgrades. Both models utilize the same core 4.5-liter engine block architecture, share identical bore and stroke dimensions, and produce the same 103kW horsepower output. However, the Euro III ISDe140-30 utilizes lower fuel rail pressures and operates without complex exhaust post-treatment controls.
The Euro IV ISDe140-40 incorporates a highly advanced electronic control system that must interface with a Selective Catalytic Reduction (SCR) system using AdBlue/DEF injection. This configuration yields dramatically lower soot formation and maintains cleaner engine oil over extended duty cycles. When executing an ISDe140-40 replacement for an ISDe140-30 unit, mechanics must account for the additional DEF tank module installation, SCR catalyst exhaust piping, and matching temperature sensors to ensure the ECM functions without triggering warning codes.
ISDe140-40 vs. ISDe160-40 and ISDe180-40
Fleet managers frequently evaluate whether to install the 140HP ISDe140-40 or its higher-output counterparts, the 160HP (ISDe160-40) and 180HP (ISDe180-40) engines. Externally, all three engines within this 4.5L Cummins diesel engine family share identical mounting footprints, flywheel housing dimensions, and a dry weight of approximately 377 kg.
The primary differences lie in the turbocharger compressor wheel sizing, injector nozzle orifice flow rates, and the software calibration maps within the engine control module. The 140HP version is explicitly calibrated for maximum fuel economy and extended component service life in light-to-medium cargo delivery. Choosing the 160HP or 180HP models provides reserve torque for steep mountainous terrain or higher gross vehicle weight ratings. However, the 103kW ISDe140-40 remains the optimal choice for city distribution routes where flat-ground fuel economy is the main priority.
Real-World Commercial Application Scenarios
The compact physical dimensions and high power density of the DCEC ISDe140-40 make it a highly versatile powertrain. It easily adapts to tight engine bays while delivering industrial-grade reliability.
Dongfeng Cargo and Tipper Trucks: The ISDe140-40 engine serves as the factory-standard powertrain for 6-ton to 10-ton Dongfeng rigid cargo trucks and light dumpers. Its broad 1200 to 1700 RPM torque plateau allows drivers to navigate dense city traffic and uneven construction sites without constantly shifting transmission gears.
Urban Transit Buses and Commuter Coaches: Installed in 8-meter to 9-meter city buses and corporate shuttle coaches, this engine delivers low cabin noise and minimal vibration. It fully complies with strict urban low-emission zone requirements, making it ideal for inner-city passenger transport.
Special Purpose Vehicles and Municipal Equipment: Beyond standard freight transport, this 4-cylinder Cummins diesel engine powers municipal street sweepers, garbage compactors, and airport ground support vehicles. The front engine power take-off capabilities allow direct hydraulic pump hookups to operate specialized vehicle machinery.
Maintenance and Engine Replacement Protocol
Executing a seamless engine swap or scheduling routine maintenance requires strict adherence to manufacturer service protocols. Clean fuel management and proper mounting alignment are vital for maximizing engine lifespan.
Repowering and Chassis Integration
When installing a replacement ISDe140-40 complete engine assembly into an existing chassis, technicians must first verify the flywheel housing geometry. The ISDe 4.5L standard production model features standardized SAE #2 and SAE #3 flywheel housings. Mechanics should inspect the chassis engine mounting pads and replace rubber vibration isolators before securing the block.
Engine transmission matching is equally critical. Ensure the vehicle transmission input shaft aligns cleanly with the pilot bearing inside the flywheel. Never use the bell housing bolts to pull the transmission tight against the engine block. Doing so can crack the aluminum housing or severely damage the crankshaft thrust bearings. Technicians must use dial indicators to confirm radial and axial runout remain within factory tolerance limits.
Fuel System Service Guidelines
Because the Bosch HPCR components feature internal tolerances measured in microns, fuel contamination is the leading cause of premature injector failure. Fleet operators must install a primary fuel-water separator with an integrated heater element alongside a 2-micron secondary fuel filter.
Never loosen high-pressure fuel lines while the engine is running or cranking. High rail pressure poses severe safety hazards and distorts the precision flare sealing surfaces. If air enters the fuel system during a routine filter change, mechanics must use the manual primer pump located on the fuel filter head to bleed the low-pressure supply circuits.
Clarifying Common Technical Misconceptions
There are several persistent myths regarding 4.5L engine maintenance and upgrades that lead to unnecessary fleet downtime.
The most common misconception is that mechanical 4BT engine parts will fit the electronic ISDe140-40. While both are 4-cylinder Cummins diesels, the 4.5-liter ISDe is an entirely separate architectural generation. The ISDe features a 4-valve cylinder head, rear gear train timing, and fully integrated electronic controls. Pistons, cylinder heads, mechanical injectors, and timing gears from older 4BT engines are strictly non-interchangeable.
Another frequent error involves emission controls. Some operators believe bypassing the DEF system improves engine output. In reality, running an ISDe140-40 with an empty DEF tank or disconnected SCR sensors triggers automatic engine de-rate modes within the ECU. The ECM will drastically reduce fuel delivery, cutting available engine torque by up to 40% to keep emissions within legal thresholds. This results in sluggish vehicle performance and increased long-term exhaust soot build-up.
Exploring the Cummins ISDe Engine Family
Selecting the right powertrain requires matching exact horsepower, torque curves, and emissions standards to your specific commercial fleet requirements. HekoPower stocks a comprehensive range of DCEC configurations to ensure seamless vehicle repowering and chassis integration.
DCEC ISDe Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes ISDe140-30, ISDe140-40, ISDe160-30, ISDe160-40, ISDe180-30, ISDe180-40, ISDe185-30, ISDe185-40, ISDe200-30, ISDe210-30, ISDe210-40, ISDe230-30, ISDe245-30, ISDe270-30, ISDe285-30, ISDe300-40.
Frequently Asked Questions (FAQ)
What is the exact displacement and torque rating of the Cummins ISDe140-40?
The Cummins ISDe140-40 features a 4.5-liter (275 cubic inches) displacement block with a 107mm bore and 124mm stroke. It produces a rated power output of 103kW (140HP) at 2500 RPM and generates 550Nm of peak torque between 1200 and 1700 RPM.
Is the DCEC ISDe140-40 compatible with non-Dongfeng chassis?
Yes. While it is the standard power plant for Dongfeng trucks and buses, the ISDe140-40 uses industry-standard SAE mounting dimensions and electronic controls. It can be adapted to various commercial trucks, specialized vehicles, and industrial machinery, provided the transmission bell housing matches.
What is the price of a genuine Cummins ISDe140-40 engine wholesale?
Pricing for the ISDe140-40 complete engine assembly varies based on specific ECM calibrations, accessory configurations, and global shipping destinations. As a direct engine supplier in China, HekoPower offers competitive B2B wholesale pricing. Please contact our sales team directly for an accurate, up-to-date quotation tailored to your volume requirements.
Does HekoPower supply original replacement spare parts for this engine?
Yes. Alongside complete engine assemblies, HekoPower is a genuine Cummins ISDe140-40 spare parts supplier. We stock original replacement components, including Bosch HPCR fuel injectors, high-pressure pumps, turbochargers, cylinder heads, water pumps, and complete overhaul gasket sets.
