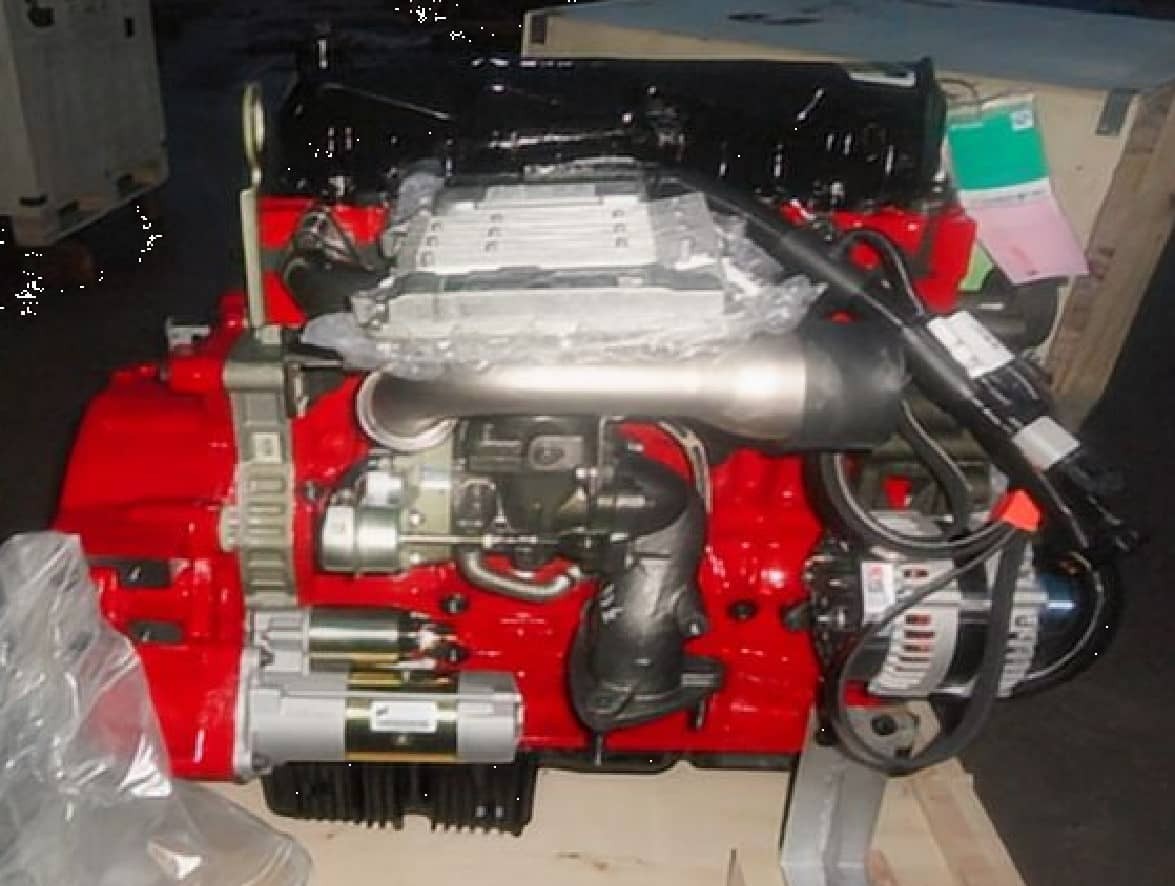

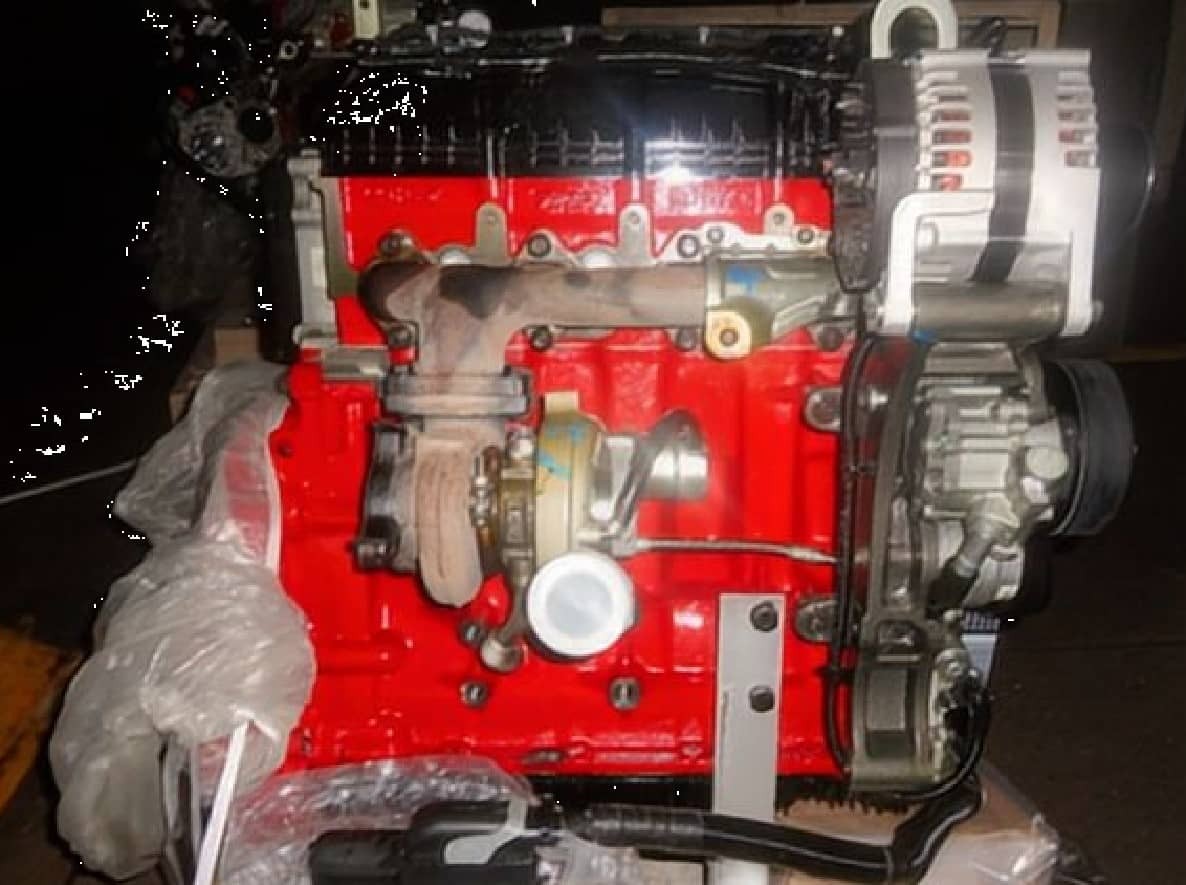

Genuine Cummins ISF3.8s4154 Diesel Engine Assembly for Commercial Trucks
The Cummins ISF3.8s4154 engine assembly is a Euro IV electronically controlled diesel engine developed for light and medium-duty commercial vehicles. This 3.8-litre inline four-cylinder platform is widely used in logistics trucks, refrigerated transport vehicles, municipal service trucks, and urban delivery fleets that require stable torque output and fuel-efficient operation under high-frequency transportation conditions.
HekoPower supplies genuine Foton Cummins ISF3.8s4154 diesel engine assemblies for customers requiring reliable replacement engines, fleet maintenance support, or export-ready commercial power solutions. Compared with many standard catalogue pages found across the diesel engine industry, this engine page focuses not only on specifications, but also on real operating scenarios, replacement considerations, maintenance support, and international supply requirements.
The ISF3.8s4154 engine delivers 115kW (154HP) output and adopts a Bosch high-pressure common rail fuel injection system combined with electronic ECU management. The engine platform is recognised for stable cold-start performance, efficient fuel combustion, and compatibility with long-distance logistics applications.
Tech Specs of Cummins ISF3.8s4154
General Engine Data
Engine Model: Cummins ISF3.8s4154
Type: 4 Cylinders in Line
Displacement: 3.76 L
Bore * Stroke: 102 * 115
Net Weight (with flywheel & alternator): 335 Kg
Overall Dimension: 801mm*695mm*806mm
Key Performance Data
Rated Power: 115 kW/154 HP
Rated Speed: 2600 rpm
Idle Speed: 750 rpm
Min. Fuel Consumption: 195 g/Kw.h
Max Continuous Running Altitude: 2000 m
Max. Torque/Speed: 500 N.m @ 1200-1900 rpm
Max. No-load Governed Speed: 2950 rpm
More Technical Data
Certification: Euro IV
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Bosch Direct Injection/HPCR, SCR
Compression Radio: 17.2:1
Starting System: Electrical Starting Motor 24V
Starting Temp (with/without auxiliary system): -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 11.1 L
Comprehensive Technical Specifications & Architecture
High-Pressure Common Rail System Implementation
The core performance of the ISF3.8s4154 inline 4-cylinder diesel engine is driven by an electronic Bosch high-pressure common rail fuel system. Unlike early-generation mechanical injection platforms found on older platforms, this electronic diesel engine uses a precise high-pressure rail loop.
This loop accurately manages multiple injection events per combustion stroke. The highly targeted fuel delivery optimizes combustion efficiency, lowering baseline fuel consumption down to 195 g/kW·h at rated power while noticeably smoothing out rough idling sounds.
Turbocharged and Charge Air Cooled Subsystems
To maintain stable torque across varying elevations and thermal loads, the Cummins ISF3.8 common rail system integrates a wastegated turbocharger paired with air-to-air charge air cooling (intercooling).
Compressing intake air raises its density, ensuring thorough fuel mixing even at low engine speeds. This design choice prevents thermal fatigue across the cylinder head and exhaust valves, allowing the motor to maintain continuous operation up to altitudes of 2722 meters without performance derating.
Euro IV Emission Standards Compliance
Meeting Euro IV emissions targets requires a precise balance of combustion management and exhaust aftertreatment. The BFCEC ISF3.8s4154 complete engine relies on a calibrated Selective Catalytic Reduction (SCR) framework combined with Selective Catalytic Reduction and Diesel Oxidation Catalyst (DOC) techniques.
The onboard full-authority electronic controls module (ECU) monitors real-time exhaust temperatures and tail-gas composition. It accurately injects diesel exhaust fluid (DEF/Urea) to break down harmful nitrogen oxides into harmless nitrogen and water vapor, fully bypassing the need for complex, maintenance-heavy DPF setups in Euro IV regions.
Real Application Scenarios Across Global Markets
Urban Delivery and Logistics Fleet Operations
In dense metropolitan delivery environments, fleet operations demand high torque at low speeds to handle constant stop-and-go conditions. The ISF3.8s4154 commercial truck engine is purpose-built for logistics transport vehicles carrying varying cargo volumes.
Its early torque peak at 1200 rpm lets fully loaded trucks pull away smoothly from urban loading bays, directly reducing driveline stress and preventing driver fatigue during extended shifts.
Refrigerated Truck Regional Transport
Refrigerated transport demands dual-purpose reliability. The engine must move the vehicle's total weight while driving high-output alternators or direct-belt compressors to maintain refrigeration box temperatures.
The inherent stability of the 115kW 154HP Cummins ISF3.8 provides the necessary power reserve to maintain highway speeds while easily driving secondary cooling loops, protecting perishable goods across long transit windows.
Light Cargo and Flatbed Distribution
For construction material suppliers and rural distribution routes, light cargo trucks face high gross vehicle weights over mixed roads. The Cummins ISF3.8 engine for light duty truck configurations uses a structural block design that handles high payload stresses.
The combination of an integrated oil cooler and a high-flow water cooling loop ensures reliable temperature management when climbing steep grades under full load conditions.
Maintenance Guidelines and Engine Replacement Tips
Routine Service Protocols and Fluid Targets
To reach the projected 500,000 km B10 design life, maintenance teams must follow a strict fluid and filter service schedule.
- Lubrication Upkeep: Change engine oil every 10,000 to 15,000 kilometers depending on the severity of operational conditions. Use premium 15W-40 CH-4 or CI-4 grade oils to safeguard internal bearing shells against premature soot wear.
- Fuel Filtration: Replace fuel filters and water separators every 15,000 kilometers. The Bosch common rail system relies on micro-clearance tolerances; microscopic particulate contamination or water tracking can score injector seats and cause fuel delivery issues.
Critical Identification: Verifying CPL and Serial Data
When replacing an engine assembly, verifying the original technical configuration is essential. The Cummins ISF3.8s4154 typically utilizes Control Parts List (CPL) 43091.
Before ordering from your supplier, check the metal data tag riveted to the rocker cover. Ensure the engine serial number (ESN) and CPL codes match exactly to avoid mismatch issues with chassis engine mounts, flywheels, or the main wiring harness interface.
Fleet Diagnostic Procedures
When troubleshooting unexpected engine codes, use the full-authority electronic controls framework. Connecting a compatible diagnostic tool lets technicians pull faults directly from the ECU. Common issues like fuel rail pressure drops often point to a clogged primary fuel filter or a sticking fuel control actuator rather than a total injection pump failure.
Export Supply and International Service Support
HekoPower supplies genuine Cummins ISF3.8s4154 diesel engine assemblies for international commercial vehicle markets. Engines are exported to customers in:
- Africa,
- Southeast Asia,
- the Middle East,
- Latin America,
- Central Asia.
To support overseas buyers, export services may include:
- wooden crate packaging,
- engine identification verification,
- export inspection photos,
- spare parts support,
- international shipping coordination.
Compared with many generic supplier websites, HekoPower focuses on practical export support and long-term engine supply cooperation rather than only publishing basic catalogue specifications.
BFCEC ISF Series, original products from Beijing Foton Cummins Engine Company Limited (BFCEC), a 50/50 joint venture between Cummins Inc. and China's Beiqi Foton Motor Company (Foton Motor). BFCEC produces Cummins light-duty, high-performance ISF diesel engines. This series mainly includes ISF2.8s3129T, ISF2.8s3148T, ISF2.8s4129P, ISF2.8s4129T, ISF2.8s5129T, ISF2.8s4148T, ISF2.8s4161P, ISF3.8s3141, ISF3.8s3154, ISF3.8s3168, ISF3.8s4141, ISF3.8s4154, ISF3.8s4168, ISF2.8s4107P.
Frequently Asked Questions
Is the Cummins ISF3.8s4154 engine supplied with all fuel accessories?
Yes, every genuine complete engine assembly from HekoPower comes as a fully built power pack. The unit includes the high-pressure fuel injection pump, electronic injectors, fuel rail assembly, lines, and secondary filtration bases pre-installed.
What components are included in the complete engine assembly?
The factory-new assembly arrives completely built and ready for drop-in installation. It features the turbocharger, alternator, starter motor, water pump, lubricating oil pump, flywheel housing, and full electrical sensor clusters pre-wired to the engine plug point.
How do I check if this engine matches my Foton Aumark truck?
Check the engine data tag on your current engine for CPL 43091 or a matching 115kW/154HP performance rating. You can also share your 8-digit Cummins Engine Serial Number with the HekoPower team to verify exact chassis compatibility before your order ships.
What are the standard trade and payment terms for bulk supply?
We support commercial transactions via Free on Board (FOB), Cost, Insurance, and Freight (CIF), and Cost and Freight (CNF) terms out of Shanghai Port. Standard payment terms are handled securely through Telegraphic Transfer (T/T) or Letters of Credit (L/C), ensuring reliable processing for wholesale buyers.
