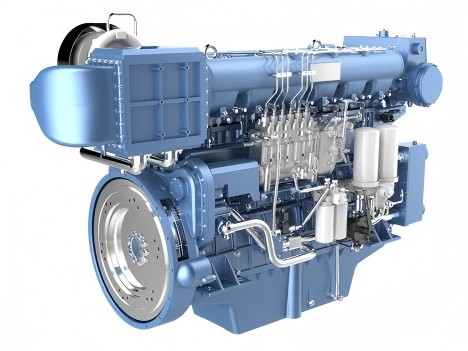

Weichai 8170ZC818-3 Marine Propulsion Engine: The Definitive Commercial Fleet Choice
Commercial maritime operations demand a balance of brute power and unrelenting reliability. The Weichai 8170ZC818-3 marine engine provides exactly that, serving as a heavy-duty, medium speed marine diesel engine designed to handle the harshest environments. Delivering 818HP (601kW) at a stable 1350RPM, this 8 cylinder marine propulsion engine is built for vessels that cannot afford unplanned downtime.
As a specialized China Weichai marine engine exporter and distributor, HekoPower supplies the genuine Weichai 8170ZC series directly to global fleet operators, boat builders, and engineering companies. Understanding the exact mechanical footprint, fuel curves, and real-world limits of this engine ensures you optimize your vessel’s performance from day one.
Tech Specs of Weichai 8170ZC818-3
General Engine Data
Engine Model: Weichai 8170ZC818-3
Cylinder Count: 6 / 8 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 27.24 L / 36.32 L
Bore * Stroke: 170×200 (mm)
Dimensions L×W×H) / net weight: L6 2463×1200×1650 (mm) / 3100kg; L8 2650×1040×1818 (mm) / 3800kg
Key Performance Data
Rated Power: 601 kW / 818 HP
Rated Speed: 1350 RPM
Idle Speed: 450-650 RPM
Minimum fuel consumption rate: 197 g/kW.h
Oil consumption rate: ≤0.5 g/kW.h
Torque reserve: 20-34%
More Technical Data
Certification: IMO Tier II
Aspiration: turbocharged and aftercooled
Starting system: Gas/Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: Mechanical pump
Power rating: P1
Noise: ≤105 dB(A)
Technical Comparisons: Choosing the Right 170 Series Variant
Selecting the correct propulsion model requires comparing how different tunings affect power delivery. The Weichai 8170 series marine diesel family includes multiple outputs, making it critical to understand why the 818HP variant may outmatch or differ from its siblings.
Weichai 8170ZC818-3 vs 8170ZC720-2
The primary differentiator between the 8170ZC818-3 and the older 8170ZC720-2 model centers on the evolution of aspiration and fueling. The 720-2 variant delivers 720HP, utilizing a slightly lower peak injection pressure. The 8170ZC818-3 leverages an updated turbocharger match that increases air mass flow into the cylinders. This modification allows it to reach 818HP safely without elevating exhaust gas temperatures beyond structural limits. If your vessel faces variable drag, the extra 98 horsepower of the 818-3 provides a critical safety margin.
Weichai 8170ZC818-3 vs 8170ZC900-3
Moving further up the power scale, the 8170ZC900-3 pushes the platform to 900HP. While the 900HP version offers maximum speed, it operates at a higher thermal threshold. The Weichai 8170ZC818-3 represents the sweet spot for maximum durability. It provides high power output while keeping mechanical stress low enough to maintain an extended Weichai 8170ZC818-3 overhaul interval. For heavy, continuous work where the engine runs 24/7, the 818HP rating often yields lower overall lifecycle costs.
Evaluating the Best 800HP Marine Diesel Engine
When compared to global alternatives in the 800HP class, this Weichai boat engine stands out for its mechanical simplicity. Many modern engines rely excessively on complex electronic control units that fail in salt-heavy environments. The mechanical governors and robust fuel systems on the 8170 series ensure that basic tools are all you need to keep the vessel moving, even when hundreds of miles offshore.
Real Application Scenarios for the 818HP Engine
Propulsion needs vary by hull design and operating conditions. The 601kW propulsion engine for commercial vessel designs is engineered to fit distinct working profiles with high efficiency.
High-Torque Performance: Weichai Engine for Fishing Boat Use
Deep-sea fishing demands an engine that can handle two distinct modes: fast transit to the fishing grounds and high-torque, low-speed pulling while dragging heavy nets. An 818HP marine engine for trawler fleets allows skipper to maintain steady speeds during net deployment without bogging down. The heavy internal flywheel balances out the sudden load spikes that occur when nets encounter shifting bottom currents.
Continuous Duty Cycles: Weichai Engine for Tug Boat Operations
Tugboats operate on brute force, often pushing or pulling thousands of tons at low speeds. The affordable Weichai 8170 series marine engine for tugboats allows operators to configure high-reduction gearboxes. This combination transforms the 1350RPM engine speed into maximum bollard pull. Because tugs work constantly within tight harbors, the rapid throttle response of this turbocharged system ensures precise maneuvering when guiding larger cargo vessels.
Steady Propulsion: Weichai Engine for Cargo Vessel Layouts
For coastal and inland shipping, consistency translates directly to profit. A marine diesel engine for inland river vessel operations must combat strong river currents while carrying maximum displacement. The 8170ZC818-3 moves large cargo holds smoothly at low operating costs, ensuring predictable delivery schedules along major shipping channels.
Specialized Utility: Marine Engine for Engineering Ships and Workboats
Whether utilized as a main propulsion unit for a split-hopper barge or a Weichai propulsion engine for workboat cranes, this model excels under variable duty cycles. Engineering ships require steady power to hold their position against tides during dredging or marine construction. The structural rigidity of the Weichai block prevents shaft misalignment even when the vessel hull experiences twisting forces during heavy lifting.
Maintenance, Lifecycle Management, and Spare Parts
Maintaining operational readiness requires a disciplined approach to maintenance and a reliable supply chain for components. HekoPower supports fleet managers by providing comprehensive technical insights alongside genuine factory parts.
Maximizing the Weichai 8170ZC818-3 Overhaul Interval
The standard major overhaul interval for this series ranges between 10,000 and 12,000 operating hours when properly maintained. Achieving this longevity depends heavily on fuel filtration and oil quality. Because marine diesel often carries water and particulate contamination, installing primary water separators before the engine's fuel filters is highly recommended. Lubricating oil must be changed every 250 to 300 hours using oil that matches factory viscosity and total base number specs.
Essential Weichai 8170ZC818-3 Spare Parts to Stock Onboard
For long voyages, vessels should maintain a critical inventory of mechanical wear items. HekoPower recommends stocking replacement fuel injector nozzles, specialized cylinder head gaskets, matching valve springs, and a complete set of turbocharger rebuild seals. Having genuine components ready prevents minor sealing issues from escalating into major operational delays.
Managing Cylinder Liner and Piston Ring Wear
In medium-speed engines, the interface between the piston rings and the cylinder liner experiences high wear. Using low-quality fuel increases sulfur corrosion, which accelerates liner polishing. Fleet mechanics should monitor blow-by gas levels from the crankcase breather. A sudden increase in crankcase pressure indicates it is time to inspect the compression rings and replace worn liners to restore full compression.
Securing Your Weichai 8170ZC818-3 Quotation
HekoPower streamlines the procurement process for international buyers. To receive a precise Weichai 8170ZC818-3 price estimate, contact our sales engineering department with your specific project details. Providing information about your hull design, expected operating hours, and required gearbox reduction ratios allows us to tailor an accurate technical quote.
Whether you need a single replacement propulsion unit or a matched pair for a twin-screw commercial vessel, HekoPower delivers authentic engineering solutions with professional export support. Reach out today to discuss your lead times, shipping arrangements, and custom machinery packages.
Weichai 170 series marine diesel engine, original products from Weichai. This series mainly includes X6170ZC350-1, X6170ZC408-1, X6170ZC450-1, X6170ZC540-1, X6170ZC450-2, X6170ZC480-2, X6170ZC540-2, X6170ZC620-2, X6170ZC650-2, X6170ZC580-3, X6170ZC608-3, X6170ZC680-3, X6170ZC735-3, X6170ZC620-4, X6170ZC620-5, X6170ZC550-5, X6170ZC756-5, X6170ZC818-5, 8170ZC600-1, 8170ZC720-2, 8170ZC818-3, 8170ZC900-3, 8170ZC900-5, 8170ZC1000-5.
Frequently Asked Questions Regarding the 8170ZC818-3
What international marine certifications does this engine carry?
The Weichai 8170ZC818-3 marine certification profile includes compliance options from major classification societies like the China Classification Society (CCS). Depending on the production batch and specific order requirements, configurations matching international marine emissions standards can be supplied to meet regional port authority guidelines.
What is the typical Weichai 8170ZC818-3 lead time?
Lead times vary based on factory production schedules and the specific marine gearbox adaptations required. Standard configurations generally ship within 30 to 45 days from our facility. As an OEM Weichai marine engine supplier, HekoPower coordinates directly with the factory assembly lines to accelerate shipping schedules for urgent vessel repower projects.
How can I verify that I am buying a genuine Weichai engine?
Every authentic Weichai engine leaves the factory with a unique laser-etched data plate containing the engine serial number, build specification code, and manufacturing date. HekoPower provides full traceability documents with every shipment, ensuring your local port authorities and surveyors can verify engine authenticity without delay.
Can this engine be integrated with standard electronic monitoring systems?
Yes, while the core mechanical systems remain beautifully simple, the engine can be fitted with external sensor arrays. These sensors monitor oil pressure, cooling water temperature, exhaust gas temperature, and engine RPM, sending digital alerts directly to the wheelhouse display terminal.
What are the precise Weichai 8170ZC818-3 dimensions and weight?
This engine has a dry weight of approximately 3,500 kg, though the final weight varies based on whether you opt for a heat-exchanger cooling setup or a keel-cooling layout. It features a length of roughly 2.4 meters and a height of 1.7 meters. You can request the exact engineering blueprints and the official Weichai 8170ZC818-3 engine manual directly from the HekoPower technical support team to finalize your engine room layout drawings.
