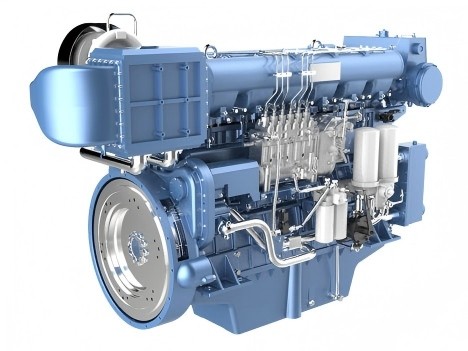

Weichai X6170ZC735-3 Marine Propulsion Engine: The Ultimate Commercial Power Solution
The Weichai X6170ZC735-3 is a high-performance marine propulsion engine developed for commercial vessels that require dependable power, fuel efficiency, and long service life. Rated at 735 HP (540 kW) at 1350 RPM, this engine belongs to the proven Weichai 170 series marine propulsion platform and is widely used in fishing vessels, cargo ships, engineering vessels, inland transport boats, and workboats.
As a genuine Weichai marine engine supplier, HekoPower provides complete propulsion solutions including marine gearbox matching, technical consultation, spare parts support, and worldwide export services. The X6170ZC735-3 marine engine combines a robust mechanical fuel system with a heavy-duty cylinder block design, making it an attractive choice for vessel owners seeking a reliable replacement engine or a power solution for newbuild projects.
Tech Specs of Weichai X6170ZC735-3
General Engine Data
Engine Model: Weichai X6170ZC735-3
Cylinder Count: 6 / 8 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 27.24 L / 36.32 L
Bore * Stroke: 170×200 (mm)
Dimensions L×W×H) / net weight: L6 2463×1200×1650 (mm) / 3100kg; L8 2650×1040×1818 (mm) / 3800kg
Key Performance Data
Rated Power: 540 kW / 735 HP
Rated Speed: 1350 RPM
Idle Speed: 450-650 RPM
Minimum fuel consumption rate: 197 g/kW.h
Oil consumption rate: ≤0.5 g/kW.h
Torque reserve: 20-34%
More Technical Data
Certification: IMO Tier II
Aspiration: turbocharged and aftercooled
Starting system: Gas/Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: Mechanical pump
Power rating: P1
Noise: ≤105 dB(A)
Technical Comparisons Within the Weichai 170 Series Marine Propulsion Family
When assessing options within the Weichai 170 series marine propulsion lineup, selecting the correct power configuration changes a vessel's speed profiles and fuel efficiency over time. The X6170ZC735-3 propulsion engine represents the highest performance tier available within the 1350 RPM family segment, contrasting with lower-horsepower models that share its basic block architecture.
Power Rating Variations vs. Thermal Overhead
Lower-tier iterations, such as the 450 HP or 540 HP versions of the Weichai X170 marine engine, utilize identical physical footprints but are set to operate with lower fuel injection pressures and reduced turbocharger trim ratios. The Weichai 735 HP marine engine expands on this capability by modifying the internal fuel delivery timing and employing a high-capacity mechanical injection pump.
To offset the higher combustion temperatures that come with an output of 540kW, the 735 HP version includes dual-skinned high-pressure fuel lines with integrated leak detection alarms as a standard safety feature. This added layer of structural safety is often missing or treated as an optional add-on in lower-output models.
Torque Delivery Profiles Across the RPM Band
A crucial distinction appears when evaluating the X6170ZC735-3 engine torque curve and RPM range against higher-speed 1500 RPM configurations. The 1350 RPM tuning provides a wider, flatter torque reserve, which typically stays between 20% and 34% depending on application configurations.
This deep torque reserve allows your vessel to swing a larger, high-pitch propeller, converting the 540 kW marine propulsion engine output into high bollard pull and steady thrust. High-RPM versions often struggle to maintain this level of torque when tackling strong river currents or heavy towing loads, which can lead to exhaust smoking and increased thermal stress.
Fuel Consumption Efficiency Profiles
Reviewing the Weichai X6170ZC735-3 fuel consumption metrics reveals an optimized operating envelope. Under continuous load, the engine achieves a minimum Weichai X6170ZC735-3 fuel consumption rate of approximately 197 g/kWh. Lower-power versions can exhibit slightly higher fuel burn rates per kilowatt-hour when forced to run near their mechanical limits to maintain target cruising speeds.
By selecting the 735 HP configuration, ship operators ensure the engine runs comfortably within its peak economic power band, reducing long-term fuel costs and extending the service life of internal components.
Real Application Scenarios for the Weichai 735 HP Marine Engine
The unique torque characteristics and low-maintenance design of the Weichai X6170ZC735-3 marine engine make it highly effective across a range of commercial maritime applications.
Deep-Sea Harvesting and Trawler Boat Operations
For oceanic fishing vessels, an engine must provide both reliable propulsion and the power required to operate auxiliary deck machinery. The Weichai fishing boat engine variant excels here, offering optional free-end Power Take-Off (PTO) assemblies capable of pulling power directly from the crankshaft.
When utilized as a 735 HP fishing boat engine on a modern trawler boat, the system easily handles the heavy resistance of dragging loaded nets through rough seas while simultaneously powering hydraulic winches and onboard freezing systems.
Coastal Commerce and Inland Waterway Freight Transport
Commercial operators running cargo vessels along coastal routes or up inland river systems need consistent speed under full-tonnage loads. Operating as a dedicated Weichai cargo vessel engine, this engine provides a balanced marine diesel engine for coastal vessels.
Its robust mechanical governance allows the vessel to maintain a steady speed against river currents without requiring constant throttle inputs, making it an efficient choice for inland waterway transport fleets.
Heavy Industrial Workboats and Harbor Tug Operations
Industrial shipping operations demand instant, high-torque responses to safely guide barges and maneuver heavy equipment. The engine serves as an exceptional workboat and tug boat engine due to its quick throttle response.
If a sudden load change occurs during towing operations, the mechanical pump adjusts fuel delivery to maintain stability, providing harbor crew members with reliable power during close-quarters maneuvers.
Maintenance Strategies and Replacement Integration Tips
Replacing an outdated marine engine with a new Weichai X6170ZC735-3 requires meticulous planning, precise shaft alignment, and an ongoing commitment to scheduled preventive maintenance.
Engine Replacement and Foundation Alignment Guidelines
When replacing an old marine engine with a Weichai X6170ZC735-3, engineers must first cross-reference engine mount spacings using official Weichai 170mm bore 6 cylinder marine engine drawings. The dry Weichai X6170ZC735-3 weight stands at 3100 kg, meaning foundation rails must be structurally verified to handle this mass along with operating fluids.
Engineers should design heavy-duty steel adapter blocks if existing engine beds do not align with the standard Weichai X6170ZC735-3 dimensions, which measure 2463mm in length and 1200mm in width. Final alignment between the flywheel housing—typically an SAE 0 setup—and the marine gearbox flange must show less than 0.05mm of radial deviation to avoid premature bearing wear or crankshaft stress.
Critical Filtration and Fluid Maintenance Requirements
Achieving the impressive Weichai X6170ZC735-3 overhaul interval of 20,000 operational hours requires strict adherence to fluid maintenance protocols. Fleet managers must use the correct oil filter and fuel filter part numbers for X6170ZC735-3 configurations, opting for dual-stage elements that can be replaced while the engine is running.
The primary lubrication system requires CD 15W/40 grade oil to safeguard the internal mechanical gear assemblies. Zinc anode rods located within the raw-water heat exchanger circuits must be inspected every 250 hours and replaced immediately if more than half the material has dissolved, ensuring the copper-nickel cooling cores remain protected from galvanic corrosion.
Sourcing Authorized Componentry and Overhaul Spares
To protect your investment and preserve the Hekopower Weichai X6170ZC735-3 marine engine warranty, always source components from an authorized Weichai marine diesel supplier. Avoid using generic aftermarket parts, as minor deviations in nozzle spray patterns or ring tension can hurt performance and elevate fuel consumption.
HekoPower carries a complete inventory of Weichai X6170ZC735-3 spare parts, ensuring fleet operators can quickly secure genuine overhaul kits, liners, gaskets, and filters to minimize dry-dock wait times.
Weichai WP10 series marine diesel engine, original products from Weichai. This series mainly includes WP10C313-21, WP10C350-18, WP10C375-21, WP10C395-22.
Frequently Asked Questions
What is the typical Weichai X6170ZC735-3 lead time and general stock availability?
HekoPower prioritizes regular Weichai X6170ZC735-3 stock availability to support international maritime operators facing urgent engine replacements. Our standard Weichai X6170ZC735-3 lead time ranges from 20 to 35 days, which covers full factory testing and the preparation of required classification society paperwork.
Where can I obtain an official Weichai marine engine quotation?
Vessel owners can request a comprehensive Weichai marine engine quotation directly through the HekoPower contact portal. The final Weichai X6170ZC735-3 price for a commercial fishing vessel depends on required add-on features, such as custom front-end PTO systems, specific digital helm displays, or air-starting configurations.
Can this engine architecture be adapted for marine power generation?
Yes. This versatile engine block can be configured to power marine generator sets powered by Weichai X6170ZC735-3 engines. When matched with specialized marine alternators, it delivers stable electrical power for factory ships, engineering vessels, and large accommodation barges.
How do I access technical manuals and engineering drawings for this series?
Authorized buyers can easily obtain the complete Weichai X6170ZC735-3 data sheet and structural diagrams through our support team. We also provide the Weichai X6170ZC735-3 maintenance manual along with the official Weichai X6170ZC735-3 parts manual download pdf to assist shipboard crews with routine servicing and overhauls.
What emissions documentation is supplied with the X6170ZC735-3 propulsion engine?
Every engine shipped by HekoPower includes a registered Weichai X6170ZC735-3 IMO Tier II certification document and an accompanying EIAPP certificate, ensuring full compliance when entering international ports or strict emission control areas.
