Mastering Heavy Maritime Power: The Weichai 8170ZC1000-5 Marine Engine

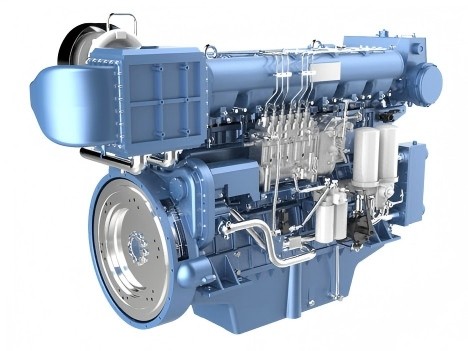

The Weichai 8170ZC1000-5 is a high-power marine propulsion diesel engine developed for vessels that require stable and continuous output under demanding sea conditions. It belongs to the well-established Weichai 8170 series engine platform, which is widely used in commercial shipping and fishing industries.
With a rated output of 1000 horsepower (735kW), this model is positioned as a heavy-duty propulsion solution for medium and large vessels. It is designed for long-duration operation, where reliability and fuel efficiency directly impact operating costs.
As a professional engine supplier, HekoPower provides the Weichai 8170ZC1000-5 marine diesel engine with full technical support, export service, and spare parts supply capability.
Tech Specs of Weichai 8170ZC1000-5
General Engine Data
Engine Model: Weichai 8170ZC1000-5
Cylinder Count: 6 / 8 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 27.24 L / 36.32 L
Bore * Stroke: 170×200 (mm)
Dimensions L×W×H) / net weight: L6 2463×1200×1650 (mm) / 3100kg; L8 2650×1040×1818 (mm) / 3800kg
Key Performance Data
Rated Power: 735 kW / 1000 HP
Rated Speed: 1500 RPM
Idle Speed: 450-650 RPM
Minimum fuel consumption rate: 197 g/kW.h
Oil consumption rate: ≤0.5 g/kW.h
Torque reserve: 20-34%
More Technical Data
Certification: IMO Tier II
Aspiration: turbocharged and aftercooled
Starting system: Gas/Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: Mechanical pump
Power rating: P1
Noise: ≤105 dB(A)
Technical Architecture of the 1000HP Weichai 8170 Series Propulsion Engine
The foundational design of the Weichai 8170 series engine relies on a rigid gantry-style cylinder block. This heavy-duty architecture minimizes structural vibration and internal stress distribution under maximum load conditions. Unlike light-duty commercial variants, the Weichai 8 cylinder marine engine 1000HP utilizes a single-piece forged steel crankshaft and fractured-joint connecting rods. This heavy-duty setup guarantees structural integrity across long-distance deployments.
Decoding the Power Density Limits
Achieving a true Weichai marine propulsion engine 1000 horsepower threshold from a 36.32-liter displacement demands precise air and fuel management. The engine couples a high-efficiency pulse turbocharger with an optimized air-to-water intercooler. This mechanical pairing significantly lowers intake manifold temperatures, increasing oxygen density inside the combustion chamber. The result is complete, clean fuel atomization that extracts every ounce of thermal energy out of the fuel.
Understanding the P1 Continuous Duty Rating
Many multi-purpose vessel operators struggle with premature component wear because they run their propulsion units past their intended operational envelopes. The Weichai 8170 series P1 continuous duty rating means this engine is mechanically engineered to run at maximum rated load for uninterrupted, non-stop periods. Whether you operate a deep-sea trawler or a coastal cargo vessel, the engine maintains its 735kW output without requiring regular power cutbacks to preserve component lifespans.
Power and Efficiency: Evaluating the 8170ZC1000-5 Weichai Engine Fuel Consumption Rate
In high-hour commercial operations, fuel efficiency determines your long-term profitability. The Weichai 8170ZC1000-5 marine engine specification indicates an incredibly flat fuel curve across its primary operational band. This efficiency stems from a high-pressure direct injection system that controls fuel injection timing with extreme accuracy.
Exploring the Weichai 8170ZC1000-5 Fuel Consumption Curves
When analyzing the 8170ZC1000-5 Weichai engine fuel consumption rate, the sweet spot lies between 75% and 90% of the rated engine speed. At an optimal cruising range around 1200 to 1350 RPM, the specific fuel consumption reaches its lowest point, dropping to approximately 195 grams per kilowatt-hour. This efficient consumption profile means thousands of dollars saved in fuel bills over a standard commercial fishing season.
Environmental Compliance Mechanics
Meeting global port criteria is critical for export vessels. This IMO Tier II compliant 735kW ship engine limits internal nitrogen oxide outputs through optimized combustion bowl geometry and a late-injection combustion cycle. It meets rigorous international clean-air standards without relying on overly complex electronic after-treatment devices that frequently break down in harsh salt-water environments.
Comparative Engineering Analysis: 8170ZC1000-5 vs. Mid-Range 170 Variants
Choosing the right option within the broader Weichai 170 lineup can be confusing since models share the same 170mm cylinder bore. However, looking closely at the internal mechanical components reveals why the 1000-horsepower platform requires a standalone page.
The Power Gap Across Similar Engine Displacements
The 8170 series contains lower-tier models tuned for 720HP or 800HP applications. While those smaller variations use similar cast blocks, the high-power Weichai 8170 series high power marine diesel engine utilizes higher-capacity fuel injection pumps and modified plunger profiles. The structural metal alloys inside the pistons are reinforced with advanced thermal-barrier coatings to handle the added heat generated by the 1000HP configuration.
Turbocharger Balancing and Mechanical Stress
Lower-output 8170 models use smaller, quick-spooling turbochargers tuned for rapid throttle response in close-quarters harbor work. The 1000HP version uses a larger compressor wheel optimized for sustained boost pressures at higher continuous RPMs. If an operator attempts to turn a 720HP block into a 1000HP system through third-party tuning, the increased exhaust gas temperatures will rapidly destroy the turbine blades and compromise the exhaust valves.
Real-World Applications: Where the 1000HP System Excels
Commercial operators select propulsion machinery based on the unique demands of their specific maritime applications. The physical attributes of this powertrain make it an excellent fit for demanding marine tasks.
Propelling Modern Commercial Fishing Fleets
Deep-sea fishing vessels face brutal conditions that require a balance of high transit speeds and immense towing power. A Weichai 8 cylinder marine engine for fishing vessel installations gives captains the thrust needed to pull heavy trawl nets through rough seas without losing steering control. The immense low-end torque prevents the hull from stalling out when climbing large swells under full payload.
Reliability for Coastal and Inland Cargo Operations
For standard logistics operations, a Weichai 1000HP propulsion engine for cargo ship layouts delivers predictable, steady transit times. The 1500 RPM operating speed fits perfectly with standard marine reduction gearboxes, allowing operators to use larger, slower-turning propellers that optimize hydrodynamic propulsion efficiency.
Heavy-Duty Performance in Tugboat Propulsion Systems
Harbor and coastal tugs demand immediate power changes and massive bollard pull capacity. Integrating a Weichai 1000HP engine for tugboat propulsion system builds gives operators excellent response times when pushing massive container barges. The high torque reserve allows the vessel to generate immediate reverse thrust, improving safety during close-quarters docking operations.
Maintenance Protocols and Parts Longevity
To protect your investment and avoid expensive unscheduled downtime, operators must stick to strict, preventative maintenance timelines. Because HekoPower acts as an integrated Weichai 8170 series marine engine OEM supplier China, we make sure our buyers have access to clean, uncompromised maintenance data.
Preserving the Value of Your Propulsion Machinery
- Check engine oil levels and monitor coolant clarity before every single voyage.
- Drain water out of the primary fuel-water separator every 50 operating hours to protect the injection nozzles.
- Inspect the condition of the zinc sacrificial anodes inside the raw-water heat exchanger every 250 hours.
- Change all primary lube filters and replace the main crankcase oil every 500 operating hours.
- Check and adjust internal valve clearances every 1000 operating hours to maintain correct engine timing.
Sourcing Genuine Internal Components
Using cheap, third-party aftermarket parts is one of the quickest ways to cause a catastrophic internal engine failure. When you need to buy original Weichai 8170ZC1000-5 parts online, you must verify the serial tracking numbers on components like cylinder liners, head gaskets, and injector tips. Buying through verified channels like HekoPower keeps your marine hull certifications valid and ensures new components match original factory specs.
Weichai 170 series marine diesel engine, original products from Weichai. This series mainly includes X6170ZC350-1, X6170ZC408-1, X6170ZC450-1, X6170ZC540-1, X6170ZC450-2, X6170ZC480-2, X6170ZC540-2, X6170ZC620-2, X6170ZC650-2, X6170ZC580-3, X6170ZC608-3, X6170ZC680-3, X6170ZC735-3, X6170ZC620-4, X6170ZC620-5, X6170ZC550-5, X6170ZC756-5, X6170ZC818-5, 8170ZC600-1, 8170ZC720-2, 8170ZC818-3, 8170ZC900-3, 8170ZC900-5, 8170ZC1000-5.
Frequently Asked Questions
What are the delivery times and shipping weights for export orders?
The dry weight of the engine block is approximately 3800 kilograms, though this increases once you add a matching marine gearbox and cooling accessories. As a dedicated marine diesel engine Weichai 8170ZC1000-5 for sale export channel, HekoPower secures these units in heavy export-grade wooden framing to prevent moisture corrosion during ocean freight transit. Average production and fulfillment cycles run between 30 and 45 days depending on the specific marine classification society approvals required for your vessel.
How does the 1500 RPM speed rating affect gearbox selection?
The 1500 RPM rated speed makes this engine highly adaptable to standard medium-speed marine gearboxes like the Advance HC800 or MB270 series. Selecting the right reduction ratio depends entirely on your vessel's hull speed calculations and intended propeller pitch. Our engineering team helps calculate these values to ensure your engine runs inside its optimal fuel consumption band.
Can this engine be configured for dual-propeller setups?
Yes, the engine can be ordered with matching left-hand or right-hand rotational outputs to support dual-engine catamaran layouts or twin-screw cargo vessels. This symmetry simplifies routine maintenance tasks and makes layout planning easier for naval architects.
What warranty coverage comes with these units?
Every new commercial marine propulsion unit comes with standard factory warranty coverage that protects against manufacturing flaws in major structural components like the engine block, crankshaft, and cylinder heads. HekoPower coordinates warranty validation and handles fast replacement part logistics to minimize any operational downtime.
How do I get an accurate technical quote for my vessel?
To get a fast quote, contact our commercial desk through our official portal. For the most accurate pricing, please share your required marine survey certifications, preferred gearbox ratio, and destination port details. Our engineers will review your specs to ensure the Weichai 1000 horsepower ship propulsion engine China supplier layout matches your hull design perfectly.
