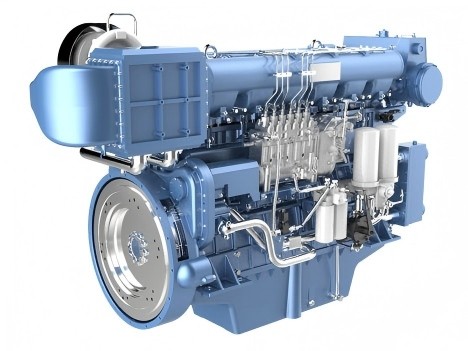

Weichai X6170ZC540-1 Marine Engine: High-Efficiency 540 HP Marine Diesel Engine for Commercial Vessels
As a premier genuine Weichai marine engine supplier, HekoPower delivers the heavy duty marine diesel engine solutions required to keep commercial fleets operational under the most demanding maritime conditions. The Weichai 170 series marine engine line represents a legendary standard in durability, fuel efficiency, and raw mechanical torque. Among this distinguished lineup, the Weichai X6170ZC540-1 marine engine stands out as an exceptional choice for operators seeking a balanced, mid-range powerhouse. This specific model provides a rated output of 540 HP (397 kW), making it a highly reliable marine main engine for diverse vessels.
Whether you operate a fishing vessel diesel engine in rough offshore waters or manage a commercial boat engine for continuous inland shipping lanes, understanding the precise technical layout, real-world utility, and maintenance framework of this unit is critical to maximizing your vessel's return on investment. HekoPower provides not only competitive Weichai marine engine quotation options and clear Weichai marine engine lead time schedules but also ensures you have access to a reliable, direct pipeline for all necessary powertrain systems.
Tech Specs of Weichai X6170ZC540-1
General Engine Data
Engine Model: Weichai X6170ZC540-1
Cylinder Count: 6 / 8 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 27.24 L / 36.32 L
Bore * Stroke: 170×200 (mm)
Dimensions L×W×H) / net weight: L6 2463×1200×1650 (mm) / 3100kg; L8 2650×1040×1818 (mm) / 3800kg
Key Performance Data
Rated Power: 397 kW / 540 HP
Rated Speed: 1000 RPM
Idle Speed: 450-650 RPM
Minimum fuel consumption rate: 197 g/kW.h
Oil consumption rate: ≤0.5 g/kW.h
Torque reserve: 20-34%
More Technical Data
Certification: IMO Tier II
Aspiration: turbocharged and aftercooled
Starting system: Gas/Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: Mechanical pump
Power rating: P1
Noise: ≤105 dB(A)
Technical Architecture of the Weichai 6170 Marine Engine
Deep Breakdown of the Weichai 397kW Marine Propulsion Engine
The foundation of the Weichai 6170 marine engine relies on a robust 6 cylinder marine diesel engine layout. Displacing an impressive 27.24 liters, this heavy duty marine diesel engine relies on a bore and stroke configuration of 170mm by 200mm. The massive displacement ensures that the engine does not need to run at hyper-elevated RPM levels to achieve its target output. Instead, it comfortably delivers its peak power at a stable, wear-reducing speed, functioning optimally as a 1000rpm marine diesel engine to 1200rpm marine diesel engine variant depending on your specific transmission ratio configurations.
Advanced Combustion and Air Handling Systems
This turbocharged marine diesel engine utilizes an advanced mechanical pulse-conversion turbocharging system coupled with an efficient intercooling setup. The four-valve cylinder head design maximizes air intake efficiency while accelerating exhaust gas expulsion. By pairing this optimized air handling configuration with a precisely tuned high-pressure injection system, the engine ensures complete atomization of fuel. This specific arrangement is the main reason behind the incredibly flat Weichai X6170ZC540-1 fuel consumption curve, preventing fuel wastage even when idling or shifting loads rapidly in heavy seas.
Navigating the Weichai X6170ZC540-1 Dimensions and Installation Footprint
When examining the Weichai 6 cylinder 27.2L marine engine dimensions for a new build or a vessel repower project, physical space optimization is crucial. The total length of the engine assembly typically sits near 2330mm, with a width profile around 1100mm and a total vertical height approaching 1650mm. This relatively compact architecture means it fits neatly into standard engine rooms without requiring major structural modifications to bulkheads. Weighing in at approximately 3100kg dry weight, its rigid gantry-style cylinder block evenly distributes structural stress throughout the vessel's engine beds.
Technical Comparisons: X6170ZC540-1 vs Alternative Powertrains
High Displacement Low RPM vs High Speed Alternatives
Commercial operators often choose between a larger displacement low-speed engine like the Weichai 170 series marine engine or a smaller, high-rpm automotive derivative. High-speed alternatives frequently run at 1800 to 2200 RPM, which creates massive frictional wear over long voyages. The X6170ZC540-1 diesel engine provides its full 540hp boat engine capacity at lower, highly stable rotational speeds. This lower operating speed dramatically extends the service life of internal components like the main bearings, piston liners, and valves, lowering the overall lifetime cost of ownership.
Thermal Efficiency and Real-World Weichai X6170ZC540-1 Fuel Consumption
When reviewing the official Weichai X6170ZC540-1 technical data, the fuel consumption rate consistently registers at or below 197g/kW·h under standard rated loads. Compared to older generation marine propulsion engine layouts that frequently burn over 210g/kW·h, this represents a significant operational cost reduction. Over thousands of annual operating hours, saving just a few grams of fuel per kilowatt-hour adds up to massive savings. This high thermal efficiency is achieved through targeted cooling channels directly within the cylinder heads, preventing hot spots and ensuring even thermal expansion across all six cylinders.
Environmental Compliance and the IMO II Marine Engine Framework
Global maritime regulations demand strict adherence to exhaust cleanliness standards, especially for vessels operating in protected coastal zones or major inland shipping corridors. The X6170ZC540-1 cleanly matches the IMO Tier II 540 HP commercial boat engine standard. This compliance is achieved purely through mechanical design precision and advanced fuel system calibration, avoiding the need for overly complex, failure-prone external exhaust aftertreatment systems. Fleet owners can operate with confidence, knowing their vessel meets regional emission requirements without adding unnecessary maintenance overhead.
Real-World Application Scenarios for the Weichai 170 Series
Powering the Demanding Modern Trawler
As a dedicated fishing vessel diesel engine, this unit excels in deep-sea trawling applications where sudden shifts in load occur constantly. When a trawler deploys heavy nets, the mechanical strain on the marine propulsion engine for trawler use spikes instantly. The X6170ZC540-1 handles these spikes smoothly due to its high torque reserve, which typically exceeds 30 percent. This massive torque reserve prevents the engine from bogging down or stalling when fighting heavy cross-currents with a fully loaded net.
Heavy-Duty Logistics and Inland River Transport
For operators managing a marine engine for inland river transport, navigating shallow, narrow waterways with multi-barge tows requires extreme engine responsiveness. Using this model as a marine engine for cargo ship operations ensures steady, predictable thrust. The low-speed torque capability allows captains to maneuver massive payloads around river bends safely, providing immediate reverse power and quick throttle response when backing down or docking.
Reliability for Engineering Vessels and Workboats
Whether utilized as a rugged Weichai engine for workboat tasks or as a main marine engine for engineering vessel applications like dredging or marine construction, reliability is paramount. These operations require engines to idle for hours powering auxiliary hydraulics, then immediately ramp up to full load. The robust cooling architecture of the Weichai propulsion engine prevents glazing of the cylinder walls during prolonged idling, maintaining excellent compression and clean combustion throughout its lifecycle.
Maintenance Protocols and Replacement Parts Strategies
Troubleshooting the Weichai X6170ZC540-1 Fuel Consumption Anomalies
If you notice an unexpected spike in fuel consumption during standard operations, it usually indicates an issue within the fuel injection or air delivery systems. A clogged air filter or a slight exhaust leak before the turbocharger can restrict air intake, causing a rich fuel mixture and lower thermal efficiency. Regularly checking turbocharger boost pressures against standard Weichai X6170ZC540-1 specifications helps catch these issues early. Additionally, testing injector spray patterns every 1500 operating hours prevents fuel washing down cylinder liners, protecting the engine from catastrophic internal wear.
Essential Weichai X6170ZC540-1 Spare Parts Management
To avoid costly downtime during peak operating seasons, keeping an inventory of vital replacement parts for Weichai 6170 series engines onboard is highly recommended. Your baseline inventory should focus on consumables like primary and secondary fuel filters, specialized oil filters, and replacement raw-water pump impellers. For long-distance voyages, fleet managers should also stock a complete set of Weichai X6170ZC540-1 spare parts, including individual injector nozzles, high-pressure fuel lines, and valve cover gaskets.
Sourcing Components from an OEM Weichai Marine Diesel Engine Distributor
Sourcing your engine components through a genuine Weichai marine engine supplier like HekoPower protects your equipment from the failures associated with low-quality aftermarket parts. Genuine components are manufactured to the exact tolerances found in original Weichai X6170ZC540-1 technical data sheets. Using non-genuine parts often leads to premature component failure, accelerated engine wear, and can jeopardize your overall powertrain reliability, especially under heavy, sustained commercial loads.
Weichai WP10 series marine diesel engine, original products from Weichai. This series mainly includes WP10C313-21, WP10C350-18, WP10C375-21, WP10C395-22.
Frequently Asked Questions
What is the standard Weichai marine engine lead time when ordering through HekoPower?
Our standard lead times fluctuate based on factory production cycles and current global shipping availability. Because HekoPower operates as a high-volume China Weichai marine engine exporter and wholesale Weichai marine engine partner, we maintain priority access to factory allocations. For standard configurations, delivery timelines generally span a few weeks, while custom gearboxes or specialized auxiliary power take-off setups require additional manufacturing time. Contact our engineering sales team directly to get an exact timeline for your specific project.
Can the Weichai X6170ZC540-1 marine engine run continuously at maximum output?
Yes, this engine features a continuous duty rating, often referred to as a P1 or unrestricted continuous duty cycle. This means the structural components, cooling systems, and lubrication circuits are engineered to run at full rated power twenty-four hours a day without needing power cycling or thermal cool-down periods. This rugged design philosophy is why the engine is heavily favored as a main propulsion unit for long-distance cargo transport, deep-sea commercial fishing boats, and heavy-duty workboats.
How does HekoPower handle the Weichai marine engine quotation process for international buyers?
HekoPower simplifies international procurement by providing comprehensive, transparent quotes tailored to your delivery needs. Every formal quotation breaks down the base engine cost alongside options for matching marine gearboxes, digital monitoring panels, and specialized cooling accessories. We support multiple shipping terms, including FOB, CIF, and CFR, ensuring your engine arrives safely at your preferred shipyard or commercial port.
Where can I find verified Weichai X6170ZC540-1 for sale with full factory documentation?
You can secure a verified, brand-new Weichai X6170ZC540-1 marine diesel engine directly through HekoPower. Every unit we distribute ships with authentic factory testing certificates, official IMO Tier II compliance records, and full warranty documentation. As a reliable Weichai marine engine distributor, we guarantee that every engine delivered meets strict quality standards and is completely ready for immediate deployment and official classification survey inspection.
