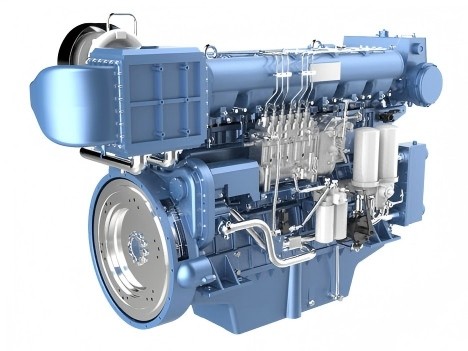

Weichai 8170ZC600-1 Marine Engine | 600HP 441kW Marine Diesel Propulsion Engine
The Weichai 8170ZC600-1 is a proven medium-speed marine propulsion engine developed for commercial vessels requiring dependable power, long service life, and economical operating costs. Rated at 600HP (441kW) at 1000rpm, this Weichai 8170 series marine engine combines robust mechanical reliability with excellent fuel efficiency, making it a popular choice for fishing boats, inland cargo vessels, tug boats, engineering ships, and transport workboats operating under continuous-duty conditions.
As a professional marine diesel engine supplier, HekoPower provides genuine Weichai 8170ZC600-1 marine engines, technical consultation, export services, spare parts support, and engine-to-gearbox matching solutions for customers worldwide.
Tech Specs of Weichai 8170ZC600-1
General Engine Data
Engine Model: Weichai 8170ZC600-1
Cylinder Count: 6 / 8 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 27.24 L / 36.32 L
Bore * Stroke: 170×200 (mm)
Dimensions L×W×H) / net weight: L6 2463×1200×1650 (mm) / 3100kg; L8 2650×1040×1818 (mm) / 3800kg
Key Performance Data
Rated Power: 441 kW / 600 HP
Rated Speed: 1000 RPM
Idle Speed: 450-650 RPM
Minimum fuel consumption rate: 197 g/kW.h
Oil consumption rate: ≤0.5 g/kW.h
Torque reserve: 20-34%
More Technical Data
Certification: IMO Tier II
Aspiration: turbocharged and aftercooled
Starting system: Gas/Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: Mechanical pump
Power rating: P1
Noise: ≤105 dB(A)
Fluid Dynamics and Real-World Fuel Economy
The injection architecture relies on a highly reliable mechanical P-type in-line injection pump paired with dual-skinned fuel pipes and a leakage collector. This mechanical design minimizes complex electronic vulnerabilities prone to failure in salty, humid marine air. According to official Weichai 8170ZC600-1 technical data, the minimum fuel consumption rate drops to an economical 197g/kW·h.
Optimization is achieved through a pulse-conversion turbocharging system that recaptures kinetic exhaust energy even at low idling speeds. This means commercial vessels experience clean combustion, minimal black smoke during hard acceleration, and direct savings on fuel overheads during long-distance hauling.
Environmental Certifications and Compliance
Operating globally requires absolute alignment with maritime regulatory authorities. The 8170ZC600-1 stands out as a compliant Weichai IMO II marine engine, meaning its NOx emissions comply perfectly with international environmental rules. Furthermore, as a Weichai CCS certified engine, each unit undergoes rigorous factory test cell approvals, carrying official validation from the China Classification Society. HekoPower, as an experienced Weichai marine engine exporter, also assists international fleet operators in coordinating with other major regulatory registries like ABS, BV, and Lloyd's Register during the procurement phase.
Technical Comparisons: 8170ZC600-1 vs. Alternatives
Choosing the correct powertrain requires a clear look at how this model stacks up against other engines in the same power bracket.
Weichai 8170ZC600-1 vs. 8170ZC720-2
While both engines share the same 36.32-liter block, the Weichai 8170ZC600-1 vs 8170ZC720-2 comparison shows a clear divergence in operational philosophy. The 600-horsepower version utilizes a continuous duty P1 rating, operating at 1000 RPM for unrestricted, around-the-clock operations.
The 720-horsepower variant achieves its higher output by increasing the engine speed to 1200 RPM and altering fuel delivery profiles. This makes the 720-horsepower version better suited for intermittent high-speed needs, whereas the 600-horsepower model remains the superior choice for raw endurance, heavy pushing power, and lower long-term maintenance costs.
Weichai 8170ZC600-1 vs. X6170ZC620-2
The Weichai 8170ZC600-1 vs X6170ZC620-2 debate centers on displacement versus cylinder configuration. The X6170 model utilizes a 6-cylinder layout with a 170mm bore and a smaller 27.24L displacement. To generate comparable horsepower, the 6-cylinder engine must work harder at higher RPMs.
The 8170ZC600-1 spreads the mechanical loads across 8 cylinders, reducing individual piston stress. The larger displacement of the 8-cylinder engine provides a much wider, flatter torque curve, ensuring steady propulsion when pushing against strong river currents or heavy ocean swells.
Weichai 8170ZC600-1 vs. Cummins Marine Engines
Looking at the Weichai 8170ZC600-1 vs Cummins marine engine segment, the difference comes down to engine displacement and electronic dependency. Many competing US/European 600HP engines rely heavily on common-rail electronics and smaller displacement blocks running at high RPMs (1800+ RPM).
The Weichai 8170ZC600-1 utilizes mechanical simplicity and a massive 36.32L displacement block. This gives ship operators two clear advantages: repairs can be handled at sea without specialized diagnostic software, and the heavy low-speed mass delivers significantly better raw bollard pull for commercial workboats, making it a strong candidate for the best 600HP marine diesel engine.
Real-World Application Scenarios and Propulsion Layouts
The heavy-duty design of this Weichai 8170 series marine engine makes it a highly versatile power option across diverse commercial sectors.
Commercial Deep-Sea Trawler Operations
For maritime crews operating off-grid, this engine is a premier choice as a Weichai 600HP fishing boat engine. On a standard trawler vessel or marine diesel engine for fishing vessel deployment, the engine must simultaneously drive the main propeller and run heavy hydraulic PTO systems for winch machinery.
The P1 continuous rating ensures the vessel can drag massive nets for days without thermal cycling issues. The mechanical fuel system handles variable marine fuel qualities well, keeping fishing fleets moving through remote waters without unexpected filter clogs or sensor shutdowns.
Cargo Hauling on Inland River Vessels
Inland waterways demand steady control and high reverse thrust. As a dedicated Weichai engine for inland river vessels and transport ships, the 8170ZC600-1 excels when paired with high-ratio reduction gearboxes. Operators frequently install this Weichai 8170 engine with Hangzhou Advance gearbox or Fada systems, utilizing reduction ratios from 4:1 to 7.63:1. This pairing enables a large-diameter, slow-turning propeller to maximize hydraulic efficiency, pushing heavy barges laden with grain, coal, or building materials along winding river systems against strong head-currents.
Coastal Harbor Tug and Workboat Operations
Port environments demand precise control and immediate low-end power. Serving as a reliable Weichai engine for tug boats and a durable propulsion engine for workboats, the 8170ZC600-1 responds instantly to throttle changes. Its heavy flywheel and robust crank layout absorb sudden loading shocks when a tug boat engages a cargo hull. By mounting a 14-inch, 16-inch, or 18-inch rubber block flexible coupling between the flywheel and the transmission input shaft, HekoPower helps operators isolate structural vibrations, keeping the entire powertrain secure during demanding harbor operations.
Maintenance Guide and Genuine Replacement Tips
To maximize your engine's service life toward its 20,000-hour major overhaul potential, operators must stick to strict maintenance protocols and use verified replacement parts.
Routine Filtration and Oil Care
The high-sulfur fuel often found in marine ports requires vigilant attention to filtration. Operators should swap out primary fuel filters and water separators every 250 hours of operation. Always use verified multi-stage element replacements to keep fine abrasive debris away from the mechanical injection pump barrels. Engine oil changes must occur alongside filter swaps, using high-TBN (Total Base Number) marine lubricants that neutralize corrosive combustion acids. This simple practice prevents premature wear on the liner walls and rings.
Cooling System Upkeep and Zinc Replacement
The 8170ZC600-1 uses an efficient dual-loop cooling configuration: freshwater handles internal block cooling, while a robust copper-nickel heat exchanger manages sea water routing. To prevent galvanic corrosion within the raw-water loop, engineers must check the sacrificial zinc anodes every month, replacing them once they oxidize past 50% wear. Scaling inside the exchanger core should be treated with a mild acid flush every two years to ensure optimal heat rejection when running at full load in warm tropical waters.
Sourcing Genuine Overhaul Kits
When performing mid-life top-end servicing or complete bottom-end overhauls, sourcing parts from an authorized Weichai engine parts supplier is critical. A standard Weichai 8170ZC600-1 overhaul kit or Weichai 8170ZC600-1 spare parts package from HekoPower includes precisely matched cylinder liners, copper head gaskets, piston crowns, and main bearing shells. Avoid counterfeit components; off-brand piston rings often fail to seat correctly inside the 170mm bores, resulting in high oil consumption, blow-by, and a loss of compression that can cut your engine's operating life short.
Weichai 170 series marine diesel engine, original products from Weichai. This series mainly includes X6170ZC350-1, X6170ZC408-1, X6170ZC450-1, X6170ZC540-1, X6170ZC450-2, X6170ZC480-2, X6170ZC540-2, X6170ZC620-2, X6170ZC650-2, X6170ZC580-3, X6170ZC608-3, X6170ZC680-3, X6170ZC735-3, X6170ZC620-4, X6170ZC620-5, X6170ZC550-5, X6170ZC756-5, X6170ZC818-5, 8170ZC600-1, 8170ZC720-2, 8170ZC818-3, 8170ZC900-3, 8170ZC900-5, 8170ZC1000-5.
Frequently Asked Questions
What are the exact dimensions and weight of the Weichai 8170ZC600-1?
The standard dry Weichai 8170ZC600-1 weight is approximately 3,800 kg, though this can vary slightly based on your specific flywheel housing and cooling choices. The overall dimensions trace out to roughly 2577 mm in length, 1117 mm in width, and 1884 mm in height. Because of its compact width relative to its 8-cylinder layout, it fits easily into narrow engine compartments during vessel repowers.
Where can I get an official Weichai 8170ZC600-1 specification sheet or manual?
You can request the official Weichai 8170ZC600-1 specifications pdf or complete engine manual directly through the HekoPower sales department. We provide comprehensive digital copies of the Weichai 8170ZC600-1 datasheet PDF, complete with electrical schematics, foundation mounting footprints, and fuel curve profiles for naval architects and shipyards.
How does HekoPower handle international shipping and parts distribution?
As an experienced Weichai marine engine exporter, HekoPower coordinates complete marine powertrain shipping to major ports globally. Engines are secured in heavy-duty export-grade wooden crates with protective rust inhibitors. For ongoing maintenance support, we keep a deep stock of Weichai 8170ZC600-1 spare parts, shipping urgent replacement components by air freight to keep your commercial downtime to a absolute minimum.
What is the current price and lead time for a new engine?
The Weichai 8170ZC600-1 price depends on your required classification society certificates (such as CCS or EIAPP), your choice of matched marine gearbox, and any optional PTO attachments. For a binding Weichai 8170ZC600-1 quotation, please contact our sales desk directly. We offer highly competitive Weichai marine engine wholesale pricing tiers for fleet owners, shipbuilders, and repair yards worldwide.
