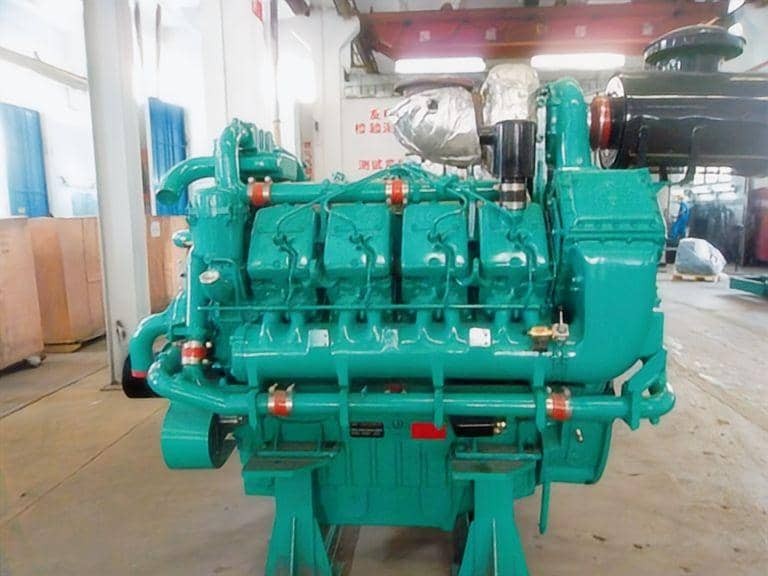

Deutz TBD620V12 1251kW Marine Auxiliary Engine
The Deutz TBD620V12 1251kW engine is a 12-cylinder V-type, 53.16-liter turbocharged and intercooled diesel engine engineered specifically for heavy-duty shipboard auxiliary power generation. Operating at a continuous 1500 rpm, this power unit is built on the proven Deutz-MWM design heritage and produced under license by Henan Diesel Engine Industry Co., Ltd. (HND).
As a dedicated marine engine supplier, HekoPower provides complete Deutz TBD620V12 engine assemblies, re-powering solutions, and genuine replacement parts to vessel owners, shipyards, and marine engineering contractors globally.
Tech Specs of Deutz TBD620V12
General Engine Data
Engine Model: Deutz TBD620V12-1251KW
Type: 12 Cylinders, V Type 90°, 4 Stroke
Displacement: 53.16 L
Bore * Stroke: 170 * 195
Wet Weight (with heat exchanger): 5100 Kg
Overall Dimension: 2979mm*1450mm*2240mm
Key Performance Data
Rated Power/Speed: 1251 kW @ 1500 rpm
Standby Power/Speed: 1376 kW @ 1500 rpm
Max. Continuous Running Altitude: 3000 m
Fuel Consumption with Full Load: 199 g/kW.hr
More Technical Data
Certification: CCS/IMO2 Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: Direct Injection Pump
Compression Ratio: 13.5:1
Starting Method: Electrical Start (12V/24V)
Cooling Method: Water Cooled
Power Output Type: Continuous
Engineering Architecture & Technical Comparisons
Selecting the right power plant for a vessel’s central auxiliary generator requires evaluating displacement, cylinder arrangement, and continuous thermal stability. The TBD620V12 1251kW unit occupies a distinct performance niche in the 1000kW to 1250kW marine generator drive class.
V12 53.16L Configuration vs. Inline and V8 Alternatives
Achieving 1251 kW at 1500 rpm requires an optimal balance of cylinder count and displacement. Smaller V8 or inline engine configurations pushing similar power outputs must operate at significantly higher brake mean effective pressure (BMEP). This increases mechanical stress and thermal loading on pistons and cylinder heads.
The 53.16-liter displacement of the TBD620V12 distributes thermal load across 12 individual combustion chambers. Featuring a 170 mm bore and 195 mm stroke, this engine delivers high torque at lower peak cylinder pressure. The result is structural durability during un-interrupted marine generator operation.
Thermal Efficiency and Fuel Consumption Characteristics
At 1500 rpm, the TBD620V12 relies on an advanced mechanical fuel injection system paired with high-efficiency turbochargers and a jacket-water or raw-water charge air intercooler. This combination ensures stable combustion and low fuel consumption across the continuous 75% to 100% load spectrum.
Because heat dissipation specs are balanced for high-ambient engine room environments, the engine maintains low exhaust gas temperatures before the turbine. This feature preserves turbocharger life and reduces thermal stress on surrounding marine exhaust piping.
Structural Footprint and Power Density Comparison
Compared to larger-displacement medium-speed engines producing 1200–1300 kW, the high power density of the TBD620V12 significantly reduces total engine dry weight and physical dimensions. This compact V12 frame allows vessel designers to optimize engine room layouts on cargo vessels and tugboats where space is restricted.
Real Application Scenarios in Marine Power Generation
The Deutz TBD620V12 1251kW marine auxiliary engine is primarily deployed as the primary prime mover for 1000kW to 1250kVA shipboard generator sets (50Hz electrical systems).
Ocean-Going Cargo Ships and Container Vessels
On bulk carriers and container ships, electrical power requirements spike during port operations when cargo cranes, ballast pumps, and reefer points operate simultaneously. The 1251kW continuous rating of the TBD620V12 provides reliable power under heavy step-load changes without frequency drop or voltage instability.
Tugboats, Dredgers, and Workboats
Harbor tugboats and cutter suction dredgers require substantial electrical capacity for hydraulic power packs, winches, and auxiliary propulsion thrusters. The TBD620V12 auxiliary power engine provides rapid transient response when heavy electrical loads are switched on unexpectedly.
Offshore Supply Vessels (OSVs) and Floating Structures
For offshore vessels operating in dynamic positioning modes, auxiliary generator reliability is essential. The TBD620V12 engine assembly delivers consistent performance during prolonged continuous duty, meeting classification society standards for continuous marine power stations.
Maintenance, Overhaul & Engine Replacement Tips
Maintaining a Deutz TBD620V12 engine or replacing an aging power unit requires attention to specific operational details to prevent premature wear.
Intercooler and Cooling System Servicing
Because the TBD620V12 utilizes a turbocharged intercooled design, intercooler cleanliness directly impacts intake air temperature and combustion efficiency. Inspect the marine raw-water side of the intercooler heat exchanger every 2,500 running hours for marine growth and scale deposits. A clogged intercooler causes elevated exhaust temperatures and loss of kW output.
Fuel Injection System Calibration
Maintaining proper fuel injection timing is crucial on 1500 rpm diesel generator engines. Ensure fuel injectors are pressure-tested and nozzle spray patterns are inspected every 4,000 to 5,000 hours. Uneven fuel delivery across the 12 cylinders causes crankshaft torsional vibration, which can damage alternator couplings over time.
Key Considerations for Complete Engine Replacement
When sourcing a complete replacement Deutz TBD620V12 unit to replace a worn Deutz-MWM or HND engine, verify the following installation specs prior to delivery:
Confirm the flywheel housing SAE size and flywheel connection specs to match your existing marine alternator interface.
Check engine mount center distances and vibration isolator load limits against the existing base frame.
Verify whether your vessel setup uses single-circuit or double-circuit cooling connections to match the replacement engine's water pump configuration.
Common Misconceptions Regarding the TBD620V12
Misconception 1: "HND Deutz engines differ completely from original Deutz-MWM designs."
Fact: Henan Diesel Engine Industry Co., Ltd. (HND) produced the TBD620 series under official license agreements with Deutz-MWM. The casting dimensions, metallurgical specifications, tolerance limits, and replacement spare parts remain fully compatible with original MWM TBD620V12 engines.
Misconception 2: "Operating a 1251kW auxiliary engine on light loads is harmless."
Fact: Running a high-capacity V12 diesel engine below 30% rated load for extended periods causes "wet stacking"—unburned fuel and oil residue accumulating in the exhaust manifold and turbocharger turbine. If light-load operation is unavoidable, run the engine at 70–80% load for at least one hour every 24 hours to burn off carbon deposits.
Misconception 3: "All 1251kW ratings mean the engine can run at overload indefinitely."
Fact: The 1251kW rating at 1500 rpm represents a continuous marine rating. While the engine can handle momentary overload spikes, continuous operation beyond 100% rated capacity will accelerate thermal fatigue in the cylinder heads and exhaust valves.
HND Deutz TBD620 Series Overview
For shipowners and shipyard engineers standardizing their fleet on the proven Deutz-MWM 620 platform, HekoPower provides complete engine assemblies, custom repower engineering, and genuine spare parts supply. Whether you need a replacement V8, V12, or V16 power unit for auxiliary power generation or main propulsion, our technical team assists with exact model matching and dimension verification.
Deutz TBD620-Marine Auxiliary Series, Marine Auxiliary Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TBD620V8-834KW, TBD620V8-874KW, TBD620V8-910KW, TBD620V8-955KW, TBD620V12-1251KW, TBD620V12-1311KW, TBD620V12-1364KW, TBD620V12-1433KW, TBD620V16-1668KW, TBD620V16-1747KW, TBD620V16-1819KW, TBD620V16-1910KW.
Frequently Asked Questions (FAQs)
What marine generator output can the 1251kW TBD620V12 engine drive?
This engine is sized to drive 1000kW / 1250kVA 50Hz marine generator sets operating at 1500 rpm, taking mechanical transmission losses and alternator efficiency into account.
Can HekoPower supply complete replacement TBD620V12 engine assemblies?
Yes. HekoPower supplies brand-new, factory-tested Deutz / HND TBD620V12 complete engine assemblies configured for marine auxiliary or generator applications, complete with classification certificates upon request.
What is the lead time for a complete Deutz TBD620V12 replacement engine?
Standard manufacturing and testing lead time for a complete engine assembly ranges between 15 to 30 business days, depending on specific marine classification society requirements (e.g., CCS, BV, ABS).
