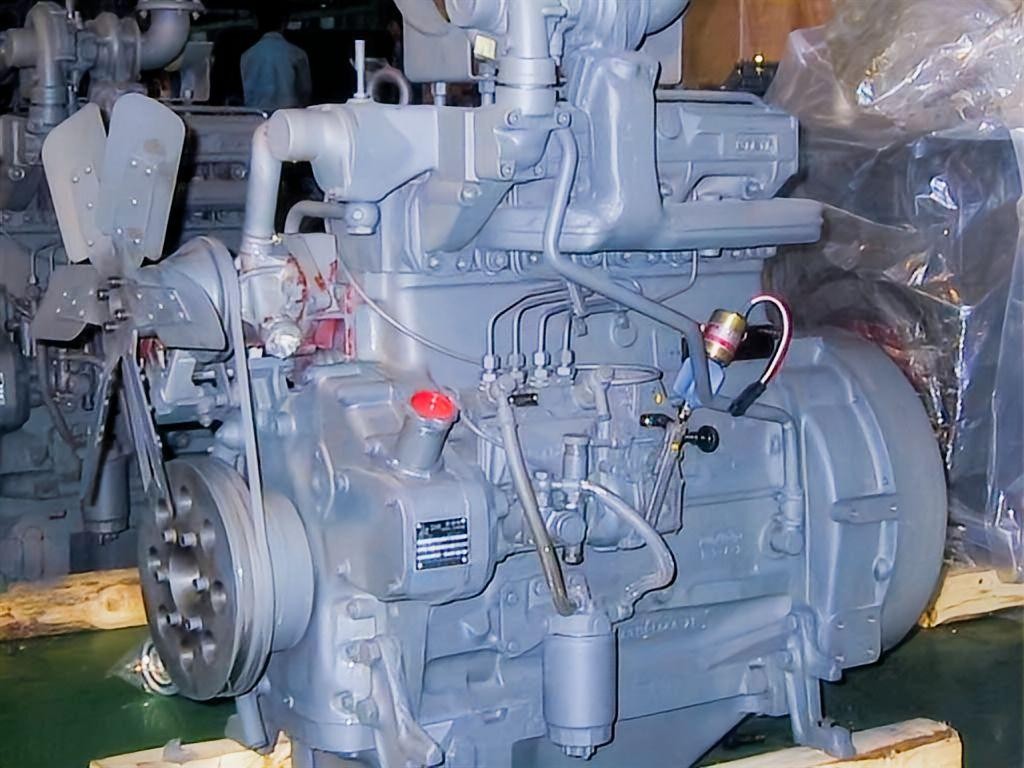

Deutz D226B-3D Diesel Engine for Generator Sets
The Deutz D226B-3D is a highly robust 3-cylinder, 3.12-liter naturally aspirated diesel engine explicitly engineered for prime and standby power generation. Manufactured under the proven Weichai Deutz joint venture, this engine provides consistent mechanical input for 30kVA to 35kVA generator sets. HekoPower supplies factory-new D226B-3D complete engine assemblies to global markets, supporting OEM generator manufacturers and providing direct drop-in replacements for aging field equipment. This specific model relies on a fully mechanical fuel injection pump, bypassing complex common-rail electronics to guarantee maximum uptime in harsh, remote environments where diagnostic software is unavailable.
Tech Specs of Deutz D226B-3D Diesel Engine
General Engine Data
Engine Model: Deutz D226B-3D
Type: 3 Cylinders, in Line
Displacement: 3.12 L
Bore * Stroke: 105 * 120
Overall Dimension: 1091mm*592mm*941mm
Key Performance Data
Rated Power/Standby Power(1500 RPM): 30 kW, 33kW
Rated Power/Standby Power(1800 RPM): 37 kW, 40.7kW
Rated Speed: 1500/1800 rpm
Specific Fuel Consumption: 208 g/kW.h
More Technical Data
Certification: Euro II
Aspiration: Natural Intake
Governor Type: Mechanical/Electrical
Cooling Method: Water Cooled
Electrical System (Starter Motor/Alternator): Electronic Starting (24V)
Flywheel Casing: SAE1, SAE2
Overcoming Product Homogeneity: D226B-3D vs. Similar Deutz Models
Buyers frequently confuse the various iterations within the Weichai Deutz 226B series due to overlapping nomenclature. Clarifying the exact differences between these models is essential to avoid underpowering your alternator or overpaying for unnecessary forced induction systems.
The standard D226B-3D is a naturally aspirated engine. By contrast, the identically sized TD226B-3D integrates an exhaust gas turbocharger. This forced induction raises the 1500 RPM prime output from 30kW up to 45kW using the exact same 3.12-liter block. HekoPower recommends the naturally aspirated D226B-3D for standard 30kVA standby applications because the absence of a turbocharger completely eliminates a common failure point, significantly reduces exhaust heat rejection, and simplifies the air intake tract. If your alternator physically requires 45kW of mechanical input, you must step up to the turbocharged TD226B-3D.
Alternatively, buyers often look at the D226B-4D, which is a naturally aspirated 4-cylinder engine displacing 4.16 liters and providing 40kW of prime power at 1500 RPM. While its power output is only marginally higher than our 3-cylinder model running at 1800 RPM, the 4-cylinder variant is significantly longer and weighs over 100kg more. For tight acoustic enclosures or trailer-mounted mobile generators, the 3-cylinder D226B-3D offers a vastly superior power-to-weight ratio and a much smaller installation footprint.
Real Application Scenarios for the D226B-3D
HekoPower supplies this exact engine configuration to a diverse array of industrial, agricultural, and commercial operators. The mechanical governor and robust cast-iron block make it particularly well-suited for high-stress operational environments.
Telecommunications Tower Backup Power
Remote cellular network towers require standby generators that can sit idle for months yet start instantaneously when grid power fails. The D226B-3D is widely deployed in telecom enclosures globally. The purely mechanical fuel system means there are no sensitive Electronic Control Units (ECUs) susceptible to lightning strikes, power surges, or extreme humidity degradation, ensuring the cell tower remains active during severe weather events.
Agricultural and Small Manufacturing Prime Power
In off-grid agricultural processing facilities, continuous prime power is mandatory. This engine is frequently coupled with heavy-duty alternators to run irrigation pumps, feed mills, and large-scale cooling fans. Because it lacks a turbocharger, operators do not have to adhere to strict three-minute idle-cooldown procedures before shutting the engine down, which is a common operating error made by untrained farm personnel that frequently destroys turbocharged alternatives.
Marine Auxiliary Gensets
While specialized marine propulsion engines exist, the G-drive D226B-3D is frequently adapted for below-deck auxiliary power on inland waterways. Its compact 1152mm length allows it to slide into cramped engine rooms easily. It provides highly reliable 230V or 400V hotel load power for barges, dredgers, and small transport vessels without occupying valuable cargo space or requiring complex marine electronics.
Expert Maintenance and Replacement Tips
Maximizing the operational lifecycle of the Deutz D226B-3D requires strict adherence to fluid maintenance protocols and a deep understanding of OEM replacement procedures.
Scheduled Preventive Maintenance
The total internal lubrication capacity of the D226B-3D is 7.25 liters. HekoPower advises executing oil and filter changes every 250 operating hours when running standard 15W-40 mineral diesel engine oil. For emergency standby applications that rarely operate under load, the oil must be replaced annually regardless of runtime to prevent acid buildup caused by internal condensation. The cooling system holds 15.5 liters of coolant. Operators must maintain a strict 50/50 mix of ethylene glycol and distilled water, replacing the mixture every two years to prevent aggressive cavitation erosion on the exterior of the wet cylinder liners. Furthermore, mechanics must periodically check the valve clearance, setting both the intake and exhaust valves to exactly 0.20mm when the engine block is completely cold.
Fuel System Mechanics and Governor Calibration
The fuel delivery architecture of this engine relies on an inline mechanical injection pump driven directly by the engine gear train. This configuration ensures precise fuel metering across the entire RPM range without requiring external electrical power. The mechanical governor reacts to load changes from the alternator to keep the frequency stable at 50Hz or 60Hz. While electronic governors can be retrofitted for paralleling applications where absolute synchronisation between two generators is required, the standard mechanical setup provides unmatched reliability for standalone power systems. Operators should periodically inspect the steel fuel injection lines for vibration wear and replace the primary fuel-water separator filter every 500 hours to protect the pump plungers from microscopic debris.
Engine Replacement Considerations
When purchasing a replacement D226B-3D engine assembly from HekoPower to swap into an existing generator canopy, buyers must verify their current electrical architecture. While 24V starting systems are standard, 12V configurations were occasionally requested by specific OEMs and must be matched. Additionally, check your existing exhaust plumbing. The naturally aspirated exhaust manifold discharges gas at 435 degrees Celsius with a volumetric flow rate of 4.78 liters per second. Ensuring your existing canopy muffler can handle this backpressure without restricting flow is critical to preventing engine overheating and exhaust valve failure.
Deutz 226B-Generator Engine Series, original products from Weichai Power Engine Plant. This series mainly includes Deutz D226B-3D, Deutz TD226B-3D, Deutz D226B-4D, Deutz TD226B-4D, Deutz TD226B-6D, Deutz TBD226B-6D. In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions (FAQs)
What is the standard lead time for a complete D226B-3D engine from HekoPower?
For standard G-drive configurations, the HekoPower warehouse typically processes, tests, and prepares the engine for international export within 7 to 15 business days. Custom governor setups or specific heavy-duty alternator pairings may require an additional week for factory calibration and load testing.
Can the D226B-3D operate reliably in high-altitude environments?
The engine will operate at 100% of its rated capacity up to 1000 meters above sea level and at ambient temperatures up to 30 degrees Celsius. For sustained operation beyond these geographic parameters, mechanical power deration rules apply. Operators must physically deduct 3% of total power output for every 300 meters above the 1000m mark, and 2% for every 11 degrees Celsius above the 30-degree threshold.
Does the engine come pre-filled with operational fluids?
No. To strictly comply with international hazardous materials shipping regulations and maritime freight policies, HekoPower drains all engine oil and coolant prior to crating. The buyer is entirely responsible for filling the crankcase and radiator with the correct specifications of fluids prior to initiating the startup procedure.
Does the Deutz D226B-3D comply with modern emission standards?
The D226B-3D is engineered to meet Euro II and Off-Road Stage II emission standards. Because it relies on mechanical fuel injection rather than high-pressure common rail systems or diesel particulate filters (DPF), it is primarily intended for unregulated export markets, remote territories, or stationary emergency standby applications where Tier 4 Final or Stage V compliance is not legally mandated.
