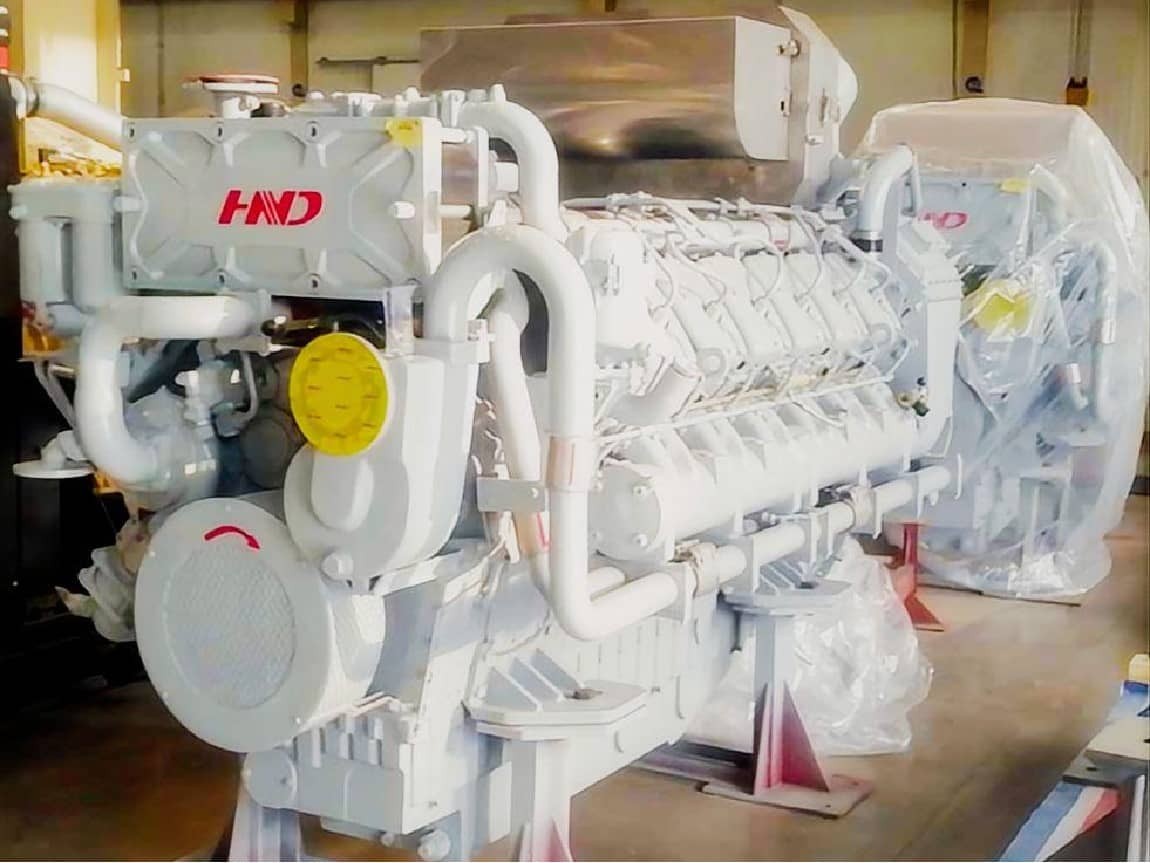

HND Deutz TBD620V16 1668kW Marine Auxiliary Diesel Engine
The HND Deutz TBD620V16 1668kW continuous marine auxiliary engine represents the pinnacle of heavy-duty shipboard electrical generation. Built under official license by Henan Diesel Engine Co., Ltd. (HND), this massive 70.88 L V16 marine diesel engine is engineered specifically to function as a reliable marine generator set engine. By operating at a synchronized 1500 rpm, it perfectly drives 4-pole alternators to supply 50Hz electrical power to commercial vessel grids. HekoPower operates as a trusted HND TBD620V16 1668 kW engine supplier, delivering complete power pack assemblies designed for extreme endurance, low operating costs, and uncompromising reliability in harsh offshore environments.
Tech Specs of Deutz TBD620V16
General Engine Data
Engine Model: Deutz TBD620V16-1668KW
Type: 16 Cylinders, V Type 90°, 4 Stroke
Displacement: 70.88 L
Bore * Stroke: 170 * 195
Wet Weight (with heat exchanger): 6290 Kg
Overall Dimension: 3400mm*1450mm*2180mm
Key Performance Data
Rated Power/Speed: 1668 kW @ 1500 rpm
Standby Power/Speed: 1835 kW @ 1500 rpm
Max. Continuous Running Altitude: 3000 m
Fuel Consumption with Full Load: 194 g/kW.hr
More Technical Data
Certification: CCS/IMO2 Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: Direct Injection Pump
Compression Ratio: 13.5:1
Starting Method: Electrical Start (12V/24V)
Cooling Method: Water Cooled
Power Output Type: Continuous
Continuous Power and 1500 RPM Operational Dynamics
Understanding the specific power rating of a marine generator engine is critical for naval architects and procurement engineers. The Deutz-MWM TBD 620 V16 1500rpm marine diesel generator prime mover features a substantial 170 x 195 mm bore stroke architecture. Because the stroke is longer than the bore, the engine generates immense low-end torque. This torque reserve is vital for maintaining a stable 1500 rpm when the vessel experiences sudden electrical demands, ensuring the electrical frequency remains locked at exactly 50Hz.
A widespread misconception in maritime procurement is the belief that any high-output engine can serve as a continuous auxiliary power source. Operators sometimes assume they can run a standby-rated engine at high loads indefinitely. However, while the TBD620V16 1835 kW standby power limit is available for brief emergency overload situations, the 1668 kW continuous rating is mathematically calculated for uninterrupted 24/7 service. Operating strictly within this continuous baseline prevents thermal fatigue in the cylinder heads and optimizes efficiency, allowing the engine to achieve a remarkably low 194 g/kWh fuel consumption rate under full load. Attempting to push smaller displacement engines to this 1668 kW threshold continuously will result in accelerated mechanical wear and premature failure.
Technical Comparisons: The 1668kW TBD620V16 vs. Alternative Power Packs
When evaluating the TBD620V16 1668 kW 1500 rpm engine against other models in the same displacement category, its specific mechanical tuning stands out. Unlike the 1800 rpm configurations (such as the 1819 kW or 1910 kW versions) built for 60Hz grids, the 1500 rpm operation of this 1668 kW model significantly reduces average piston speed. This reduction in internal velocity minimizes cylinder liner friction and drastically extends the operational lifespan of the piston rings and main bearings.
Furthermore, the TBD620V16 turbocharged intercooled marine engine utilizes a sophisticated twin turbocharger arrangement and intercooler setup. Rather than relying on a massive single turbo that suffers from severe lag during block loading, the dual turbochargers spool rapidly. This provides immediate air density to all 16 cylinders, preventing black smoke during transient load steps and ensuring the engine remains fully TBD620V16 marine generator set engine IMO Tier II compliant.
Compared to modern, heavily computerized engines, the TBD620V16 direct injection fuel system utilizes highly robust, mechanically governed high-pressure fuel pumps. While electronic common rail systems offer marginal efficiency gains, they are highly susceptible to failure from water-contaminated fuel or saltwater humidity. The mechanical direct injection on the HND Deutz auxiliary diesel power pack ensures that the engine can process lower quality marine gas oils without suffering catastrophic fuel injector failures. Finally, because HekoPower is a licensed Deutz-MWM TBD620 series V16 marine diesel engine supplier, this unit shares identical block castings and metallurgical standards with original German-built MWM engines, providing OEM-level durability at a highly competitive TBD620V16 1668 kW diesel engine price.
Marine Maintenance and Engine Replacement Protocols
Long-term reliability on the open ocean requires strict adherence to maintenance intervals, particularly concerning the TBD620V16 1668 kW engine cooling system and lubrication circuits. The engine utilizes a heavy-duty TBD620V16 1668kW sea water heat exchanger cooled auxiliary engine setup. Engineers must regularly inspect the cupronickel tube bundles and replace the sacrificial zinc anodes inside the heat exchanger housing to prevent galvanic corrosion from destroying the cooling jackets.
Because of its massive internal displacement, the TBD620V16 marine auxiliary lube oil capacity is substantial. This large oil volume dilutes acidic combustion byproducts effectively, but operators must consistently use high-TBN marine oil and strictly monitor the centrifugal oil filters. Additionally, maintaining the 1500rpm governor specs requires periodic linkage lubrication; a sticking mechanical governor linkage will cause the engine to "hunt" for the correct speed, leading to dangerous voltage and frequency fluctuations across the shipboard grid.
For shipyards executing a vessel repower, TBD620V16 1668 kW engine replacement considerations require careful logistical planning. The TBD620V16 1668 kW engine weight sits at approximately 6290 kg dry, and the exact TBD620V16 1668 kW engine dimensions must be verified against the existing engine room hatch sizes. Fortunately, because the HND TBD620V16 1500RPM marine generator engine replacement shares the exact mounting foot footprint and flywheel housing dimensions as legacy Deutz-MWM 620 series engines, it drops onto existing marine engine beds with zero requirement for costly structural hull modifications.
Real Application Scenarios for the TBD620V16
The robust nature of this 70.88 L V16 marine diesel engine makes it the preferred prime mover across several demanding commercial maritime sectors. As a TBD620V16 1668 kW marine auxiliary engine for cargo ships and heavy bulk carriers, it manages exceptional hotel loads. When a cargo vessel enters port, the simultaneous activation of massive hydraulic deck cranes, ballast water pumps, and refrigerated container racks creates severe spikes in electrical demand. The sheer rotational mass of the TBD620V16 16 cylinder 1500 rpm diesel engine flywheel absorbs these kinetic shocks effortlessly, preventing the ship's breakers from tripping.
In the offshore sector, utilizing the TBD620V16 1668 kW engine for tug boats and offshore supply vessels (OSVs) provides the ultimate safety margin. These vessels rely entirely on auxiliary generated power to run dynamic positioning (DP) thrusters. A loss of electrical power near an offshore oil rig is catastrophic. The mechanical simplicity and heavy-duty continuous rating of this HND Deutz engine guarantee that the DP thrusters receive constant, uninterrupted electricity regardless of sea state.
Similarly, the TBD620V16 1668 kW engine for fishing vessels and deep-sea dredgers is built for extreme endurance. Operating for months at a time in corrosive, freezing environments, these vessels demand engines that prioritize raw mechanical reliability over fragile electronics. The TBD620V16 water cooled marine engine thrives in these conditions, providing the heavy base-load power required to run industrial freezing compressors and heavy dredging winches simultaneously.
TBD620 Series Engineering and Auxiliary Power Solutions
Procuring the correct marine auxiliary diesel engine for ships dictates the long-term operational profitability and safety of any commercial vessel. While the 1668 kW 1500 rpm marine auxiliary engine remains a premier choice for 50Hz continuous duty applications, varying hull sizes and specific onboard electrical demands often require different power mapping. Whether you require a smaller V8 footprint for a tight engine room or a higher-speed 1800 rpm variant to support a 60Hz generator, HekoPower supplies the comprehensive range of HND Deutz configurations to ensure an exact engineering match.
Deutz TBD620-Marine Auxiliary Series, Marine Auxiliary Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TBD620V8-834KW, TBD620V8-874KW, TBD620V8-910KW, TBD620V8-955KW, TBD620V12-1251KW, TBD620V12-1311KW, TBD620V12-1364KW, TBD620V12-1433KW, TBD620V16-1668KW, TBD620V16-1747KW, TBD620V16-1819KW, TBD620V16-1910KW.
Frequently Asked Questions
What is the standard TBD620V16 1668 kW marine engine lead time?
HekoPower maintains an optimized supply chain, allowing us to build, test, and ship a complete HND Deutz TBD620V16 engine assembly with classification society certs within 15 to 30 business days, vastly outpacing standard European factory wait times.
Are classification society certificates included with the engine?
Yes. The engine is a fully certified TBD620V16 CCS IMO2 marine engine. We provide China Classification Society (CCS) certification and IMO Tier II emissions documentation as standard, ensuring immediate compliance for international voyages.
Can HekoPower provide a customized control panel setup for Deutz TBD620V16 marine auxiliary engine systems?
Absolutely. We supply tailored marine engine monitoring panels that integrate seamlessly with your vessel's main switchboard, featuring digital readouts for exhaust gas temperatures, oil pressure, cooling flow, and automated parallel synchronization controls.
What is included in the TBD620V16 1668 kW engine auxiliary equipment package?
The complete diesel power pack includes the base engine, twin turbochargers, intercooler, mechanical governor, heat exchanger, raw water pump, 24V starting motors, and a primary set of TBD620V16 1668 kW marine engine spare parts to support initial voyage maintenance.
