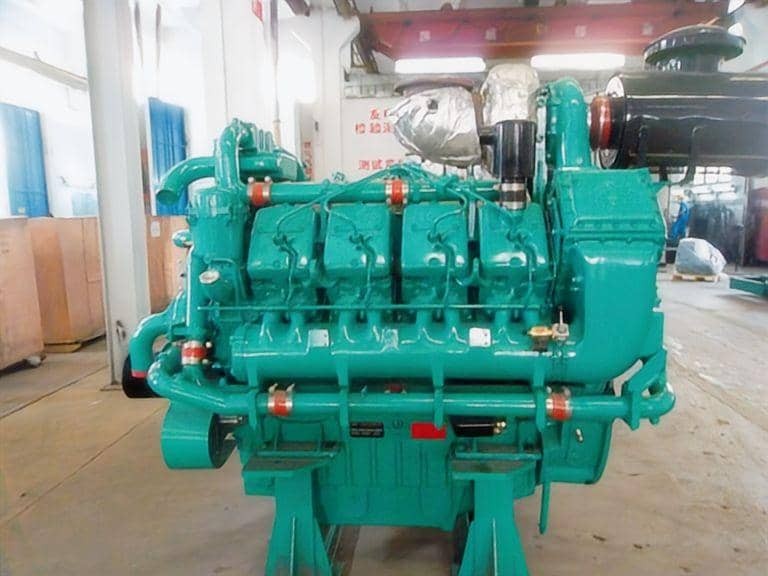

HND Deutz TBD620V8 910kW Marine Engine: Reliable 60Hz Auxiliary Power
Securing a dependable power source for shipboard electrical systems requires more than just picking a horsepower rating. As a leading HND Deutz TBD620V8 generator engine supplier, HekoPower provides the complete Henan Diesel TBD620V8 910 kW complete assembly tailored specifically for continuous heavy-duty marine applications. This specific model is highly sought after by fleet managers and marine engineers because it operates efficiently as a TBD620V8 910kW marine genset prime mover.
Whether you are designing a new power room or seeking a TBD620V8 910kW replacement engine, understanding how this specific unit interacts with your electrical grid and cooling systems is essential for long-term operational stability.
Tech Specs of Deutz TBD620V8 910kW
General Engine Data
Engine Model: Deutz TBD620V8-910KW
Type: 8 Cylinders, V Type 90°, 4 Stroke
Displacement: 35.44 L
Bore * Stroke: 170 * 195
Wet Weight (with heat exchanger): 3600 Kg
Overall Dimension: 2340mm*1450mm*2153mm
Key Performance Data
Rated Power/Speed: 910 kW @ 1800 rpm
Standby Power/Speed: 1001 kW @ 1800 rpm
Max. Continuous Running Altitude: 3000 m
Fuel Consumption with Full Load: 199 g/kW.hr
More Technical Data
Certification: CCS/IMO2 Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: Direct Injection Pump
Compression Ratio: 13.5:1
Starting Method: Electrical Start (12V/24V)
Cooling Method: Water Cooled
Power Output Type: Continuous
Real-World Marine Application Scenarios
The demand for the TBD620V8 910kW marine auxiliary diesel engine spans across multiple commercial maritime sectors. Its footprint-to-power ratio makes it highly adaptable.
For bulk carriers and container ships, electrical demand is massive. The 910kW Deutz marine auxiliary engine easily handles the sustained loads of heavy winches, cargo cranes, and ship-wide HVAC systems. In these environments, operators often run dual TBD620V8 910kW generator drive engines in parallel to ensure redundancy during long ocean transits.
When installed as a TBD620V8 910kW engine for fishing vessel applications, the operational profile changes. Fishing vessels experience aggressive load swings when operating heavy trawling gear or rapid-freezing refrigeration plants. The robust torque curve of the TBD620V8 absorbs these shock loads smoothly. Similarly, as a TBD620V8 910kW engine for tugboat operations, it provides the critical auxiliary power needed for heavy-duty towing winches and external fire-fighting pumps. Passenger ships also utilize this TBD620V8 910kW ship auxiliary generator configuration because its structural vibration is relatively low, minimizing noise transfer through the hull.
Marine power requirements are rarely one-size-fits-all, and engine configurations rarely exist in isolation. Fleet managers often need to match power outputs across different vessels in their fleet, scaling up or down depending on the hull size and electrical demand. To accommodate these varying power demands, Deutz TBD620-Marine Auxiliary Series, Marine Auxiliary Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TBD620V8-834KW, TBD620V8-874KW, TBD620V8-910KW, TBD620V8-955KW, TBD620V12-1251KW, TBD620V12-1311KW, TBD620V12-1364KW, TBD620V12-1433KW, TBD620V16-1668KW, TBD620V16-1747KW, TBD620V16-1819KW, TBD620V16-1910KW.
Maintenance and System Lifespan Optimization
Achieving maximum lifespan from your HND TBD620V8 910kW 60Hz generator engine comes down to strict adherence to fuel and cooling system maintenance.
The heart of this engine is its fuel delivery system. As an authorized Deutz TBD620V8 EUP fuel system replacement parts supplier, HekoPower regularly advises crews on the importance of fuel cleanliness. The Electronic Unit Pumps (EUP) are highly sensitive to water and particulate contamination. Installing a high-quality primary fuel centrifuge and strictly adhering to the factory filter change intervals will prevent premature injector failure.
Cooling system maintenance is equally important. The TBD620V8 910kW turbocharged intercooled engine relies on clean heat exchangers to maintain intake air density. Marine growth or scale buildup in the raw water circuit will rapidly elevate exhaust gas temperatures. Routinely cleaning the charge air cooler ensures the engine maintains its power output without over-fueling.
Common Misconceptions About Fuel Consumption
A frequent error in marine engineering involves the HND Deutz TBD620V8 910kW fuel consumption rate at full load. Many operators believe that running the engine at 40% to 50% load will significantly extend its life and save fuel.
In reality, diesel engines of this size are designed to work hard. Running the TBD620V8 910kW engine for marine generator set applications at extended low loads leads to incomplete combustion. This causes carbon buildup on the valves and unburnt fuel to wash oil off the cylinder walls—a condition known as wet stacking. To optimize the TBD620V8 910kW fuel consumption and protect the cylinders, the engine should ideally be run between 70% and 90% of its rated capacity.
Another misconception surrounds emissions compliance. Simply buying a modern engine does not guarantee compliance in all waters. Buyers must explicitly request the TBD620V8 910kW CCS IMO II engine configuration, which features specific injection timing and calibration to meet international maritime emission standards.
Frequently Asked Questions
Does HekoPower provide the complete engine or just replacement parts?
As a comprehensive TBD620V8 910kW engine supplier China relies on, HekoPower provides both. We supply the TBD620V8 910kW complete engine ready for installation, as well as individual blocks, cylinder heads, and genuine replacement parts for ongoing fleet maintenance.
How do I request an accurate price quote for this model?
Because marine configurations vary, the final Deutz TBD620V8 910kW engine price depends on the required accessories. When you contact us, please specify if you need the bare engine, a complete Deutz TBD620V8 910kW marine generator set power pack with the alternator included, or specific classification society certificates.
Can this engine be used for main propulsion?
Yes, while highly popular as a 910kW 1800rpm marine auxiliary diesel engine, it can be configured as a main propulsion unit. However, the cooling system, governing profile, and gearbox matching requirements will differ significantly from the generator specification. Our engineering team will assist you in selecting the correct configuration for your hull design.
