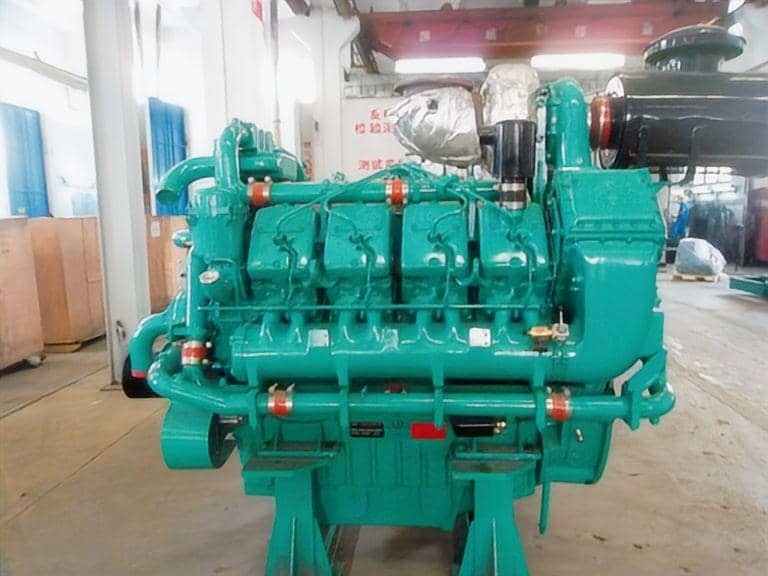

Deutz TBD620V12 1364kW Marine Auxiliary & Generator Engine
The Deutz TBD620V12 1364kW diesel engine is a premier medium-speed marine powerplant designed for heavy-duty commercial maritime operations. Manufactured originally under strict German technical guidelines and built via authorized channels like the Henan Diesel Engine Plant (HND), this 12-cylinder V-type engine features a 90-degree cylinder angle and a robust four-stroke configuration. With a bore and stroke of 170mm by 195mm and a total displacement of 53.16 liters, it delivers a continuous rated output of 1364kW at 1800 RPM.
The combustion efficiency relies heavily on proprietary engineering innovations. The intake utilizes the advanced HALLO-Swirl system, which optimizes air-fuel mixing across both high and low load profiles to reduce unburned hydrocarbons. Exhaust management is handled through the patented PEARL pulse energy recovery line, which minimizes pressure losses before gas enters the high-performance turbochargers. Integrated charge-air cooling ensures dense oxygen delivery to the combustion chambers, keeping thermal stress low even during prolonged peak operations.
Tech Specs of Deutz TBD620V12 1364kW
General Engine Data
Engine Model: Deutz TBD620V12-1364KW
Type: 12 Cylinders, V Type 90°, 4 Stroke
Displacement: 53.16 L
Bore * Stroke: 170 * 195
Wet Weight (with heat exchanger): 5100 Kg
Overall Dimension: 2979mm*1450mm*2240mm
Key Performance Data
Rated Power/Speed: 1364 kW @ 1800 rpm
Standby Power/Speed: 1500 kW @ 1800 rpm
Max. Continuous Running Altitude: 3000 m
Fuel Consumption with Full Load: 195 g/kW.hr
More Technical Data
Certification: CCS/IMO2 Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: Direct Injection Pump
Compression Ratio: 13.5:1
Starting Method: Electrical Start (12V/24V)
Cooling Method: Water Cooled
Power Output Type: Continuous
Technical Comparison: TBD620V12 1364kW vs. Other Marine Series
When evaluating marine auxiliary powerplants, procurement managers often weigh the TBD620V12 against smaller V8 configurations or competing inline alternatives like the Cummins KTA50 series. While inline engines offer simpler top-end maintenance, they lack the compact footprint required for tight auxiliary rooms on medium-to-large commercial ships.
Compared to the TBD620V8 variant, the V12 1364kW model offers a massive leap in electrical generation capacity, perfectly suited for heavy vessel hotel loads and bow thruster demands. Furthermore, unlike high-speed lighter-duty commercial engines that require frequent overhauls, the medium-speed architecture of the TBD620 series features a drop-forged steel crankshaft with induction-hardened journals. This provides superior fatigue resistance and extends the time between overhauls significantly.
Real-World Maritime Application Scenarios
HekoPower supplies this engine to international shipyards and vessel operators who require unyielding reliability in harsh marine environments. The 1364kW configuration at 1800 RPM is predominantly deployed as a primary ship generator engine on large commercial cargo ships, offshore supply vessels, and ocean-going tugboats.
In dynamic positioning applications, the engine responds rapidly to sudden load variations driven by electrical propulsion drives. Its robust nodular cast iron crankcase absorbs torsional vibrations effectively, ensuring stable frequency output for shipboard electronics. Whether navigating tropical shipping lanes or sub-polar waters, the engine's indirect cooling system utilizing raw water plate-type heat exchangers maintains stable operating temperatures across all ambient conditions.
Common Misconceptions Regarding the Deutz TBD620V12 Engine
A frequent misconception among first-time buyers is that medium-speed engines of this displacement class suffer from excessive fuel consumption during part-load operations. Thanks to the electronic or mechanical governing systems and optimized compression ratios of 13.5:1, the engine maintains a flat specific fuel consumption curve, averaging around 195 grams per kilowatt-hour under optimal operating conditions.
Another widespread myth is that sourcing replacement components for HND-built Deutz engines requires dealing exclusively with European OEMs. In reality, modern authorized manufacturing plants maintain exact metallurgical and dimensional tolerances matching the original German specifications, offering identical performance and classification society compliance (such as CCS and IMO Tier standards) at significantly optimized logistics costs.
Critical Maintenance Guidelines and Spare Parts Optimization
Maximizing the operational lifespan of the Deutz TBD620V12 requires strict adherence to preventative maintenance schedules. Operators should routinely inspect the double-walled high-pressure fuel lines and switch-over twin duplex paper element filters to prevent particulate contamination in the direct injection pump.
Lubricating oil management is another vital pillar of maintenance. The forced-feed circulating pump, paired with a centrifugal oil filter in the auxiliary circuit, actively strips microscopic soot and wear metals from the oil. When replacement is necessary, sourcing genuine parts is essential. HekoPower provides comprehensive spare parts packages, ranging from oil-cooled aluminum alloy pistons and cylinder heads with four-valve technology to complete overhaul gasket kits, ensuring compatibility and factory-spec performance.
Deutz TBD620-Marine Auxiliary Series, Marine Auxiliary Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TBD620V8-834KW, TBD620V8-874KW, TBD620V8-910KW, TBD620V8-955KW, TBD620V12-1251KW, TBD620V12-1311KW, TBD620V12-1364KW, TBD620V12-1433KW, TBD620V16-1668KW, TBD620V16-1747KW, TBD620V16-1819KW, TBD620V16-1910KW.
Frequently Asked Questions (FAQ) for Procurement Managers
What is the standard fuel consumption rate for the Deutz TBD620V12 1364kW?
At full continuous load, the specific fuel consumption is rated at approximately 195 g/kW.h. Actual consumption varies slightly depending on ambient water temperature, fuel grade quality, and electrical load factor.
Can HekoPower customize the engine cooling system for specific vessel requirements?
Yes. As an experienced engine supplier, HekoPower coordinates with engineering teams to provide customized cooling configurations, including keel cooling or standard heat exchanger setups matched to your vessel's raw water supply parameters.
What classification societies certify this engine model?
The TBD620V12 series typically comes with classification society approvals such as China Classification Society (CCS) and complies with IMO MARPOL Annex VI Tier emission standards required for international commercial shipping.
How does HekoPower handle global shipping for such heavy machinery?
Engines are securely bolted to heavy-duty structural steel skids, treated with anti-corrosion marine preservatives, and securely crated in ISPM 15-compliant fumigated timber packaging suitable for safe global container or break-bulk sea freight.
