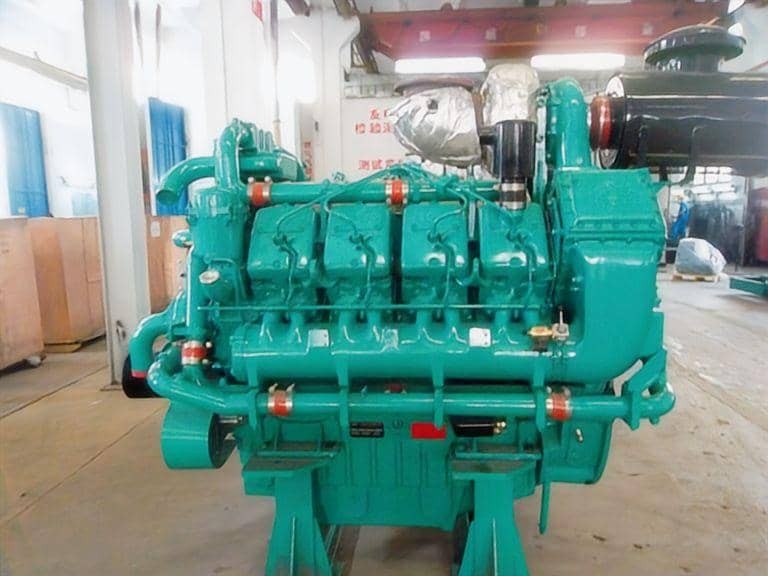

HND Deutz TBD620V8 834 kW Marine Auxiliary Engine
Securing reliable auxiliary power is a critical step in marine vessel engineering. The Deutz TBD620V8 834 kW marine auxiliary engine delivers exceptional load acceptance and consistent power output for demanding maritime environments. Manufactured by HND under Deutz technology, this 8-cylinder V-type marine engine operates at a steady 1500 rpm. This specific operating speed makes it the ideal prime mover for 50Hz marine generator sets.
At HekoPower, we understand that marine procurement requires precise technical alignment. We supply the HND TBD620V8 834 kW engine to shipyards, fleet operators, and marine engineers worldwide, ensuring you receive a propulsion system backed by rigorous testing and comprehensive spare parts support.
Tech Specs of Deutz TBD620V8 834 kW Marine Auxiliary Engine
General Engine Data
Engine Model: Deutz TBD620V8-834KW
Type: 8 Cylinders, V Type 90°, 4 Stroke
Displacement: 35.44 L
Bore * Stroke: 170 * 195
Wet Weight (with heat exchanger): 3600 Kg
Overall Dimension: 2340mm*1450mm*2153mm
Key Performance Data
Rated Power/Speed: 834 kW @ 1500 rpm
Standby Power/Speed: 917 kW @ 1500 rpm
Max. Continuous Running Altitude: 3000 m
Fuel Consumption with Full Load: 193 g/kW.hr
More Technical Data
Certification: CCS/IMO2 Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: Direct Injection Pump
Compression Ratio: 13.5:1
Starting Method: Electrical Start (12V/24V)
Cooling Method: Water Cooled
Power Output Type: Continuous
Real Application Scenarios for the 834 kW TBD620V8
The TBD620V8 auxiliary diesel engine is highly versatile, but it excels in specific maritime applications where continuous heavy-duty power is mandatory. When running at 1500 rpm, this engine is perfectly calibrated to drive a 750 kW marine genset or a 937.5 kVA generator engine configuration.
For cargo ships and bulk carriers, the TBD620V8 marine auxiliary engine ensures stable onboard electricity for lighting, navigation systems, and crew quarters during long ocean transits. It serves as an incredibly robust auxiliary engine for fishing vessels, where power is constantly diverted to winches, refrigeration units, and processing equipment.
We also frequently supply this 834 kW marine auxiliary diesel engine for tug boats and barges. In these specialized vessels, the TBD620V8 engine for marine pump sets provides the mechanical force needed for heavy hydraulic operations. Whether deployed as a ship auxiliary generator engine or as a dedicated TBD620V8 marine auxiliary power unit for passenger ships, its robust V8 architecture ensures uninterrupted operation under varying load conditions.
Technical Comparison: Why Choose the 834 kW Configuration?
Engineers often need to compare the TBD620V8 against other marine auxiliary engines to ensure proper sizing. Instead of relying on generic specifications, it is vital to understand how the physical dimensions and mechanical design impact vessel performance.
The TBD620V8 834 kW engine features a bore stroke displacement of 170 x 195 mm, resulting in a total displacement of 35.44 L. When comparing this 35.44 L marine diesel engine to smaller inline-6 alternatives, the V8 design offers a significantly more compact footprint relative to its power output. This allows for easier installation in cramped engine rooms where space is at a premium.
It is also important to understand the difference between the TBD620V8 continuous vs standby rating. This specific model provides a continuous output of 834 kW for unrestricted daily operation. However, in emergency situations, the TBD620V8 834 kW 917 kW standby engine rating allows the unit to push up to 917 kW for limited durations. This headroom provides a critical safety margin during temporary electrical overloads.
Furthermore, the TBD620V8 direct injection fuel system, paired with an advanced turbocharger and charge air cooling, ensures highly efficient combustion. Compared to older indirect injection models, this configuration dramatically reduces the Deutz TBD620V8 fuel consumption curve, lowering long-term operational costs for fleet managers.
Common Misconceptions About Marine Auxiliary Power
A frequent misconception in the marine industry is that any industrial engine can be easily adapted for maritime use. The TBD620V8 marine engine cooling system is explicitly designed for the corrosive sea environment. It utilizes a dedicated dual-circuit cooling system with heat exchangers, separating the internal fresh water from the raw seawater. Attempting to use a standard land-based radiator engine in a ship’s hull leads to rapid overheating and catastrophic failure.
Another common misunderstanding revolves around TBD620V8 1500 rpm operating conditions. Some operators believe that running the engine at lower loads will extend its lifespan. In reality, consistently running this 834 kW auxiliary diesel engine for ships at loads below 30% can lead to wet stacking and carbon buildup. To maintain optimal efficiency, the engine should be operated within its intended load parameters.
Deutz TBD620V8 Maintenance and Replacement Guidelines
Routine upkeep is the only way to safeguard your investment. TBD620V8 marine engine maintenance must follow a strict schedule to ensure compliance with maritime safety regulations.
Overhaul and Spare Parts Sourcing
When planning for a TBD620V8 overhaul and maintenance cycle, sourcing authentic components is non-negotiable. Using aftermarket alternatives can void warranties and compromise engine integrity. As a trusted TBD620V8 spare parts supplier, HekoPower provides everything required for routine servicing and major overhauls.
Key maintenance intervals include regular inspections of the valve clearances, checking the direct injection nozzles for wear, and cleaning the charge air cooler. We supply all necessary TBD620V8 spare parts, from fuel injectors and water pumps to complete cylinder head rebuild kits. If a catastrophic failure has occurred on an aging vessel, we also facilitate complete TBD620V8 engine replacement to get your ship back in operation quickly.
Installation Requirements and Dimensions
Before procuring a new unit, shipyards must verify TBD620V8 installation requirements. Engine room hatches and structural supports must accommodate the TBD620V8 engine shipping dimensions and overall dry weight.
While the exact TBD620V8 engine dimensions and weight vary slightly depending on the specific flywheel housing and cooling attachments selected, operators must account for heavy lifting equipment during installation. The engine weight for vessel installation requires properly engineered vibration isolators to prevent mechanical resonance from transferring to the ship's hull. Our engineering team at HekoPower is available to provide precise CAD drawings and installation manuals to assist your shipyard.
Explore the Complete Deutz TBD620 Marine Auxiliary Series
Finding the exact power node for your onboard electrical grid is essential. While the 834 kW configuration is highly popular for 750 kW marine gensets, different vessels have vastly different power requirements. If your operational needs dictate a lower or higher electrical output, the broader HND Deutz series offers scalable solutions built on the same reliable V8 architecture.
Deutz TBD620-Marine Auxiliary Series, Marine Auxiliary Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TBD620V8-834KW, TBD620V8-874KW, TBD620V8-910KW, TBD620V8-955KW, TBD620V12-1251KW, TBD620V12-1311KW, TBD620V12-1364KW, TBD620V12-1433KW, TBD620V16-1668KW, TBD620V16-1747KW, TBD620V16-1819KW, TBD620V16-1910KW.
Frequently Asked Questions (FAQs)
How do I choose a TBD620V8 marine auxiliary engine for my project?
When deciding how to choose a TBD620V8 marine auxiliary engine, you must calculate your vessel's total simultaneous electrical load. Ensure the continuous 834 kW rating exceeds your maximum continuous demand by at least 15-20% to account for motor starting surges. You must also verify if your vessel requires 50Hz (1500 RPM) or 60Hz (1800 RPM) power generation.
What is the Deutz TBD620V8 834kW marine engine price?
The Deutz TBD620V8 834 kW engine price fluctuates based on required accessories, specific classification society approvals, and current material costs. As a leading TBD620V8 marine engine supplier in China, HekoPower offers highly competitive wholesale HND Deutz marine auxiliary engines. Contact our sales team with your exact specifications for an accurate TBD620V8 834 kW engine quotation.
Are these engines compliant with international maritime emissions standards?
Yes, we supply IMO Tier II / CCS certified Deutz marine engines. The TBD620V8 834 kW CCS IMO II engine configuration meets stringent environmental regulations, ensuring your vessel is permitted to operate in regulated international waters without restriction.
What is the TBD620V8 fuel consumption at full load?
The exact fuel consumption depends on the operating environment and fuel quality, but the TBD620V8 fuel consumption at full load is highly competitive for a 35.44 L marine diesel engine. The advanced direct injection and turbocharging systems ensure efficient fuel atomization, providing excellent economy even when the 834 kW generator engine is pushed to its maximum continuous rating.
