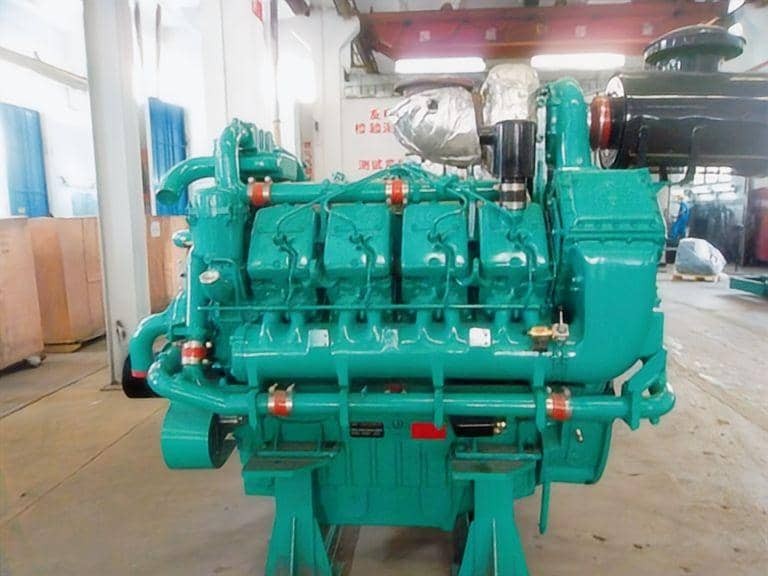

Deutz TBD620V12 1311kW Marine Auxiliary Engine
The Deutz TBD620V12 is a heavy-duty, 1311kW marine diesel engine engineered for continuous auxiliary power. Manufactured under license by the Henan Diesel Engine Plant (HND), this 12-cylinder V-type engine delivers reliable 1500RPM output for demanding maritime and offshore applications. As an established engine supplier in China, HekoPower provides complete TBD620 series units, genuine replacement parts, and technical support for vessel operators globally.
Tech Specs of Deutz TBD620V12 1311kW Marine Auxiliary Engine
General Engine Data
Engine Model: Deutz TBD620V12-1311KW
Type: 12 Cylinders, V Type 90°, 4 Stroke
Displacement: 53.16 L
Bore * Stroke: 170 * 195
Wet Weight (with heat exchanger): 5100 Kg
Overall Dimension: 2979mm*1450mm*2240mm
Key Performance Data
Rated Power/Speed: 1311 kW @ 1500 rpm
Standby Power/Speed: 1442 kW @ 1500 rpm
Max. Continuous Running Altitude: 3000 m
Fuel Consumption with Full Load: 199 g/kW.hr
More Technical Data
Certification: CCS/IMO2 Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: Direct Injection Pump
Compression Ratio: 13.5:1
Starting Method: Electrical Start (12V/24V)
Cooling Method: Water Cooled
Power Output Type: Continuous
Applications in Maritime Operations
The TBD620 marine auxiliary engine is rarely used for primary propulsion. Instead, its torque characteristics and steady-state RPM stability make it an ideal prime mover for high-load electrical generation.
Commercial Vessels and Cargo Ships
Modern cargo ships and bulk carriers require immense electrical loads to operate winches, ballast pumps, and onboard climate control. The Deutz TBD620V12 vessel generator engine provides the baseline power required when the main propulsion engine is offline or when maneuvering in port. Its fuel consumption profile at 75% to 80% load makes it highly economical for long-haul commercial routes.
Offshore Power Generation
Drill ships, semi-submersible rigs, and offshore platforms operate in isolated environments where power failure is not an option. The Deutz TBD620V12 offshore power generation engine is frequently specified in these sectors due to its mechanical simplicity. Unlike highly computerized modern engines, this HND TBD620V12 relies on robust, proven mechanical injection systems that ship engineers can service at sea without proprietary diagnostic software.
Emergency and Standby Systems
While primarily a continuous-duty engine, this model is also utilized as a Deutz TBD620V12 emergency generator engine for critical industrial facilities near coastlines or large port infrastructure. In these industrial generator applications, the engine's ability to accept block loads rapidly ensures facility stability during grid blackouts.
Technical Comparisons: Why Choose the TBD620V12?
Vessel operators frequently compare the Deutz TBD620V12 against similar 1300kW-class engines from Cummins (like the KTA50 series) or Weichai.
A common misconception is that all 1311kW marine diesel engines consume fuel at the same rate. In reality, the TBD620V12 fuel consumption and dimensions offer a specific advantage. At optimal load, the TBD620 series engine typically achieves a brake specific fuel consumption (BSFC) of around 190 g/kWh. When compared to older, naturally aspirated V12s, the turbocharged design captures exhaust energy to force cooler, denser air into the cylinders, significantly improving thermal efficiency.
Furthermore, because it is an HND Deutz TBD620V12 engine, operators benefit from a localized supply chain. Sourcing a Deutz TBD620V12 replacement engine or heavy overhaul components from a supplier in China like HekoPower often results in shorter lead times compared to waiting on European foundries.
Maintenance and Overhaul Guidance
Achieving the expected 20,000 to 30,000-hour life before a major overhaul requires strict adherence to the Deutz TBD620V12 maintenance schedule.
Fluid and Filter Management
Lube oil degradation is the primary cause of premature bearing wear in a 1311kW 1500RPM marine diesel generator engine. Oil analysis should be conducted every 500 hours. The sulfur content of your bunker fuel will dictate the required Base Number (BN) of your engine oil to neutralize combustion acids.
Fuel System Upkeep
A frequent error made by inexperienced crew is neglecting the fuel water separators. The high-pressure injection pumps on the Deutz marine diesel engine rely entirely on the diesel fuel itself for lubrication. Even microscopic water ingress will cause cavitation and catastrophic failure of the injector nozzles. We recommend checking fuel strainers daily and replacing primary filters exactly as scheduled.
Planning a Major Overhaul
When the time comes, HekoPower provides options. If your vessel is in drydock with limited time, purchasing a complete Deutz TBD620V12 overhaul engine for sale is often more cost-effective than rebuilding your existing block piece by piece. A drop-in replacement engine minimizes downtime and shipyard fees.
Sourcing Your Engine from HekoPower
As a dedicated Deutz TBD620V12 generator engine manufacturer partner and supplier, HekoPower understands the commercial realities of fleet management. We do not just ship a crate; we ensure you have the exact build sheet, PTO configurations, and marine society certifications required by your flag state.
Whether you are pricing out a new build or need to buy a Deutz TBD620V12 diesel engine to replace a catastrophic failure, our engineering team can review your vessel's electrical single-line diagrams to confirm compatibility.
Deutz TBD620-Marine Auxiliary Series, Marine Auxiliary Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TBD620V8-834KW, TBD620V8-874KW, TBD620V8-910KW, TBD620V8-955KW, TBD620V12-1251KW, TBD620V12-1311KW, TBD620V12-1364KW, TBD620V12-1433KW, TBD620V16-1668KW, TBD620V16-1747KW, TBD620V16-1819KW, TBD620V16-1910KW.
Frequently Asked Questions
Is the HND TBD620V12 identical to engines manufactured in Germany?
Yes. The Henan Diesel Engine Plant (HND) manufactures this engine under an official technical license from Deutz AG. The metallurgy, machining tolerances, and assembly protocols are strictly governed by Deutz engineering standards. Parts are cross-compatible.
What is the current Deutz TBD620V12 marine engine price?
Because these are heavy industrial assets, pricing fluctuates based on global steel indices, specific marine society certification requirements (e.g., ABS, DNV, CCS), and accessory packages (like specialized cooling heat exchangers or custom skids). Please contact the HekoPower sales team for a current, binding quotation.
Can this engine be run below 1500RPM?
While the engine will physically idle lower, it is designed and governed as a 1500RPM Deutz diesel engine to produce 50Hz electrical power when coupled to an alternator. Running the engine at low idle for extended periods will cause wet-stacking (unburnt fuel accumulating in the exhaust) and carbon build-up on the turbocharger turbine blades.
How do I verify the exact Deutz TBD620V12 V12 diesel engine specifications for my unit?
Every engine ships with a unique data plate riveted to the block. If you provide HekoPower with the Engine Serial Number (ESN), we can pull the original factory build sheet to verify the exact fuel pump calibration, turbocharger part number, and block configuration.
