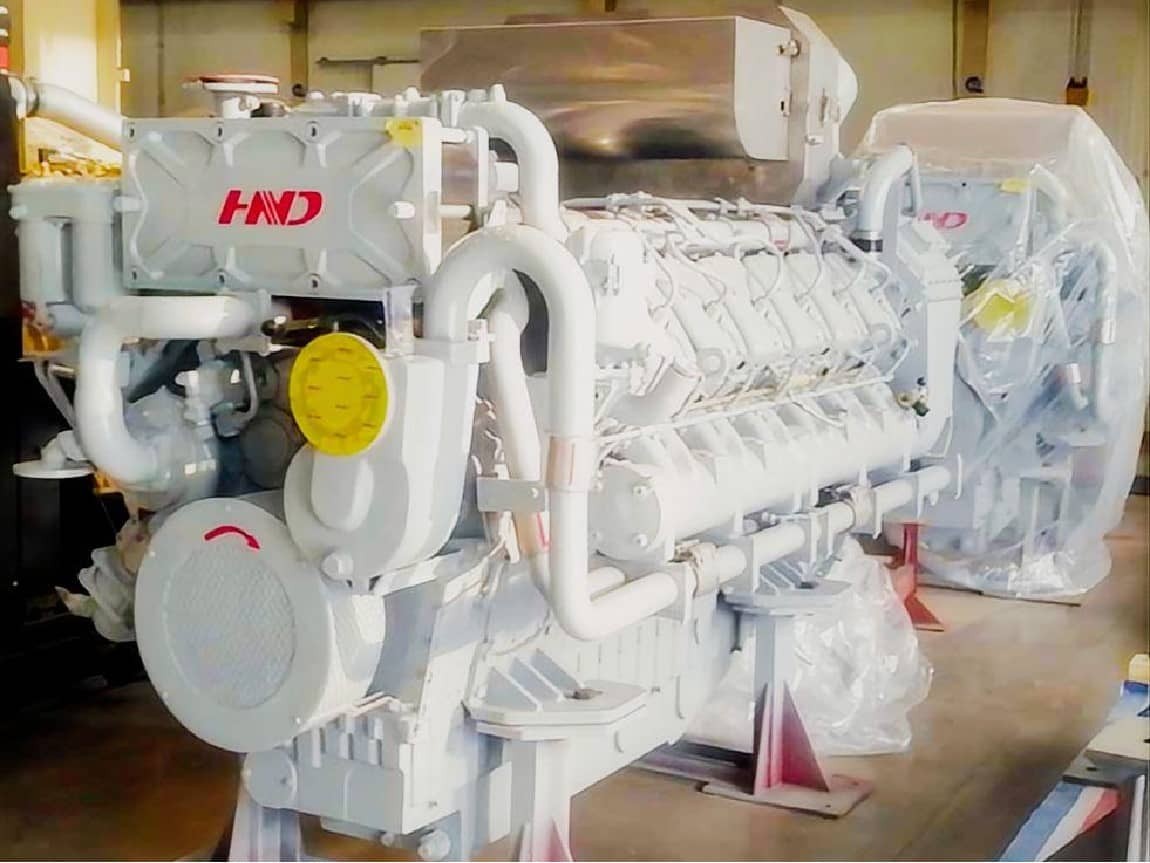

Deutz TBD620V16 1747kW Marine Auxiliary Engine
As an international marine engine supplier, HekoPower delivers complete, factory-tested propulsion and auxiliary power solutions. The Deutz TBD620V16 engine represents the upper performance threshold of the TBD620 series. Delivering a continuous rating of 1747 kW at 1500 rpm, this 16 cylinder marine diesel engine is engineered for high-demand maritime auxiliary power and ship generator drive applications.
Whether you are fitting out a new shipbuilding project or sourcing a TBD620V16 replacement engine for an existing vessel, our technical team ensures precise configuration, full classification compliance, and smooth export logistics.
Tech Specs of Deutz TBD620V16
General Engine Data
Engine Model: Deutz TBD620V16-1747KW
Type: 16 Cylinders, V Type 90°, 4 Stroke
Displacement: 70.88 L
Bore * Stroke: 170 * 195
Wet Weight (with heat exchanger): 6290 Kg
Overall Dimension: 3400mm*1450mm*2180mm
Key Performance Data
Rated Power/Speed: 1747 kW @ 1500 rpm
Standby Power/Speed: 1922 kW @ 1500 rpm
Max. Continuous Running Altitude: 3000 m
Fuel Consumption with Full Load: 194 g/kW.hr
More Technical Data
Certification: CCS/IMO2 Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: Direct Injection Pump
Compression Ratio: 13.5:1
Starting Method: Electrical Start (12V/24V)
Cooling Method: Water Cooled
Power Output Type: Continuous
Technical Comparisons: V16 vs. V12 and Legacy Platforms
Selecting the right power node requires understanding how the Deutz TBD620 V16 generator engine compares against other options in the TBD620 family and legacy European platforms.
When compared to the smaller 12-cylinder TBD620V12, the V16 variant increases total displacement from 53.16 liters to 70.88 liters. This extra volume generates the 1747 kW rating at a conservative 1500 rpm operating speed without forcing higher thermal stress on cylinder heads or piston crowns. Consequently, the TBD620V16 1500rpm diesel engine offers superior transient response when large electrical loads engage on commercial vessel power grids.
Compared to legacy European-built MWM platforms, the current HND TBD620V16 engine retains identical external footings, flywheel housings, and exhaust connector positions. As a trusted MWM TBD620V16 equivalent engine supplier, HekoPower supplies these units as direct drop-in retrofits. Modern manufacturing refinements in governor response and bearing alloys allow the HND Deutz marine engine supplier units to achieve lower specific fuel consumption while meeting current MARPOL Annex VI emissions standards.
Real Application Scenarios in Commercial Maritime Operations
Auxiliary Power for Cargo Ships and Bulk Carriers
A marine diesel engine for cargo ship operations must run continuously under shifting environmental conditions. The 1747 kW output at 1500 rpm fits standard 50 Hz marine generator sets delivering around 2000 kVA of electrical power. The Deutz marine engine for commercial vessel applications provides steady electricity for cargo pumps, heavy-lift cranes, and primary bow thrusters during harbor maneuvering.
Commercial Vessel Auxiliary Power and Passenger Ships
For passenger vessels and ferries, low vibration and strict operational uptime are essential. A marine auxiliary engine for passenger vessel duty must start quickly, synchronize with parallel gensets smoothly, and maintain stable voltage. The high power marine diesel engine 1500rpm configuration ensures that hotel loads, HVAC systems, and emergency backup power stay fully operational during long coastal runs.
Maintenance & MWM TBD620V16 Replacement Guidance
Replacing an old engine or maintaining an active unit requires attention to mechanical alignment and servicing routines.
Retrofit and Replacement Considerations
When procuring a TBD620V16 replacement engine for an older vessel, verify the existing bedplate mounting dimensions and cooling piping layouts. Check the TBD620V16 engine dimensions (approximately 3,250 mm length, 1,550 mm width, and 2,050 mm height) to ensure adequate overhead clearance for piston extraction during in-frame overhauls.
Overhaul Intervals and Service Routines
Proper servicing extends the Deutz TBD620 V16 overhaul interval and specs performance beyond 24,000 operating hours before major overhaul requirements.
- Change lube oil and main fuel filters every 250 to 500 operating hours, depending on fuel quality and duty cycle.
- Inspect turbocharger radial clearances and clean charge air coolers every 3,000 operating hours.
- Check injector opening pressures and recalibrate mechanical governors during annual class surveys.
- Maintain clean jacket water treatments to prevent cavitation corrosion on cylinder liners.
Common Misconceptions About the TBD620V16 Engine
Misconception 1: "HND Deutz engines are completely different from original MWM designs."
Fact: Henan Diesel Engine Co., Ltd. (HND) manufactured the TBD620 series under official license from Deutz MWM. The casting dimensions, mechanical tolerances, and replacement parts remain fully interchangeable with original European MWM TBD620 models.
Misconception 2: "A 1747 kW marine auxiliary engine can be run at maximum rating indefinitely."
Fact: The 1747 kW rating represents a continuous auxiliary power capability (ISO 8528 prime/continuous equivalent). Operating the engine constantly above its maximum thermal limits without monitoring cooling water delta temperatures will shorten injector tip life and increase oil consumption.
Misconception 3: "All 16-cylinder engine fuel consumption scales linearly."
Fact: The Deutz TBD620V16 1747 kW fuel consumption rate follows a distinct curve. Peak efficiency occurs between 75% and 85% load, where the TBD620V16 fuel consumption drops to approximately 198 g/kWh. Operating continuously below 30% load can lead to wet stacking and unburned fuel buildup in the exhaust manifold.
Explore the Complete HND Deutz TBD620 Series Range
As a specialized Deutz TBD620V16 distributor and HND Deutz marine engine supplier, HekoPower delivers customized power units designed for commercial maritime durability. Beyond the 16-cylinder 1747 kW engine, the TBD620 series offers scalable power steps to match smaller auxiliary loads or primary propulsion needs.
Deutz TBD620-Marine Auxiliary Series, Marine Auxiliary Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TBD620V8-834KW, TBD620V8-874KW, TBD620V8-910KW, TBD620V8-955KW, TBD620V12-1251KW, TBD620V12-1311KW, TBD620V12-1364KW, TBD620V12-1433KW, TBD620V16-1668KW, TBD620V16-1747KW, TBD620V16-1819KW, TBD620V16-1910KW.
Frequently Asked Questions
What is the lead time for a new TBD620V16 diesel engine?
The typical Deutz TBD620V16 complete engine assembly lead time ranges between 30 and 60 days, depending on classification society certifications (such as CCS, BV, ABS, or DNV) and specific governor or cooling options.
Can HekoPower supply complete engines for export directly from China?
Yes. As a China TBD620V16 engine manufacturer partner and global exporter, HekoPower supplies complete engine assemblies, marine generator drives, and genuine spare parts worldwide with full export packaging and sea trial documentation.
How do I request a quote for a TBD620V16 1747kW price?
To receive a complete quote for a Deutz TBD620V16 1747kW for sale, contact our sales department with your required classification certificates, cooling method (keel cooling vs. heat exchanger), and delivery destination.
