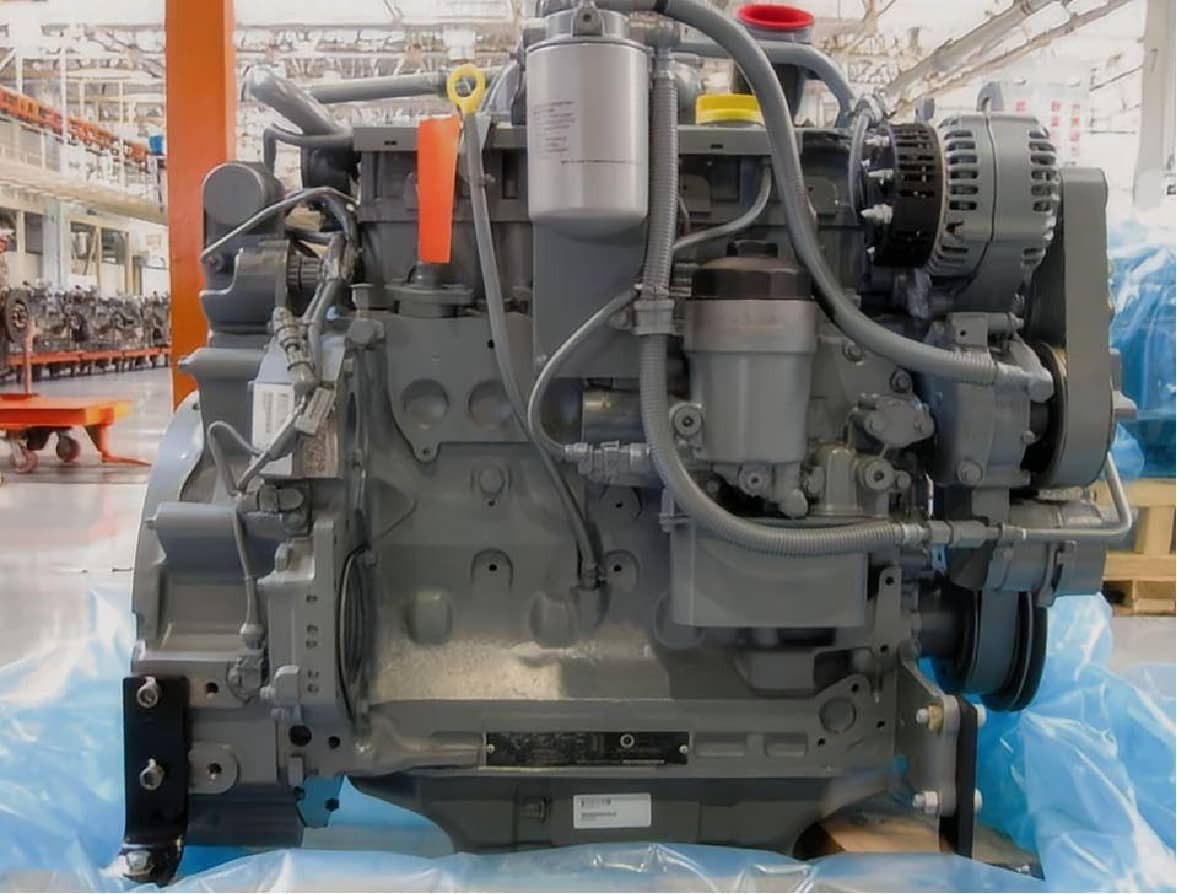

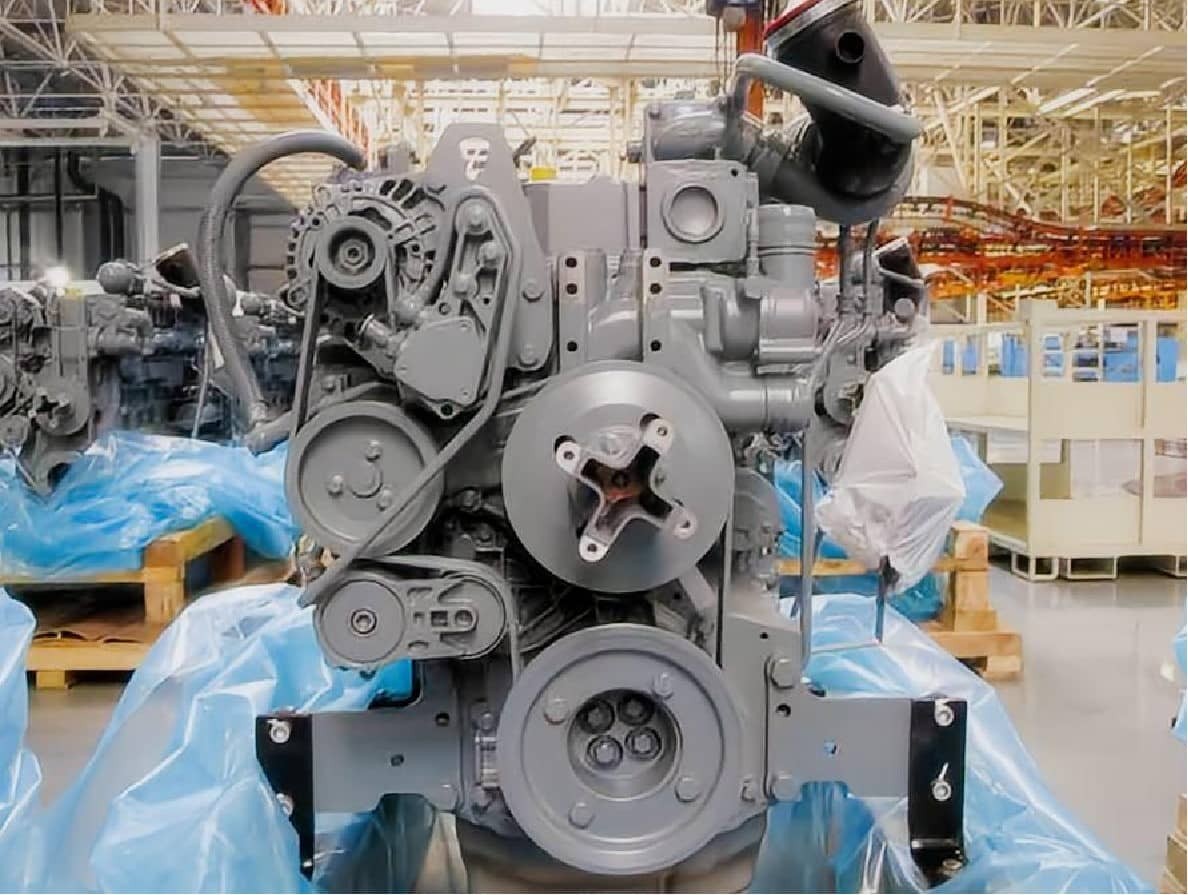

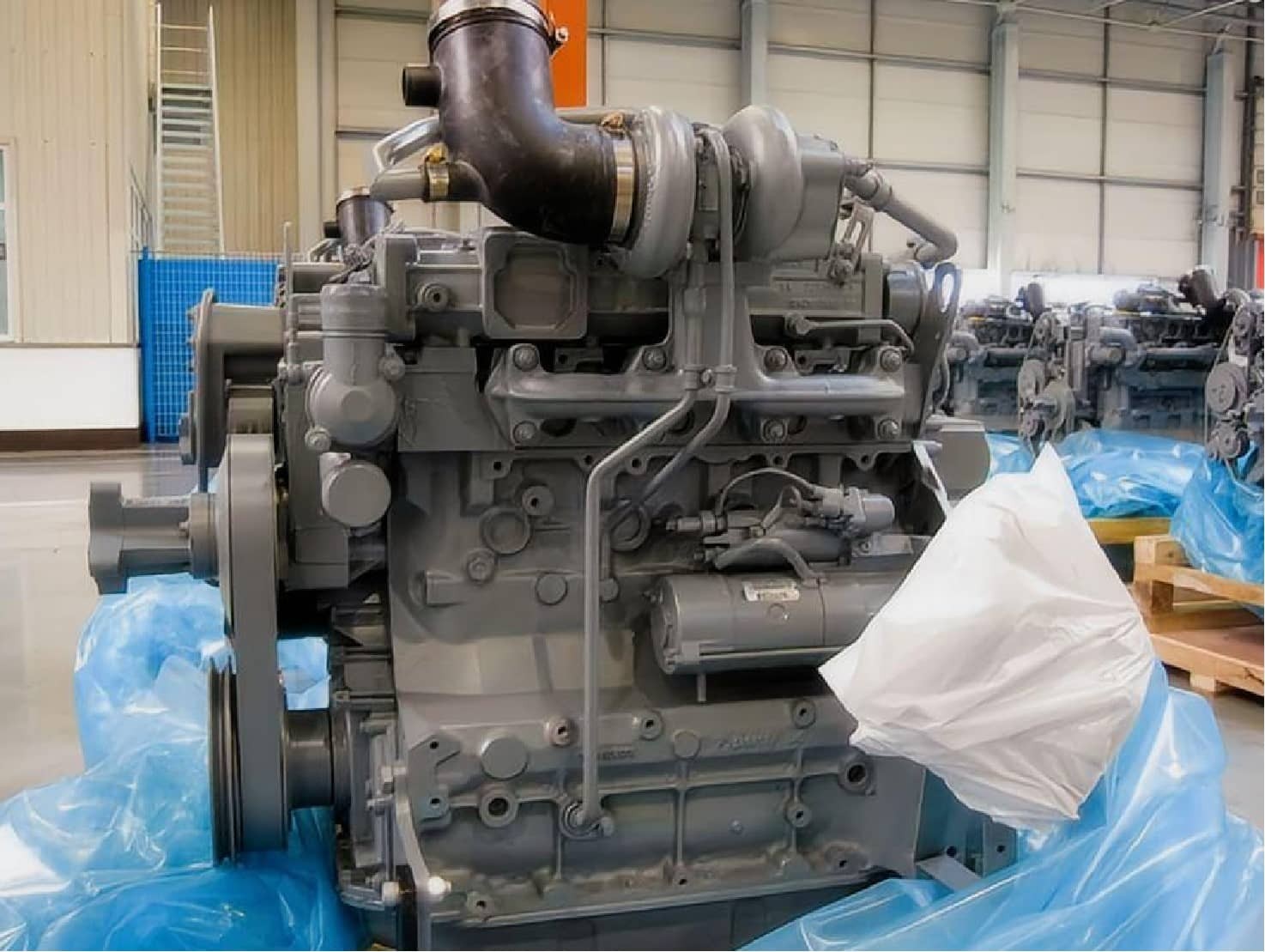

Deutz BF4M2012-16E3 Vehicle Diesel Engine Assembly
Finding the right vehicle powertrain requires more than just reading a spec sheet. The Deutz BF4M2012 16E3 vehicle engine is a highly specialized 4-cylinder commercial diesel engine built for modern road transport. HekoPower supplies this specific OEM Deutz BF4M2012-16E3 complete engine assembly to fleet operators, repair facilities, and vehicle manufacturers globally.
This 4.04L diesel engine delivers a rated output of 118kW at 2500rpm. It is specifically calibrated for commercial road use. Whether you are managing a logistics fleet or repairing municipal transit vehicles, understanding the mechanical nuances of the 160hp Deutz BF4M2012-16E3 engine ensures you get the exact powertrain necessary to keep your trucks and buses on the road.
Tech Specs of Deutz BF4M2012-16E3
General Engine Data
Engine Model: Deutz BF4M2012-16E3
Type: 4 Cylinders, in Line
Displacement: 4.04 L
Bore * Stroke: 101 * 126
Overall Dimension: 799mm*601mm*832mm
Net Weight (with flywheel & alternator): 391 Kg
Key Performance Data
Rated Power: 118 kW/160 HP
Max. Torque/Speed: 530 N.m @ 1500 rpm
Rated Speed: 2500 rpm
Idle Speed: 650-750 rpm
Fuel Consumption @ rated Power: 227.46 g/kw.h
Max. Continuous Running Altitude: 2000 m
Min. Fuel Consumption @ Full-load: 192 g/Kw.h
More Technical Data
Certification: Euro III
Aspiration: Turbocharged & Aftercooled
Fuel System: Electronic Unit Pump, Direct Injection
Cooling Method: Water Cooled
Starting System: Electronic Starting (12V/24V)
Compression Ratio: 18.1:1
Engine Cooling Fluid Volume: 9 L
Engineering the 4.04L Euro III Automotive Engine
The core of the Deutz BF4M2012-16E3 diesel engine is its robust cast-iron block and advanced fuel delivery system. This unit achieves Euro III emissions compliance through precision engineering rather than excessively complex exhaust after-treatment.
A defining feature of this powertrain is the BF4M2012 electronic unit pump (EUP) system. Instead of relying on a high-pressure common rail that can be overly sensitive to fuel quality, the EUP system utilizes individual pumps driven directly by the camshaft. This provides high injection pressure for clean combustion while maintaining exceptional durability.
With 530Nm of peak torque, this Deutz 118kW vehicle diesel engine provides excellent low-end pulling power. Commercial drivers notice the difference when climbing steep grades or accelerating from a dead stop under full payload.
Technical Comparisons: 16E3 Versus Alternative Powertrains
Fleet managers often need to decide between different power nodes within the same engine family. Comparing the Deutz BF4M2012 16E3 vs 20E3 engine compatibility is a common scenario.
Both engines share the exact same 4.04L block, external engine dimensions, and basic architecture. However, the BF4M2012-20E3 produces higher horsepower. The 16E3, rated at 160HP, operates with significantly lower internal thermal stress. This makes the BF4M2012-16E3 118kW diesel engine the superior choice for urban distribution routes. Vehicles subjected to constant start-and-go traffic benefit from the lower operating temperatures and reduced wear of the 16E3 variant.
When comparing this BF4M2012 electronic unit pump engine to older mechanical injection models, the differences in drivability are stark. Mechanical engines often struggle with cold starts and produce heavy smoke under sudden acceleration. The EUP system on the BF4M2012-16E3 communicates continuously with the engine control unit to adjust fuel delivery instantly. This results in smoother idle speeds, lower engine vibration, and drastically reduced exhaust opacity.
Real-World Application Scenarios
The Deutz BF4M2012-16E3 commercial vehicle engine is highly versatile. Its compact footprint makes it an ideal fit for tight engine bays.
In the passenger transport sector, the Deutz BF4M2012-16E3 bus engine and coach engine configurations are highly valued. Passenger comfort relies on low noise and minimal vibration. The balanced 4-cylinder design, combined with electronic governor control, ensures a smooth ride even when the air conditioning compressor is drawing heavy auxiliary power.
For freight operations, the Deutz 160HP truck diesel engine excels in medium-duty delivery vehicles. Box trucks and refrigerated vans operating in regional logistics networks rely on the BF4M2012-16E3 fuel consumption efficiency. The engine provides enough torque to haul heavy goods over highway inclines while sipping fuel during city-speed deliveries.
Deutz BF4M2012-16E3 Engine Replacement and Maintenance
Undertaking a Deutz BF4M2012 16E3 engine replacement for commercial trucks requires careful preparation. HekoPower acts as your dedicated Deutz BF4M2012-16E3 Euro 3 vehicle engine supplier to ensure every technical detail matches your chassis.
Verifying Engine Serial Number Identification
Never order a replacement engine without first checking the data plate. BF4M2012-16E3 engine serial number identification dictates the exact configuration of the oil pan, turbocharger orientation, and exhaust manifold. Providing this number to HekoPower guarantees that your new Deutz BF4M2012-16E3 engine will drop into your vehicle without requiring custom fabrication.
Assessing Wiring Harness and ECU Compatibility
Modern engine swaps involve electrical integration. BF4M2012-16E3 wiring harness compatibility must be verified against your vehicle's existing cabin harness. The 24V electrical system must communicate seamlessly with the engine control module. BF4M2012-16E3 ECU compatibility ensures that your dashboard gauges, accelerator pedal sensors, and diagnostic ports function correctly after the replacement installation.
Matching Flywheel Housing Compatibility
Physical drivetrain connection is just as important. BF4M2012-16E3 flywheel housing compatibility varies depending on the transmission used in your truck or bus. We help you verify the SAE housing size and starter motor position so your existing manual or automatic transmission bolts up perfectly to the new original BF4M2012-16E3 diesel engine.
Navigating Electronic Unit Pump Troubleshooting
If your current engine is losing power, rule out basic faults before replacing the whole unit. BF4M2012-16E3 electronic unit pump troubleshooting starts with checking fuel supply pressure. The EUP system will fail to build pressure if there is air entering the low-pressure suction lines. Additionally, inspect the wiring harness connectors at each individual pump inside the crankcase block for corrosion.
Evaluating Overhaul or Replacement Pathways
When a severe failure occurs, you must choose between a complete BF4M2012-16E3 overhaul or replacement. Rebuilding an engine with spun bearings or scored cylinders consumes massive amounts of shop labor. In most commercial scenarios, sourcing a BF4M2012-16E3 complete engine assembly from a wholesale engine supplier like HekoPower minimizes vehicle downtime and provides factory-level reliability.
Dispelling Common Powertrain Misconceptions
A frequent misconception involves the origin of the block. Buyers often ask about the Dalian Deutz BF4M2012-16E3. Dalian Deutz manufactures these engines under strict joint-venture licensing using the exact same metallurgy, casting processes, and quality control as European facilities. The reliability and BF4M2012-16E3 spare parts compatibility remain completely identical.
Another misconception is that any engine from the 2012 family will work in a truck. This is false. A generator-drive engine has a fixed-speed governor and will not respond properly to an automotive accelerator pedal. You must explicitly source a BF4M2012 vehicle powertrain engine to ensure proper road performance.
Exploring the Wider Deutz BFM2012 Engine Family
While the 16E3 is perfectly tuned for specific Euro III commercial vehicle applications, fleet operators often manage diverse equipment portfolios. Depending on payload requirements and regional emission mandates, you may require a different power node or physical configuration for other vehicles in your fleet. We carry a comprehensive inventory to support your entire maintenance operation.
Deutz BFM2012-Vehicle Diesel Engine Series, original products from Dalian Deutz Engine Plant. This series mainly includes Deutz BF4M2012-13E3, Deutz BF4M2012-14E3, Deutz BF4M2012-16E3, Deutz BF4M2012-14E4, Deutz BF4M2012-16E4, Deutz BF6M2012-18E3, Deutz BF6M2012-22E3, Deutz BF6M2012-22E3U, Deutz BF6M2012-16E4, Deutz BF6M2012-18E4, Deutz BF6M2012-20E4, Deutz BF6M2012-22E4.
Frequently Asked Questions
What are the exact BF4M2012-16E3 engine dimensions and weight?
A dry Deutz BF4M2012-16E3 engine weight is approximately 390 kilograms. The compact dimensions measure roughly 860mm long, 620mm wide, and 830mm high. This allows it to fit easily between the frame rails of most commercial medium-duty trucks.
What is the expected Deutz BF4M2012-16E3 fuel consumption?
Operating at peak torque, the specific fuel consumption sits around 205 g/kWh. Actual road mileage will depend heavily on the vehicle weight, aerodynamic profile, and final drive gear ratio.
How can I check the Deutz BF4M2012-16E3 engine price?
Because commercial configurations vary by flywheel housing and electrical setup, prices fluctuate. Contact HekoPower directly with your serial number to get an accurate quote to buy a Deutz BF4M2012-16E3 engine for sale.
