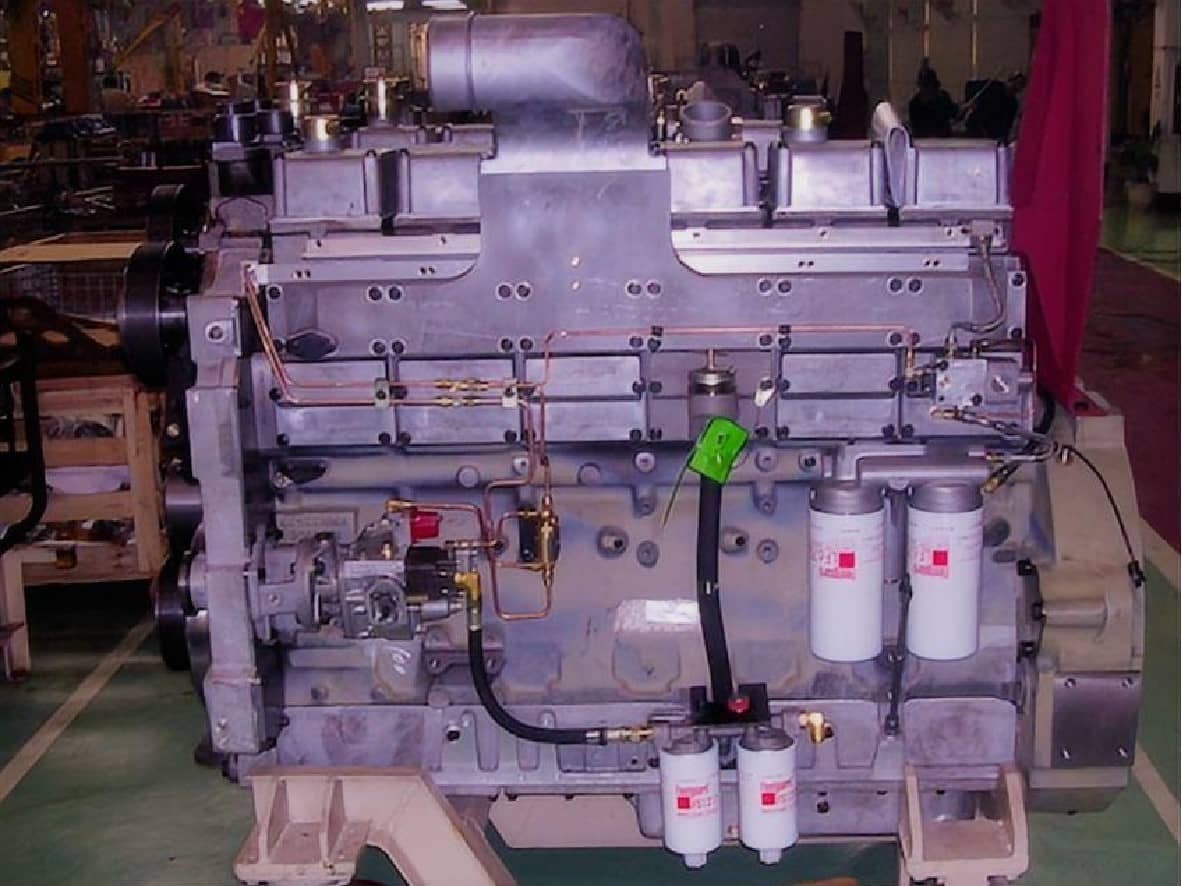

CCEC Cummins KTAA19-G7 664kW Generator Drive Engine Assembly
Finding a reliable heavy duty K19 standby generator engine requires clear technical insight, not generic marketing copy. As an authorized distributor, HekoPower provides factory-tested diesel engine units directly from Chongqing Cummins Engine Company (CCEC). The Cummins KTAA19-G7 emergency backup engine delivers exactly 664kW (890HP) of standby power at 1800RPM, making it a critical asset for power critical industrial settings, grid backup projects, and large-scale engineering procurement contracts (EPC).
Tech Specs of Cummins KTAA19-G7 664kW
General Engine Data
Engine Model: Cummins KTAA19-G7-664KW
Type: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 19 L
Bore * Stroke: 159 * 159
Net Weight: 1927 Kg
Overall Dimension: 1324mm*835mm*1183mm
Key Performance Data
Standby Output: 664 kW/890HP
Rated Speed: 1800 rpm
Low Idle Speed: 675-775 rpm
Fuel Consumption @ Rated Power: 140 L/Kw.h
Engine Type: Standby Output
More Technical Data
Engine Exhaust Manifold: Wet Exhaust manifold
Aspiration: Turbocharged/Aftercooled
Compression Radio: 13:1
Fuel System: Cummins PT Pump, Direct Injection
Starting System: Electrical starting motor (24V)
Cooling Method: Water cooling
Lowest Starting Temp (Without auxiliary system): -12℃
Governor Type: Mechanical Control
Technical Performance and Engine Differences
When evaluating the Cummins K19 series 1800RPM genset engine, procurement managers frequently query how individual model iterations compare regarding mechanical layout and power delivery.
KTAA19-G7 vs KTA19-G5 Power Difference
The structural evolution within the Cummins K19 engine platform focuses primarily on air handling and thermal management. The baseline KTA19-G5 relies on traditional turbocharging and jacket-water aftercooling. This configuration caps its performance capabilities when handling sudden electrical transient loads.
By contrast, the Cummins KTAA19-G7 for industrial power systems integrates true Air-to-Air Aftercooling (often designated via the dual "A" in the model name). By routing compressed air through a dedicated cooling radiator core before it hits the intake manifold, air density increases drastically. This allows the engine to output 664kW of standby power at 1800RPM, whereas the standard G5 model peaks significantly lower under identical 60Hz ambient conditions.
Cummins K19 vs QSK19 Generator Engine
Selecting between the classic K19 mechanical framework and the newer electronic QSK19 sequence presents a distinct operational tradeoff:
- Fuel System Mechanics: The KTAA19-G7 uses the completely mechanical Cummins PT pump fuel system specifications. It relies on physical pressure-time principles, governor weights, and mechanical injectors. The QSK19 utilizes a high-pressure common rail (HPCR) system managed by an electronic control module (ECM).
- Maintenance & Repair Complexity: The mechanical PT pump system on the KTAA19-G7 remains highly preferred for remote mining sites, overseas infrastructure projects, and harsh tropical zones. It requires no specialized diagnostic laptops, handles fluctuating fuel quality without immediate injector failure, and keeps your long-term maintenance overhead remarkably low.
- Transient Response Handling: While the electronic QSK19 adjusts fuel timing millisecond-by-millisecond to cut emissions, the sheer displacement and heavy-duty flywheel inertia of the mechanical K19 deliver identical rugged load acceptance without the risk of electronic sensor faults stalling your system.
1800RPM Cummins KTAA19-G7 Performance Comparison
Running at 1800RPM tunes this specific inline 6-cylinder engine for native 60Hz power generation. The physical dynamics of the 18.9-liter block operating at this speed dictate clear baseline profiles:
- Piston Linear Velocity: At 1800RPM, the piston speed matches roughly 7.9 meters per second within the 159mm x 159mm bore and stroke chambers. This moderate speed reduces ring wear compared to smaller high-revving commercial engines.
- Compression Ratio Efficiency: The 13.0:1 compression ratio provides optimal thermal efficiency without creating excessive cylinder pressures that threaten head gasket sealing during long standby cycles.
Real Sourcing Scenarios for the 664kW Standby Unit
The 664kW rating at 1800RPM targets high-draw installations requiring uninterrupted prime or emergency fallback power profiles.
Cummins KTAA19-G7 for Data Center Generators
Data infrastructure demands an incredibly tight frequency stability tolerance. The KTAA19-G7 block possesses a steady-state stability band of just +/- 0.25%, fulfilling strict Tier III and Tier IV data center backup power regulations. The high torque capacity of the 19-liter displacement ensures that when a grid failure hits, the engine steps up to full load demands within seconds, keeping critical cooling pumps and UPS batteries online.
KTA19 Standby Generator Engine for Hospitals
In clinical backup frameworks, the KTAA19-G7 functions as an absolute emergency safeguard. Its raw mechanical injection architecture ensures immediate starting capabilities even in unassisted low-temperature surroundings down to -12°C. This eliminates reliance on complex networking modules that can fail during unexpected electrical storms.
Industrial, Mining, and Telecom Power Stations
For remote environments, the Cummins KTAA19-G7 heavy duty mining generator engine operates effectively within dusty, high-altitude configurations. Whether acting as a 664kW Cummins engine for telecom power stations or supporting isolated heavy-machinery distribution loops, this powertrain can run continuously under variable loads without rapid oil degradation.
Maintenance, Fuel Calculations, and Lifespan Extension
Preventative field engineering determines whether your emergency powertrain survives past its first decade of active deployment.
Cummins KTAA19-G7 Engine Fuel Consumption at 1800RPM
Accurate fuel logistics prevent premature system shutdowns during extended outages. Under standard 60Hz test configurations utilizing standard No. 2 diesel fuel, real-world consumption maps predictably across loading percentages:
- 100% Standby Load Profile: Consumes roughly 161.2 liters per hour.
- 100% Prime Load Equivalents: Consumes roughly 140.0 liters per hour.
- 75% Operational Load: Consumes roughly 108.3 liters per hour.
KTAA19-G7-B Engine Replacement for 600kVA Generator Set
When a legacy generator block reaches its terminal hours, swapping the core engine assembly remains far more cost-effective than purchasing a brand-new complete genset. The KTAA19-G7 serves as a direct drop-in replacement for worn-out older 600kVA configurations. During changeovers, structural crews must verify the existing flywheel housing alignment (typically SAE 1 formats) and check that the old coupling plates match the rotating mass inertia of the incoming block.
Export Packaging and International Delivery Support
For overseas generator projects, packaging quality and logistics coordination are critical.
The KTAA19-G7 engine assembly can be supplied with:
- export wooden case packaging,
- anti-corrosion protection,
- container loading support,
- factory testing documentation,
- serial number verification.
HekoPower supports international shipments for EPC contractors, generator manufacturers and industrial procurement companies requiring complete export handling services.
Cummins K19-G Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KTA19-G2-336KW, KTA19-G3-403kW, KTA19-G3A-448kW, KTA19-G4-448KW, KTAA19-G5-502KW, KTAA19-G6-570KW, KTAA19-G6A-610KW, KTAA19-G7-610KW, KTA19-G2-392KW, KTA19-G3-463KW, KTA19-G3A-507KW, KTA19-G4-507KW, KTAA19-G5-555KW, KTAA19-G6-620KW, KTAA19-G6A-664KW, KTAA19-G7-664KW, KTAA19-G8-575KW.
Frequently Asked Questions
What is the typical wholesale agent price for Cummins KTAA19-G7 664kw engines?
B2B pricing fluctuates based on currency exchanges, ordering volume, and structural attachments like specific cooling systems or custom alternator couplings. HekoPower operates as a bulk purchase distributor, allowing us to pass direct factory margins down to industrial accounts and engineering project managers. Contact our sales department directly with your exact accessory profile for a firm, itemized commercial quote.
What is the expected CCEC KTAA19-G7 890HP engine lead time and packaging protocol?
Standard manufacturing and testing windows take roughly 15 to 30 business days at the Chongqing plant. For secure international shipping, HekoPower utilizes heavy-duty, moisture-sealed wooden export crates. This prevents maritime humidity from degrading critical fuel pump surfaces or electrical starters during long oceanic transit lines.
Does HekoPower provide full Cummins generator engine for overseas power projects certification?
Yes. Every single KTAA19-G7 assembly undergoes strict factory load testing before leaving the facility. We supply the original CCEC engine certificate, factory-recorded performance test curves, and international warranty coverage documentation to satisfy comprehensive compliance audits.
