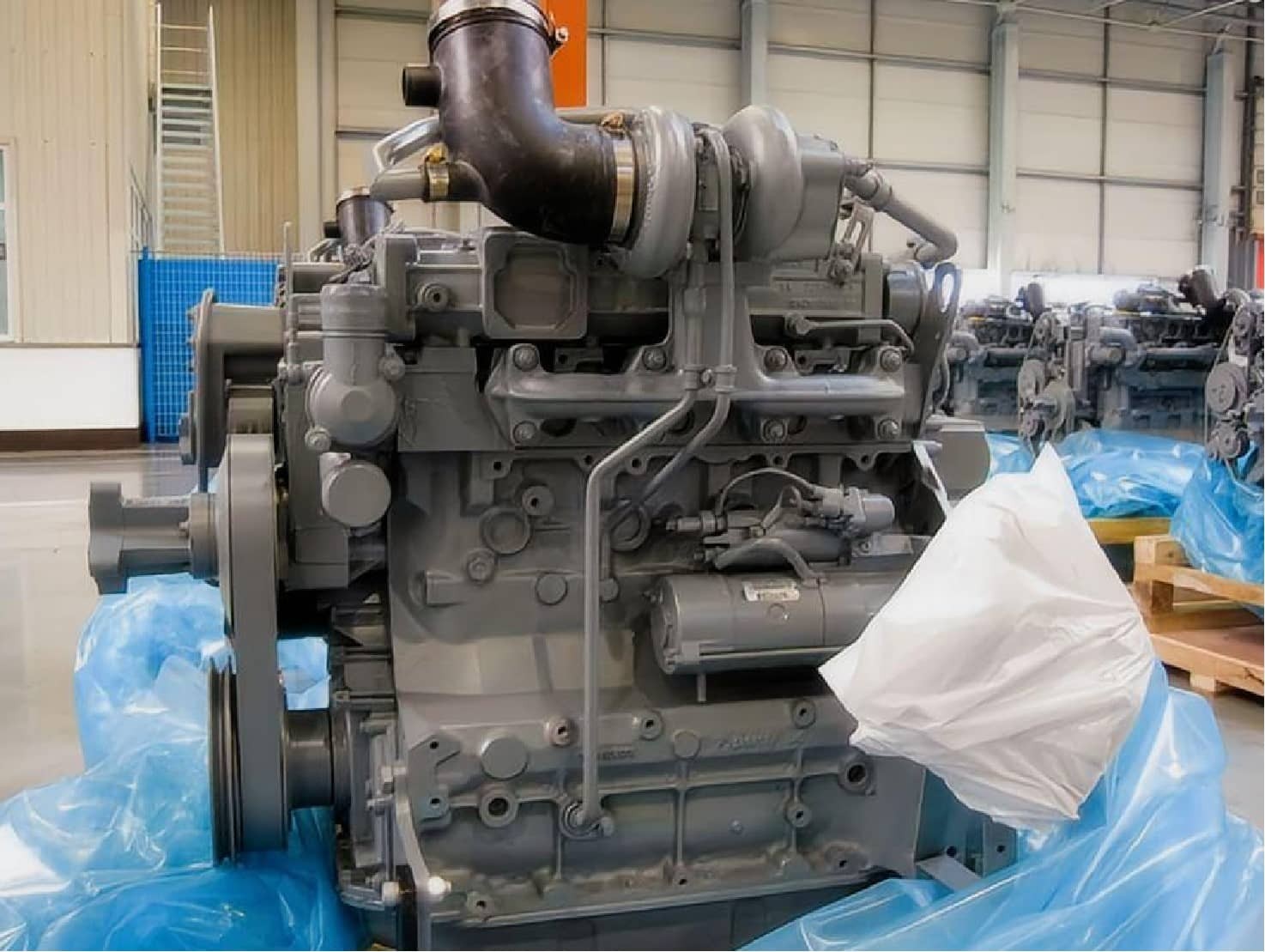

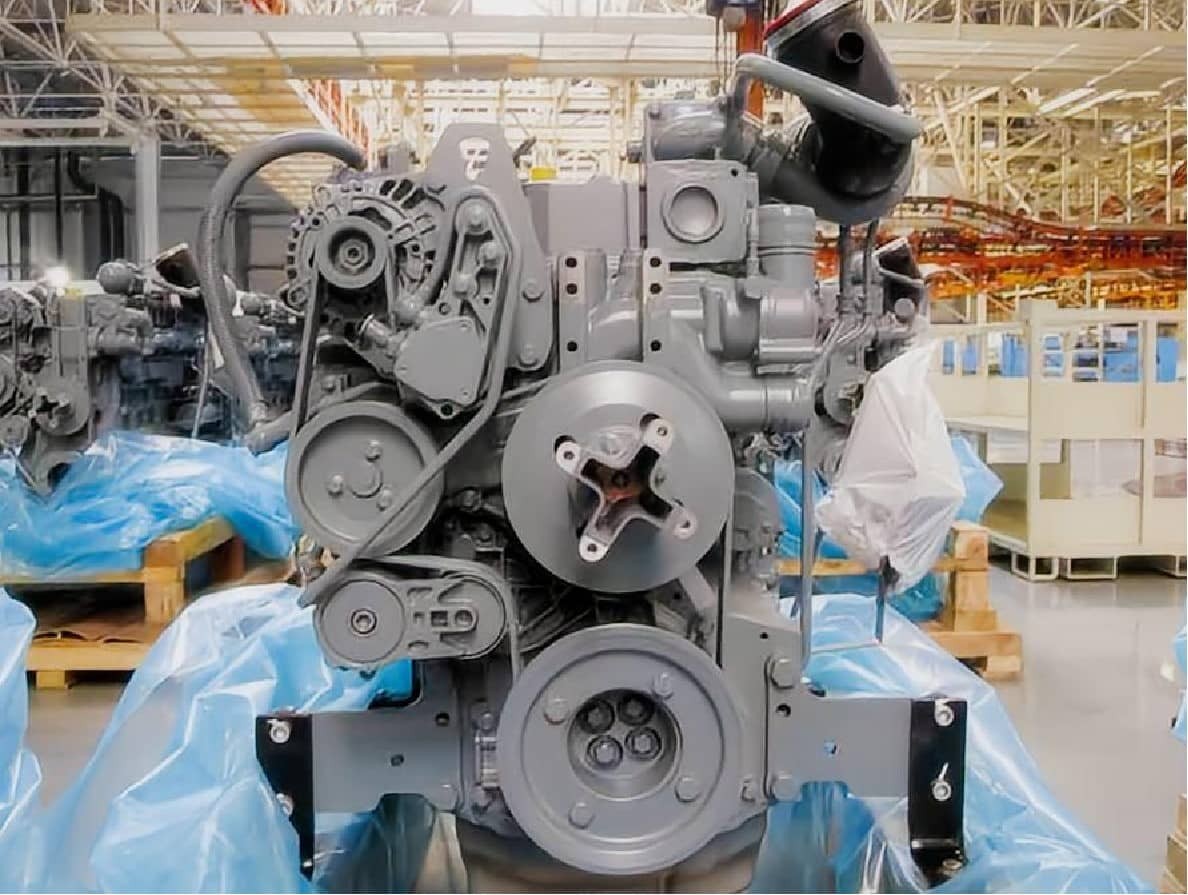

Engineering Overview of the Deutz BF4M2012-16E4 Vehicle Diesel Engine
The Deutz BF4M2012-16E4 stands as a specialized four-cylinder, turbocharged, and charge-air-cooled diesel power unit engineered specifically for medium-duty commercial vehicle service. Generating 121 kilowatts at 2500 revolutions per minute from a 4.04-liter displacement, this engine balances compact installation dimensions with high specific output. Commercial fleet operators and vehicle builders select the BF4M2012-16E4 for regional distribution trucks and specialized utility vehicles where continuous torque delivery under variable urban and highway duty cycles dictates operational efficiency.
Unlike industrial or agricultural variants within the same platform, the vehicle-spec Euro IV configuration utilizes optimized electronic unit pump timing and tailored combustion chambers. These adjustments reduce particulate matter formation during transient throttle shifts while maintaining the robust structural durability expected from the 2012 series architecture.
Tech Specs of Deutz BF4M2012-16E4
General Engine Data
Engine Model: Deutz BF4M2012-16E4
Type: 4 Cylinders, in Line
Displacement: 4.04 L
Bore * Stroke: 101 * 126
Overall Dimension: 799mm*601mm*832mm
Net Weight (with flywheel & alternator): 391 Kg
Key Performance Data
Rated Power: 121 kW/164 HP
Max. Torque/Speed: 530 N.m @ 1500 rpm
Rated Speed: 2500 rpm
Idle Speed: 650-750 rpm
Fuel Consumption @ rated Power: 240.95 g/kw.h
Max. Continuous Running Altitude: 2000 m
Min. Fuel Consumption @ Full-load: 192 g/Kw.h
More Technical Data
Certification: Euro IV
Aspiration: Turbocharged & Aftercooled
Fuel System: Electronic Unit Pump, Direct SCR
Cooling Method: Water Cooled
Starting System: Electronic Starting (12V/24V)
Compression Ratio: 18.4:1
Engine Cooling Fluid Volume: 9 L
Technical Comparisons Within the 2012 Engine Family
Understanding the distinction between the BF4M2012-16E4 and adjacent models within the BFM2012 lineup prevents costly powertrain mismatching during vehicle retrofits or production assembly.
When comparing the vehicle-spec -16E4 to standard construction or generator-drive configurations, the primary divergence lies in the governing strategy and thermal management envelope. Industrial generator engines are calibrated for constant speed operation under steady loads, utilizing mechanical or basic electronic governors optimized for Hz stability. In contrast, the vehicle-spec BF4M2012-16E4 relies on an advanced automotive electronic control unit that governs variable speed curves, exhaust gas recirculation integration, and rapid torque response across a broad operational band.
Furthermore, thermal dissipation pathways differ significantly. The vehicle engine configuration incorporates specific oil pan geometry and auxiliary mounting provisions tailored for cramped truck chassis frames. Attempting to install an industrial surplus block into a commercial truck chassis often introduces severe clearance conflicts with front axle drop arms, steering shafts, and transmission bell housings. HekoPower supplies complete assemblies configured strictly to vehicle OEM dimensions, eliminating the need for hazardous on-site bracket fabrication or flywheel housing modifications.
Real Application Scenarios and Operational Environments
The Deutz BF4M2012-16E4 finds its most effective deployment in medium-duty commercial vehicles operating in demanding municipal and regional transport sectors.
In urban distribution trucks operating at gross vehicle weight ratings between 10 and 16 tons, frequent stop-and-go driving places high thermal stress on the exhaust manifold and turbocharger turbine housing. The integrated water-cooled turbocharger design on the BF4M2012-16E4 mitigates heat soak after extended idle periods in city traffic.
Another primary application involves specialized utility vehicles, such as medium-duty fire apparatus, airport service trucks, and road maintenance chassis. These vehicles demand high power take-off reliability combined with strict adherence to Euro IV emission thresholds. The precise fuel metering provided by the individual electronic unit pumps ensures stable combustion even when auxiliary hydraulic pumps draw continuous auxiliary loads from the engine front timing gear train.
Maintenance, Replacement, and Common Misconceptions
Maximizing the service life of a replacement Deutz BF4M2012-16E4 engine requires strict adherence to scheduled filtration and fuel quality standards. Because this model utilizes high-pressure electronic unit pumps, water contamination in the fuel supply represents the leading cause of premature plunger wear and injector nozzle gumming. Fleet maintenance teams should install primary water-separating fuel filters with a rating of 10 microns or finer ahead of the primary engine-mounted filter assembly.
A common misconception among fleet mechanics is that oil change intervals for urban delivery trucks operating on the BF4M2012-16E4 can match standard long-haul highway schedules. Because urban delivery cycles involve high idle time and frequent fuel dilution from cold starts, oil degradation occurs much faster. Lubricating oil meeting proper Deutz quality classifications must be serviced strictly according to operating hours or fuel consumption volume rather than pure mileage metrics.
Another frequent error during engine replacement is reusing the old viscous fan drive and radiator shroud without verifying airflow clearance. The BF4M2012-16E4 relies on precise fan-to-core alignment to manage thermal rejection under heavy load. A misaligned fan hub will disrupt airflow across the charge-air cooler, leading to elevated intake manifold temperatures and subsequent ECU derating.
As part of HekoPower's comprehensive inventory for commercial vehicle operators and rebuilders, this unit bridges the gap between light utility powerplants and heavy-duty six-cylinder blocks. Deutz BFM2012-Vehicle Diesel Engine Series, original products from Dalian Deutz Engine Plant. This series mainly includes Deutz BF4M2012-13E3, Deutz BF4M2012-14E3, Deutz BF4M2012-16E3, Deutz BF4M2012-14E4, Deutz BF4M2012-16E4, Deutz BF6M2012-18E3, Deutz BF6M2012-22E3, Deutz BF6M2012-22E3U, Deutz BF6M2012-16E4, Deutz BF6M2012-18E4, Deutz BF6M2012-20E4, Deutz BF6M2012-22E4.
Frequently Asked Questions
What transmission bell housings are compatible with the Deutz BF4M2012-16E4 engine assembly?
The engine block utilizes standard SAE flywheel housing dimensions designed to interface directly with medium-duty commercial vehicle manual and automated manual transmissions commonly used in European and Asian truck chassis. Verification of the specific transmission adapter plate is recommended prior to final assembly.
How does the Euro IV emission system interface with the BF4M2012-16E4 fuel injection setup?
The Euro IV configuration utilizes high-pressure individual electronic unit pumps (EUP) managed by an onboard engine control unit to optimize injection pressure and timing without requiring complex common-rail high-pressure rails, ensuring reliable operation with standard commercial diesel fuels.
What is included when ordering a complete BF4M2012-16E4 engine assembly from HekoPower?
A complete assembly includes the core engine block, cylinder head, turbocharger, water pump, exhaust manifold, oil pan, and integrated fuel injection system, delivered fully dyno-tested and ready for chassis installation.
Why does the engine experience power reduction during high-ambient-temperature operations?
The engine control unit monitors intake manifold air temperature via integrated sensors. When ambient temperatures and intercooler outlet temperatures exceed pre-programmed safety thresholds, the ECU automatically adjusts fueling parameters to protect pistons and turbocharger components from thermal fatigue.
