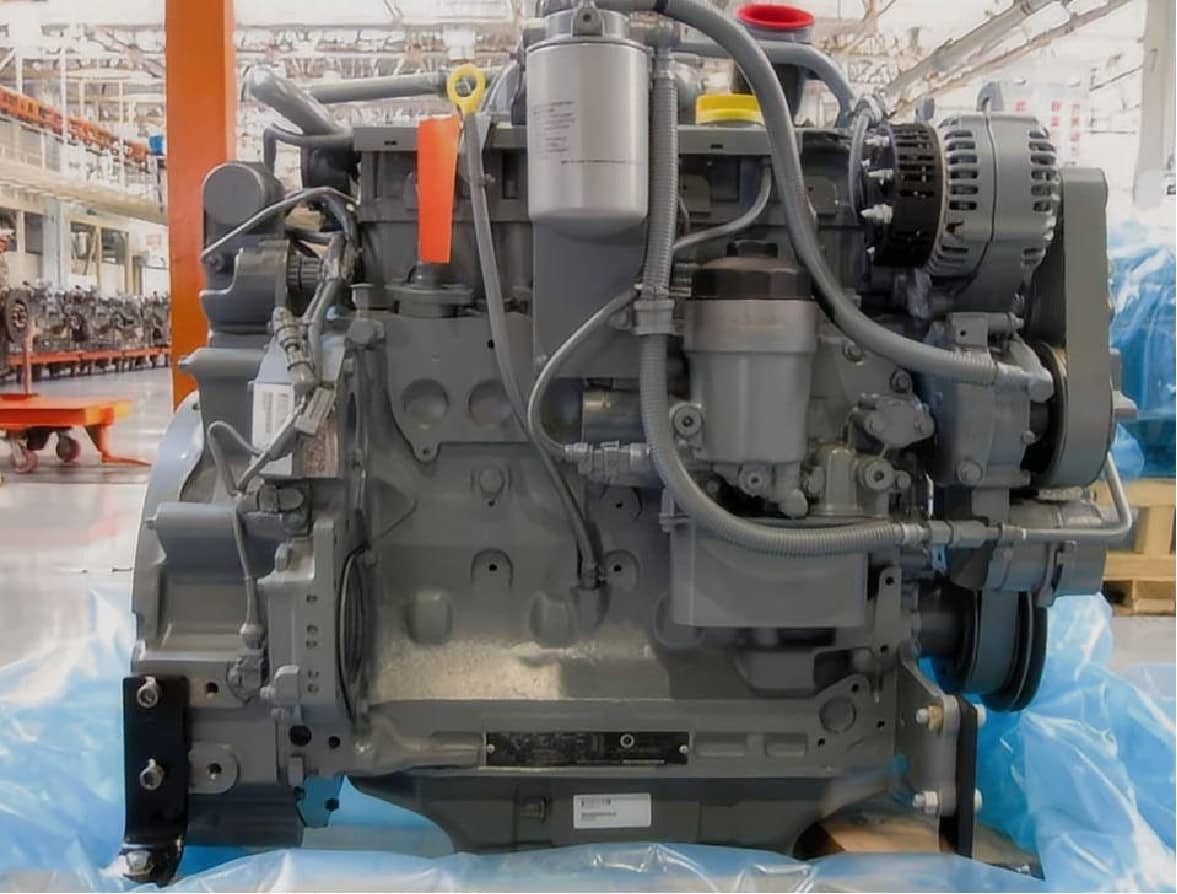

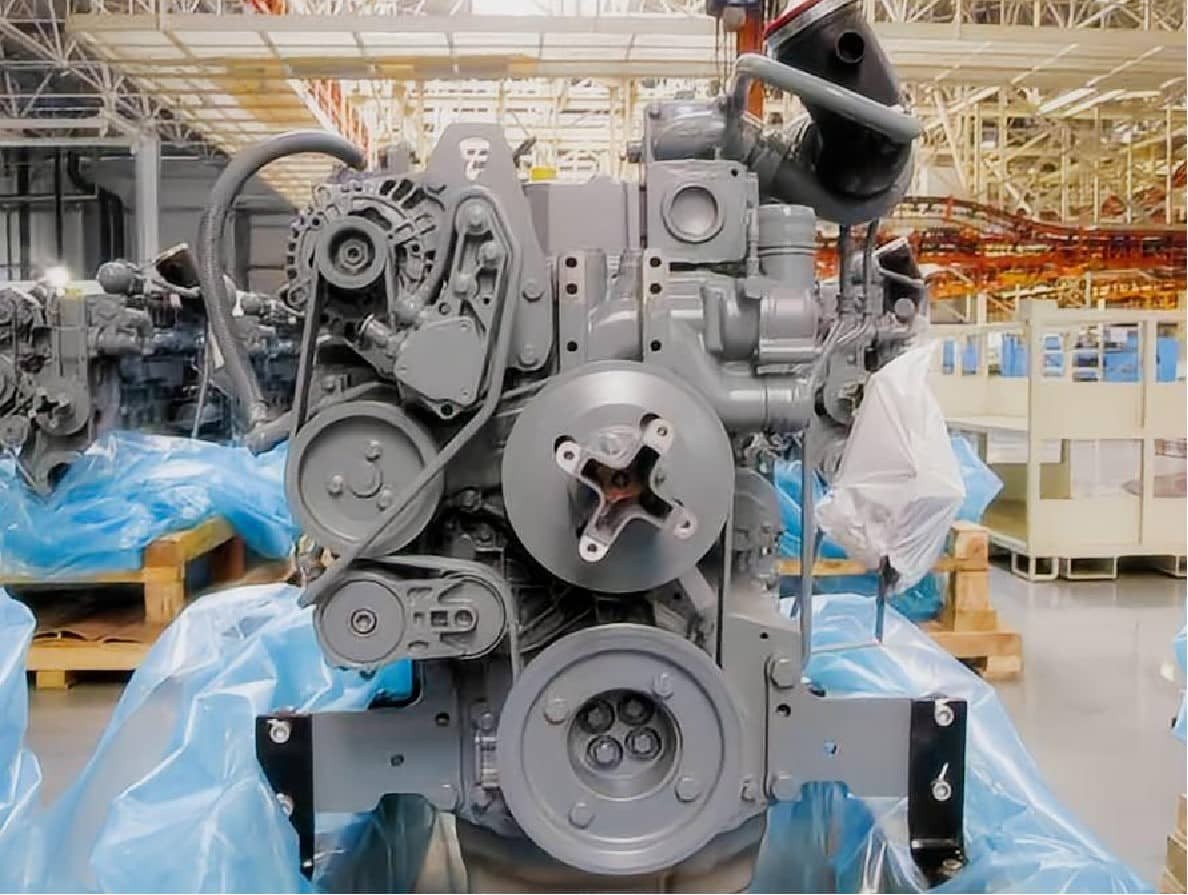

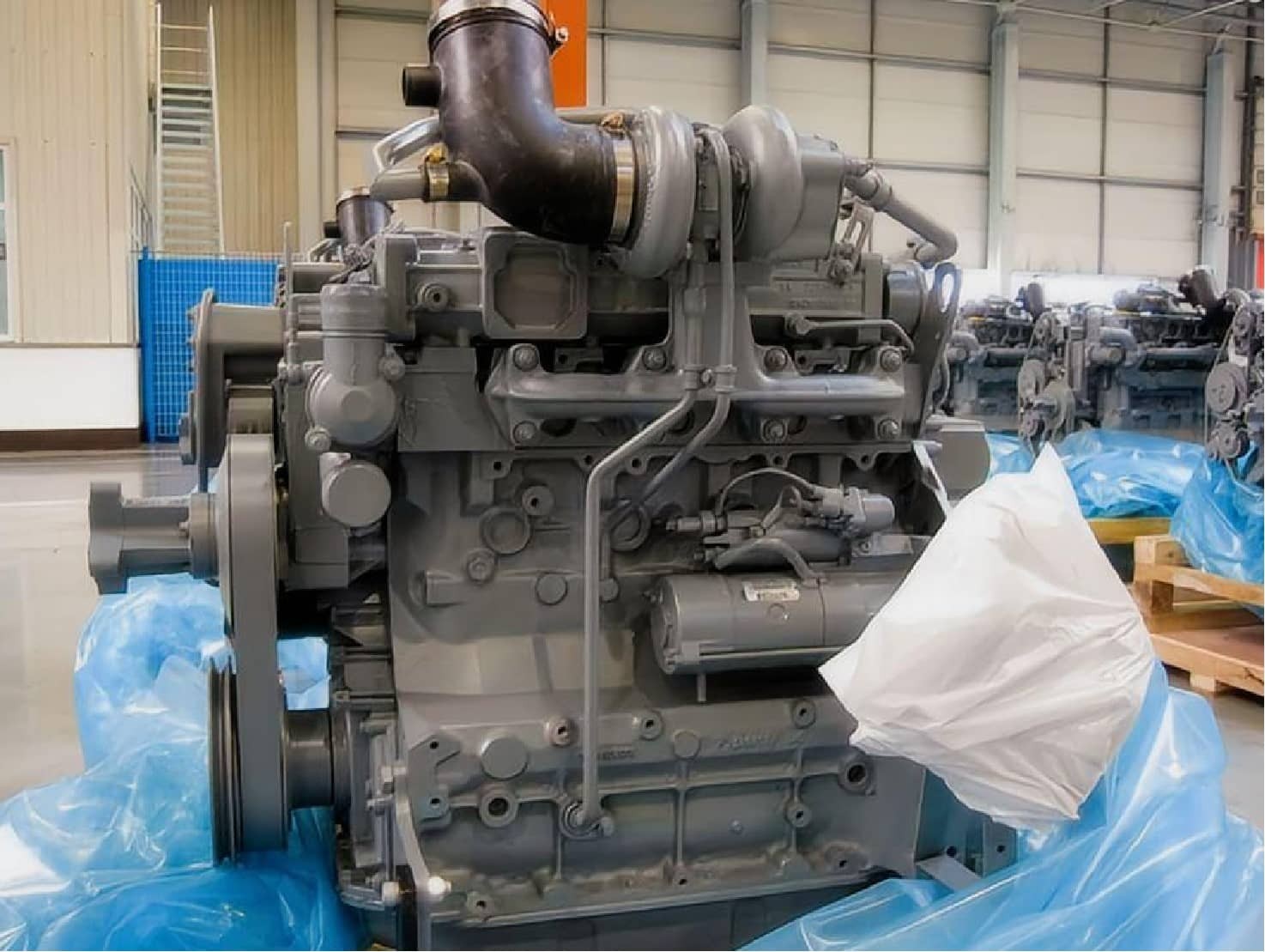

Deutz BF6M2012-22E3U Commercial Vehicle Diesel Engine (160kW / 220HP)
The Deutz BF6M2012-22E3U is a highly specialized inline 6-cylinder diesel motor engineered specifically for the demands of commercial transportation. Rated at 160kW (220 HP) at 2300 rpm, this 6.06L diesel engine provides a robust power solution for medium-duty trucks, urban transit buses, and specialized commercial vehicles. As a dedicated engine supplier, HekoPower provides this complete engine assembly to fleet operators and repair facilities requiring a reliable, high-torque replacement engine that strictly adheres to Euro III emission standards.
Unlike general-purpose industrial motors, the BF6M2012-22E3U vehicle engine is calibrated for dynamic road conditions. The turbocharged aftercooled engine design ensures consistent air density, allowing the electronic unit pump system to deliver precise fuel metering. This results in exceptional fuel economy during long-haul freight operations and reliable acceleration in stop-and-go city traffic.
Tech Specs of Deutz BF6M2012-22E3U
General Engine Data
Engine Model: Deutz BF6M2012-22E3U
Type: 6 Cylinders, in Line
Displacement: 6.06 L
Bore * Stroke: 101 * 126
Overall Dimension: 1027mm*595mm*907mm
Net Weight (with flywheel & alternator): 509 Kg
Key Performance Data
Rated Power: 160 kW/220 HP
Max. Torque/Speed: 750 N.m @ 1500 rpm
Rated Speed: 2300 rpm
Idle Speed: 650-750 rpm
Fuel Consumption @ rated Power: 224.24 g/kw.h
Max. Continuous Running Altitude: 2000 m
Min. Fuel Consumption @ Full-load: 192 g/Kw.h
More Technical Data
Certification: Euro III
Aspiration: Turbocharged & Aftercooled
Fuel System: Electronic Unit Pump, Direct Injection
Cooling Method: Water Cooled
Starting System: Electronic Starting (12V/24V)
Compression Ratio: 18.4:1
Engine Cooling Fluid Volume: 17.5 L
Technical Comparisons Within the Deutz BFM2012 Series
Selecting the correct engine model requires careful attention to the engine suffix codes, as internal components and emission calibrations vary significantly across the series.
When looking at the BF6M2012-22E3U vs BF6M2012-18E3, the primary differentiator is overall power output and application stress capability. While both share the same 6.06L displacement and Euro III compliance, the 180HP variant is governed for lighter duty cycles. The 220HP BF6M2012-22E3U utilizes a heavy-duty turbocharger configuration and reinforced internal cooling galleries to handle the higher thermal loads generated by the extra 40 horsepower. Attempting to use the 180HP version in a heavy truck designed for the 220HP model will result in poor fuel economy and premature engine wear.
Another common evaluation is the BF6M2012-22E3U vs BF6M2012-22E4. Here, the distinction lies entirely in emissions technology. The 22E3U is a Euro III diesel engine, relying on optimized internal combustion and electronic unit pumps to meet regulations. The 22E4 steps up to Euro IV standards, which typically requires external exhaust aftertreatment systems like SCR (Selective Catalytic Reduction). Fleet buyers in regions where Euro III is the local standard strongly prefer the BF6M2012-22E3U because it avoids the added maintenance complexity and urea (AdBlue) requirements of Euro IV systems.
Real Application Scenarios
The application intent of the BF6M2012-22E3U diesel engine for truck and bus platforms is vast. In the logistics sector, it frequently powers medium-duty rigid trucks used for intercity freight delivery. The 750 Nm engine provides the necessary low-end grunt to accelerate away from loading docks fully loaded without excessive clutch slipping.
As an engine for bus applications, specifically city transit buses, this Dalian Deutz BF6M2012-22E3U shines due to its electronic unit pump engine architecture. City buses undergo thousands of acceleration and deceleration cycles daily. The rapid response of the electronic fuel delivery minimizes black smoke during hard acceleration from bus stops, ensuring passenger comfort and compliance with urban air quality ordinances.
Maintenance Schedule and Lifespan Extension Tips
Adhering to a strict maintenance schedule for Deutz Euro III commercial truck engines is the only way to guarantee a long operational lifespan. Routine oil changes should utilize high-shear stability diesel engine oils that can handle the soot loading typical of Euro III combustion.
The electronic unit pumps are highly sensitive to fuel contamination. HekoPower strongly recommends installing secondary water separators and replacing fuel filters at every service interval. Neglecting fuel cleanliness will rapidly degrade the unit pumps, leading to a loss of the full 160 kW output and increased fuel consumption. Furthermore, technicians must regularly inspect the turbocharger plumbing. Even a minor boost leak in a turbocharged aftercooled engine will cause the ECU to over-fuel the cylinders, leading to elevated exhaust gas temperatures and potential piston damage.
Common Misconceptions About the BF6M2012-22E3U
A frequent misunderstanding among procurement teams is confusing the electronic unit pump system with high-pressure common rail (HPCR) technology. While both are electronic, the unit pump system on the BF6M2012-22E3U utilizes individual pumps driven by the engine camshaft. This robust design is highly tolerant of varying fuel qualities found in export markets, making it a much more durable choice than sensitive common rail systems when operating outside of regions with ultra-low sulfur diesel.
Another misconception is that any 6-cylinder BFM2012 engine can drop into any chassis. While the block dimensions are similar, the oil pan configurations, flywheel housings, and accessory drives are highly tailored to whether it is a truck engine or a bus engine. Always verify your original engine dataplate before ordering a complete engine assembly.
Exploring the Broader Engine Family
As an established engine supplier, HekoPower understands that different commercial vehicles require distinct power nodes and configurations. If the 160kW output of the 22E3U exceeds your specific chassis requirements, or if you are repairing a vehicle engineered for a different emissions tier, exploring the broader Dalian Deutz family is essential for a seamless installation.
Deutz BFM2012-Vehicle Diesel Engine Series, original products from Dalian Deutz Engine Plant. This series mainly includes Deutz BF4M2012-13E3, Deutz BF4M2012-14E3, Deutz BF4M2012-16E3, Deutz BF4M2012-14E4, Deutz BF4M2012-16E4, Deutz BF6M2012-18E3, Deutz BF6M2012-22E3, Deutz BF6M2012-22E3U, Deutz BF6M2012-16E4, Deutz BF6M2012-18E4, Deutz BF6M2012-20E4, Deutz BF6M2012-22E4.
Frequently Asked Questions (FAQs)
How do I identify a Deutz BF6M2012 engine model to ensure compatibility?
Deutz BF6M2012 engine model identification is done via the engine dataplate, typically riveted to the cylinder block or valve cover. You must locate the exact serial number and model code (e.g., 22E3U). Supplying this information to HekoPower ensures we match the correct fuel calibration and flywheel housing for your specific vehicle.
Does HekoPower offer the Deutz BF6M2012-22E3U for sale to international markets?
Yes, HekoPower operates as a global Deutz BF6M2012-22E3U supplier. We manage logistics as an export supplier for both individual BF6M2012-22E3U replacement diesel engine orders and wholesale engine bulk shipments for fleet repowering projects.
Why choose a complete engine replacement over rebuilding an old unit?
Opting for a BF6M2012-22E3U complete engine assembly drastically reduces vehicle downtime. Rebuilding a heavily worn commercial vehicle diesel engine can take weeks and may uncover hidden block damage. A complete replacement from HekoPower drops directly into the chassis, allowing your commercial asset to return to revenue-generating operations almost immediately.
