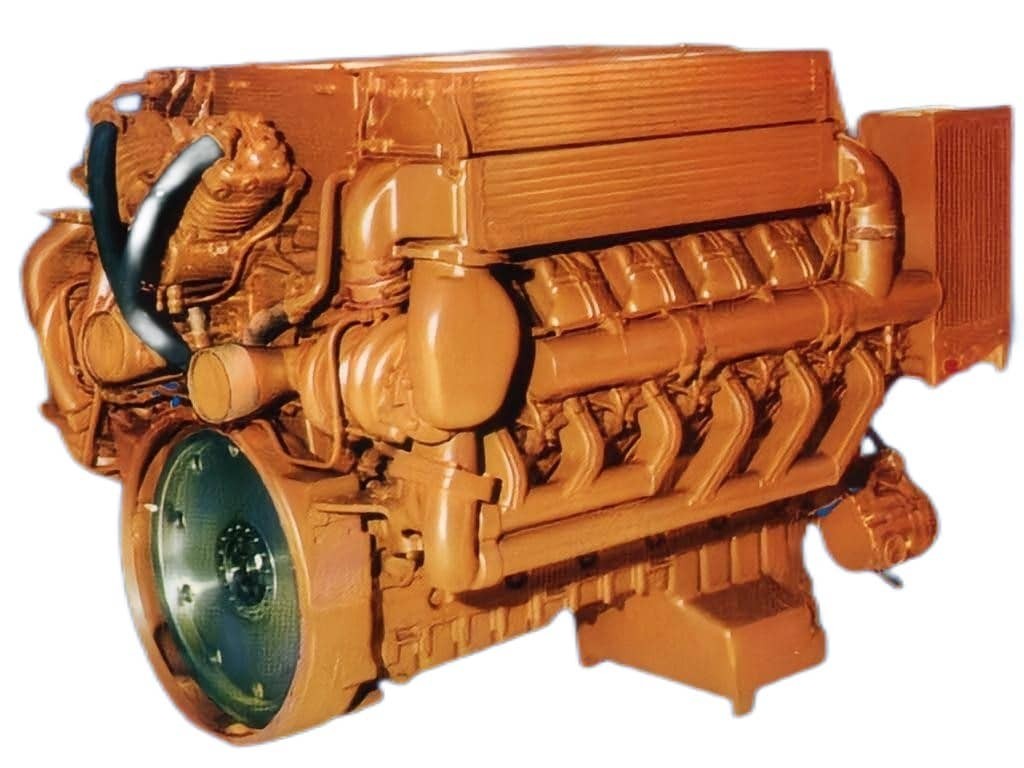

Deutz BF12L413F Construction Engine
The Deutz BF12L413F Construction Engine stands out as an exceptional heavy-duty power unit designed specifically for uncompromising industrial applications. Built on the proven Deutz FL413-FL513 Construction Diesel Engine platform, this massive 19.144L Deutz V12 air-cooled diesel engine delivers reliable performance where water-cooled engines fail.
As a premier global engine distributor, HekoPower provides this complete BF12L413F complete engine assembly for heavy machinery fleets worldwide.
Tech Specs of Huachai Deutz BF12L413F
General Engine Data
Engine Model: Deutz BF12L413F-Construction Diesel Engine
Type: 12 Cylinders in Line, V Type
Displacement: 19.144 L
Bore * Stroke: 125 * 130
Net Weight (with flywheel & alternator): 1120 Kg
Overall Dimension: 1575mm*1038mm*956mm
Key Performance Data
Rated Power: 154-261 KW
Rated Speed: 1500-2500 rpm
Max Torque/Speed: 1120 N.m @ 1500 rpm
Min Fuel Consumption @ Full Load: 216 g/Kw.h
Idle Speed: 600 rpm
More Technical Data
Certification: Euro II
Aspiration: Natural Aspirated
Fuel System: Direct Injection Pump
Compression Ratio: 18:1
Governor Type: Mechanical/Electronic Governor
Cooling Method: Air Cooled
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Engineering Deep-Dive: Air-Cooled vs. Water-Cooled Engines
When evaluating an air-cooled Deutz V12 construction engine against standard water-cooled machinery, industrial buyers must look past raw horsepower and focus on long-term survivability. Competitor sites like engine-family.com or coopalpower.com often fail to explain why the air-cooled architecture remains a dominant force in mining and heavy earthmoving applications.
The Vulnerability of Liquid Systems
Water-cooled engines rely on an interconnected chain of vulnerable components: radiators, water pumps, coolant lines, thermostats, and anti-freeze mixtures. A single stone chip to a radiator core or a degraded water pump seal instantly halts a multi-million-dollar construction operation.
The Deutz BF12L413F Air-Cooled Engine bypasses these risks entirely. By using a high-velocity integrated cooling blower driven directly by the crankshaft, the engine forces high-volume airflow across deeply finned individual cylinder barrels. There are no coolant jackets to crack, no water leaks to trace, and no cavitation erosion on cylinder liners.
Thermal Resilience in Severe Environments
Liquid-cooled engines struggle at both ends of the thermometer. In freezing conditions, operators face frozen blocks, cracked heads, and extended idling times. In extreme desert heat, cooling systems experience massive pressure scaling and boil-overs.
The Deutz BF12L413F Industrial Engine is thermally stable from sub-zero mountain ranges to high-heat desert operations. Because air cooling allows internal engine walls to run at higher, more thermodynamically efficient temperatures, fuel vaporization improves. This directly reduces cold-start wear and prevents oil sludge formation under continuous heavy loads.
Real-World Heavy Machinery Application Scenarios
The Huachai Deutz BF12L413F construction engine is not a generic power plant. It is structurally engineered to endure high vibrations, steep operational angles, and high ambient dust loads typical of major infrastructure projects.
Open-Pit Mining Equipment
Mining environments put immense structural strain on power blocks. The massive torque reserve of this V12 engine makes it an ideal Deutz BF12L413F engine for mining machinery, including underground haul trucks and high-capacity ventilation backup packs. The lack of a liquid radiator means airborne rock dust won't clog or pit the cooling fins, drastically dropping accidental downtime.
Heavy-Duty Earthmoving Machinery
Earthmoving projects require continuous, predictable power bands to handle sudden resistance variations. Fleet managers frequently source this power unit as a drop-in Deutz BF12L413F engine for bulldozers and heavy tracked scrapers. The engine's structural V12 crankcase absorbs high torsional shock, protecting the connected hydraulic pump drives from premature fatigue.
Infrastructure Cranes and Lift Equipment
High-capacity mobile cranes require stable power to safely operate heavy hydraulic winches and counterweights. This makes the unit a trusted Deutz BF12L413F engine for cranes, ensuring zero power sagging during critical tandem lifts.
Compaction and Foundation Engineering
Continuous high-frequency vibrations destroy traditional radiator mountings within weeks. Because of its rigid, unified structure, this engine excels when deployed as a:
- Deutz BF12L413F engine for road rollers and heavy vibratory compactors.
- Deutz BF12L413F engine for excavators working with heavy hydraulic breakers.
- Deutz BF12L413F engine for wheel loaders handling high-tonnage aggregate stockpiles.
Fleet Maintenance, Diagnostics, and Engine Replacement Tips
Maintaining a Deutz BF12L413F heavy-duty diesel engine requires moving away from traditional water-cooled habits. To maximize your investment, your maintenance teams should focus on clear structural pathways.
Essential Cooling Fin Maintenance
Since air is the sole cooling medium, keeping the heat-exchange surfaces clean is vital. Dust, grease, and debris build-up create an insulating blanket over the cylinders, causing localized hot spots.
Your service crews must regularly remove the side inspection shrouds and blast out the cooling fins using compressed air or a high-pressure wash. Pay close attention to the cylinder heads closest to the flywheel, as these sit furthest from the main cooling fan.
Mechanical Fuel System Optimization
The mechanical fuel injection Deutz BF12L413F system is prized for its lack of complex electronic sensors, meaning it can run reliably on varying fuel qualities. However, water contamination remains its main threat.
Install a high-quality fuel-water separator before the primary lift pump. Check the injection pump oil reservoir during every service interval, as it requires manual oil level checks separate from the main oil pan.
Complete Assembly Replacement Guidelines
When a machine's core power unit fails, swapping individual components down to the bare block can keep an asset offline for weeks. Sourcing a BF12L413F OEM replacement power unit or a new Deutz BF12L413F engine assembly from HekoPower drastically cuts down swap times.
Before dropping the replacement assembly into your machine's chassis, verify the flywheel housing alignment and inspect the rubber anti-vibration engine mounts. Distorted mounts twist the engine block under heavy loads, leading to main bearing failure.
Global Procurement and Logistics with HekoPower
Finding a reliable OEM Deutz BF12L413F engine supplier involves evaluating production quality, warranty coverage, and international shipping capabilities. HekoPower fills the gap left by generic listing sites by managing the entire export supply chain.
Sourcing Genuine Licensed Production
Every unit supplied is a genuine Deutz BF12L413F engine manufactured under strict licensing agreements by Huachai Deutz. This ensures all internal components—from the forged crankshaft to the precise injection nozzles—match original design specifications exactly. This absolute compliance gives you access to a global network of Deutz BF12L413F spare parts supplier options without fitment issues.
Wholesale Fleet Pricing and Worldwide Export
We work directly with industrial contractors, mining firms, and machinery rebuild centers to offer a competitive Deutz BF12L413F wholesale price. We handle the packaging and heavy export crates required to export Deutz BF12L413F engine worldwide, ensuring your power unit arrives free of corrosion and ready for immediate field installation.
Deutz FL413-Construction Diesel Engine Series, original products from Huachai Deutz Engine Plant. This series mainly includes Deutz F8L413F, Deutz BF8L413FC, Deutz BF12L413F, Deutz F10L413F, Deutz BF8L513FC, Deutz BF10L513, Deutz BF12L513, Deutz BF12L513C.
Frequently Asked Questions
What are the main warning signs that a Deutz BF12L413F needs an overhaul?
Unusual exhaust smoke profiles provide the earliest warning signs. Dense blue smoke indicates oil passing worn piston rings or valve guides. Thick black smoke usually points to a failing mechanical fuel injector or a restricted turbocharger inlet.
If you notice a sudden drop in oil pressure when the engine reaches normal operating temperatures, it is time to check your main bearings and look into a Deutz BF12L413F overhaul engine kit or complete replacement assembly.
Can I replace a water-cooled engine with an air-cooled Deutz BF12L413F assembly?
Yes, you can replace Deutz BF12L413F construction engine setups into equipment bays originally designed for water-cooled units. This change simplifies your engine compartment by removing the radiator, hoses, and expansion tanks.
The main engineering detail to watch is ensuring adequate airflow paths. The engine bay must have large enough intake vents to feed the cooling blower and clear exhaust ducts to remove heated air away from the machine's frame.
Where can I get deep technical repair documentation?
HekoPower offers comprehensive Deutz BF12L413F service manual support and a detailed Deutz BF12L413F maintenance guide with every engine assembly purchase. Our technical support team is always available to help your field mechanics with torque sequences, valve clearance steps, and a BF12L413F troubleshooting guide tailored to your specific application.
