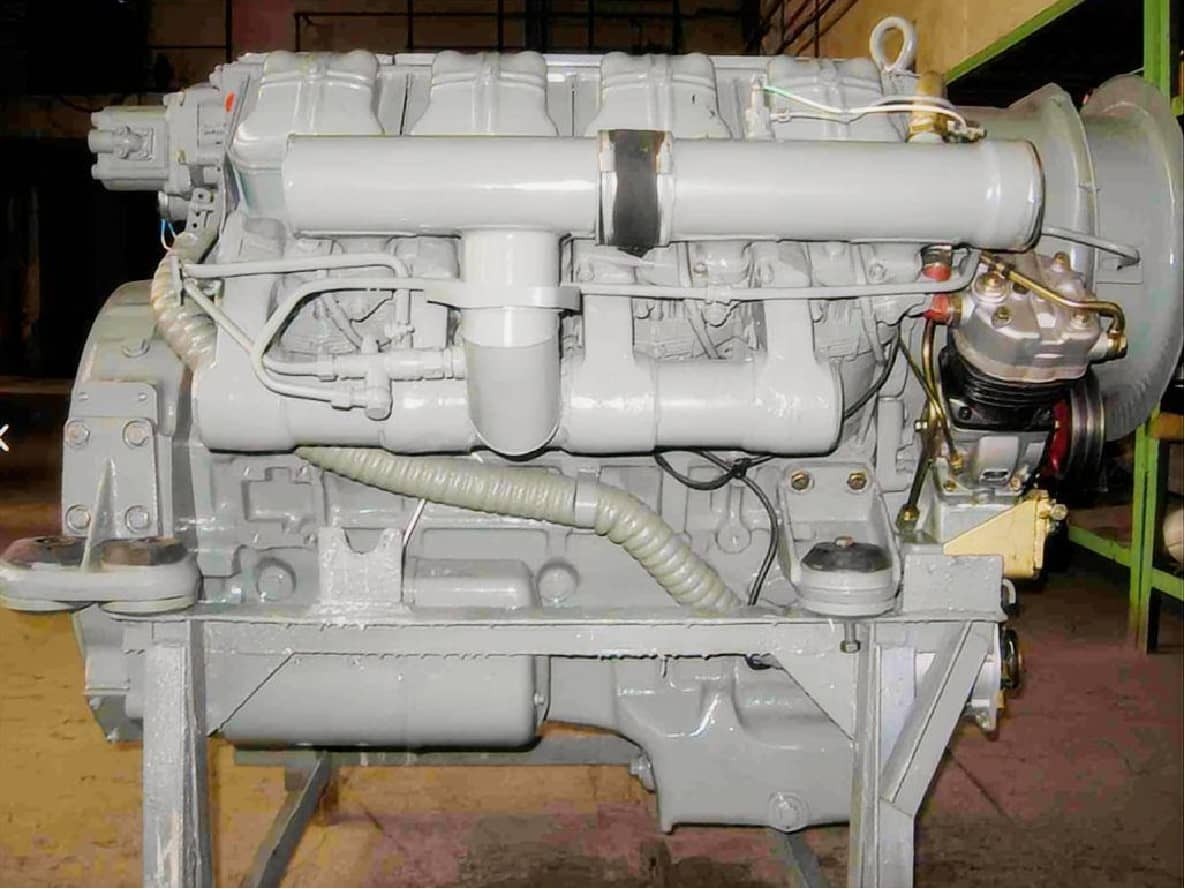

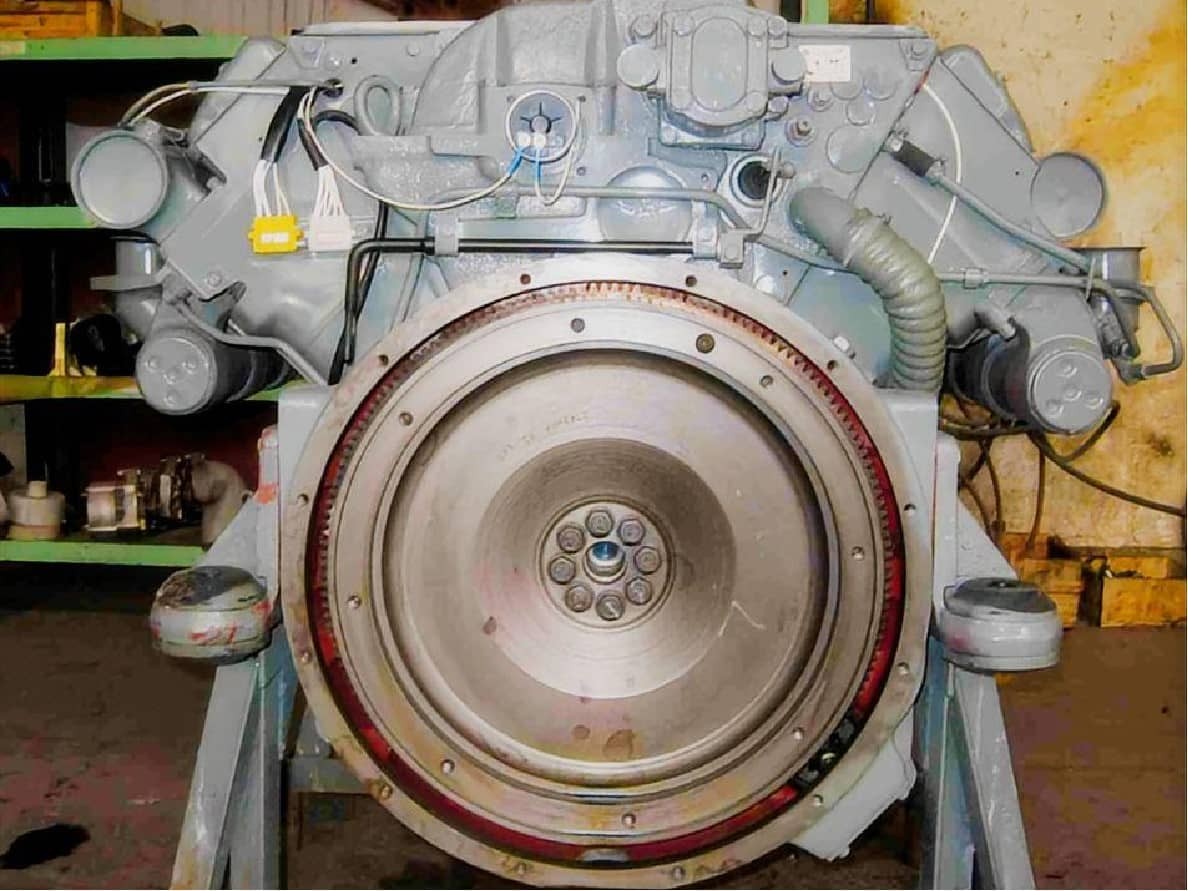

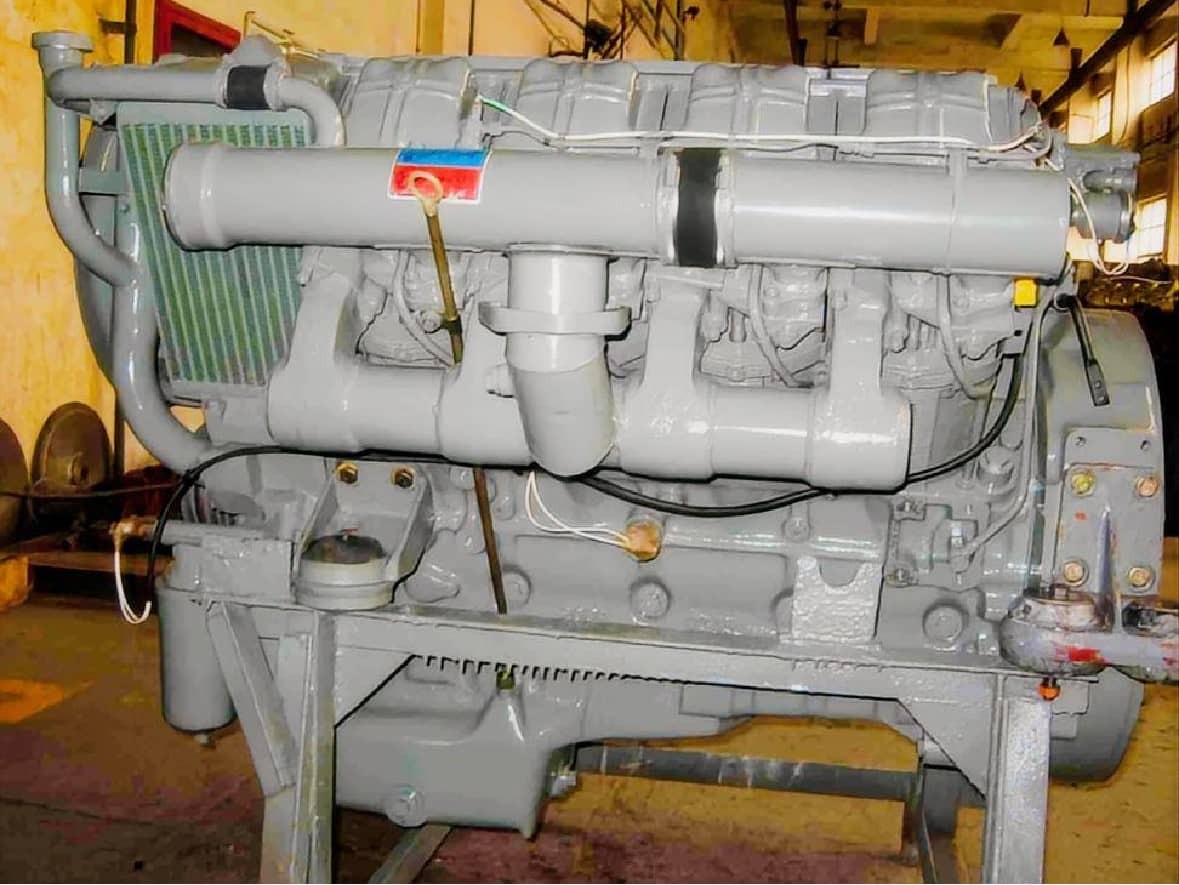

Deutz F8L413F Construction Diesel Engine: Complete Technical Configuration & Replacement Guide
The Deutz F8L413F Construction Diesel Engine is a heavy-duty powerhouse engineered specifically for harsh industrial settings. As a specialized Huachai Deutz engine supplier, HekoPower provides complete, factory-fresh engine units built to original specifications.
Whether your heavy equipment requires an emergency field replacement or a planned fleet overhaul, this modular V8 platform eliminates the plumbing failures, coolant leaks, and radiator vulnerabilities common to water-cooled blocks.
Tech Specs of Deutz F8L413F Construction Diesel Engine
General Engine Data
Engine Model: Deutz F8L413F-Construction Diesel Engine
Type: 8 Cylinders, V Type
Displacement: 12.763 L
Bore * Stroke: 125 * 130
Net Weight (with flywheel & alternator): 770 Kg
Overall Dimension: 1211mm*1038mm*860mm
Key Performance Data
Rated Power: 103-174 KW
Rated Speed: 1500-2500 rpm
Max Torque/Speed: 760 N.m @ 1500 rpm
Min Fuel Consumption @ Full Load: 214 g/Kw.h
Idle Speed: 600 rpm
More Technical Data
Certification: Euro II
Aspiration: Natural Aspirated
Fuel System: Direct Injection Pump
Compression Ratio: 18:1
Governor Type: Mechanical/Electronic Governor
Cooling Method: Air Cooled
Electrical System (Starter Motor/Alternator): Electronic Starting (24V)
Technical Analysis of the Air-Cooled V8 Platform
Understanding the unique design of this 12.763L power plant helps procurement teams verify its drop-in compatibility for heavy equipment.
Structural Advantages of the V8 Air-Cooled Layout
The backbone of the Huachai Deutz F8L413F is its V-configuration 8-cylinder footprint. Unlike inline engines, this V8 design shortens the crankshaft length, reducing torsional vibration under violent load spikes.
Because it is an industrial air-cooled diesel engine, cooling fins are cast directly onto the individual cylinders and cylinder heads. An integrated axial cooling fan, driven directly by the gear train, forces air through optimized ducting. This layout removes the water pumps, thermostats, hoses, and radiators entirely from your mechanical failure points.
Power Delivery and Aspiration Performance
Operating as a Deutz F8L413F naturally aspirated engine, power delivery remains exceptionally linear. Without the lag associated with turbocharger spooling, the engine responds instantly to hydraulic demand. This predictable torque rise makes it highly valued in precision lifting and heavy digging machinery, where sudden engine stalls cause massive site delays.
Real Application Scenarios Across Heavy Industries
The versatility of the Deutz FL413 construction engine family stems from its high power-to-weight ratio and self-contained cooling layout.
Heavy Lifting and Foundation Machinery
Cranes require predictable torque at low engine speeds to manage heavy loads safely.
- Deutz F8L413F engine for crawler cranes: Provides smooth swing and winch control during slow, maximum-capacity lifts.
- Deutz F8L413F engine for drilling rigs: The air-cooling fan blows dust away from the engine bay, keeping the block clean during deep piling work.
Earthmoving and Material Handling Equipment
Constant cycling from forward to reverse places high thermal stress on conventional water-cooled engines.
- Deutz F8L413F engine for wheel loader units: Handles rapid engine acceleration without spiking temperatures.
- Deutz F8L413F engine for excavator applications: The compact V8 engine footprint fits perfectly into narrow swing radiuses.
- Deutz F8L413F engine for bulldozer deployments: Withstands extreme chassis twisting while pushing heavy material.
Infrastructure and Site Support Systems
For continuous operation on roadwork and mining sites, this engine acts as the primary power source for multiple machine classes.
- Deutz F8L413F engine for road roller units: Resists the constant high-frequency vibration of asphalt compactors.
- Deutz F8L413F engine for compressor applications: Runs reliably at stable RPM thresholds for long shifts.
Technical Comparison: Why Select the F8L413F Over Newer Water-Cooled Units?
When choosing a construction machinery diesel engine replacement, you must weigh the simplicity of classic engineering against the complexity of modern setups.
Eliminating Coolant-System Failure Modes
Modern liquid-cooled engines offer tight emission footprints but introduce dozens of sensor and piping failure points. In remote mining environments, a minor radiator crack can destroy a block in minutes. The Deutz F8L413F V8 air-cooled engine dimensions allow it to replace bulky liquid-cooled blocks, freeing up structural room inside engine compartments.
Ambient Temperature Tolerance limits
Water-cooled machinery faces freezing risks in sub-zero winters and boil-overs in desert operations. The air-cooling mechanism of the F8L413F operates efficiently from arctic regions to deep underground mining shafts, where ambient air temperatures are notoriously high.
Maintenance, Troubleshooting, and Replacement Tips
Maximizing the lifespan of your genuine Deutz F8L413F engine requires specific mechanical practices that differ significantly from liquid-cooled maintenance.
Managing Air-Cooling Fins and Airflow Path
The most vital task in air-cooled diesel engine maintenance is keeping the cooling pathways clear. Dust, oily sludge, and debris must never accumulate on the cylinder fins. If a layer of crust forms on the metal fins, it acts as insulation, trapping heat and potentially causing scuffed pistons. Use compressed air or a high-pressure washer during every major service interval to clean the cooling block.
Checking Injection Timing and Valve Lash
Because the V8 configuration experiences distinct thermal expansion across both cylinder banks, maintaining precise valve clearance is essential. Check valve lash according to your official Deutz F8L413F maintenance guide parameters. Incorrect clearances alter compression levels and cause uneven cylinder firing, accelerating gear train wear.
Step-by-Step Engine Replacement Preparation
When using this unit as a Deutz F8L413F service replacement, verify these critical check-points before lowering the new block onto the chassis mounts:
- Check Flywheel Housing Alignment: Ensure the SAE housing matches your existing hydraulic pump drive or torque converter box.
- Inspect Air Intake Ducting: Replace brittle rubber intake hoses to prevent raw site dust from bypassing the air filters.
- Clean Exhaust Manifold Flanges: Remove any scaling from old pipes to prevent backpressure bottlenecks on the V8 exhaust banks.
- Calibrate Fuel Supply Pressure: Verify the primary lift pump delivers fuel at correct pressures to prevent cavitation inside the injection pump.
Supply Chain, Procurement, and Logistics Framework
Sourcing heavy machinery parts requires clear supply chain transparency to minimize costly downtime.
OEM Sourcing Against Counterfeit Risks
Finding where to buy genuine Huachai Deutz F8L413F units requires dealing with verified manufacturing pipelines. As an established OEM Deutz engine supplier, HekoPower delivers completely built engines using authentic components. This prevents the timing gear breakages, inferior bearing tolerances, and premature seal leaks common with unverified aftermarket rebuilds.
International Shipping and Packaging Standards
As an international China Deutz F8L413F exporter, HekoPower ensures all complete engine assemblies are prepared for long-distance transport. Every engine undergoes rigorous dyno testing before preservation oil is added, sealing the internal chambers. The units are then bolted to heavy-duty steel-reinforced skids and crated in export-grade wooden cases to prevent shifting or moisture damage during transit.
Deutz FL413-Construction Diesel Engine Series, original products from Huachai Deutz Engine Plant. This series mainly includes Deutz F8L413F, Deutz BF8L413FC, Deutz BF12L413F, Deutz F10L413F, Deutz BF8L513FC, Deutz BF10L513, Deutz BF12L513, Deutz BF12L513C.
Frequently Asked Questions Regarding the Deutz F8L413F
What are the precise 12.763L Deutz industrial engine oil requirements?
This engine requires high-quality heavy-duty diesel engine oil designed to withstand elevated operating temperatures. Due to the high heat cycles of air-cooled blocks, do not use low-viscosity oils meant for passenger cars. Stick strictly to the temperature-viscosity charts in your manual, typically using a 15W-40 weight oil under normal operating conditions.
Can I source specific Deutz F8L413F overhaul parts through HekoPower?
Yes. Beyond supplying complete units, HekoPower acts as a dedicated Deutz F8L413F spare parts supplier. We stock everything from cylinder liners and piston rings to individual gaskets, fuel injectors, and complete overhaul kits to keep your machinery running.
How does the Huachai Deutz F8L413F compare to German manufactured units?
Hebei Huachai manufactures these engines under an official license partnership, ensuring they use the exact same blueprints, metallurgical standards, and tolerances as the original German design. This means a genuine Huachai Deutz F8L413F functions as a precise drop-in replacement for old German-built engines, utilizing identical mounting brackets and power take-off options.
What is the typical lead time for a new Deutz F8L413F for sale?
Lead times vary based on stock status and required specifications. As a high-volume Deutz F8L413F wholesale supplier, we keep complete base engines ready for customization. Once we confirm your auxiliary component requirements (such as starter motors, alternators, or flywheel setups), the finished unit is typically crated and cleared for port delivery within 7 to 14 business days.
