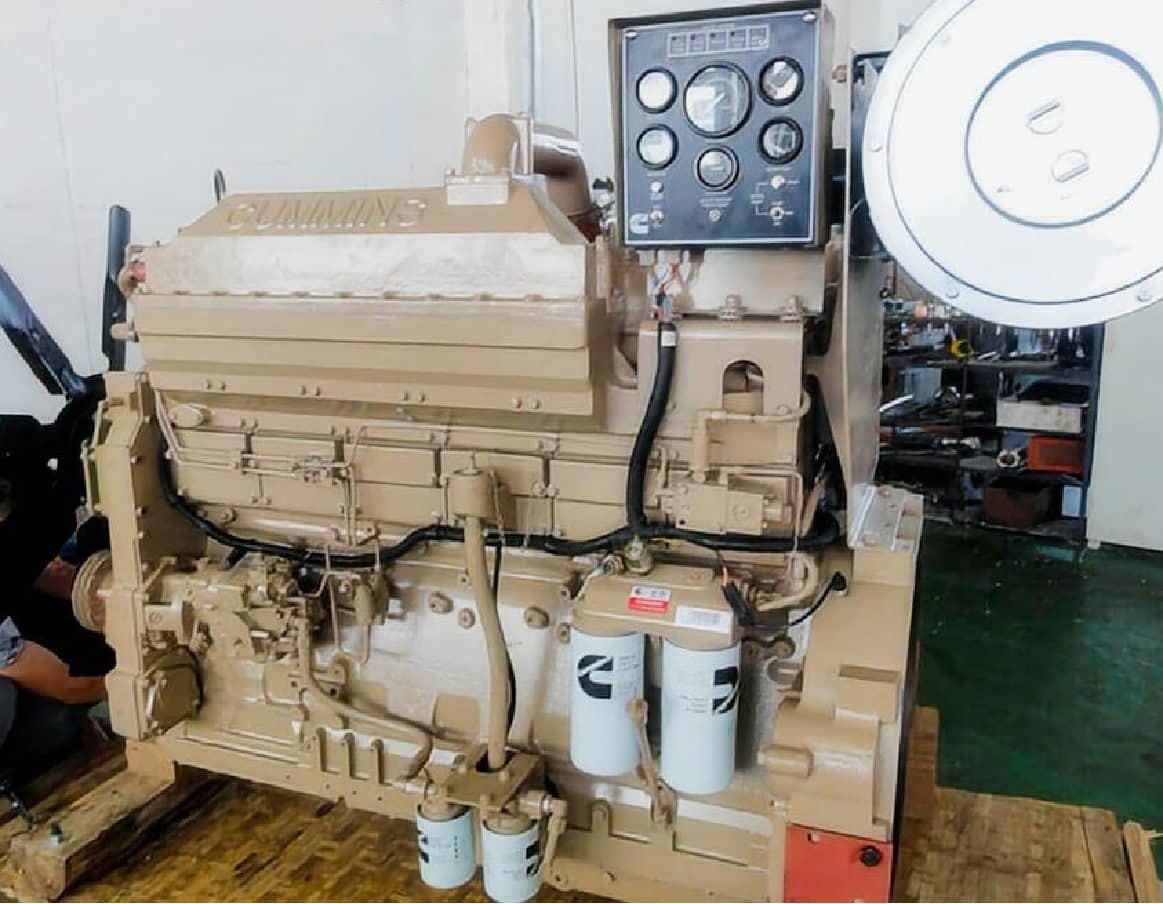

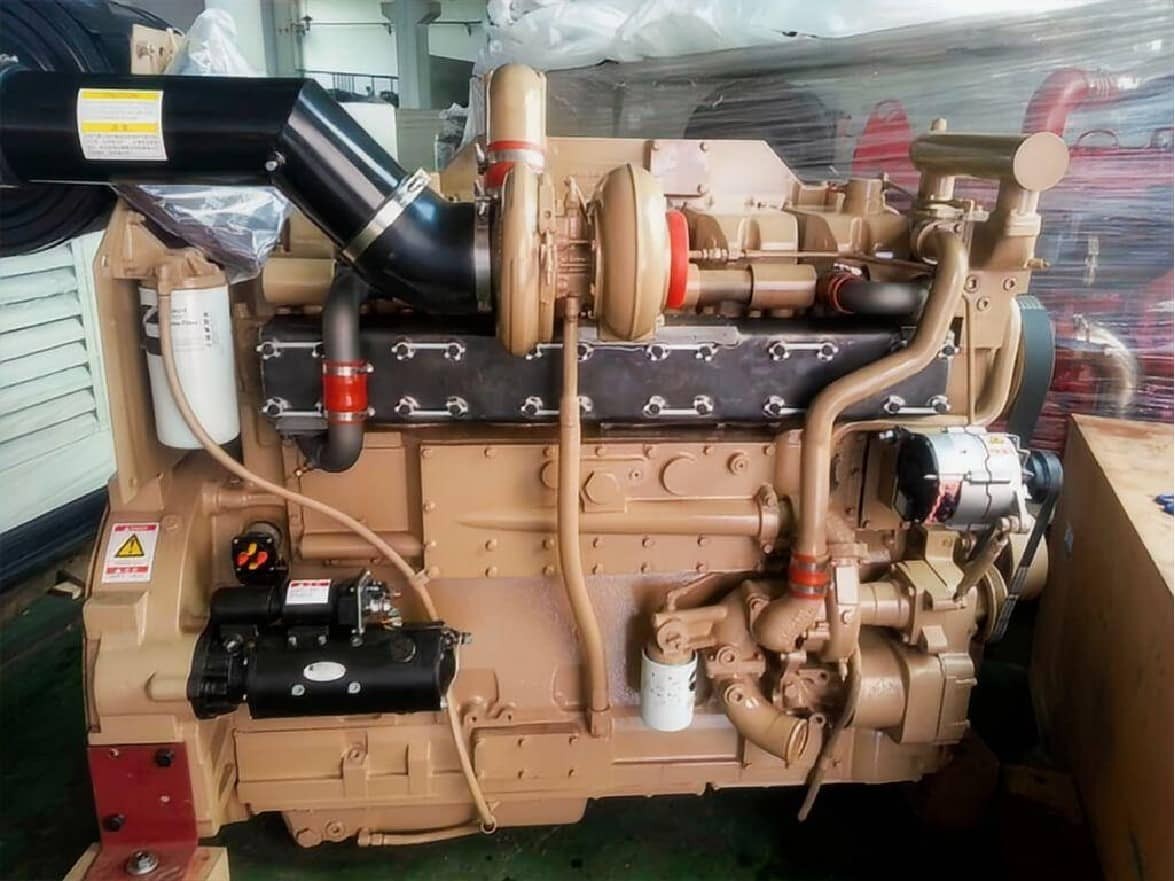

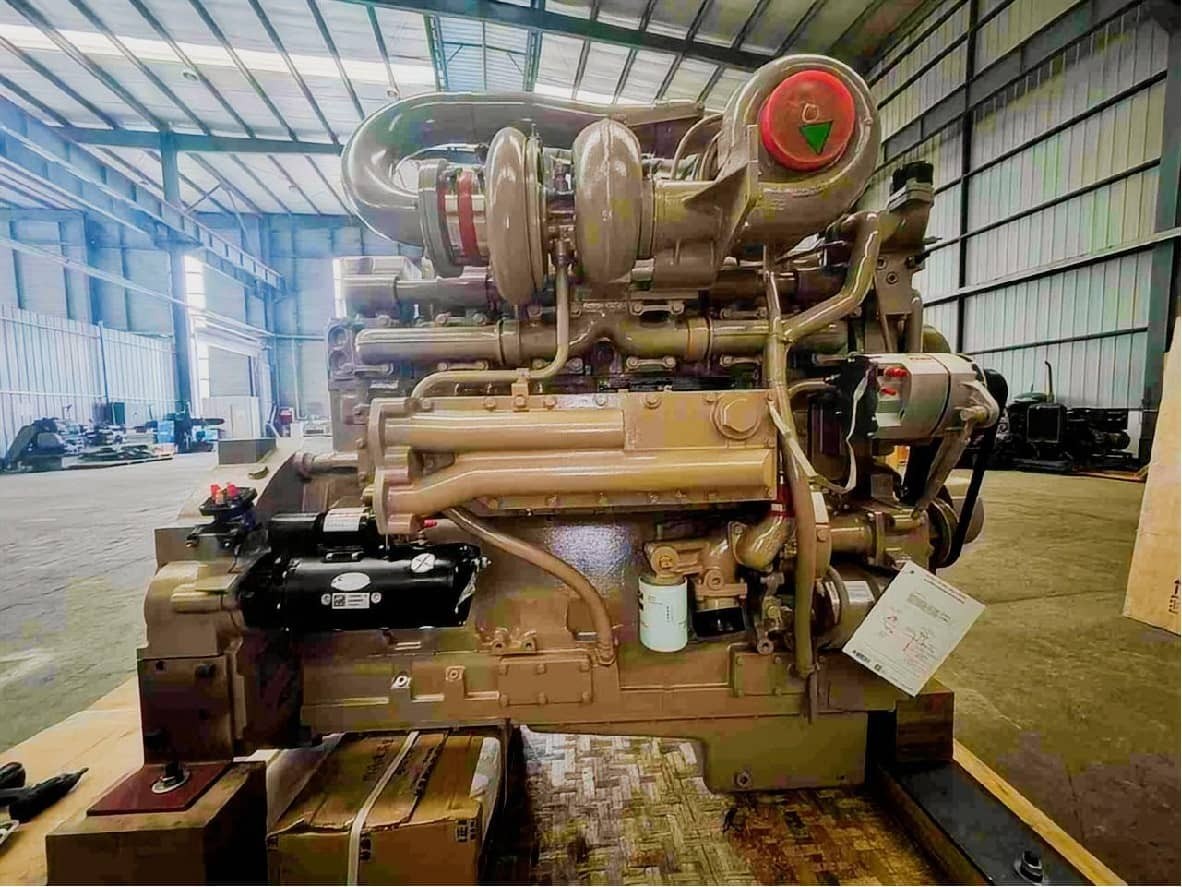

CCEC Cummins KTA19-P750 Pump Drive Diesel Engine for Industrial and Oilfield Power
The CCEC Cummins KTA19-P750 is a 559kW, 750HP, 1800RPM heavy-duty pump drive diesel engine designed for demanding industrial applications. As a genuine Chongqing Cummins K19 series product supplied by HekoPower, it is suitable for pump sets, fire-fighting systems, irrigation, sand dredging, oilfield equipment, and other continuous-duty scenarios where reliable torque and stable output are essential. The KTA19-P750 model appears in multiple competitor pages with the same power class and pump-drive positioning, which means the page must go beyond basic specifications and explain application value, selection guidance, and supplier support.
Tech Specs of Cummins KTA19-P750
General Engine Data
Engine Model: Cummins KTA19-P750
Type: 6 Cylinders in Line
Displacement: 19 L
Bore * Stroke: 159 * 159
Overall Dimension: 2150mm*966mm*1704mm
Net Weight (with flywheel & alternator): 2073 Kg
Key Performance Data
Rated Power: 559 kW/750HP
Rated Speed: 1500 rpm
Max Torque/Speed: 2967 N.m @ 1300 rpm
Fuel Consumption @ Rated Power: 210g/Kw.h
Max. Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection PT Pump
Compression Ratio: 13.9:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 30 L
Advantages of HekoPower’s CCEC Cummins KTA19-P750
Cummins PT Pump Direct Injection System
A key feature of the Cummins KTA19-P750 pump drive diesel engine is its mechanical PT fuel pump system. This system allows for precise variable speed control without the complexity of modern electronics, making it the preferred heavy-duty industrial diesel choice for remote oilfields and mining sites. At HekoPower, we emphasize that this mechanical simplicity results in lower maintenance costs and easier field repairs.
High output, stable speed, and strong torque
At 559kW / 750HP and 1800RPM, the KTA19-P750 is positioned for pump equipment that needs steady mechanical output rather than high-speed transient performance. Competitor pages repeatedly present the same engine family data, including 6-cylinder inline layout, 18.9L displacement, PT fuel system, turbocharging, and water-air intercooling or aftercooling, which confirms the page should explain how these features support continuous pumping duty instead of merely listing them.
Built for harsh operating conditions
For mining dewatering, oilfield pumping, fire pumps, and dredging sets, users care about reliability, startability, and cooling stability more than marketing language. HekoPower’s own category structure shows a broader engine-supplier model that serves construction, marine, generator, and vehicle segments, so the KTA19-P750 page should emphasize how the engine fits pump packs, not only how it fits one generic machine type.
Built for harsh operating conditions
For mining dewatering, oilfield pumping, fire pumps, and dredging sets, users care about reliability, startability, and cooling stability more than marketing language. HekoPower’s own category structure shows a broader engine-supplier model that serves construction, marine, generator, and vehicle segments, so the KTA19-P750 page should emphasize how the engine fits pump packs, not only how it fits one generic machine type.
Typical application scenarios
The versatility of the 559kW Cummins industrial diesel engine allows it to excel in various high-stakes environments:
- Mining & Oil Gas Operations: The KTA19-P750 Mud Pump Engine and 750HP Cummins Drilling Engine are industry standards for hydraulic fracturing trucks and water well drilling rigs.
- Marine & Dredging: It serves as a robust engine for sand dredging pumps, providing the high-torque output necessary to move heavy sediment.
- Emergency Infrastructure: It is widely utilized as an Emergency fire pump engine 559kW, ensuring immediate startup and reliable power for large-scale fire-fighting pump sets.
Oilfield Drilling and Fracturing
For the energy sector, our Cummins KTA19 for Oilfield Equipment is the backbone of modern drilling rigs. The KTA19-P750 for hydraulic fracturing trucks provides the consistent horsepower needed to maintain well pressure. We offer Customized power take-off (PTO) for KTA19-P750 configurations to seamlessly integrate with your transmission systems. Whether you need a replacement for NT855 pump engine or a complete upgrade, our 750HP Cummins Drilling Engine fits existing SAE housings perfectly.
Marine Dredging and Water Management
In the marine sector, the Cummins KTA19-P750 for sand pump and dredging operations is renowned for its durability against saltwater corrosion and continuous high-load cycles. Our Heavy-duty water pump drive engine options include specialized cooling systems for sand dredging pumps and irrigation pump 750HP applications. Additionally, the Cummins KTA19-P750 fire pump engine serves as a critical component in Emergency fire pump engine 559kW Cummins KTA19 sets for industrial complexes and airports, ensuring rapid response when seconds count.
Construction and Engineering Machinery
From excavators and loaders to cranes, the Cummins 750HP for engineering machinery delivers the power density required for heavy lifting. The 559KW 1500RPM engineering diesel engine variant is optimized for stationary construction equipment, while the variable speed versions excel in mobile applications. For projects in extreme climates, our engines feature a low starting temp -12℃ engineering engine capability, ensuring reliable startups in cold regions.
Comparison: Cummins KTA19-P750 vs. KTA19-G4 and KTA19-C700
Clients often ask about the Cummins KTA19-P750 vs KTA19-G4 difference. While the G4 is optimized for constant speed power generation (507kW), the P750 is a dedicated variable speed diesel engine 750HP designed for "P" (Pump) applications. Compared to the KTA19-C700, the P750 offers a higher power ceiling, making it a superior replacement for old NT855 pump engines in high-pressure water pump configurations.
- KTA19-P750 vs KTA19-G4 difference: The G4 is fixed-speed for electricity generation; the P750 is variable-speed for mechanical drive, featuring a different governor, flywheel housing (SAE 1/2 housing KTA19-P750 configuration), and torque map.
- KTA19-P750 vs KTA19-P700: The P750 offers higher rated horsepower (750HP vs 700HP) and improved thermal efficiency, making it better for continuous pumping tasks.
- KTA19-P750 vs KTA19-C700 differences: While the C-series is tailored for specific construction OEMs, the P-series offers more flexibility for aftermarket repowering and custom power packs.
Fuel Efficiency and Maintenance Standards
Operating efficiency is critical. The KTA19-P750 fuel consumption at 100% load (210g/kWh) is among the best in the Euro II class. To maintain this efficiency, HekoPower recommends a strict PT fuel system maintenance schedule, which we support by acting as a comprehensive KTA19-P750 overhaul kit supplier.
Why Source Your KTA19-P750 from HekoPower?
HekoPower bridges the gap between the factory and the end-user. We offer CCEC Chongqing Cummins KTA19-P750 factory direct pricing with added value services that generic traders cannot match.
- Global Support: Every engine comes with a Cummins KTA19-P750 12 months global warranty.
- Rapid Logistics: We facilitate a 15 business days delivery schedule for standard configurations.
- Customization: From customized power take-off (PTO) to a complete CCEC KTA19-P750 Power Pack assembly, our engineering team tailors the engine to your specific frame and housing requirements (including SAE 1/2 housing).
At HekoPower, our expertise extends beyond the Cummins KTA19-P750. Cummins k19-C Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KTA19-C450, KTA19-C525, KTA19-C600, KTAA19-C700, KTTA19-C700, KTA19-P450, KTA19-P500, KTA19-P600, KTA19-P680, KTA19-P700, KTA19-P750.
