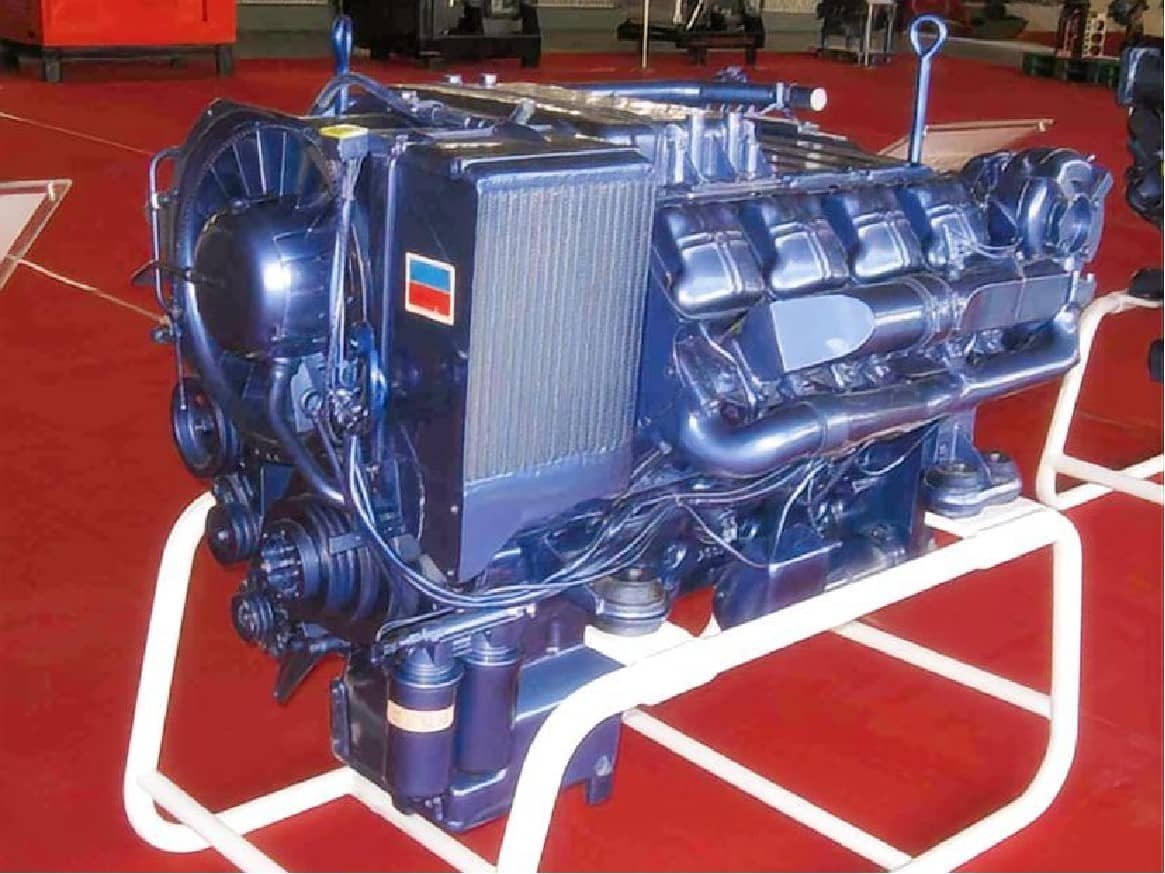

Genuine Deutz BF12L513 Air-Cooled V12 Construction Diesel Engine
Finding a reliable heavy equipment diesel engine means matching raw horsepower with field-tested survival rates. The Deutz BF12L513 Construction Engine is an engineering benchmark for high-stress applications. Built on a robust V12 platform, this twin-turbocharged powerhouse fills a critical gap for global fleet managers who cannot afford operational downtime in remote territories.
As an established industrial engine supplier, HekoPower provides this authentic Huachai Deutz BF12L513 engine for sale directly to international construction firms, mine operators, and engineering contractors. Whether you are replacing a worn power unit or retrofitting an older industrial rig, this engine offers a dependable path to restoring maximum field capacity.
Tech Specs of Deutz BF12L513 Construction Diesel Engine
General Engine Data
Engine Model: Deutz BF12L513-Construction Diesel Engine
Type: 10 Cylinders, V Type
Displacement: 19.144 L
Bore * Stroke: 125 * 130
Net Weight (with flywheel & alternator): 1250 Kg
Overall Dimension: 1573mm*1380mm*1152mm
Key Performance Data
Rated Power/Speed: 206-334 KW
Rated Speed: 1500-2300 rpm
Max Torque/Speed: 1650 N.m @ 1500 rpm
Min Fuel Consumption @ Full Load: 212 g/Kw.h
Idle Speed: 600 rpm
Certification: Euro II
Aspiration: Turbocharged
Fuel System: Direct Injection Pump
Compression Ratio: 15.8:1
Governor Type: Mechanical/Electronic Governor
Cooling Method: Air Cooled
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Decoding the V12 Air-Cooled Configuration
The definitive advantage of the Deutz BF12L513 air cooled engine lies in its lack of a liquid cooling loop. Radiators, water pumps, coolant hoses, and thermostats represent major failure points in heavy dust or extreme temperatures. By eliminating the liquid cooling circuit entirely, this engine removes nearly half of the common mechanical risks associated with heavy duty operations.
This specialized design uses high-velocity cooling fins and a heavy-duty blower fan driven directly by the crankshaft. The cylinder heads and barrels receive uniform airflow, keeping the engine at optimum thermal efficiency even under continuous load at high ambient temperatures.
Industry Application and Machine Matching
Excavators and Mining Trucks
Heavy excavation requires instantaneous high torque to handle deep digging cycles. The BF12L513 engine for excavator retrofits provides the steady hydraulic pump speeds necessary for smooth bucket and boom coordination. In open-pit mining environments, this V12 engine powers heavy haul trucks that must move steep grades while fully loaded.
Bulldozers and Road Rollers
Tracked earthmovers experience high shock loads and severe vibration. The structural ribbing of the FL513 block absorbs these continuous stresses, making the Deutz BF12L513 engine for bulldozer fleets a standard choices for remote land clearing. For long-duration compaction work, the Deutz BF12L513 engine for road roller use provides stable low-end RPMs to prevent surface finish waves during paving operations.
Wheel Loaders and Mobile Cranes
Material handling requires quick throttle response and steady craning power. Deploying a Deutz BF12L513 engine for wheel loader buckets ensures rapid cycle times when shifting aggregate material. Similarly, the Deutz BF12L513 engine for mobile crane applications supplies steady auxiliary power to drive heavy multi-stage hydraulic winches safely.
Drilling Rigs and Stationary Infrastructure
Deep foundational work requires a resilient power source that can run continuously for days. The Deutz BF12L513 engine for drilling rig setups operates efficiently in high-dust drilling zones because it has no radiator to get clogged with rock dust or mud debris. This resilience also makes it an excellent Deutz BF12L513 industrial power unit for driving large-diameter dewatering pumps or industrial air compressors on deep construction sites.
Industrial Technical Comparisons
Air-Cooled vs. Water-Cooled Systems in Extreme Environments
Most competitor trade sites suggest that liquid-cooled engines are always superior. For construction sites in desert regions or high-altitude mining areas, water boils at lower temperatures and cooling systems struggle with leaks. This BF12L513 air cooled diesel engine supplier version excels because air does not freeze, boil, or leak.
Water-cooled alternatives from lines like the Cummins NTA855 require ongoing cooling system flushes, anti-cavitation additives, and hose inspections. The BF12L513 relies purely on direct ambient air transfer. This design significantly lowers daily maintenance costs and simplifies cold-weather startups down to sub-zero temperatures.
The BF12L513 vs. Modern Electronic Common Rail Platforms
Modern electronic engines deliver low emissions but require clean, low-sulfur fuel and specialized diagnostic computers to troubleshoot simple sensor failures. The Deutz FL513 V12 engine for construction machinery keeps a mechanical fuel injection system intact.
This mechanical setup handles lower-grade or variable-quality diesel fuel found in many international territories without damaging the fuel injectors. When a failure happens on a remote site, an experienced mechanic can service the fuel system with standard tools instead of waiting weeks for software technicians to arrive with diagnostic laptops.
Maintenance Guide and Lifecycle Extension
Critical Air Filtration and Cooling Fin Care
Because air is the cooling medium, checking the cooling fins is the most important part of your Deutz BF12L513 maintenance guide. Dust, oil residue, and crushed stone debris can collect between the cooling fins over time, creating an insulating layer that traps engine heat.
Clean the engine exterior every 250 operating hours using a compressed air lance or high-pressure washer. Make sure the drive belt for the primary cooling blower fan is always tensioned correctly. A loose belt reduces airflow immediately, which can lead to localized cylinder overheating and premature piston ring wear.
Fuel Quality and Lubrication Routines
Change your primary oil filters and fuel filters every 250 to 300 hours depending on the dust levels of your workspace. Use high-quality multi-grade oils with good thermal stability, as air-cooled engines run at slightly higher surface temperatures than liquid-cooled models. Always check the turbocharger oil supply lines for leaks to keep the twin-turbo setup spinning cleanly at high operational speeds.
Procurement, Shipping, and Global Export Logistics
Sourcing Direct from a Trusted China Exporter
HekoPower operates as an experienced OEM Deutz BF12L513 engine exporter from China, streamlining the international shipping process for global buyers. We verify every engine’s technical specifications before it leaves our facility to ensure it matches your equipment's flywheel housing, shaft dimensions, and mounting foot orientations.
Protection Against Homogeneity and Counterfeit Units
The market is filled with low-quality rebuilds and unverified parts. When looking for a genuine Deutz BF12L513 engine, buyers need to verify clear tracking indicators like cast serial numbers, official Huachai licensee data plates, and component source documentation. HekoPower provides transparent component verification, separating our products from the generic, unverified listings often found on multi-vendor trading sites.
Wholesale Fleet Pricing and Spare Parts Supply
For large mining projects or fleet retrofits, we provide competitive Deutz BF12L513 wholesale price tiers for multi-unit orders. To support our equipment over its entire lifecycle, we also act as a dedicated BF12L513 engine spare parts supplier. We keep a steady inventory of cylinder liners, gasket kits, piston rings, and injection pumps ready for rapid international air freight delivery.
Deutz FL413-Construction Diesel Engine Series, original products from Huachai Deutz Engine Plant. This series mainly includes Deutz F8L413F, Deutz BF8L413FC, Deutz BF12L413F, Deutz F10L413F, Deutz BF8L513FC, Deutz BF10L513, Deutz BF12L513, Deutz BF12L513C.
Frequently Asked Questions
What is the current market price for a replacement unit?
The final Deutz BF12L513 turbo diesel engine price varies based on your specific application needs. Factors include your choice of flywheel configuration, special air intake pre-cleaners, and your destination's shipping requirements. Contact the HekoPower sales department directly for a detailed quote that includes freight costs to your specific port.
How does the air-cooling system perform in hot desert conditions?
The engine is specifically designed to work in high ambient temperatures up to 50 degrees Celsius. Because the cooling system relies on the temperature difference between the hot cylinder walls and the outside air, it remains highly effective in desert mining environments where liquid-cooled engines often overheat due to radiator pressure buildup.
Are parts interchangeable between German Deutz and Huachai Deutz units?
Yes, Huachai produces these engines under an official production license agreement. The internal components, including pistons, valves, bearings, and injection pumps, match the original German engineering dimensions. This consistency makes sourcing replacement components easy through any international genuine Huachai Deutz FL513 engine series export distributor.
What standard warranty applies to international shipments?
Every complete industrial engine unit includes a standard 12-month warranty that covers structural defects in the block, crankshaft, and cylinder heads under regular working conditions. We provide complete technical support documentation to help your local mechanical teams handle installation and commissioning smoothly.
