Details

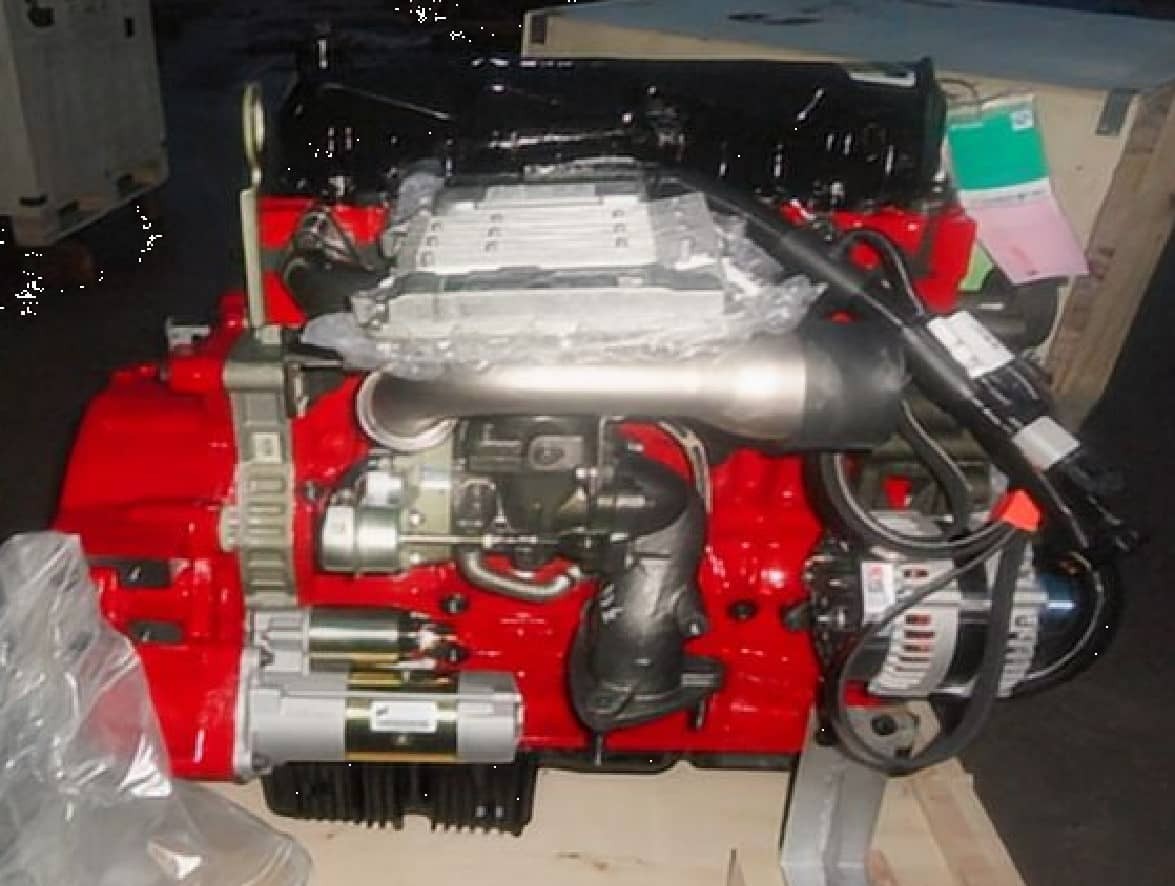

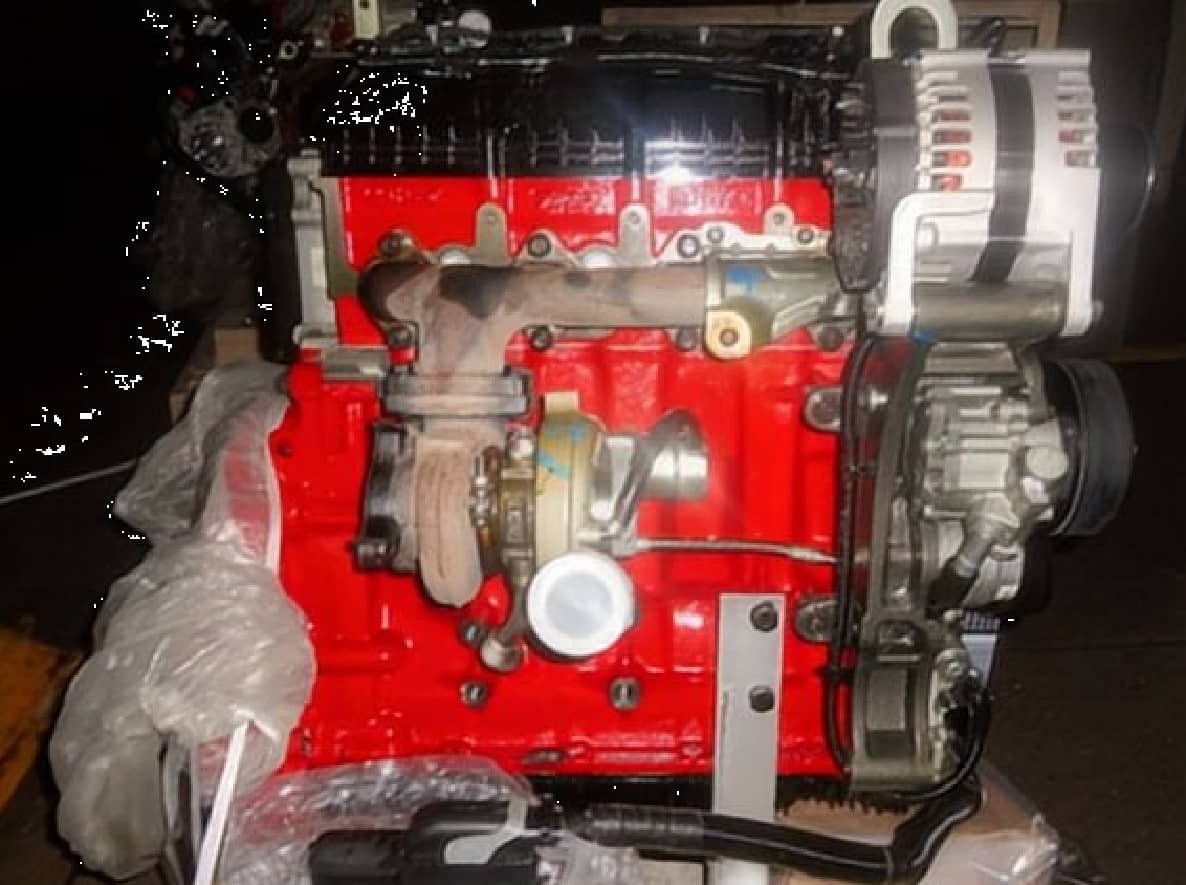

BFCEC Cummins ISF3.8s3154 Complete Engine Assembly
The BFCEC Cummins ISF3.8s3154 complete engine is a 3.8-litre inline four-cylinder diesel platform developed for medium-duty commercial vehicles, urban logistics fleets and light cargo transportation applications. Designed around Cummins common rail technology, this engine combines stable fuel efficiency with reliable low-speed torque output for demanding commercial operating conditions.
The 154HP calibration is widely used in light trucks, refrigerated transport vehicles and municipal service vehicles operating under Euro III emission requirements. Compared with older mechanical diesel platforms, the ISF3.8s3154 adopts a Bosch HPCR fuel injection system, allowing more accurate fuel delivery and improved combustion stability.
HekoPower supplies genuine factory-new engine assemblies for export customers requiring OEM replacement engines, fleet maintenance support and commercial vehicle repowering projects.
Tech Specs of Cummins ISF3.8s3154
General Engine Data
Engine Model: Cummins ISF3.8s3154
Type: 4 Cylinders in Line
Displacement: 3.76 L
Bore * Stroke: 102 * 115
Net Weight (with flywheel & alternator): 335 Kg
Overall Dimension: 801mm*695mm*806mm
Key Performance Data
Rated Power: 115 kW/154 HP
Rated Speed: 2600 rpm
Idle Speed: 750 rpm
Min. Fuel Consumption: 195 g/Kw.h
Max Continuous Running Altitude: 2000 m
Max. Torque/Speed: 500 N.m @ 1200-1900 rpm
Max. No-load Governed Speed: 2950 rpm
More Technical Data
Certification: Euro III
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Bosch Direct Injection/HPCR, SCR
Compression Radio: 17.2:1
Starting System: Electrical Starting Motor 24V
Starting Temp (with/without auxiliary system): -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 11.1 L
Technical Blueprint & Subsystem Infrastructure
Understanding the exact component layout of the Cummins ISF3.8s3154 common rail engine is vital when procuring a complete replacement block. Unlike competitors who only provide general data lines, HekoPower explicitly breaks down the subsystem specifications that ensure operational durability.
High-Pressure Common Rail (HPCR) Injection System
At the heart of this 154HP Cummins ISF3.8 light truck engine is an advanced high-pressure common rail fuel system built in absolute compatibility with Bosch HPCR electronic injection components. The fuel system operates under extreme pressures to atomize diesel fuel perfectly within the combustion chamber. This fine atomization guarantees optimal thermal efficiency, rapid throttle response, and a stable torque curve even when pulling maximum payloads. The electronic integration with the onboard Engine Control Module (ECM) allows for precise multi-injection timing strategies, directly minimizing combustion noise and vibration.
Turbocharger and Thermal Management
The ISF3.8s3154 turbocharged diesel engine utilizes a wastegate turbocharger developed by Cummins Turbo Technologies. This system provides excellent boost performance across a wide RPM band, specifically improving low-end torque output. The air-to-air charge air cooling (intercooler) setup drops intake temperatures rapidly, maximizing air density for combustion. For fleets operating as a refrigerated truck or a municipal vehicle, this continuous thermal stability ensures the engine can run external auxiliary power systems smoothly without overheating.
Real Application Scenarios for the ISF3.8s3154 Engine
Urban Logistics and Delivery Fleets
Many logistics companies select the ISF3.8 platform for urban cargo transportation due to its balance between fuel economy and usable torque output.
Frequent stop-and-go driving conditions place high demands on engine cooling stability and low-speed acceleration response. The electronically controlled fuel system helps maintain smoother operation under these conditions.
Refrigerated Truck Applications
Refrigerated vehicles often operate under continuous load conditions because refrigeration units increase total engine workload.
The ISF3.8s3154 engine is commonly used in refrigerated truck applications where stable operating temperatures and long-duration reliability are required.
Export Fleet Replacement Projects
In Africa, Southeast Asia and Latin America, many fleet operators continue upgrading older commercial vehicles using replacement Cummins power assemblies.
For these projects, customers usually prioritise:
- spare parts availability
- fuel system reliability
- ease of maintenance
- export packaging support
- long-term operational stability
HekoPower supports export customers with complete engine assemblies, accessory configurations and international shipping preparation.
Technical Comparison with Conventional Light Truck Engines
Compared with many traditional 4-cylinder mechanical diesel engines still used in older fleets, the Cummins ISF3.8s3154 offers several operational advantages.
The electronically controlled fuel system allows more stable combustion efficiency under varying load conditions. Older mechanical injection engines often experience unstable idle speed and higher fuel consumption during urban transport operation.
The ISF3.8 platform also provides improved maintenance accessibility. Common service areas including filters, injectors and belt-driven components are easier to access during routine maintenance procedures.
For export customers replacing outdated diesel engines, the ISF3.8 assembly can help improve:
- fuel economy
- parts availability
- operational stability
- fleet maintenance consistency
Compared with larger displacement engines, the 3.8L platform also offers lower overall operating weight, making it suitable for medium-duty truck chassis with payload limitations.
Maintenance, Diagnostics & Complete Overhaul Guide
To extend the lifespan of your Cummins ISF3.8s3154 engine price investment, adherence to a strict operational checklist is mandatory.
Preventive Lubrication and Fuel Filtration
- Change the primary engine oil and the structural oil filters every 15,000 to 20,000 kilometers depending on environmental dust levels.
- Always install genuine fuel-water separator elements to guard the high-precision Bosch injectors against water contamination.
Wiring Harness and ECM Diagnostics
During an engine swap or routine truck OEM replacement, paying attention to the ISF3.8s3154 wiring harness and ECM configuration options is vital. Ensure all grounding straps are thoroughly cleaned and bolted to the chassis block. Corrosion or loose pins within the main structural harness coupling can trigger false trouble codes regarding fuel rail pressure or crankshaft position alignment.
Global Wholesale Procurement & Export Logistics
As an established DCEC ISF3.8s3154 wholesale exporter, HekoPower operates a streamlined international supply pipeline optimized for rapid delivery to major port hubs across Latin America, Southeast Asia, and the Africa market.
Shipping Lead Times and Order Processing
Our standard wholesale ISF3.8s3154 diesel engine processing time allows for fast dispatch from local warehousing directly to global shipping lines. For volume buyers and fleet managers looking to buy genuine factory-new Cummins ISF3.8s3154 assemblies, our established relation with freight forwarders cuts typical dock delays down to a predictable window.
- FOB Port Locations: Shanghai, Qingdao, Ningbo.
- DCEC ISF3.8s3154 Sea Freight Export Lead Time: 10 to 15 business days from payment validation to port delivery.
BFCEC ISF Series, original products from Beijing Foton Cummins Engine Company Limited (BFCEC), a 50/50 joint venture between Cummins Inc. and China's Beiqi Foton Motor Company (Foton Motor). BFCEC produces Cummins light-duty, high-performance ISF diesel engines. This series mainly includes ISF2.8s3129T, ISF2.8s3148T, ISF2.8s4129P, ISF2.8s4129T, ISF2.8s5129T, ISF2.8s4148T, ISF2.8s4161P, ISF3.8s3141, ISF3.8s3154, ISF3.8s3168, ISF3.8s4141, ISF3.8s4154, ISF3.8s4168, ISF2.8s4107P.
Frequently Asked Questions (FAQ)
Can the ISF3.8s3154 engine directly replace a damaged Foton Aumark power unit?
Yes. The ISF3.8s3154 is highly requested as a direct Foton Aumark Cummins ISF3.8s3154 engine replacement block. Because it shares the precise structural footprint and mounting point configuration of the factory-installed light truck engine series, it matches seamlessly with existing manual or automatic transmissions designed for Foton light-duty commercial vehicles.
Do you provide access to individual replacement parts alongside complete assemblies?
Yes. HekoPower provides an expansive, genuine spare parts catalog for the Cummins ISF3.8s3154 engine. If your maintenance schedule requires individual components—such as replacement cylinder heads, pistons, gaskets, or starter motors—our logistics team can package these parts alongside your primary complete engine shipment to minimize consolidated freight costs.
How does HekoPower ensure the authenticity of its Cummins engine supply?
We are an authentic, specialized Cummins ISF3.8s3154 engine supplier in China. Every single assembly we ship contains the original factory tracking plates, stamped serial numbers, and certified production markings from BFCEC. This enables local mechanics or procurement officers to easily verify engine origin, warranty eligibility, and authentic part matching with any official service outlet.
