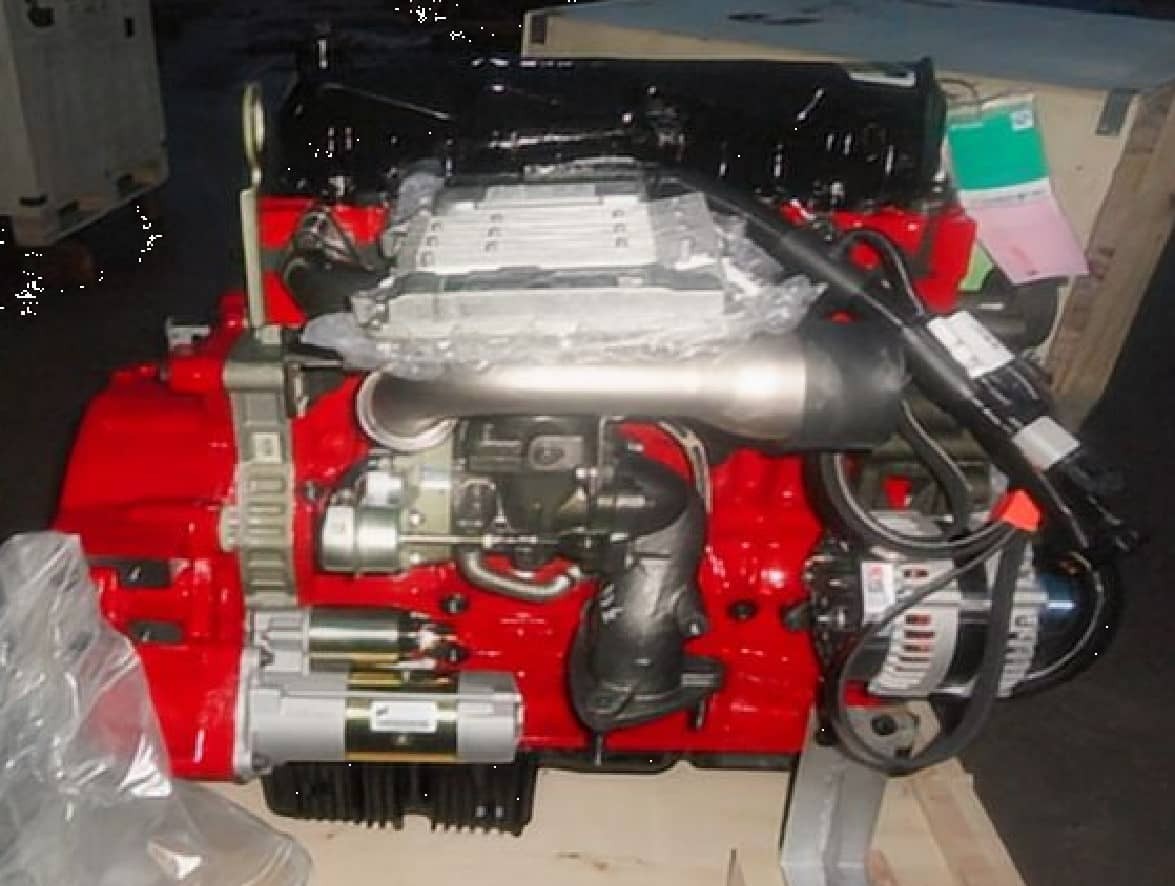

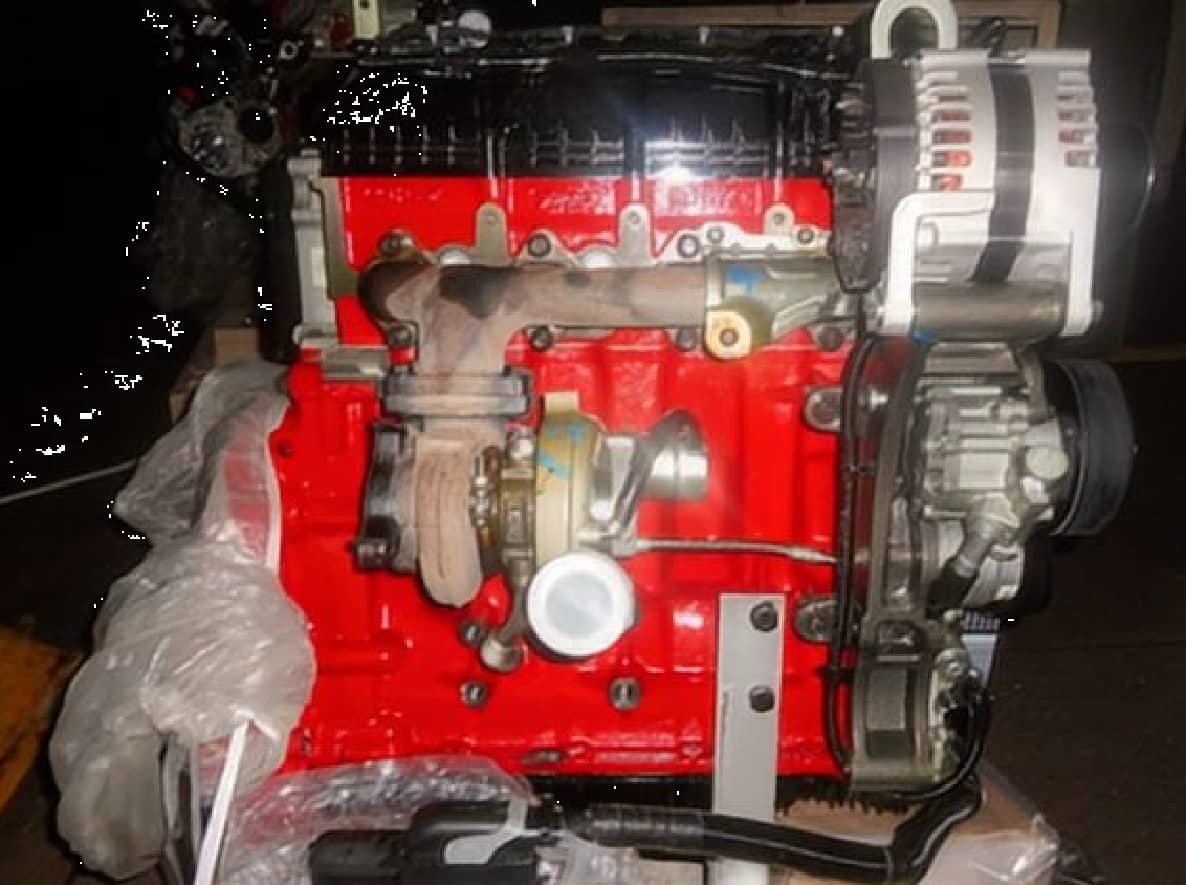

BFCEC Cummins ISF3.8s4168 Commercial Vehicle Diesel Engine
The Cummins ISF3.8s4168 is a 3.8-litre electronically controlled diesel engine designed for light and medium-duty commercial vehicle applications. This engine platform is commonly used in logistics transport vehicles, refrigerated trucks, municipal service vehicles and regional delivery fleets that require stable torque output, compact installation dimensions and Euro V emission compliance.
Compared with larger displacement commercial engines, the ISF3.8 platform focuses on balancing fuel efficiency, vehicle payload capacity and long-term operating reliability. The engine adopts a Bosch high-pressure common rail fuel system together with an electronically controlled ECU management system to improve combustion efficiency and support modern commercial fleet operating requirements.
HekoPower supplies genuine Cummins ISF3.8s4168 complete engine assemblies for international distributors, fleet operators, commercial vehicle repair companies and overseas engine replacement projects. Depending on customer requirements, the engine can be supplied with ECU, wiring harness, turbocharger and related accessories for replacement or export applications.
Tech Specs of Cummins ISF3.8s4168
General Engine Data
Engine Model: Cummins ISF3.8s4168
Type: 4 Cylinders in Line
Displacement: 3.76 L
Bore * Stroke: 102 * 115
Net Weight (with flywheel & alternator): 335 Kg
Overall Dimension: 801mm*695mm*806mm
Key Performance Data
Rated Power: 125 kW/168 HP
Rated Speed: 2600 rpm
Idle Speed: 750 rpm
Min. Fuel Consumption: 195 g/Kw.h
Max Continuous Running Altitude: 2000 m
Max. Torque/Speed: 600 N.m @ 1300-1700 rpm
Max. No-load Governed Speed: 2950 rpm
More Technical Data
Certification: Euro V
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Bosch Direct Injection/HPCR, SCR
Compression Radio: 17.2:1
Starting System: Electrical Starting Motor 24V
Starting Temp (with/without auxiliary system): -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 11.1 L
Technical Features of the Cummins ISF3.8s4168 Engine
Bosch HPCR Fuel Injection System
One of the main technical characteristics of the ISF3.8s4168 engine is the Bosch high-pressure common rail fuel injection system. This configuration improves fuel atomisation and allows more accurate electronic fuel control under varying commercial driving conditions.
For logistics vehicles operating in urban stop-start traffic conditions, the HPCR system helps improve low-speed combustion stability and fuel efficiency. Compared with older mechanical injection systems, electronically controlled injection also reduces combustion noise and improves cold-start performance in lower temperature environments.
The Bosch fuel system is widely recognised in international commercial vehicle maintenance markets, which also helps improve spare parts availability for overseas fleet operators.
Euro V SCR Emission Configuration
The ISF3.8s4168 adopts an SCR aftertreatment configuration to meet Euro V commercial vehicle emission standards. This system reduces nitrogen oxide emissions while maintaining relatively stable engine output under commercial operating loads.
For export markets in Southeast Asia, the Middle East and some African commercial vehicle sectors, Euro V emission capability has become increasingly important for imported truck and fleet projects. Compared with older Euro III or Euro IV commercial engines, the SCR configuration improves environmental compliance while supporting more efficient combustion control.
HekoPower can also assist customers with SCR-related accessory matching and export packaging requirements for complete engine replacement projects.
ECU and Wiring Harness Integration
Many overseas buyers prefer complete engine assemblies supplied with ECU and wiring harness components to simplify installation and reduce compatibility risks during replacement projects.
The Cummins ISF3.8s4168 complete engine assembly supplied by HekoPower can include:
- ECU control module
- wiring harness
- turbocharger system
- fuel injection components
- intake and exhaust accessories
This configuration is particularly useful for fleet maintenance companies and truck repair workshops handling replacement projects for Foton commercial vehicles and medium-duty transport trucks.
Real Application Scenarios & Regional Fleet Deployments
The tuning of the ISF3.8s4168 makes it highly adaptable to specific commercial applications. It is not a generic industrial engine; it is optimized for high-duty cycle transport.
ISF3.8s4168 Engine for Urban Logistics Trucks
Stop-and-go driving places intense thermal stress on smaller engines. The 3.8-liter displacement provides the structural mass needed to handle constant thermal cycling. For companies operating a modern logistics truck fleet, this engine maintains stable operating temperatures during prolonged idling and rapid acceleration between urban distribution warehouses.
Specialized Transport and Refrigerated Trucks
Refrigerated trucks place a unique secondary load on the vehicle's electrical and cooling infrastructure. The Cummins ISF3.8s4168 168HP common rail engine provides ample power overhead to drive heavy-duty cooling compressors without causing a noticeable drop in road speed or cargo carrying capacity. This capability makes it the preferred build for intercity cold-chain distribution.
Global Market Adaptability
Different regions present unique challenges for modern common-rail diesels. As an experienced exporter, HekoPower configures these units to survive varied operating environments:
- Southeast Asia: The cooling jackets and radiators are optimized to handle high humidity and continuous ambient temperatures above 40°C.
- Middle East: Advanced multi-stage fuel filtration is added to protect the Bosch fuel injectors from fine dust and low-lubricity fuel.
- African Market: The Euro V exhaust configuration can be adapted to handle high-sulfur diesel profiles common in regional distribution lines.
Comparison Between ISF3.8s4168 and ISF3.8s4154
Although both engines belong to the Cummins ISF3.8 series, there are several practical differences between the ISF3.8s4168 and older ISF3.8s4154 configurations.
The ISF3.8s4168 version adopts updated ECU calibration and improved emission management strategies to support Euro V operating requirements. In commercial fleet applications, this helps improve combustion efficiency and fuel management under varying road conditions.
The 168HP calibration also provides stronger power output for medium-duty transport operations compared with some earlier ISF3.8 engine variants.
From a maintenance perspective, newer fuel management and SCR configurations may require more attention to fuel quality and aftertreatment servicing. However, the engine also offers improved emission performance and better compatibility with modern commercial transport regulations.
For replacement projects, buyers should verify:
- ECU compatibility
- wiring harness configuration
- gearbox matching
- emission system layout
- cooling system compatibility
HekoPower can assist overseas customers in confirming engine replacement compatibility before shipment.
Maintenance, & Direct Replacements
Direct Replacement for Cummins ISF3.8s4154 and Overhauls
The ISF3.8s4168 serves as an ideal high-power upgrade or direct replacement for Cummins ISF3.8s4154 configurations. Because they share the identical physical outer block dimensions, engine mounts, and bell housing patterns, swapping to the 4168 model provides an instant 14-horsepower boost without requiring modifications to the truck chassis or transmission inputs.
When a full swap isn't necessary, accessing a comprehensive Cummins ISF3.8s4168 engine spare parts catalog ensures that your maintenance team can source precise top-end overhaul kits, including pistons, liners, and cylinder head gaskets.
Critical Maintenance Specifications
Preventative maintenance dictates the ultimate life of your investment. Ensure your workshop team adheres strictly to these baseline values:
- Engine Oil Capacity: 12 Liters (Use high-grade CH-4 or CI-4 15W-40 oil)
- Valve Clearance (Cold): Intake 0.33 mm / Exhaust 0.51 mm
- Fuel Filter Replacement: Every 15,000 km under normal road conditions
- Cooling System Capacity: 8.5 Liters (50/50 Glycol-Water mix)
Supply Chain, Packaging, & Wholesale Logistics
When you buy a Cummins ISF3.8 168HP diesel engine from HekoPower, you are buying into a secure international supply chain. We minimize transaction risks through transparent logistics workflows.
Scope of Delivery: Complete Assembly with ECU
We do not ship bare long blocks unless explicitly requested. Every standard unit leaves our facility as a Cummins ISF3.8s4168 complete engine with ECU and complete wiring harness attached. The assembly includes the high-pressure fuel pump, fuel injectors, turbocharger, starter motor, alternator, and air compressor. Every electrical link is factory-tested before crating.
Seaworthy Packing & Global Export Lead Times
Long-distance maritime transit can expose precision iron castings to corrosive salt air. To counteract this risk, HekoPower applies a strict three-layer export packaging protocol:
Engine Assembly
- Layer 1: Anti-Rust Inhibitor Spray Coating
- Layer 2: Heavy-Duty Vacuum-Sealed Plastic Wrap
- Layer 3: Solid, ISPM-15 Certified Fumigated Wooden Box
This heavy-duty crating withstands the high physical forces of forklift transit and port container stacking. Our typical factory lead time for standard wholesale configurations ranges between 7 to 15 business days from order confirmation to port delivery.
BFCEC ISF Series, original products from Beijing Foton Cummins Engine Company Limited (BFCEC), a 50/50 joint venture between Cummins Inc. and China's Beiqi Foton Motor Company (Foton Motor). BFCEC produces Cummins light-duty, high-performance ISF diesel engines. This series mainly includes ISF2.8s3129T, ISF2.8s3148T, ISF2.8s4129P, ISF2.8s4129T, ISF2.8s5129T, ISF2.8s4148T, ISF2.8s4161P, ISF3.8s3141, ISF3.8s3154, ISF3.8s3168, ISF3.8s4141, ISF3.8s4154, ISF3.8s4168, ISF2.8s4107P.
Frequently Asked Questions
Which specific truck models use the Foton Cummins ISF3.8s4168 engine assembly?
This engine serves as the factory standard replacement engine for Foton Aumark ISF3.8s4168 series trucks, Foton Ollin light trucks, and various Dongfeng medium-duty cargo chassis. It is universally compatible with any light commercial vehicle configured for a 3.8L Cummins footprint.
What is the exact wholesale DCEC Cummins ISF3.8s4168 price?
Wholesale pricing fluctuates based on total order volume, regional emissions equipment needs, and whether you require additional spare parts packages. Contact our sales department directly with your port of destination for a complete, itemized FOB or CIF quotation.
Is this engine produced by DCEC or BFCEC?
The ISF series engines are engineered and manufactured exclusively under the BFCEC (Beijing Foton Cummins) joint venture framework, while larger series like the ISB or ISDE are managed under DCEC (Dongfeng Cummins). Both utilize genuine Cummins engineering designs and parts infrastructure.
Does the engine assembly arrive pre-lubricated and ready to run?
Every complete engine assembly is run-tested on a dynamometer for quality control, then drained of fluids for safe international shipping. You must fill the oil pan and cooling jacket according to the included maintenance specifications before initial startup.
