Details

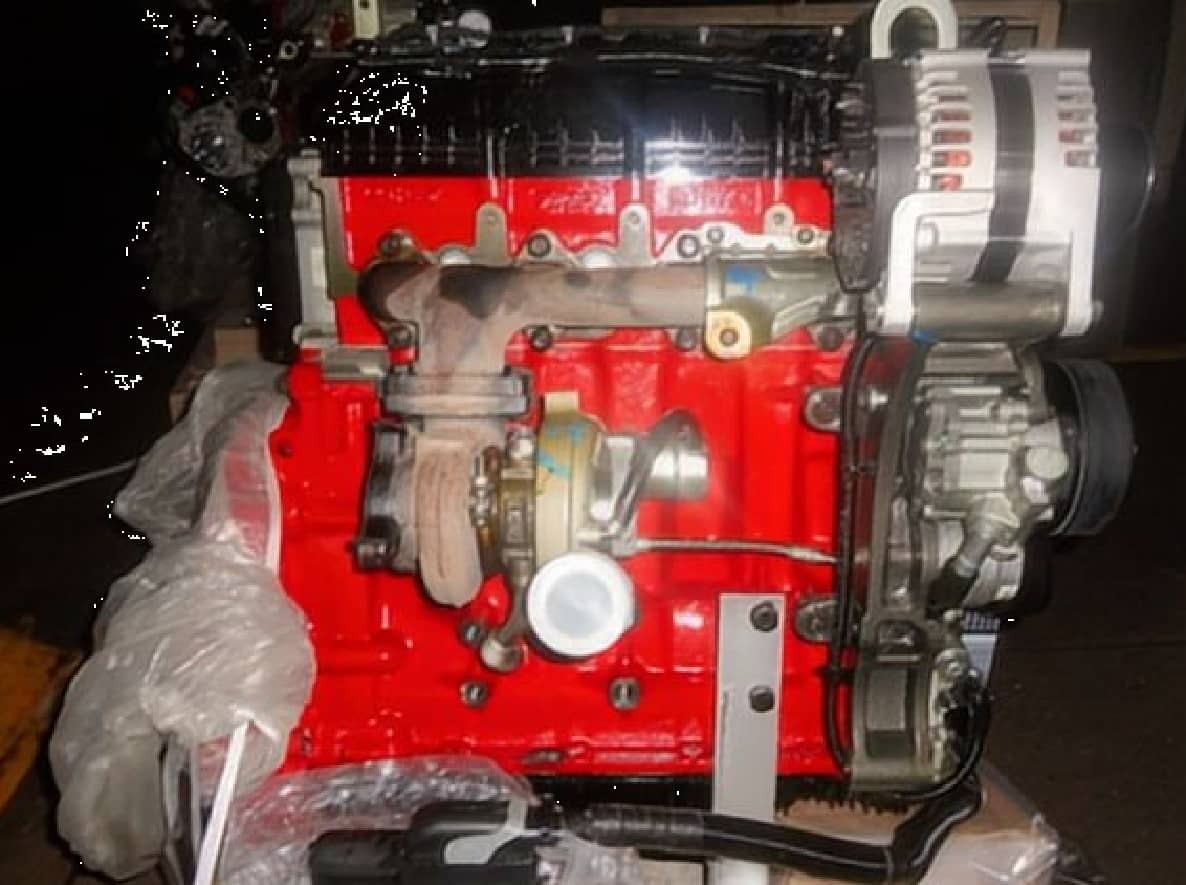

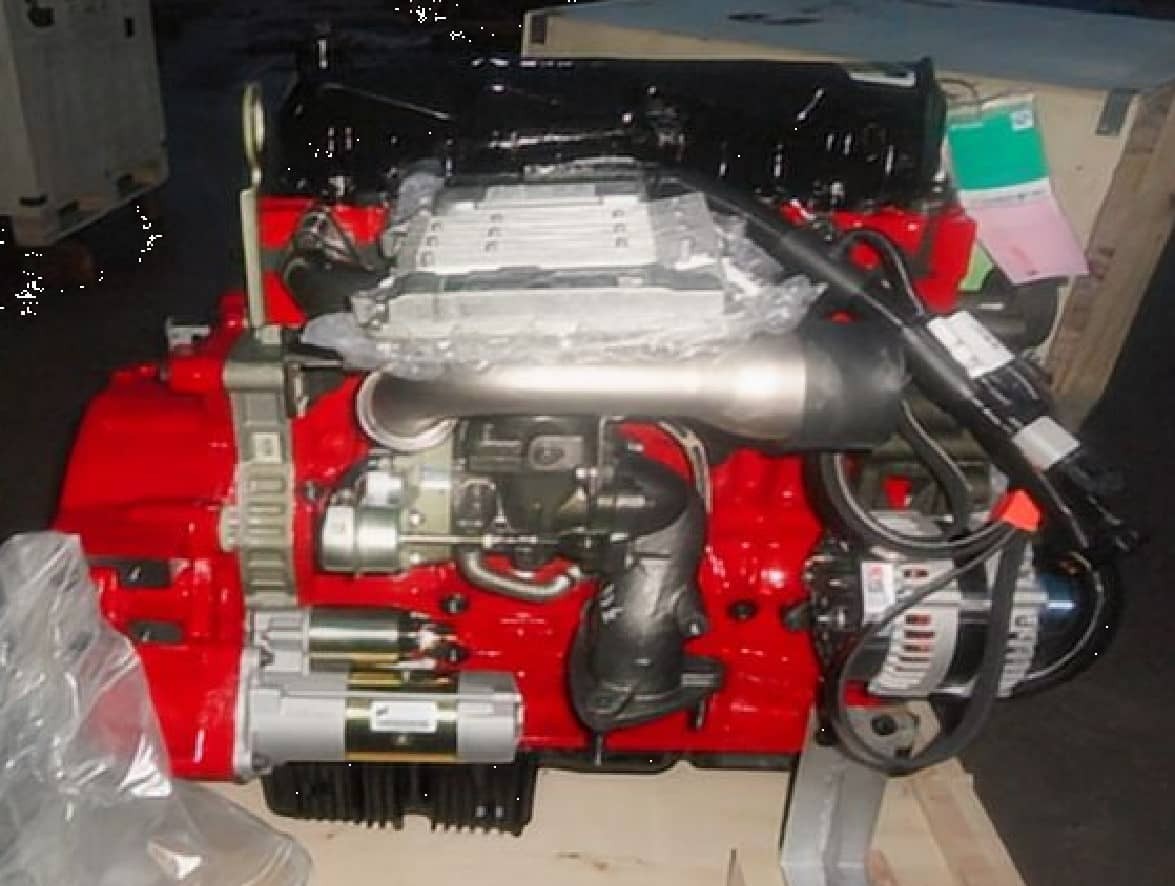

Genuine Cummins ISF3.8s4141 Engine Assembly for Commercial Vehicle Replacement and Fleet Operations
The Cummins ISF3.8s4141 engine assembly is a Euro IV diesel power unit developed for light-duty and medium-duty commercial vehicle applications. With a rated output of 105kW (141HP), this engine combines fuel efficiency, durability and reliable torque delivery for urban transportation, regional logistics and distribution fleets.
As a professional engine supplier, HekoPower provides complete ISF3.8s4141 engine assemblies suitable for vehicle replacement projects, fleet maintenance programmes and international aftermarket demand. Each complete engine assembly includes the major components required for installation and is carefully inspected before shipment.
Unlike many generic engine listings that only provide specification tables, understanding the actual operating environment and maintenance requirements of the ISF3.8s4141 helps buyers select the correct replacement engine and reduce long-term operating costs.
Tech Specs of Cummins ISF3.8s4141
General Engine Data
Engine Model: Cummins ISF3.8s4141
Type: 4 Cylinders in Line
Displacement: 3.76 L
Bore * Stroke: 102 * 115
Net Weight (with flywheel & alternator): 335 Kg
Overall Dimension: 801mm*695mm*806mm
Key Performance Data
Rated Power: 105 kW/141HP
Rated Speed: 2600 rpm
Idle Speed: 750 rpm
Min. Fuel Consumption: 195 g/Kw.h
Max Continuous Running Altitude: 2000 m
Max. Torque/Speed: 450 N.m @ 1200-2200 rpm
Max. No-load Governed Speed: 2950 rpm
More Technical Data
Certification: Euro V
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Bosch Direct Injection/HPCR, SCR
Compression Radio: 17.2:1
Starting System: Electrical Starting Motor 24V
Starting Temp (with/without auxiliary system): -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 11.1 L
Technical Architecture & Component Differentiation
The Cummins ISF3.8s4141 commercial vehicle engine is built on a modular design concept that optimizes weight without sacrificing structural integrity. Manufactured by Beijing Foton Cummins Engine Company (BFCEC ISF3.8s4141 exporter standard), this specific variation is tuned for high-torque efficiency under strict emissions frameworks.
High-Pressure Common Rail System Integrity
The heart of the 105kW Cummins ISF3.8 engine is its advanced fuel architecture. Our factory-fresh Cummins ISF3.8s4141 HPCR fuel system utilizes genuine Bosch electronic control modules and high-pressure injectors.
Unlike aftermarket rebuilds often found on generic parts platforms, this Cummins ISF3.8s4141 common rail diesel engine maintains a stable 1600-bar injection pressure. This precise engineering delivers optimal atomization, preventing early cylinder washing and reducing carbon buildup on the piston crowns.
Turbocharger and Thermal Management
The ISF3.8s4141 turbocharged intercooled engine utilizes a wastegate turbocharger tuned specifically for the 141HP Cummins diesel engine power band. The cooling jacket design features a targeted split-flow system. This design routes coolant to the cylinder head's highest-thermal zones first, protecting the valve bridges from stress fractures under sustained load.
ISF3.8s4141 Compared with Other ISF3.8 Engine Models
One common challenge faced by buyers is selecting the correct engine variant from the ISF3.8 family.
ISF3.8s4141 vs ISF3.8s3154
The ISF3.8s3154 is generally associated with Euro III applications, while the ISF3.8s4141 is configured for Euro IV emission compliance.
For customers operating in countries where stricter emissions standards apply, the ISF3.8s4141 provides a more suitable solution.
In addition, the Euro IV configuration allows easier registration and regulatory approval in many export markets.
ISF3.8s4141 vs ISF3.8s4154
Both engines belong to the Euro IV category, but the ISF3.8s4154 generally offers higher power output.
The ISF3.8s4141 is often preferred when fuel economy and lower operating costs are prioritised over maximum horsepower. For regional delivery fleets and urban transport vehicles, the 105kW configuration frequently provides sufficient performance while reducing fuel consumption.
Real Application Scenarios & Fleet Integration
The Euro IV Cummins ISF3.8s4141 is not a universal industrial power unit; it is an engineered Cummins ISF3.8s4141 for light truck workhorse. Operating profiles change significantly depending on the vehicle configuration.
Regional Logistics and Stop-and-Go Distribution
When deployed as a Cummins ISF3.8s4141 for logistics vehicle power plants, the engine handles frequent idling and rapid torque transitions. The torque curve peaks at 450Nm between 1200 and 2200 RPM. This wide band allows inner-city distribution trucks to pull away smoothly under full gross vehicle weight without over-revving the transmission components.
Long-Haul Freight Transport
For applications requiring a Cummins ISF3.8s4141 for cargo truck chassis, the engine runs efficiently at highway speeds. The integrated electronic governor cuts fuel consumption during downhill momentum phases. This feature makes it highly valued by fleet operators managing tight operational margins.
Dedicated Foton Fleet Upgrades
The primary configuration for this assembly is an ISF3.8s4141 engine replacement for Foton Aumark, Foton Ollin, and related light commercial platforms. Choosing a completely built Cummins ISF3.8s4141 for Foton truck applications ensures all factory mounting positions, sensor blocks, and wiring harnesses line up perfectly without modification.
Maintenance, Troubleshooting & Mechanical Longevity
Preventative maintenance protects your investment in an ISF3.8s4141 105kW 450Nm diesel engine. Because these engines run high injection pressures, ignoring oil and fuel quality will cause early component failure.
Fuel Filtration Protocols
The Bosch common rail system will not tolerate water contamination or fine particulates. Operators must run a dual-stage filtration setup: a primary water separator followed by a 2-micron high-efficiency fuel filter. Replace these filters every 15,000 kilometers or 300 operating hours to protect the tight tolerances inside the high-pressure fuel pump.
Oil Specifications and Valvetrain Adjustments
Always use high-quality API CJ-4 or CK-4 15W-40 heavy-duty engine oil. This lubricant keeps soot suspended and protects the overhead valve gear. Check valve clearances every 60,000 kilometers to maintain optimal volumetric efficiency and prevent hard-starting issues when cold.
Common Diagnostic Fault Codes
When servicing the Cummins ISF3.8s4141 for sale on the market, technicians frequently scan for specific operational codes:
- Fault Code 559: Low injector metering rail pressure. This code typically points to a plugged fuel filter or a worn fuel lift pump rather than a main injector failure.
- Fault Code 2215: Fuel pump delivery pressure low. This requires checking the fuel lines for air leaks before replacing the high-pressure pump.
B2B Sourcing, Procurement & Industrial Packaging
As a verified Cummins ISF3.8s4141 engine manufacturer channel partner and Cummins ISF3.8s4141 OEM engine supplier, HekoPower manages transparent trade logistics for international buyers, customs brokers, and engineering firms.
Anti-Counterfeit Verification
Every genuine ISF3.8s4141 diesel engine supplier must provide clear proof of origin. Every unit we ship carries a permanent Cummins steel dataplate on the rocker cover. This plate displays the unique 8-digit Engine Serial Number (ESN). Buyers can instantly verify this number across the global Cummins QuickServe system to confirm authenticity before the unit leaves our loading dock.
International Sea Freight Standards
Shipping a complete ISF3.8s4141 engine assembly wholesale batch requires industrial-grade protection. A complete engine assembly weighs approximately 340 kilograms dry, reaching a gross mass of 400 kilograms once crated.
Our sea freight packaging details for 400kg Cummins engine assembly shipments follow strict export protocols. Each engine is thoroughly drained of fluids, sprayed with a vapor-corrosion inhibitor, and vacuum-sealed in a heavy-gauge polymer bag.
We secure the unit into an ISPM-15 certified heat-treated fumigated wooden crate using heavy-duty steel tie-down brackets. This prevents any movement during ocean transit, ensuring your order arrives damage-free and ready for immediate installation.
BFCEC ISF Series, original products from Beijing Foton Cummins Engine Company Limited (BFCEC), a 50/50 joint venture between Cummins Inc. and China's Beiqi Foton Motor Company (Foton Motor). BFCEC produces Cummins light-duty, high-performance ISF diesel engines. This series mainly includes ISF2.8s3129T, ISF2.8s3148T, ISF2.8s4129P, ISF2.8s4129T, ISF2.8s5129T, ISF2.8s4148T, ISF2.8s4161P, ISF3.8s3141, ISF3.8s3154, ISF3.8s3168, ISF3.8s4141, ISF3.8s4154, ISF3.8s4168, ISF2.8s4107P.
Cummins ISF3.8s4141 Procurement FAQ
Where to buy genuine 140HP Cummins ISF3.8s4141 engines with global warranty coverage?
You can buy genuine units directly through authorized exporters like HekoPower. Every engine features an un-tampered factory serial number verifiable in the global Cummins database. This gives you access to international parts networks and standard commercial warranty terms.
Is the Cummins ISF3.8s4141 fuel system Bosch HPCR compatibility guaranteed across all model years?
Yes. The ISF3.8s4141 specification uses a standard Bosch High-Pressure Common Rail (HPCR) injection system. This includes the fuel pump, injector lines, rail sensor, and electronic injector valves. This standardized layout ensures easy sourcing of replacement maintenance parts worldwide.
What is the average lead time when booking a Cummins ISF3.8s4141 wholesale price order?
Standard warehouse configurations for individual replacements usually ship within 3 to 5 business days from our domestic hub. For volume wholesale fleet orders requiring custom packaging runs, production and customs clearance timelines typically range from 15 to 20 business days.
Where can I download the official Cummins ISF3.8s4141 specs and torque curve manual?
HekoPower provides complete technical documentation, wiring schematics, and torque curve printouts directly to contract buyers. You can request these digital files from your account representative during the quotation process to confirm structural integration with your transmission housing.
