Details

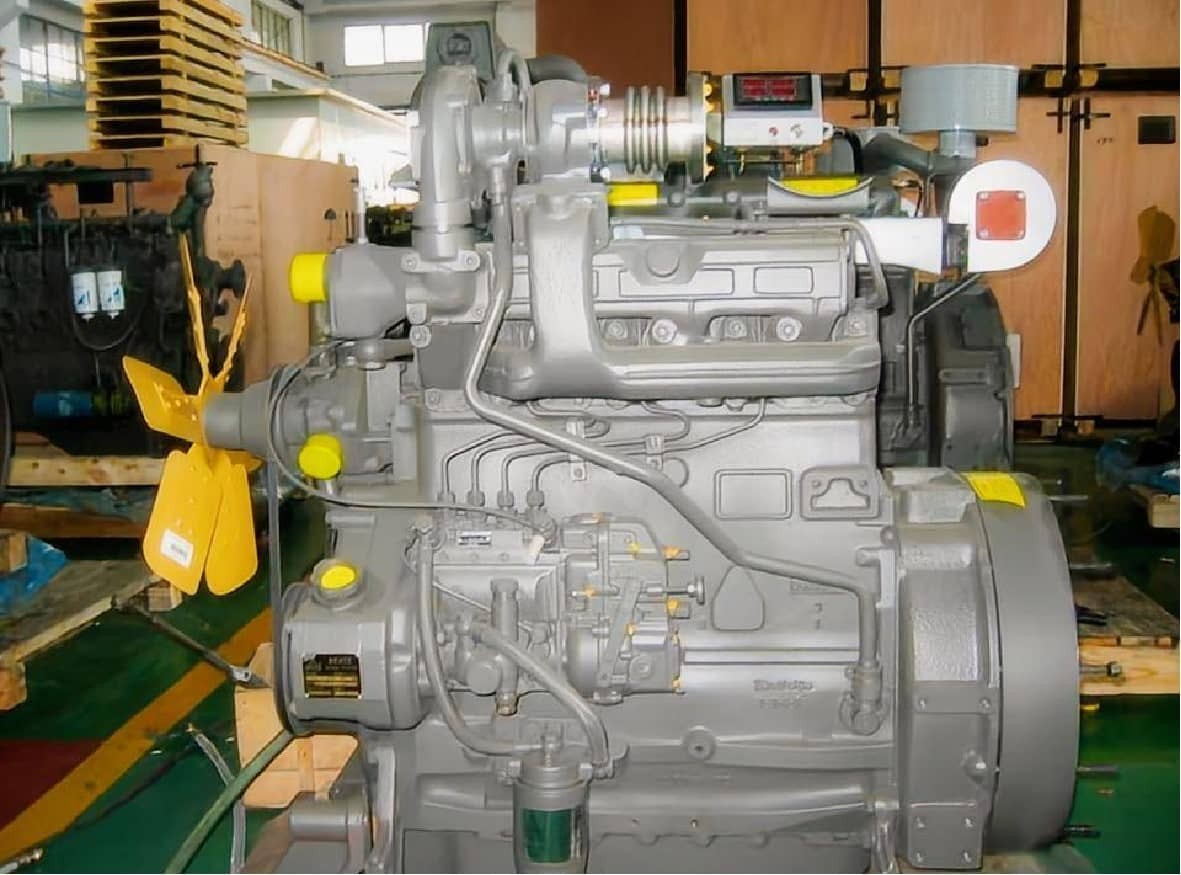

Deutz TBD226B-4IIA
Original Deutz licence plant, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Deutz, with 160 years of heritage, is one of the world’s leading manufacturers of innovative drive systems. Weichai Power Co., Ltd.("Weichai Power"), Fully Deutz technology & product line. Now the Licence ended, replaced with Weichai WP series but same quality.
Deutz TBD226B-4IIA could be widely used on Truck, Bus, Coach, Van, Commercial vehicles, Motor power pack.
Technical Specifications
General Engine Data
Engine Model: Deutz TBD226B-4IIA
Type: 4 Cylinders, in Line
Displacement: 4.16 L
Bore * Stroke: 105 * 120
Key Performance Date
Adversed Power/Speed: 120 kW/2500 rpm
Max. Torque/Speed: 510 N.m @ 1400-1600 rpm
Idle Speed: 750 ± 50 rpm
Min. Fuel Consumption @ Full-load: 198 g/Kw.h
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Aftercooled
Ignition Sequence: 1-3-4-2
Flywheel Casing: SAE1, SAE3
Deutz 226B-Vehicle Diesel Engine Series
Deutz 226B-Vehicle Diesel Engine Series, original products from Weichai Power Engine Plant.
This series is mainly used in three fields: truck, coach and bus.
The engines for truck mainly include Deutz TBD226B-3II, Deutz TBD226B-4II, Deutz TBD226B-4IIA, Deutz TBD226B-4IIC, Deutz TBD226B-6IIA, Deutz TBD226B-6IIB, Deutz TBD226B-6IIC.
The engines for coach mainly include TBD226B-4IIA, TBD226B-6IIC, TBD226B-6IID.
The engines for bus mainly include TBD226B-4IIA, TBD226B-6IIC, TBD226B-6IID.
