Details

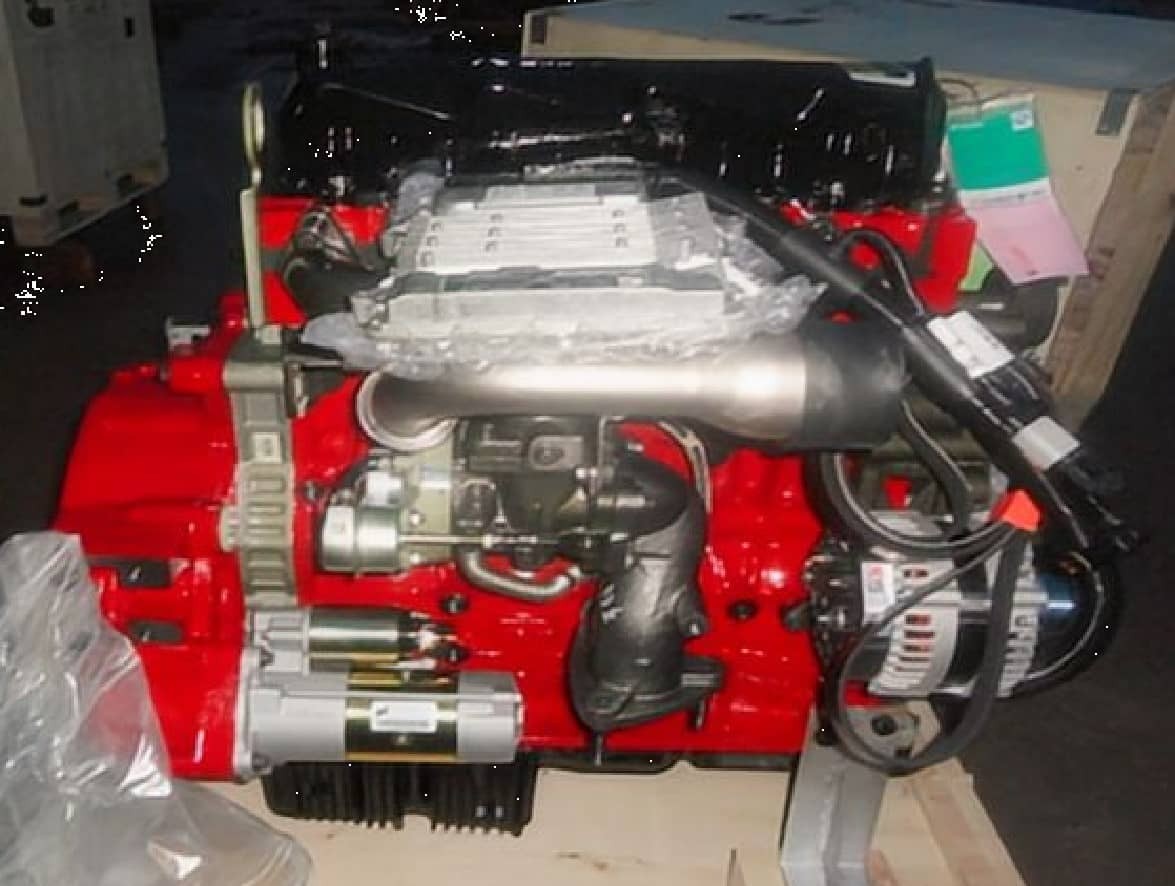

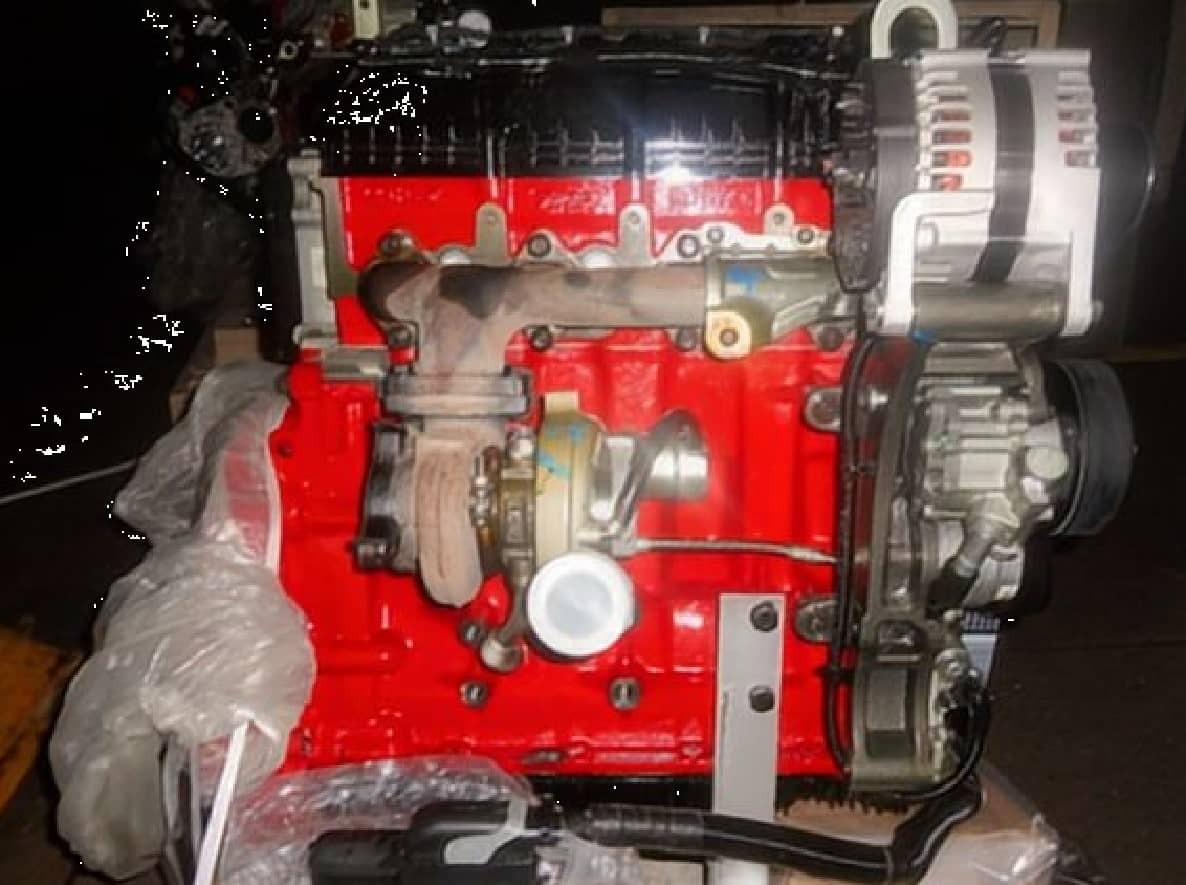

Cummins ISF3.8s3141 Engine Assembly for Light Commercial Vehicles
The Cummins ISF3.8s3141 engine assembly is a 3.8L electronically controlled diesel engine developed for light commercial vehicles, urban logistics transport and medium-duty cargo applications. Manufactured under the BFCEC joint venture platform, this engine combines compact structure, fuel efficiency and stable low-speed torque output for demanding transport operations.
HekoPower supplies genuine Cummins ISF3.8s3141 complete diesel engines for customers requiring reliable replacement engines, export power units and OEM-grade commercial vehicle solutions. The engine is widely used in Foton light trucks, logistics fleets, refrigerated transport vehicles and municipal service vehicles operating under Euro III emission standards.
Unlike many standard specification-only product pages, this page focuses on real operational applications, maintenance considerations and long-term fleet value to help buyers understand whether the ISF3.8s3141 engine is suitable for their actual vehicle requirements.
Tech Specs of Cummins ISF3.8s3141
General Engine Data
Engine Model: Cummins ISF3.8s3141
Type: 4 Cylinders in Line
Displacement: 3.76 L
Bore * Stroke: 102 * 115
Net Weight (with flywheel & alternator): 335 Kg
Overall Dimension: 801mm*695mm*806mm
Key Performance Data
Rated Power: 105 kW/141HP
Rated Speed: 2600 rpm
Idle Speed: 750 rpm
Min. Fuel Consumption: 195 g/Kw.h
Max Continuous Running Altitude: 2000 m
Max. Torque/Speed: 450 N.m @ 1200-2200 rpm
Max. No-load Governed Speed: 2950 rpm
More Technical Data
Certification: Euro III
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Bosch Direct Injection/HPCR, SCR
Compression Radio: 17.2:1
Starting System: Electrical Starting Motor 24V
Starting Temp (with/without auxiliary system): -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 11.1 L
Technical Engineering Profile & Design Architecture
The engineering success of the Genuine Cummins ISF3.8 140HP engine rests on its advanced thermal management and high-pressure fuel delivery systems. Unlike older mechanical engines, the ISF3.8 series utilizes electronic integration to extract maximum energy density from every drop of fuel.
High Pressure Common Rail (HPCR) Integration
At the heart of this unit is the ISF3.8s3141 Bosch HPCR fuel efficiency engine system. The Bosch High-Pressure Common Rail setup operates at injection pressures exceeding 1600 bar. This intense pressure atomizes diesel fuel into an ultra-fine mist, allowing for multiple precise injection events per combustion cycle.
This precise fuel delivery yields a highly optimized air-fuel mixture. The engine achieves its rated 105kW 450Nm Cummins diesel engine output while maintaining a remarkably flat torque curve between 1200 and 2200 RPM. This engineering design ensures immediate throttle response even under full cargo loads.
Air Handling and Thermal Resilience
To complement the high-pressure fuel delivery, the engine uses a wastegate turbocharger paired with a charge-air cooling circuit. This setup ensures the intake manifold receives dense, cool oxygen, preventing localized hot spots inside the cylinders.
The structural block is cast from high-strength gray iron with integrated composite oil pans and valve covers. This material mix drastically minimizes structural resonance, transforming the unit into an exceptionally quiet ISF3.8s3141 long service life diesel engine compared to previous generations of commercial power plants.
Real-World Application Scenarios across Logistics Fleets
The structural versatility of the ISF3.8 series makes it the primary powertrain choice across several distinct commercial vehicle categories. Understanding these exact fitments helps purchasing managers match fleet requirements precisely.
Light-Duty Urban Distribution Trucks
Urban logistics demands an engine that can withstand endless stop-and-go driving cycles without clogging fuel systems or overheating. The ISF3.8s3141 common rail diesel engine for light truck fleets thrives in these exact environments.
It serves as the exact factory replacement Cummins ISF3.8s3141 engine for Foton Aumark truck chassis, as well as JAC light-duty commercial lines. The flat torque curve allows drivers to pull heavy loads away from loading docks without excessive clutch wear or gear hunting.
Cold Chain Transport & Refrigerated Vans
Temperature-controlled logistics leaves no room for mechanical failure. A stalled truck means ruined cargo. Fleet operators utilize this platform as a dedicated Cummins ISF3.8s3141 engine for refrigerated truck lines because its mechanical architecture maintains steady auxiliary belt tension. This stability ensures that both the vehicle alternator and the heavy refrigeration compressor run continuously without experiencing voltage drops or mechanical slippage.
Express Courier and Intercity Logistics Vehicles
For long-distance transport between regional hubs, operators require a dependable Cummins ISF3.8s3141 engine for logistics vehicle fleets. The built-in electronic control module (ECM) continuously balances fuel trims based on altitude, barometric pressure, and ambient temperatures. This makes the unit a premier Cummins ISF3.8s3141 low fuel consumption engine, lowering total operating costs across thousands of cross-border transit kilometers.
Technical Comparison with Similar Commercial Diesel Engines
ISF3.8s3141 vs ISF2.8 Diesel Engine
Many logistics operators compare the Cummins ISF3.8 engine with the smaller ISF2.8 platform when selecting replacement power units.
The ISF2.8 engine is suitable for lighter transport tasks and lower payload vehicles. However, for applications involving higher cargo weight, frequent uphill operation or long-distance regional transport, the ISF3.8s3141 provides stronger low-speed torque and more stable power output.
The larger displacement also reduces excessive high-RPM operation during heavy-load driving conditions, which may help extend engine service life in commercial fleet environments.
ISF3.8s3141 vs Traditional Mechanical Diesel Engines
Compared with older mechanical injection diesel engines, the electronically controlled ISF3.8 system offers several operational advantages.
Fuel injection timing is managed more accurately through the ECU system, helping improve fuel efficiency and cold-start performance. Drivers generally experience smoother throttle response and reduced black smoke under acceleration.
The Bosch HPCR fuel system also improves combustion stability, especially during urban stop-start transportation cycles.
Emissions and Aftertreatment Configurations
The Cummins ISF3.8s3141 Euro III commercial vehicle engine uses a balanced, electronically managed platform designed specifically for territories utilizing Euro III fuel standards. Unlike modern Euro V or Euro VI variations that require complex, sensitive DPF (Diesel Particulate Filter) assemblies, this Euro III electronically controlled diesel engine uses a streamlined ISF3.8s3141 SCR diesel engine system structure or localized internal EGR tuning. This simpler layout means it tolerates higher-sulfur diesel fuel without triggering automatic engine power derates or causing expensive exhaust system failures.
Operating Economy Comparison
When viewed alongside older, purely mechanical diesel engines, the fuel savings from the Cummins ISF3.8 high pressure common rail engine design quickly justify the initial upgrade costs.
By switching from mechanical injection pump platforms to the electronically timed Bosch HPCR injection system, fleet operations realize an immediate 8% to 12% drop in fuel consumption. Over a typical 300,000-kilometer commercial vehicle lifecycle, these fuel savings often completely cover the original purchase price of the replacement engine assembly.
Maintenance Protocols & Preventive Replacement Tips
Maximizing the service lifespan of a high-pressure common rail system requires sticking to rigid preventive maintenance schedules. Neglecting fuel and oil filtration will rapidly destroy precision injection components.
Fuel Filtration and Water Separation
The common rail system operates under incredibly tight mechanical tolerances. Water contamination or microscopic sediment will cause instant scoring inside the high-pressure pump.
To protect your asset, always run a dual-stage filtration setup:
- Primary Stage: A 10-micron fuel/water separator to trap bulk water and coarse particles.
- Secondary Stage: A 3-micron high-efficiency element to capture fine particulates before they hit the fuel rail.
Never reuse old seals or copper washers during filter elements swaps; doing so risks letting micro-air pockets enter the high-pressure side, causing fuel starvation and erratic idle speeds.
Critical Sensor Inspections
When swapping out a tired engine for a fresh Cummins ISF3.8s3141 truck engine wholesale unit, do not plug in worn, degraded auxiliary sensors. Always check the harness leads connecting the Crankshaft Position Sensor and the Fuel Rail Pressure Sensor. Corrupted voltage signals from old, oil-soaked connectors can cause hard starting, intermittent stalling, and false diagnostic trouble codes (DTCs), even on a brand-new factory engine assembly.
B2B Sourcing, Packaging, and Global Export Logistics
Sourcing industrial machinery globally requires a partner who understands the realities of sea freight, protective crating, and fast customs clearance. HekoPower structures every transaction to eliminate friction for international buyers.
Complete Power Pack Configurations vs. Bare Engines
When looking for a BFCEC Cummins ISF3.8s3141 complete diesel engine, buyers must decide between a bare long block and a complete power unit. HekoPower specializes in delivering the full OEM Cummins ISF3.8s3141 diesel power unit.
Our fully configured units include:
- Complete high-pressure fuel injection lines and Bosch common rail assembly.
- Factory-fitted wiring harness and pre-calibrated Euro III electronic control unit (ECU).
- Integrated cooling fan clutch, water pump, and alternator assemblies.
- Complete turbocharger unit with exhaust manifold shielding.
This turnkey setup cuts vehicle workshop installation time from days down to a few hours.
Maritime Freight and Port Operations
Operating as an established ISF3.8s3141 diesel engine China exporter, HekoPower coordinates streamlined dispatch directly from northern manufacturing hubs out to major ports. We regularly quote Cummins ISF3.8s3141 engine FOB Shanghai terms for straightforward shipping administration. Every engine assembly undergoes deep oil-drain testing and a complete interior coating of Vapor Corrosion Inhibitor (VCI) oil before being bolted down inside an export-grade, fumigated wooden crate. This protects sensitive common rail components against maritime humidity during long ocean transits.
BFCEC ISF Series, original products from Beijing Foton Cummins Engine Company Limited (BFCEC), a 50/50 joint venture between Cummins Inc. and China's Beiqi Foton Motor Company (Foton Motor). BFCEC produces Cummins light-duty, high-performance ISF diesel engines. This series mainly includes ISF2.8s3129T, ISF2.8s3148T, ISF2.8s4129P, ISF2.8s4129T, ISF2.8s5129T, ISF2.8s4148T, ISF2.8s4161P, ISF3.8s3141, ISF3.8s3154, ISF3.8s3168, ISF3.8s4141, ISF3.8s4154, ISF3.8s4168, ISF2.8s4107P.
B2B Sourcing & Technical Frequently Asked Questions
What exact components are included in a complete engine assembly?
A complete engine assembly from HekoPower arrives as a factory-tested power pack. It features the cylinder block, cylinder head, complete crankshaft assembly, pistons, connecting rods, camshaft, valvetrain, Bosch fuel injection pump, common rail, fuel injectors, turbocharger, intake and exhaust manifolds, alternator, starter motor, and engine wiring harness.
How does HekoPower prevent the homogenization of product pages on its site?
We build each product listing around real-world application data, specific factory source codes (such as BFCEC), and unique part-number cross-references. We avoid using generic, automated descriptions, ensuring that every product page offers distinct technical value tailored to what procurement teams are looking for.
What are the main shipping ports used for global engine exports?
While we routinely process Cummins ISF3.8s3141 engine FOB Shanghai shipping agreements, HekoPower can also manage logistics through other primary Chinese shipping terminals, including Qingdao, Tianjin, and Ningbo, based on your shipping line’s preferences.
Can this Euro III engine operate safely in regions with high-sulfur diesel?
Yes. The Euro III electronic architecture is explicitly engineered to handle variable fuel qualities. It does not utilize the sensitive particulate filters found on Euro VI models, preventing the frequent clogging and forced regeneration shutdowns common in regions with high-sulfur fuel.
What genuine spare parts support does HekoPower provide after purchase?
Every engine sale includes comprehensive Cummins ISF3.8s3141 genuine spare parts support. We supply matching overhaul gasket sets, genuine Bosch injectors, replacement fuel filters, and replacement sensors directly from our deep warehouse inventory to keep your fleet running smoothly.
