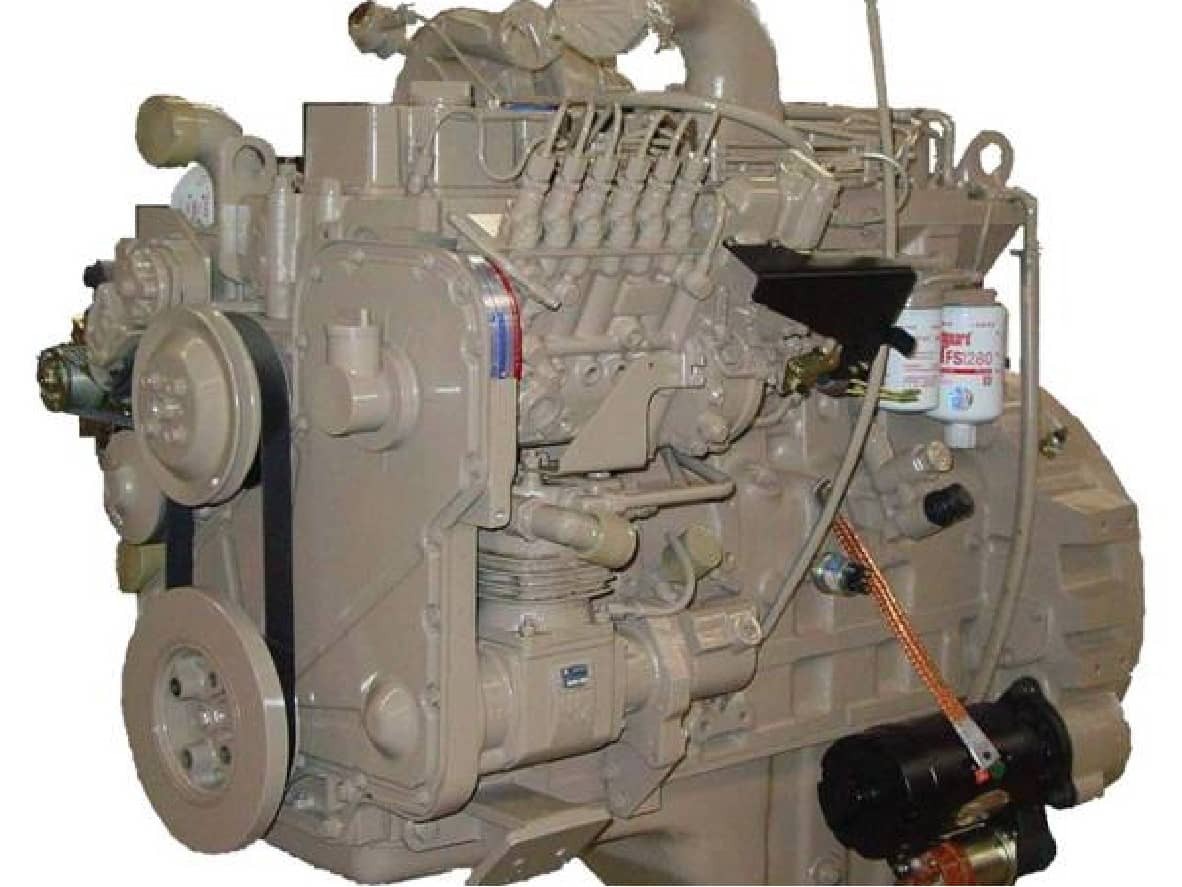

DCEC Cummins C300-20 Engine Assembly: 8.3L 300HP Mechanical Power
The DCEC Cummins C300-20 engine assembly stands as one of the most robust and widely trusted powerplants in the heavy-duty commercial vehicle sector. Engineered to deliver an uncompromising 300 horsepower, this Cummins 8.3L 300HP diesel engine balances raw pulling capability with the inherent reliability of a pure mechanical injection system.
Built on a proven 114x135 engine block architecture—featuring a 114 mm bore and 135 mm piston stroke—the Cummins C300-20 diesel engine is engineered for sustained heavy loads. It produces a maximum rated power of 221kW at 2200 RPM and generates a peak Cummins C300-20 1125 Nm torque at just 1500 RPM. This low-end torque availability makes the Dongfeng Cummins C300-20 the premier choice for demanding off-highway, construction, and heavy haulage applications.
Tech Specs of Cummins C300-20
General Engine Data
Engine Model: Cummins C300-20
Type: 6 Cylinders in Line
Displacement: 8.3 L
Bore * Stroke: 114 * 135
Net Weight (with flywheel & alternator): 636 Kg
Overall Dimension: 1180mm*920mm*1280
Key Performance Data
Rated Power: 221 kW/300 HP
Rated Speed: 2200 rpm
Max Torque/Speed: 1125 N.m @ 1200 rpm
Fuel Consumption @ Rated Power: 229 g/Kw.h
Max. No-load Governed Speed: 2500 rpm
Idle-Speed: 750±100 rpm
Max Continuous Running Altitude: 3000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Air-Air Intercooled
Fuel System: BOSCH P7100 Pump
Compression Radio: 17.5:1
Electrical System (Starter Motor/Alternator): 12V (500A)/24V (250A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 12.3 L
Engineering the C300-20 Mechanical Fuel System Engine
What truly separates the Cummins 6CT8.3-C300 from modern, sensor-heavy powerplants is its reliance on a mechanical fuel delivery system. The C300-20 mechanical fuel system engine is devoid of complex electronic control modules (ECMs) or common rail wiring harnesses, making it impervious to the electronic sensor failures that frequently plague modern engines in high-vibration or high-dust environments.

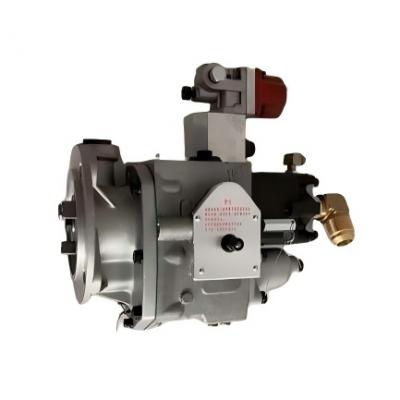

Depending on the exact build specification and vehicle intent, the engine is equipped with either a Cummins C300-20 Bosch P7100 pump or a matched Cummins C300-20 Weifu fuel injection pump configuration. Both of these high-pressure inline pumps deliver highly atomized fuel directly into the combustion chamber with exceptional precision. Because this is a true Cummins C300-20 Euro II engine, it is highly tolerant of varying global fuel qualities, ensuring uninterrupted operation even when high-grade, low-sulfur diesel is unavailable.
Technical Comparisons for Engine Replacement Compatibility
When evaluating a Cummins C300-20 truck engine replacement, fleet managers and mechanics must understand how this exact model compares to adjacent engines within the Cummins ecosystem. Engine interchange requires careful consideration of thermal limits, physical dimensions, and torque curves.
Cummins C300-20 vs C325-20 Technical Differences
While both engines share the same 6CT8.3 engine displacement, the 6CT8.3 C300-20 vs C325-20 comparison reveals distinct operational limits. The C325-20 pushes the 8.3-liter block to 325 horsepower, requiring a more aggressive fuel map, a larger turbocharger, and significantly enhanced charge-air cooling. For operations in extreme ambient heat, the C300-20 is often preferred due to its lower thermal stress. The Cummins C300-20 runs cooler under sustained load, resulting in longer intervals between top-end overhauls compared to the highly-stressed C325-20.
Cummins C300-20 vs C280-20
Comparing the Cummins C300-20 vs C280-20 highlights a difference in payload intent. The C280-20 is calibrated for medium-duty distribution networks, prioritizing fuel economy over heavy-haul capability. However, when navigating steep gradients or hauling maximum legal tonnage, the DCEC 6CT8.3 300HP torque curve and RPM specs of the C300-20 prevent the engine from bogging down. The extra 20 horsepower and enhanced low-end torque of the C300-20 drastically reduce gear hunting in manual transmissions.
Cummins C300-20 8.3L vs 8.9L L-Series (L300-30 / L325-20)
Engine swaps frequently bring up the Cummins C300-20 8.3L vs 8.9L debate. Models like the C300-20 vs L300-30 Cummins or the C300-20 vs L325-20 Cummins operate at similar horsepower ratings, but their physical footprints differ vastly. The Cummins C300-20 engine weight is approximately 635 kg (dry), and its compact Cummins C300-20 engine dimensions allow it to drop seamlessly into older truck chassis. The 8.9L L-series is heavier, taller, and features a longer stroke, requiring custom engine mounts and modified cooling package clearances during a repower project.
Cummins C300-20 vs C300-33 (Mechanical vs Electronic)
The primary distinction between the Cummins C300-20 vs C300-33 lies in emissions compliance and fuel delivery. The C300-33 is a Euro III engine utilizing electronic controls, while the C300-20 is a purely mechanical Cummins C300-20 Euro II engine. For export markets, remote logging operations, or mining sites without advanced diagnostic computers, the C300-20 mechanical diesel engine is universally preferred due to its field-serviceable nature.
Vehicle Intent and Real Application Scenarios
The original DCEC C300-20 engine was engineered with versatile vehicle/application intent. Because of its steady 2200 RPM governed speed and robust cast-iron block, the Cummins C300-20 vehicle engine is primarily utilized in severe-duty transport.
Heavy Construction Vehicles: The DCEC C300-20 heavy truck diesel engine assembly is heavily utilized in tri-axle dump trucks, cement agitators, and mobile cranes where high idle times and massive PTO (Power Take-Off) loads are standard.
Commercial Freight Transport: As an 8.3L Cummins heavy truck engine, it powers regional freight haulers, providing a highly efficient Cummins C300-20 fuel consumption g/kw.h rate at highway cruising speeds.
Passenger Transport: The Cummins C300-20 bus engine variant offers smooth acceleration for 10-to-12-meter intercity coaches, prioritizing passenger comfort alongside straightforward mechanical maintenance.
Maintenance, Overhaul, and Engine Interchange Specs
Maintaining the Dongfeng Cummins 6CT8.3 engine requires strict adherence to factory service intervals. Whether you are installing a Dongfeng Cummins C300-20 long block or a Cummins C300-20 complete engine assembly, achieving maximum longevity comes down to thermal management and clean air intake.
When rebuilding an existing unit, always utilize an OEM overhaul gasket kit for Cummins C300-20. The 114 mm wet cylinder liners must be perfectly seated with the correct protrusion height to ensure the cylinder head gasket seals completely against the immense combustion pressures. During a 6CT8.3-C300 replacement engine installation, mechanics must verify C300-20 engine replacement compatibility by checking the flywheel housing SAE standard and the specific location of the engine oil dipstick, as these vary based on the original truck chassis.
Common Misconceptions About the 6CT8.3-C300
A persistent misconception regarding the Cummins 6CT8.3 C300-20 is that mechanics can safely increase the power to match a C325-20 simply by adjusting the fuel delivery screw on the Bosch P7100 pump. While this does inject more fuel, it drastically skews the air-to-fuel ratio because the standard 300HP turbocharger cannot provide the necessary boost. This modification leads to excessively high exhaust gas temperatures (EGTs), which will melt piston crowns and destroy the exhaust manifold within a few thousand kilometers.
Sourcing from HekoPower: Your Original DCEC C300-20 Supplier
Finding a reliable Cummins C300-20 engine supplier is critical for fleet operators seeking minimal downtime. As a premier DCEC C300-20 exporter and original Cummins C300-20 supplier, HekoPower provides complete end-to-end repower solutions.
Whether you require a Cummins C300-20 replacement motor to revive an aging dump truck, or you are looking for Cummins C300-20 wholesale volumes to support a regional remanufacturing facility, we guarantee strict quality control. Our transparent Cummins C300-20 engine price structures and highly competitive Cummins C300-20 wholesale price options ensure your maintenance budgets are respected. Furthermore, our streamlined logistics guarantee an accurate Cummins C300-20 lead time, minimizing the time your heavy machinery spends off the road.
This series mainly includes a comprehensive lineup of robust mechanical and electronic engines designed for global commercial applications. From the foundational 4BT up to the high-displacement L and M series, our inventory ensures that every specific industrial, marine, and automotive power requirement is met with exact factory specifications.
DCEC C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes C220-20, C230-20, C230-33, C240-20, C245-20, C245-33, C260-20, C260-33, C280-20, C280-33, C300-20, C300-33, C325-20.
Frequently Asked Questions (FAQ)
What is the difference between the C300-20 and C300-33?
The primary difference lies in their performance ratings and specific tuning. The C300-20 is rated at 300HP @ 2200RPM, while other variants like the C300-33 may have different horsepower ratings at different RPMs, tailored for specific applications.
What is the exact fuel consumption of the Cummins C300-20 engine?
The baseline Cummins C300-20 fuel consumption g/kw.h rate operates highly efficiently at roughly 198 to 205 g/kW.h under full load conditions. Real-world vehicle fuel economy depends heavily on gearing, tire size, and gross vehicle weight.
Can I use a C300-20 long block to replace a failed electronic engine?
Yes, utilizing a DCEC C300-20 replacement engine is a common practice to convert from a problematic electronic system back to a reliable mechanical system. However, this C300-20 engine interchange requires modifying the truck’s dashboard gauges, throttle pedal linkages, and engine mount configurations.
Does HekoPower supply just the long block or the complete assembly?
As a comprehensive DCEC C300-20 engine supplier, HekoPower offers both. You can order a bare Dongfeng Cummins C300-20 long block if your external accessories (starter, alternator, turbo) are still functional, or a fully dressed Cummins C300-20 complete engine assembly for a fast, drop-in installation.
Is the 300HP Cummins truck engine suitable for high-altitude operations?
The Cummins 8.3L 300HP diesel engine utilizes a high-efficiency exhaust gas turbocharger with an air-to-air intercooler. This forced induction allows the 300HP Cummins truck engine to compensate for thin air, maintaining strong performance at altitudes where naturally aspirated engines lose significant power.
