Cummins C230-20 Complete Engine Assembly: Reliable 8.3L Power for Heavy Commercial Vehicles
Sourcing the right heavy-duty diesel engine requires a deep understanding of payload requirements, regional emission standards, and chassis compatibility. As a dedicated global engine supplier, HekoPower provides the genuine Dongfeng Cummins C230-20 engine assembly. This 6-cylinder in-line diesel engine is engineered specifically for commercial transport. Built on the proven Cummins 6CT8.3 platform, the C230-20 delivers a continuous 170kW (230HP) at 2200 RPM.
Unlike newer electronic engines that require complex diagnostic software, this Euro II emission standard engine relies on mechanical fuel injection. It is highly sought after by fleet managers who need a rugged, fail-safe powerplant for environments where downtime is simply not an option.

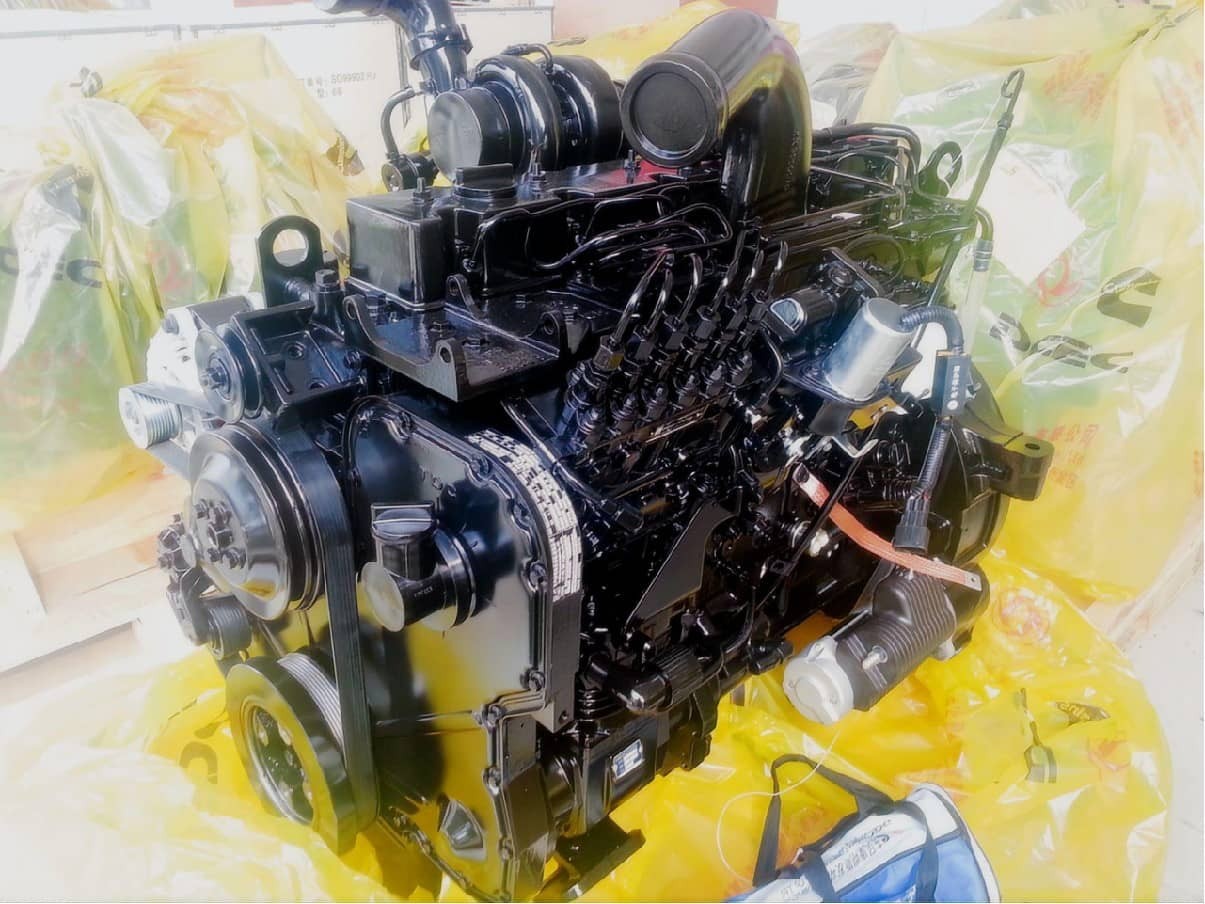

Tech Specs of Cummins C230-33
General Engine Data
Engine Model: Cummins C230-33
Type: 6 Cylinders in Line
Displacement: 8.3 L
Bore * Stroke: 114 * 135
Net Weight (with flywheel & alternator): 604 Kg
Overall Dimension: 1180mm*920mm*1280
Key Performance Data
Rated Power: 170 kW/230 HP
Rated Speed: 2200 rpm
Max Torque/Speed: 410 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 242 g/Kw.h
Max. No-load Governed Speed: 2720 rpm
Idle-Speed: 800 rpm
Max Continuous Running Altitude: 3000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Intercooled
Fuel System: BYC PB Pump/R801 Governor
Compression Radio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V (500A)/24V (250A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 12.3 L
Real Application Scenarios for the DCEC C230-20 Engine
Matching an engine to its intended operational environment is critical for longevity. The Cummins C230-20 8.3L engine is calibrated for high-stress applications where consistent low-end power matters more than high-speed highway cruising.
When applied as a C230-20 engine for heavy trucks, its maximum torque of 861 N.m at a low 1300 RPM allows drivers to move heavy payloads from a dead stop without excessively slipping the clutch. This makes it an ideal Cummins C230-20 engine for dump truck and cargo truck applications operating in quarries, construction sites, or steep mountainous regions.
Public transit operators also frequently utilize this model as a Cummins bus engine replacement. Regional and municipal buses require thousands of hours of stop-and-go operation. The simplicity of the C230-20 mechanical fuel injection system reduces the risk of sensor failures that typically sideline modern transit fleets, ensuring consistent route schedules and lower lifetime maintenance costs.
Technical Comparisons Within the Cummins C-Series
Fleet mechanics often ask how the Cummins C230-20 compares to other engines in the Dongfeng Cummins lineup. Understanding these differences prevents costly mismatches when ordering a Cummins C230-20 replacement engine for truck applications.
Cummins C230-20 vs C220-20
Both engines share the exact same 8.3L displacement and 114 × 135 mm bore and stroke dimensions. The primary difference lies in the fuel pump calibration and turbocharger mapping. The C230-20 generates a slightly higher 230HP output compared to the 220HP of the C220-20. This extra horsepower provides better highway merging speeds and sustained momentum on long uphill grades for fully loaded commercial vehicles. The C220-20 is generally reserved for lighter utility trucks where peak power demands are lower.
Cummins C230-20 vs C260-20
Stepping up to the C260-20 introduces a significant jump in horsepower and structural stress. The C230-20 vs C260-20 horsepower difference dictates chassis selection. The 260HP variant is designed for heavier multi-axle tractor-trailers and requires a heavier-duty transmission and cooling package. Installing a C260-20 into a chassis designed for a C230-20 can lead to premature gearbox failure. The C230-20 remains the optimal middle ground, offering high torque without destroying standard-duty drivetrains.
Cummins C230-20 vs C230-33
When looking at the C230-20 vs C230-33 Euro II Euro III distinction, the mechanical differences become stark. The C230-20 utilizes a traditional Bosch PW2000 fuel pump meeting Euro II standards. The C230-33 achieves Euro III compliance by moving to more advanced injection controls or electronic management. For export markets, remote regions, or fleets managing inconsistent fuel quality, the mechanical C230-20 is heavily favored because it requires no specialized electronic diagnostic laptops to service in the field.
Overcoming Common Misconceptions About the C230-20
There are several persistent myths regarding heavy-duty engine specifications that can lead buyers toward the wrong product.
The most common misconception is that mechanical fuel injection is entirely obsolete. While modern highways prioritize electronic common-rail systems for strict emissions, the mechanical Bosch PW2000 fuel pump on the C230-20 is actually a distinct advantage in rough environments. Electronic systems are highly sensitive to water and sulfur in diesel fuel. The mechanical plunger design of the C230-20 is incredibly resilient, allowing the engine to run efficiently even when fuel quality is compromised.
Another major misunderstanding involves horsepower ratings. Many operators believe that higher horsepower equates to better pulling capacity. In heavy transport, torque is the true measure of capability. The C230-20 torque vs horsepower curve is optimized so that peak pulling power happens early in the RPM range. A smaller displacement engine might boast 230HP at 2800 RPM, but it will lack the 861 Nm of brute twisting force the 8.3L Cummins delivers right off idle.
Maintenance and Replacement Tips for the Cummins 8.3L
Executing a successful engine swap requires careful attention to physical dimensions and mounting hardware. As an experienced Cummins C230-20 complete engine supplier, HekoPower advises all clients to verify their chassis specifications before purchasing.
The Cummins C230-20 engine weight sits at approximately 604 kg dry, and the C230-20 replacement engine dimensions are substantial. Mechanics must ensure they have adequate hoist capacity and engine bay clearance. More importantly, buyers must check the C230-20 replacement engine flywheel housing. Dongfeng vehicles utilize specific bellhousing bolt patterns. Verifying the SAE size of your current flywheel housing ensures the new engine will bolt directly to your existing transmission without the need for custom adapter plates.
Routine maintenance on the C230-20 is straightforward but must be strictly followed. The Cummins C230-20 turbocharged engine utilizes an air-to-air intercooler. Operators must frequently inspect the intercooler piping for boost leaks, as lost air pressure leads to high exhaust gas temperatures and wasted fuel. Furthermore, C230-20 fuel injector replacement should be scheduled strictly according to the manufacturer's hours-of-operation guidelines. Worn mechanical injectors will alter the fuel spray pattern, causing rough idling, increased smoke, and poor Cummins C230-20 fuel consumption.
Navigating the Dongfeng Cummins Engine Lineup
Finding exact C230-20 engine replacement compatibility often involves cross-referencing multiple engine models. HekoPower understands that fleet managers oversee diverse vehicles requiring different power outputs. Whether you need a genuine DCEC C230-20 supplier for a single dump truck or a wholesale partner to repower an entire transit bus fleet, we provide comprehensive access to the entire C-Series platform. By standardizing your fleet on the 8.3L block, you can simplify your parts inventory, sharing filters, belts, and accessories across multiple vehicles.
DCEC C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes C220-20, C230-20, C230-33, C240-20, C245-20, C245-33, C260-20, C260-33, C280-20, C280-33, C300-20, C300-33, C325-20.
Frequently Asked Questions (FAQ)
What does the Cummins C230-20 complete engine assembly include?
A complete assembly from HekoPower includes the cylinder block, cylinder head, crankshaft, camshaft, pistons, Bosch PW2000 fuel pump, mechanical fuel injectors, turbocharger, air compressor, water pump, and standard C230-20 replacement engine accessory configuration. It arrives fully assembled and ready for final integration into the vehicle chassis.
How do I secure a Cummins C230-20 wholesale price?
HekoPower serves as a primary Cummins C230-20 engine exporter. We offer tiered pricing based on volume. Fleet managers looking for multiple C230-20 diesel engine for commercial vehicle applications can contact our sales team directly to negotiate a competitive Cummins C230-20 engine price and discuss long-term supply contracts.
What is the standard Cummins C230-20 lead time and shipping process?
Because the C230-20 is a highly requested model, standard lead times are typically around 10 business days for single units. Cummins C230-20 engine shipping involves secure, export-grade wooden crating to protect the oil pan, turbocharger, and sensitive engine replacement parts during ocean or air transit.
Can HekoPower provide the C230-20 spare parts catalog?
Yes. Beyond selling the complete engine assembly, we are a comprehensive Cummins C230-20 spare parts supplier. If your current engine only requires an overhaul, we can supply genuine overhaul kits, piston rings, cylinder liners, main bearings, and replacement fuel pumps directly from the factory.
